SEEING CLEARLY

Li
ghting


Ring A
Lighting off.

Ring B Sidelamps.
Dipped / main beam headlamps.
Rear foglamp.
or
Front and rear foglamps. Automatic illumination of head-
lamps.
100, 101

Direction indicators

Raise or lower the lighting stalk passing
the point of resistance; the correspond-
ing direction indicators will fl ash for as
long as the stalk remains in this posi-
tion.

"Motorway" function
Press the lighting stalk up or down once,
without passing the point of resistance;
the corresponding direction indicators
will fl ash three times.
This function can be used at any speed,
but it is particularly useful when chang-
ing lane on high-speed roads.
134


Wipers


Stalk A: windscreen wipers

Switching on "AUTO"


)
Press the stalk down and release it.


Switching off "AUTO"


)
Push the stalk up and return it to po-
sition "0"
.
105

Ring B: rear wiper
Park.
Intermittent wipe.
Wash-wipe.
106

50
IN
S

Operation indicator lamps
If one of the following indicator lamps comes on, this confi rms that the corresponding system has come into operation.



Warning lamp



is on



Cause



Action / Observations






Left-hand
direction
indicato

r


fl ashing
with buzzer. The lighting stalk is pushed
down.




Right-hand
direction
indicator


fl ashing
with buzzer. The lighting stalk is pushed up.




Sidelamps


fi xed. The lighting stalk is in the
"Sidelamps" position.




Dipped beam
headlamps


fi xed. The lighting stalk is in the
"Dipped beam headlamps"
position.




Main beam
headlamps


fi xed.
The lighting stalk is pulled towards
you. Pull the stalk to return to dipped beam headlamps.
Ready


fi xed. The vehicle is ready to move off;
you can press the accelerator. It comes on once high voltage is established in
the vehicle.




Front
foglamps


fi xed. The front foglamps are switched
on. Turn the ring on the stalk rearwards twice to
switch off the front foglamps.




Rear
foglamps


fi xed. The rear foglamps are switched
on. Turn the ring on the stalk rearwards to switch off
the rear foglamps.

VIS
100
LIGHTING CONTROLS
System for selection and control of the
various front and rear lamps providing
the vehicle's lighting.

Main lighting

The various front and rear lamps of
the vehicle are designed to adapt the
lighting progressively in relation to the
climatic conditions and so improve the
driver's visibility:


- sidelamps, to be seen,

- dipped beam headlamps to see
without dazzling other drivers,

- main beam headlamps to see clear-
ly when the road is clear,

- directional headlamps for improved
visibility when cornering.



Additional lighting

Other lamps are installed to fulfi l the
requirements of particular driving con-
ditions:


- a rear foglamp to be seen from a
distance,

- front foglamps for even better visibi-
lity,

- daytime running lamps to be seen
during the day.


Programming

Various automatic lighting control modes
are also available according to the fol-
lowing options:


- guide-me-home lighting,

- automatic lighting,

- directional headlamps.


Model without AUTO lighting



Model with AUTO lighting





Automatic illumination of
headlamps.
Manual controls

The lighting is controlled directly by the
driver by means of the ring A
and the
stalk B
.

A.
Main lighting mode selection ring:
turn it to position the symbol re-
quired facing the mark.
Lighting off / daytime run-
ning lamps.
Sidelamps.

B.
Stalk for switching headlamps: pull
the stalk towards you to switch the
lighting between dipped and main
beam headlamps.
In the lamps off and sidelamps modes,
the driver can switch on the main beam
headlamps temporarily ("headlamp fl ash")
by maintaining a pull on the stalk. Dipped headlamps or
main beam headlamps.

Displays

Illumination of the corresponding indi-
cator lamp in the instrument panel con-
fi rms that the lighting selected is on.

VIS
101


Model with rear foglamp only

Rear foglamp
This operates with dipped and main
beam headlamps.


)
To switch on the foglamp, turn the
ring C
forwards.


)
To switch off the foglamp, turn the
ring C
rearwards.
When the lighting is switched on au-
tomatically (with AUTO model), the
dipped beam headlamps and side-
lamps remain on until the rear foglamp
is switched off.
In good or rainy weather, by
both day and night, the front
foglamps and the rear foglamp
are prohibited. In these situations,
the power of their beams may dazzle
other drivers.
Do not forget to switch off the front
foglamps and the rear foglamp when
they are no longer necessary.


Model with front and rear foglamps
Front and rear foglamps

The rear foglamp operates with the
dipped and main beam headlamps.
The front foglamps also operate with
the sidelamps.


)
To switch on the rear foglamp, turn
the ring C
forwards.

)
To switch on the front foglamps, turn
the ring C
forwards again.

)
To switch off the rear foglamp, turn
the ring C
rearwards.

)
To switch off the front foglamps, turn
the ring C
rearwards again.









C.
Fog lamps selection ring.
Lighting on audible warning
When the ignition is switched off, all of
the lamps switch off automatically, unless
guide-me-home lighting is activated.
If the lighting is switched on manually
after switching off the ignition, there
is an audible signal when a front door
is opened to warn the driver that they
have forgotten to switch off the vehicle's
lighting, with the ignition off.
When the lighting is switched off au-
tomatically (with AUTO model) or
when the dipped beam headlamps are
switched off manually, the foglamps and
the sidelamps will remain on.

In some weather conditions
(e.g. low temperature or hu-
midity), the presence of mist-
ing on the internal surface of the glass
of the headlamps and rear lamps is
normal; it disappears after the lamps
have been on for a few minutes.
When the lighting is switched on au-
tomatically (with AUTO model), the
dipped beam headlamps and side-
lamps remain on until the rear foglamp
is switched off.

VIS
104
In fog or snow, the sunshine
sensor may detect suffi cient
light. In this case, the lighting
will not come on automatically.
Do not cover the sunshine sensor,
coupled with the rain sensor and lo-
cated in the centre of the windscreen
behind the rear view mirror; the as-
sociated functions would no longer
be controlled.


When the automatic illumination of
headlamps function is activated, un-
der low ambient light the dipped beams
headlamps come on automatically when
the ignition is switched off.
Operating fault
In the event of a malfunction of
the sunshine sensor, the lighting
comes on, this warning lamp is
displayed in the instrument panel
and/or a message appears in the screen,
accompanied by an audible signal.
Contact a PEUGEOT dealer or a qualifi ed
workshop.
MANUAL ADJUSTMENT OFHALOGEN HEADLAMPS
The initial setting is position "0"
.
To avoid causing a nuisance to other
road users, the height of the halogen
headlamps should be adjusted accord-
ing to the load in the vehicle.

0.
1 or 2 people in the front seats.

-.
3 people.

1.
5 people.

-.
Intermediate setting.

2.
5 people + maximum authorised load.

-.
Intermediate setting.

3.
Driver + maximum authorised load.

Automatic "guide-me-home" lighting


Programming
Activation or deactivation, as well as the
duration of the guide-me-home light-
ing, is set in the vehicle confi guration
menu.


Travelling abroad
If using your vehicle in a coun-
try that drives on the other side
of the road, the headlamps must be
adjusted to avoid dazzling on-coming
drivers.
Contact a PEUGEOT dealer or a
qualifi ed workshop.

PRACTICAL INFORMATION
181







Changing dipped / main beam
headlamp bulbs


)
Remove the protective plastic cover
by pulling on the tab.

)
Disconnect the bulb connector.

)
Turn the bulb holder.

)
Pull out the bulb and change it.
To r efi t, carry out these operations in re-
verse order.

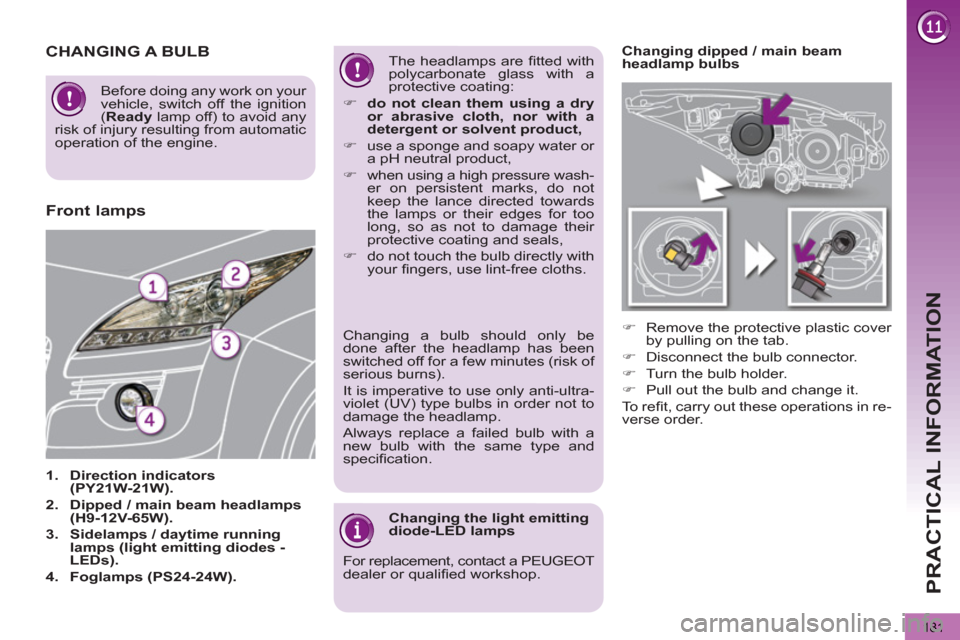

CHANGING A BULB










1.
Direction indicators
(PY21W-21W).


2.
Dipped / main beam headlamps
(H9-12V-65W).


3.
Sidelamps / daytime running
lamps (light emitting diodes -
LEDs).


4.
Foglamps (PS24-24W).



The headlamps are fi tted with
polycarbonate glass with a
protective coating:


)
do not clean them using a dry
or abrasive cloth, nor with a
detergent or solvent product,


)
use a sponge and soapy water or
a pH neutral product,

)
when using a high pressure wash-
er on persistent marks, do not
keep the lance directed towards
the lamps or their edges for too
long, so as not to damage their
protective coating and seals,

)
do not touch the bulb directly with
your fi ngers, use lint-free cloths.


Front lamps


Changing a bulb should only be
done after the headlamp has been
switched off for a few minutes (risk of
serious burns).
It is imperative to use only anti-ultra-
violet (UV) type bulbs in order not to
damage the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specifi cation.


Changing the light emitting
diode-LED lamps
For replacement, contact a PEUGEOT
dealer or qualifi ed workshop.

Before doing any work on your
vehicle, switch off the ignition
( Ready
lamp off) to avoid any
risk of injury resulting from automatic
operation of the engine.

ALPHABETICAL INDEX
328
Labels, identifi cation ..................... 206
Lamps, warning and
indicator ........................... 49, 52, 53
LED daytime running lamps ......... 102
Level, brake fl uid .......................... 168
L
Eco-driving ..................................... 39
Economical driving ........................ 39
Economy mode............................. 195
Eco off ............................................ 38
Electric window controls ................. 92
Electronic engine immobiliser ..... 87, 89
Electronic stability control (ESC) ..... 135
Emergency call ..................... 208, 209
Emergency warning lamps ........... 134
Energy economy mode................. 195
Engine, Diesel.......................... 99, 166,
167, 203, 204
Engine compartment .............. 44, 167
Engine compartment fusebox ....... 185
Engine oil level indicator ......... 60, 168
Engines................................. 202, 203
Environment ......................... 8, 39, 89
ESC/ASR ...................................... 135Halogen headlamps...................... 181
Hands-free kit ....................... 278, 319
Hazard warning lamps .................. 134
Head-up display............ 152, 154, 156
Headlamp adjustment................... 104
Headlamp wash ............................ 106
Headlamp wash reservoir ............. 169
Head restraints, front ...................... 78
Head restraints, rear ....................... 80
Heated seats .................................. 78
Heating ........................................... 39
Height and reach adjustment,
steering wheel ............................. 82
High voltage...... 42, 43, 139, 165, 193
High voltage cable .......................... 43
Hill start assist .............................. 149
History ...................................... 41, 69
Hooks ............................................119
Horn .............................................. 134
Hybrid ................. 4, 6, 26, 31, 35, 192
Hybrid fl ow ............................ 4, 26, 35
Hybrid selector................................ 31
Hybrid system ....... 4, 26, 27, 217, 259 Filling with fuel .......................... 98, 99
Fitting a wheel .............................. 179
Fitting roof bars............................. 199
Fittings, boot ..................................118
Flashing indicators........................ 134
Flat bed lorry or trailer ............ 46, 197
Foglamps, rear ............................. 101
Folding the rear seats ..................... 80
Front foglamps...................... 101, 182
Front seats.......................... 76, 77, 79
Fuel..................................... 39, 98, 99
Fuel consumption ..................... 39, 41
Fuel consumption fi gures ............... 41
Fuel fi ller cap .................................. 98
Fuel fi ller fl ap ............................ 98, 99
Fuel gauge...................................... 98
Fuel tank ................................... 98, 99
Fusebox, dashboard ..................... 185
Fuses ............................................ 185G.P.S. ................................... 222, 264
Gearbox, electronic
gear control ....................... 158, 171
Gear lever, electronic gear control
gearbox ..................................... 158
Glove box ......................................112
Grab handle on console ................ 111
Grab handles ................................. 111
Guidance ...................... 222, 262, 269
Guide-me-home............................ 103Identifi cation plates ....................... 206
Indicator lamps, status.................... 51
Indicators, direction ...................... 134
Infl ating accessories
(using the kit) ............................. 172
Infl ating tyres .................................. 39
Inputs for audio system ....... 238, 295,
316, 318
Instrument panel lighting ................ 61
Instrument panels ..................... 47, 48
Instrument panel screen ................. 47
Interior fi ttings ................................ 111
Interior mood lighting .................... 109
ISOFIX .......................................... 131
ISOFIX child seats ................. 130-132
ISOFIX mountings ........................ 130
Jack .............................................. 178
JACK socket ................. 295, 316, 318
Jukebox (copy) ............................. 236
Jukebox (playing) ......................... 237
Keeping children safe .......... 122, 123,
131, 132, 140
Key with remote control ....... 85-87, 89
EG
FI
J
K
H

ALPHABETICAL INDEX
329
Level, headlamp wash .......... 106, 169
Level, power steering fl uid ............ 168
Levels and checks ................. 167-169
Lighting ..........................................110
Lighting, guide-me home .............. 103
Lighting, interior .................... 108, 109
Lighting bulbs
(replacement) ............ 181, 183, 184
Lighting control stalk ..................... 100
Lighting dimmer .............................. 61
Loading ................................... 39, 199
Load reduction mode .................... 195
Load space cover ......................... 120
Locating your vehicle ...................... 86
Locking from the inside................... 95
Long objects, transporting .......79, 116
Luggage retaining strap .................118
Main beam .................................... 100
Maintenance ................................... 39
Map reading lamps ....................... 108
Markings, identifi cation ................. 206
Mat .................................................114
Menu, main ................................... 312
Mini fuel level ............................ 55, 98
Mirror, rear view .............................. 84
Mirrors, door ................................... 83
Misfuel prevention .......................... 99
Motorway function
(direction indicators) .................. 134
Mountings for ISOFIX seats ......... 130
MP3 CD ........................................ 315
Multimedia, rear .............................115
Music media players ............. 234, 290Oil fi lter ......................................... 170
Oil level ................................... 60, 168
Opening the bonnet ...................... 165
Opening the boot ...................... 85, 96
Opening the doors .................... 85, 94
Opening the panoramic
sunroof blind ...............................117
Opening the retractable screen ...... 67
Opening the tailgate ................. 96, 97
Operation indicator lamps .... 49, 51, 52
Navigation..................... 222, 261, 262
Number plate lamps ..................... 184Paint colour code .......................... 206
Panoramic glass sunroof ...............117
Parking brake ............................... 171
Parking brake, electric .......... 144, 147
Parking sensors, front................... 163
Parking sensors, rear ................... 162
Particle emission fi lter........... 169, 170
Passenger compartment fi lter....... 170
PEUGEOT call button ................... 209
PEUGEOT CONNECT
ASSISTANCE ............................ 208
Peugeot Connect Media Navigation
(NG4 3D) ......48, 211, 214, 217, 244
Peugeot Connect Navigation
(RT6) ................................... 65, 255
PEUGEOT CONNECT SOS .... 208, 209
Peugeot Connect Sound
(RD5) ........................... 62, 309, 322
PEUGEOT services ...................... 209
PIN code ....................................... 242
Player, CD MP3 ............................ 315
POIs (updating) ............................ 229
Port, USB...............113, 295, 316, 318
Power ............................................. 34
Priming the fuel system ................ 166
Protecting children ............... 122, 123,
128, 130-132, 140
Puncture ....................................... 172
M
O
N
P
Radio .................... 233, 287, 288, 313
RCA sockets ................................. 238
Reading lamps, rear ..................... 108
Ready ............................................. 30
Ready lamp .................................... 30
Rear foglamp ........................ 183, 184
Rear screen (demisting) ........... 72, 83
Recharging the battery .......... 192-194
Reduction of electrical load .......... 195
Regeneration of the particle
emissions fi lter ........................... 170
Reinitialising the electric windows ..... 92
Reinitialising the remote control ..... 88
Remote control ................... 85, 86, 89
Removable screen (snow shield) ..... 199
Removing a wheel ........................ 179
Removing the mat .........................114
Repair kit, puncture ...................... 172
Replacing bulbs ............ 181, 183, 184
Replacing fuses ............................ 185
Replacing the air fi lter ................... 170
Replacing the oil fi lter ................... 170
Replacing the passenger
compartment fi lter ...................... 170
Replacing wiper blades ........ 107, 196
Reset history............................. 41, 69
Resetting the service indicator ....... 59
Resetting the trip recorder .............. 61
Rev counter .................................... 47
Reversing lamp............................. 183
Risk areas (update) .............. 229, 266
Roof bars ...................................... 199
Routine checks ..................... 170, 171
Running out of fuel (Diesel) .......... 166
R
