2013 PEUGEOT 2008 navigation

.
7
Familiarisation
Interior

Electronic gearbox
This gearbox provides driving that combines
a completely automatic mode and a manualmode.
5-speed

Interior mood lighting

This subdued passenger compar tment lighting
improves visibility inside the vehicle in low lighting conditions. It comprises several lamps, located below the instrument panel, in the footwells, in the cour tesy lamp and on each
side of the panoramic sunroof.

Dual zone digital air conditioning
After setting the desired level of comfor t, the system then automatically controls this level
according to the ambient conditions.

Audio and communication
systems
These systems benefit from the latest
technology: MP3 compatible audio systems, USB player, Bluetooth hands-free system, satellite navigation system with colour screen,
auxiliary inputs, Hi-Fi audio system, ...
8
1
121
67 26
9
209
Bluetooth audio s
ystem
295 Audio s
ystem To u c h s c r e e n
6-speed
84

174
Practical information

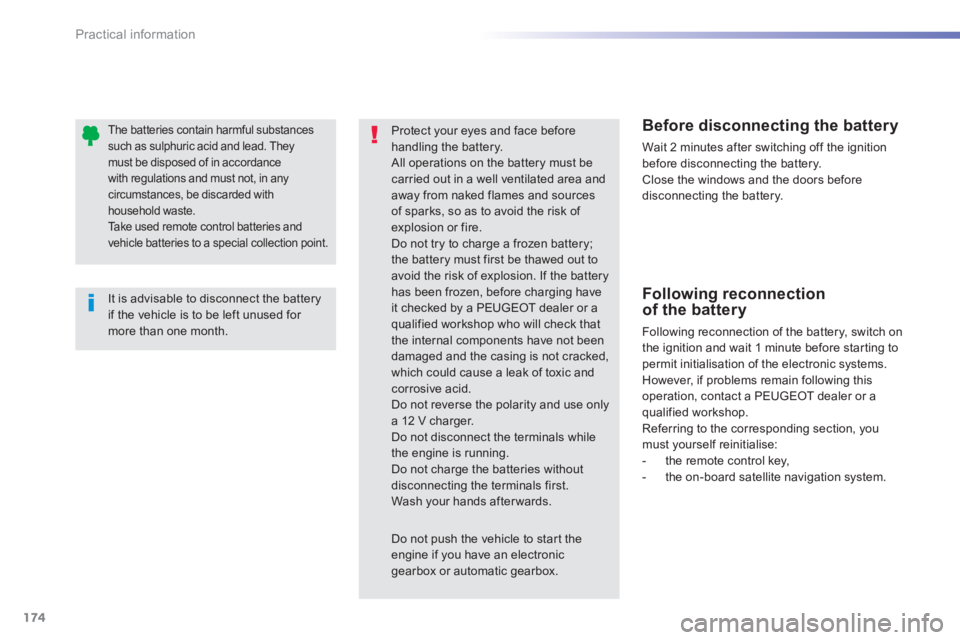

It is advisable to disconnect the battery if the vehicle is to be left unused for more than one month.
The batteries contain harmful substancessuch as sulphuric acid and lead. Theymust be disposed of in accordancewith regulations and must not, in any circumstances, be discarded withhousehold waste. Ta k e used remote control batteries andvehicle batteries to a special collection point.
Protect your eyes and face beforehandling the battery.
All operations on the battery must be carried out in a well ventilated area andaway from naked flames and sources of sparks, so as to avoid the risk of explosion or fire.Do not try to charge a frozen battery;the battery must first be thawed out toavoid the risk of explosion. If the battery has been frozen, before charging haveit checked by a PEUGEOT dealer or a qualified workshop who will check thatthe internal components have not been damaged and the casing is not cracked, which could cause a leak of toxic andcorrosive acid.Do not reverse the polarity and use onlya 12 V charger.
Do not disconnect the terminals while the engine is running. Do not charge the batteries without disconnecting the terminals first. Wash your hands afterwards.
Do not push the vehicle to star t theengine if you have an electronic gearbox or automatic gearbox.







Before disconnecting the battery

Wait 2 minutes after switching off the ignition
before disconnecting the battery.
Close the windows and the doors beforedisconnecting the battery.

Following reconnection
of the battery
Following reconnection of the battery, switch on
the ignition and wait 1 minute before star ting topermit initialisation of the electronic systems. However, if problems remain following this
operation, contact a PEUGEOT dealer or a qualified workshop.
Referring to the corresponding section, you must yourself reinitialise:


- the remote control key,

- the on-board satellite navigation system.

183
7
Practical information
The fitting of electrical equipment or accessories which are not recommended by PEUGEOT may resultin a failure of your vehicle's electronicsystem and excessive electrical consumption. Please note this precaution. Youare advised to contact a PEUGEOTrepresentative to be shown the range of recommended equipment and accessories.


Installation of radio communication transmitters

Before installing any after-market radio communication transmitter, you can contact a PEUGEOT dealer for the specification of transmitters which canbe fitted (frequency, maximum power, aerial position, specific installationrequirements), in line with the VehicleElectromagnetic Compatibility Directive(2004/104/EC).




Depending on the legislation in forcein the country, it may be compulsory to have a high visibility safety vest,warning triangle and spare bulbs andfuses available in the vehicle. B
y visiting a PEUGEOT dealer, you can also
obtain products for cleaning and maintenance (exterior and interior) - including ecological products in the "TECHNATURE" range, toppingup products (screenwash...), touch-up pens and paint aerosols for the exact colour of your
vehicle, refills (cartridge for the temporary puncture repair kit...), ...



"Multimedia":

audio systems, por table satellite navigationsystems, semi-integral suppor t for por tablesatellite navigation system, hands-free kit, speakers, DVD player, connection kit for MP3
or CD player, Wi-Fi on-board, CD player for
touch screen...

209

The system is protected in such a way that it will onlyoperate in your vehicle.
Touch screen


01 First steps - Control panel


For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is stationary.
When the en
gine is switched off and to prevent
discharging of the battery, the system switches off following the activation of the energy economy mode.



CONTENTS

02 Steering mounted controls

04 PEUGEOT CONNECT APPS

05 Navigation:
navigation guidance, traffic,
map, settings

06 Media:
photos, radio, music, settings

07 Communication:
bluetooth, contacts, call log,
settings

08 Settings:
system, vehicle, sound p.
p.
p.
p.
p.
p.
p.

Frequently asked questions p.
SATELLITE NAVIGATION SYSTEM
MULTIMEDIA AUDIO SYSTEM
BLUETOOTH TELEPHONE
2
10
211
214
213
232
246
256
262

03 General operation p. 212

01
210
Press to mute the sound.
MOD
E: selection of the type
of permanent display.

Volume ad
justment (each source is independent, including TA messages and navigation instructions).
Selectin
g the " MAIN MENU":
-"Navigation
" for navigation settings and to select a destination (depending on version).
- "Medi
a
" to select radio, MP3 music (from a USB memory stick),
view photos.
- "Communications" to connect a telephone b
y Bluetooth so as to make
telephone calls safely or to connect to the Internet.
-"Settin
gs" to enter settings for the radio, the vehicle or audio.

Press MENU again to quit the " MAIN MENU " and return to the permanentdisplay.
Selectin
g the audio source (depending on version):
- "FM"
/ "AM" radio wavebands.
- "U
SB" memory stick.
-
CD (located in the glove box) *
.
- Telephone connected b
y Bluetooth and streaming.
- Media pla
yer connected to the auxiliary socket (jack, cable not supplied).

Use the zones su
ggested in the
screen using a fi nger.

To clean the screen, use
a soft non-abrasive cloth (spectacles cloth) without
any additional product.
FIRST STEPS

*
Depending on equipment.
MAIN MENU

02

211




- Press: mute / restore sound.


- In
crease volume.


- D
ecrease volume.


-
Press: change the audio source:Radio, Media.

-
Successive presses: navigation in
the menus.- R
otation.
Radio: automatic selection of next
/ previous frequency.
Media: previous / next track.
Menus: movement
-
Press.
Radio: pre-set radio stations.
M
enus: confi rm.
- Incomin
g call: answer call.
- Call in pro
gress:
Telephone menu
(contacts, calllog).
En
d call.
- Radio: displa
y the list of stations.
Media: displa
y the list of albums /
tracks.
STEERING MOUNTED CONTROLS

03

These screens are the representation of a graphic style.
To chan
ge the graphic style, refer to the " SETTINGS" section. Pr
ess MODEseveral times in succession for access to the following displays:
"
Trip computer"r
(refer to the "Instrumentsand controls" section)
"
Map"
(if navigation guidance in
progress) "Radio
"
(or audio source being listened to: CD, USB,
Auxiliary)
"
Telephone"
(if call in progress)
OR

GENERAL OPERATION

Following prolonged operation in sunny conditions, the volume may be limited to protect the system. The return to normal takesplace when the temperature in the passenger compartment drops.
In ver
y hot conditions, the system may go into stand-by (screen and sound completely off) for a minimum period of 5 minutes.

05
To use the telephone functions,
refer to the " Communications " section.
















Access to the
"Navigation" menu
For managing contacts and
their addresses, refer to the"Communications" section.

NAVIGATION
Main menu
Navigation
Route calculation
Enter address
Contacts
Route options
Level 1Level 2Level 3
