2013 NISSAN XTERRA window

To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.
01
07
02
08
04
03
0506
MANUAL CLIMATE CONTROLS (if so equipped)
01 FAN SPEED CONTROL DIAL
Turn the fan speed control dial to the left (low) or right (high) to control fan speed.

02 TEMPERATURE CONTROL DIAL

Turn the temperature control dial left for cooler air or right for warmer\
air.
03 AIR FLOW CONTROL BUTTONS

Select the air flow outlets by pressing the corresponding air flow c\
ontrol button:






Air flows from the center and side vents.







Air flows from the defroster and foot vents.







Air flows mainly from the foot vents.







Air flows from the center, side and foot vents.
04 D EFROSTING/DEFOGGING FRONT AND SIDE WINDOWS

Press the front window defroster button to turn the system on. The A/c automatically



turns on when the defroster mode is selected. T
his feature removes humidity from the air.
Set the fan speed control dial
01 and the temperature control dial 02 to their maximum settings.
9
05 High
(HI) - Front wipers operate at a continuous


high-speed.
06 Pull the lever toward you to activate the washer.
The front wipers will operate several times.
REAR WINDSHIELD WIPER AND WASHER
07 Intermittent (I NT) - Rear wiper operates


intermittently.
08 Low (ON) - Rear wiper operates at a continuous


low-speed.
09 Push the lever forward to activate the rear washer .



T
he rear wiper will operate several times.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
INT
ON07
08
0609
1275731_13_Xterra_NAM_QRG_102612.indd 910/26/12 11:18 AM

FM/AM/SiriusXM* SATELLITE RADIO WITH CD PLAYER
(if so equipped)
01 V OL/ON•OFF CONTROL DIAL
Press the VOL/ON•OFF control dial to turn the system on or off.
Turn the VOL/ON•OFF control dial to the right or left to increase or decrease the volume.
first drive features
To view detailed instructional videos regarding these and other features,
please go to www.nissanownersinfo.mobi.
05 REAR WINDOW AND OUTSIDE MIRROR (if so equipped) DEFROSTER SWITCH
Push the rear window defroster switc
h to turn the system on or off.
The rear window defroster automatically turns off after approximately 15 minutes.
06 AIR RECIRCULATION BUTTON Press the air recirculation button
to recirculate air inside the vehicle. The indicator light
on the button will illuminate. This system is used to avoid certain outside odors and helps
to adjust the inside vehicle temperature more effectively.
Press the air recirculation button again to turn air recirculation off. This allows outside
air to be drawn into the passenger compartment to prevent fogging in def\
rost, floor or
defrost/floor modes.
The air recirculation mode can only be selected if the air flow control\
mode is in the
or
position.
07 A/C B UTTON
Press the
A/C button to turn the air conditioner system on or off. This system helps



dehumidify the air inside the cabin and defog the windows.

08 MAX A/C BUTTON
Press the
MAX A/C button for maximum cooling (air conditioning).
For more information, refer to the “Instruments and controls (section 2)” and the “Monitor, climate, audio, phone and
voice recognition systems (section 4)” of your Owner’s Manual.
10
0506
03
01
04
02
1275731_13_Xterra_NAM_QRG_102612.indd 1010/26/12 11:18 AM

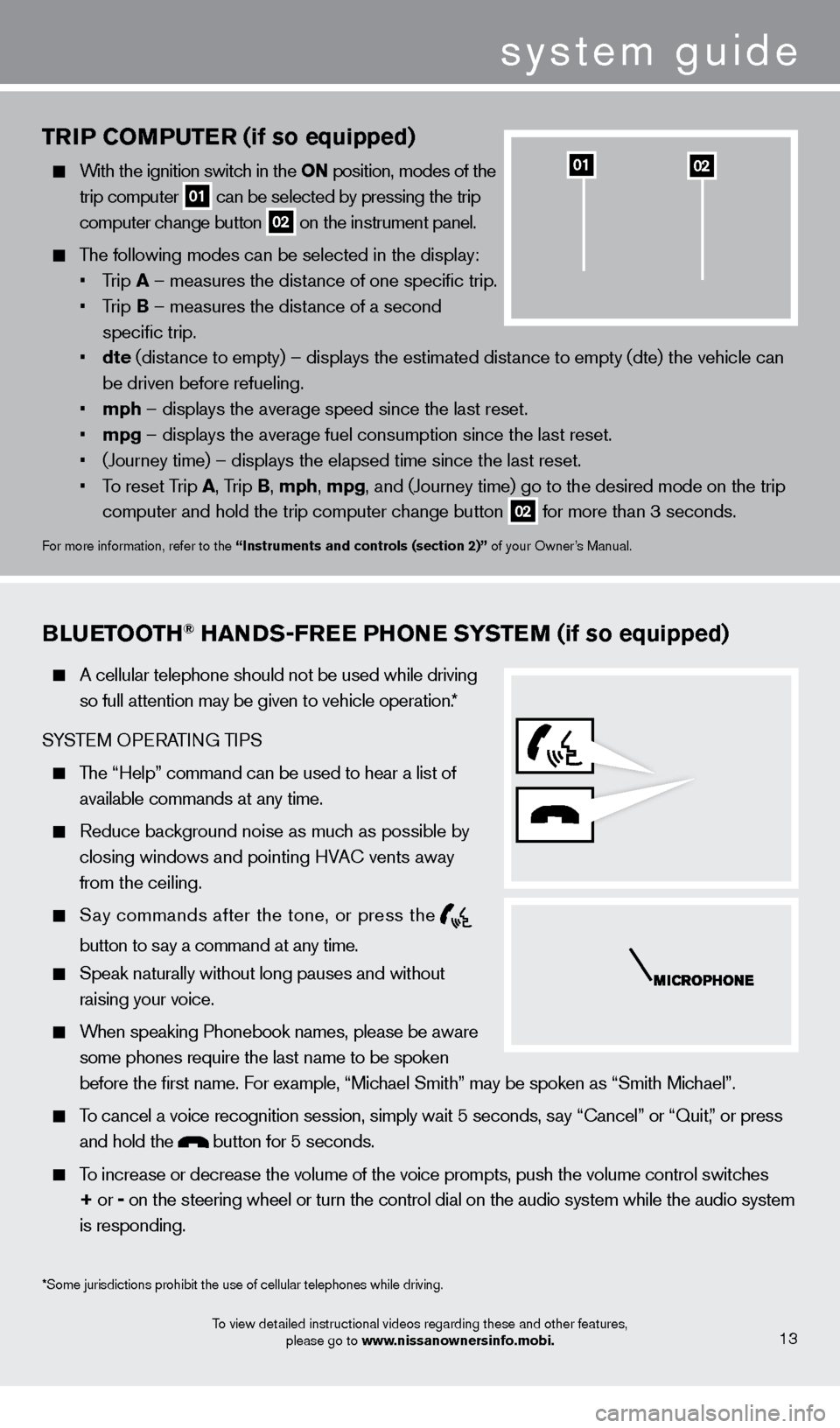

TRIP COMPUTER (if so equipped)
With the ignition switch in the ON position, modes of the trip computer
01 can be selected by pressing the trip
computer change button 02 on the instrument panel.
The following modes can be selected in the display:




•

T
rip A – measures the distance of one specific trip.



•

T
rip B – measures the distance of a second
specific trip.



•

dte
(distance to empty) – displays the estimated distance to empty (dte) the vehicle can
be driven before refueling.



•

mph
– displays the average speed since the last reset.



•

mpg
– displays the average fuel consumption since the last reset.



•

(Journey time) – displays the elapsed time since the last reset
.



•

T
o reset Trip A , Trip B, mph, mpg, and (Journey time) go to the desired mode on the trip
computer and hold the trip computer change button
02 for more than 3 seconds.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
0201
BLUETOOTH® HANDS-FREE PHONE SYSTEM (if so equipped)
A cellular telephone should not be used while driving

so full attention may be given to vehicle operation.*
SYSTEM OPERATING TIPS
The “Help” command can be used to hear a list of available commands at any time.
Reduce bac kground noise as much as possible by
closing windows and pointing HVA
c
vents away
from the ceiling.
Say commands after the tone, or press the
button to say a command at any time.
Speak naturally without long pauses and without
raising your voice.
When speaking Phonebook names, please be aware some phones require the last name to be spoken
before the first name. For example, “Michael Smith” may be spoken as “Smith Michael”.
To cancel a voice recognition session, simply wait 5 seconds, say “ c ancel” or “Quit,” or press
and hold the
button for 5 seconds.
To increase or decrease the volume of the voice prompts, push the volume \
control switches
+ or -
on the steering wheel or turn the control dial on the audio system while\
the audio system
is responding.
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.13
*Some jurisdictions prohibit the use of cellular telephones while drivin\
g.
system guide
1275731_13_Xterra_NAM_QRG_102612.indd 1310/26/12 11:18 AM
