2013 NISSAN XTERRA ignition

To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.
STARTING/STOPPING THE ENGINE
AUTOMATIc TRANSMISSION (if so equipped)
Depress the brake pedal.
Move the shift lever to P (PARK).
Turn the ignition switch to ST ART.

MANUAL TRANSMISSION (if so equipped)
Depress the brake pedal.
Move the shift lever to N (NE UTRAL).
Depress the clutch pedal to the floor.
Turn the ignition switch to ST ART.

TURNING THE ENGINE OFF
For an automatic transmission, move the shift lever to the P (PARK) position, apply the parking



brake and turn the ignition switc
h to the LOCK position.
For a manual transmission, apply the foot brake, place the vehicle in 1st gear, apply the parking



brake and turn the ignition switc

h to the LOCK position.
For more information, refer to the “Starting and driving (section 5)” of your Owner’s Manual.
7
OUTSIDE MIRROR CONTROL SWITCH (if so equipped)
The outside mirror control switch is located on the



left side of the instrument panel.
To select the left or right mirror, move the switch
01 .
Adjust eac
h mirror to the desired position using the
switc

h
02 .
To prevent accidentally moving the mirror, move this
switc

h
01 to the center “neutral” position.For more information, refer to the “Pre-driving checks and adjustments
(section 3)” of your Owner’s Manual.
02
01
1275731_13_Xterra_NAM_QRG_102612.indd 710/26/12 11:18 AM

To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.8
first drive features

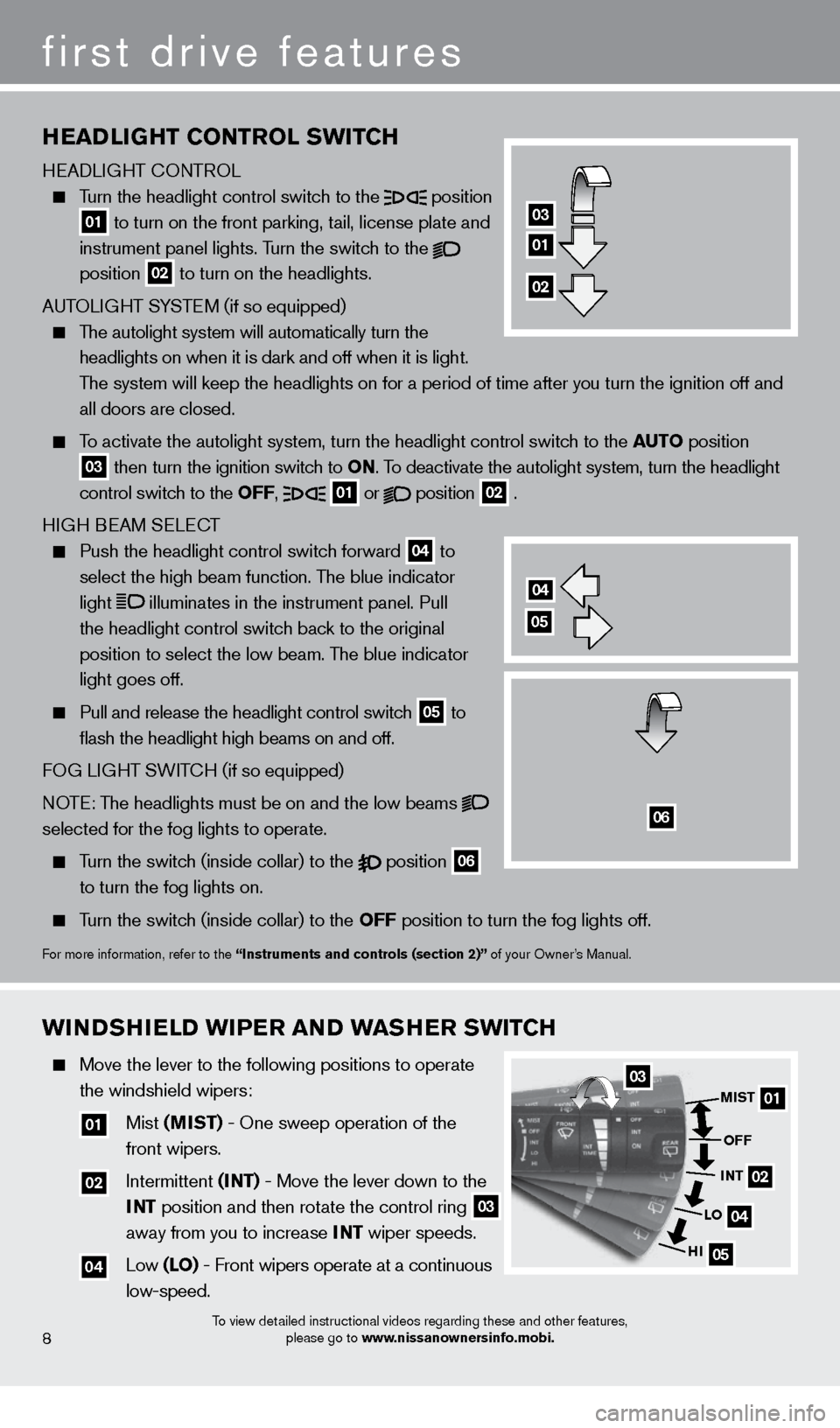

WINDSHIELD WIPER AND WASHER SWITCH
Move the lever to the following positions to operate



the windshield wipers:

01 Mist (MIST) - One sweep operation of the


front wipers.
02 Intermittent (I NT) - Move the lever down to the



I
NT position and then rotate the control ring
03



away from you to increase

INT wiper speeds.
04 Low (LO) - Front wipers operate at a continuous


low-speed.
0301
02
04
05
MIST
OFF
INT
LO
HI
HEADLIGHT CONTROL SWITCH
HEADLIGHT cO NTROL
Turn the headlight control switch to the
position
01 to turn on the front parking, tail, license plate and
instrument panel lights. Turn the switch to the
position 02 to turn on the headlights.
AUTOLIGHT SYSTEM (if so equipped)
The autolight system will automatically turn the headlights on when it is dark and off when it is light.
The system will keep the headlights on for a period of time after you tur\
n the ignition off and
all doors are closed.
To activate the autolight system, turn the headlight control switch to the AUTO position

03 then turn the ignition switch to ON. To deactivate the autolight system, turn the headlight
control switch to the OFF, 01 or
position
02 .
HIGH BEAM SELE
cT
Push the headlight control switc h forward
04 to

select the high beam function. The blue indicator
light
illuminates in the instrument panel. Pull
the headlight control switch back to the original
position to select the low beam. The blue indicator
light goes off.
Pull and release the headlight control switc h
05 to
flash the headlight high beams on and off.
FOG LIGHT SWIT
cH (if so equipped)
N

OTE: The headlights must be on and the low beams

selected for the fog lights to operate.
Turn the switch (inside collar) to the position
06
to turn the fog lights on.
Turn the switch (inside collar) to the OFF position to turn the fog lights off.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
01
03
02
04
05
06
1275731_13_Xterra_NAM_QRG_102612.indd 810/26/12 11:18 AM

TRIP COMPUTER (if so equipped)
With the ignition switch in the ON position, modes of the trip computer
01 can be selected by pressing the trip
computer change button 02 on the instrument panel.
The following modes can be selected in the display:




•

T
rip A – measures the distance of one specific trip.



•

T
rip B – measures the distance of a second
specific trip.



•

dte
(distance to empty) – displays the estimated distance to empty (dte) the vehicle can
be driven before refueling.



•

mph
– displays the average speed since the last reset.



•

mpg
– displays the average fuel consumption since the last reset.



•

(Journey time) – displays the elapsed time since the last reset
.



•

T
o reset Trip A , Trip B, mph, mpg, and (Journey time) go to the desired mode on the trip
computer and hold the trip computer change button
02 for more than 3 seconds.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
0201
BLUETOOTH® HANDS-FREE PHONE SYSTEM (if so equipped)
A cellular telephone should not be used while driving

so full attention may be given to vehicle operation.*
SYSTEM OPERATING TIPS
The “Help” command can be used to hear a list of available commands at any time.
Reduce bac kground noise as much as possible by
closing windows and pointing HVA
c
vents away
from the ceiling.
Say commands after the tone, or press the
button to say a command at any time.
Speak naturally without long pauses and without
raising your voice.
When speaking Phonebook names, please be aware some phones require the last name to be spoken
before the first name. For example, “Michael Smith” may be spoken as “Smith Michael”.
To cancel a voice recognition session, simply wait 5 seconds, say “ c ancel” or “Quit,” or press
and hold the
button for 5 seconds.
To increase or decrease the volume of the voice prompts, push the volume \
control switches
+ or -
on the steering wheel or turn the control dial on the audio system while\
the audio system
is responding.
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.13
*Some jurisdictions prohibit the use of cellular telephones while drivin\
g.
system guide
1275731_13_Xterra_NAM_QRG_102612.indd 1310/26/12 11:18 AM
