2013 NISSAN TITAN climate control

TABLe Of cOnTenTS
NEW SYSTEM FEATURES
u SB/iPod® interface (if so equipped) .............................. 2
ESSENTIAL INFORMATION
Loose fuel cap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . 3
Tire Pressure Monitoring System (TPMS) ...........................3
Wide Open door (king cab models only) .......................... 4
FIRST D RIvE FEATURES
Remote k eyless entry System (if so equipped) ...................... 5
Opening the Tailgate ............................................ 5
Power Seat Adjustments (if so equipped) ...........................5
Automatic drive Positioner (if so equipped) ......................... 6
Outside Mirror control Switch (if so equipped) . . . . . . . . . . . . . . . . . . . . . . 6
Starting/Stopping the engine ..................................... 6
Headlight control Switch ........................................ 7
Windshield Wiper/Washer Switch ................................. 8
Automatic climate controls (if so equipped) ........................ 8
f M/AM/SiriusXM™ Satellite Radio with cd Player (if so equipped) .... 10
cruise control (if so equipped) .................................. 11
Power Outlets (if so equipped) .................................. 11
fuel-filler door ................................................ 12

S YSTEM GUIDE
Vehicle information display (if so equipped) ........................13
Bluetooth
® Hands-free Phone System (if so equipped) ...............13
System Operating Tips ...................................... 13
Bluetooth
® System without navigation (if so equipped) . . . . . . . . . . .14
Bluetooth® System with navigation (if so equipped) ..............15
navigation System (if so equipped) ...............................17
HomeLink
® universal Transceiver (if so equipped) ...................18
• A cellular telephone should not be used for any purpose while
driving so full attention may be given to vehicle operation.
• Always wear your seat belt.
• Supplemental air bags do not replace proper seat belt usage.
• Children 12 and under should always ride in the rear seat
properly secured in child restraints or seat belts according to
their age and weight.
• Do not drink and drive.
f or more information, refer to the “Safety –– Seats, seat belts and
supplemental restraint system (section 1)”, “Monitor, climate, audio,
phone and voice recognition systems (section 4)” and the “Starting
and driving (section 5)” of your Owner’s Manual.
Additional information about your vehicle is also available in your Owner’s Manual, navigation System Owner’s Manual and at www.nissanusa.com.
To view detailed
instructional videos, go to
www.nissanownersinfo.mobi/2013/titan or snap this barcode with an appropriate barcode reader.

AUTOMATIC CLIMATE CONTROLS (if so equipped)
01 AUTO BUTTON/DRIvER’S SIDE TEMPERATURE CONTROL DIAL

The auto mode may be used year-round. Press the AUTO button to turn the system on
and the system will automatically control the inside temperature (autom\
atic cooling and/or
dehumidified heating), air flow distribution and fan speed.

Turn the driver’s side temperature control dial left for cooler air or\
right for warmer air.
02 DUAL BUTTON/PASSENGER’S SIDE TEMPERATURE CONTROL DIAL

Press the passenger’s side D UAL control button to turn the passenger’s side temperature
controls on or off. This will allow the passenger’s side temperature to be adjusted
independently from the driver’s side.
8
first drive features
To view detailed in\fstructional videos\f regarding these a\fnd other features\f \fplease go to www.nissanownersin\hfo.mobi
WINDShIELD WIPER/WAShER SWITC h
Move the lever to the following positions to operate
the windshield wipers:

01 Mist (MIST) - One sweep operation of the
wipers.

02 intermittent (INT) - Wipers operate
intermittently. The intermittent speed can be
adjusted by twisting the time control ring

03 .

04 Low (LO) - Wipers operate at a continuous
low-speed.

05 High (hI) - Wipers operate at a continuous
high-speed.

06 Washer - Pull the lever toward you to
activate the washer. The wipers will operate
several times.
f or more information, refer to the “Instruments and controls (section 2)”
of your Owner’s Manual.06
01
02
04
05
MIST
OFF
INT
LO
hI03
0102
08050607
03
04

9
Turn the passenger’s side temperature control dial left for cooler air\
or right for
warmer air.
03 FAN SPEED CONTROL DIAL/OFF BUTTON


Turn the dial to the left to decrease fan speed or to the right to increa\
se fan speed.

Push the button to turn the system off.
04 AIR FLOW CONTROL BUTTONS

Press the air flow control buttons to manually control air flow:

Air flows from the center and side vents.

Air flows from the center, side, and foot vents.

Air flows mainly from the foot vents.

Air flows from the defroster and foot vents.

Air flows from defroster outlets.
05 DEFROSTING/DEFOGGING FRONT AND SIDE WINDOWS

Press the front window defroster button
to turn the system on. The A/c automatically

turns on when the defroster mode is selected. This feature removes humidity from the air.

Set the temperature control dial
01 and the fan speed control dial 03 to their maximum
settings.
06 REAR WINDOW AND OUTSIDE MIRROR (if so equipped) DEFROSTER SWITCh

Push the rear window defroster switch
to turn the system on or off.

The rear window defroster automatically turns off after approximately 15 minutes.
07 AIR RECIRCULATION BUTTON

Press the air recirculation button
to recirculate air inside the vehicle. The indicator

light on the button will illuminate. This system is used to avoid certain outside odors and
helps to adjust the inside vehicle temperature more effectively.

Press the air recirculation button
again to turn air recirculation off. This allows outside

air to be drawn into the passenger compartment to prevent fogging in def\
rost, floor or
defrost/floor modes.

The air recirculation mode can only be selected if the air flow control\
mode is in the
or
position.
08 A/C BUTTON

Press the A/C button to manually turn the A/c on or off.
for more information, refer to the “Instruments and controls (section 2)” and the “Monitor, climate, audio, phone and
voice recognition systems (section 4)” of your Owner’s Manual.
To view detailed in\fstructional videos\f regarding these a\fnd other features\f \fplease go to www.nissanownersin\hfo.mobi

FM/AM/SiriusXM™* SATELLITE RADIO WITh CD PLAYER (if so equipped)
Your audio system is capable of streaming and controlling Pandora® Audio** through a
compatible mobile phone and your u SB input jack.
01 VOLUME CONTROL DIAL/ON•OFF BUTTON

To increase or decrease the volume, turn the vOL control dial right or left.

To turn the system on or off, press the ON•OFF button.
02 TUNE/AUDIO DIAL

To manually tune the radio, turn the TUNE/AUDIO dial left or right.
03 SEEk
BUTTONS
To tune and stop at the next or previous broadcast station, press the seek buttons or .

For SiriusXM™ satellite radio, to switch to the first channel of the previous or next
category, press the seek buttons
or .

To change tracks on a cd, press the seek buttons or .

To fast forward or rewind a track on a cd, press and hold the seek buttons or .
04 STATION MEMORY k
EYS
Twelve stations can be set for the FM band, six for the AM band and eighteen for SiriusXM
satellite radio.

To store a station in a preset, you must first select a radio band by pressing the \
FM•AM button



05 or button
06 , then tune to the desired AM, f
M or SiriusXM satellite station.
now select and hold the desired station memory key (1-6) until a chime is heard and

the preset number is updated on the display. Programming is now complete.

To retrieve a previously set station, select the radio band where the preset was stored
then select the corresponding station memory key (1-6).
*SiriusXM™ Satellite Radio is only available on vehicles equipped with optional Siri\
usXM™ satellite subscription service.
**Pandora
® Audio requires a \fcompatible mobile \fphone with the Pan\fdora application i\fnstalled.
for more information, refer to the “Monitor, climate, audio, phone and voice recognition systems (section 4)” of your Owner’s Manual.
first drive features
10To view detailed in\fstructional videos\f regarding these a\fnd other features\f \fplease go to www.nissanownersin\hfo.mobi
0102
06
03
04
05

To view detailed in\fstructional videos\f regarding these a\fnd other features\f \fplease go to www.nissanownersin\hfo.mobi

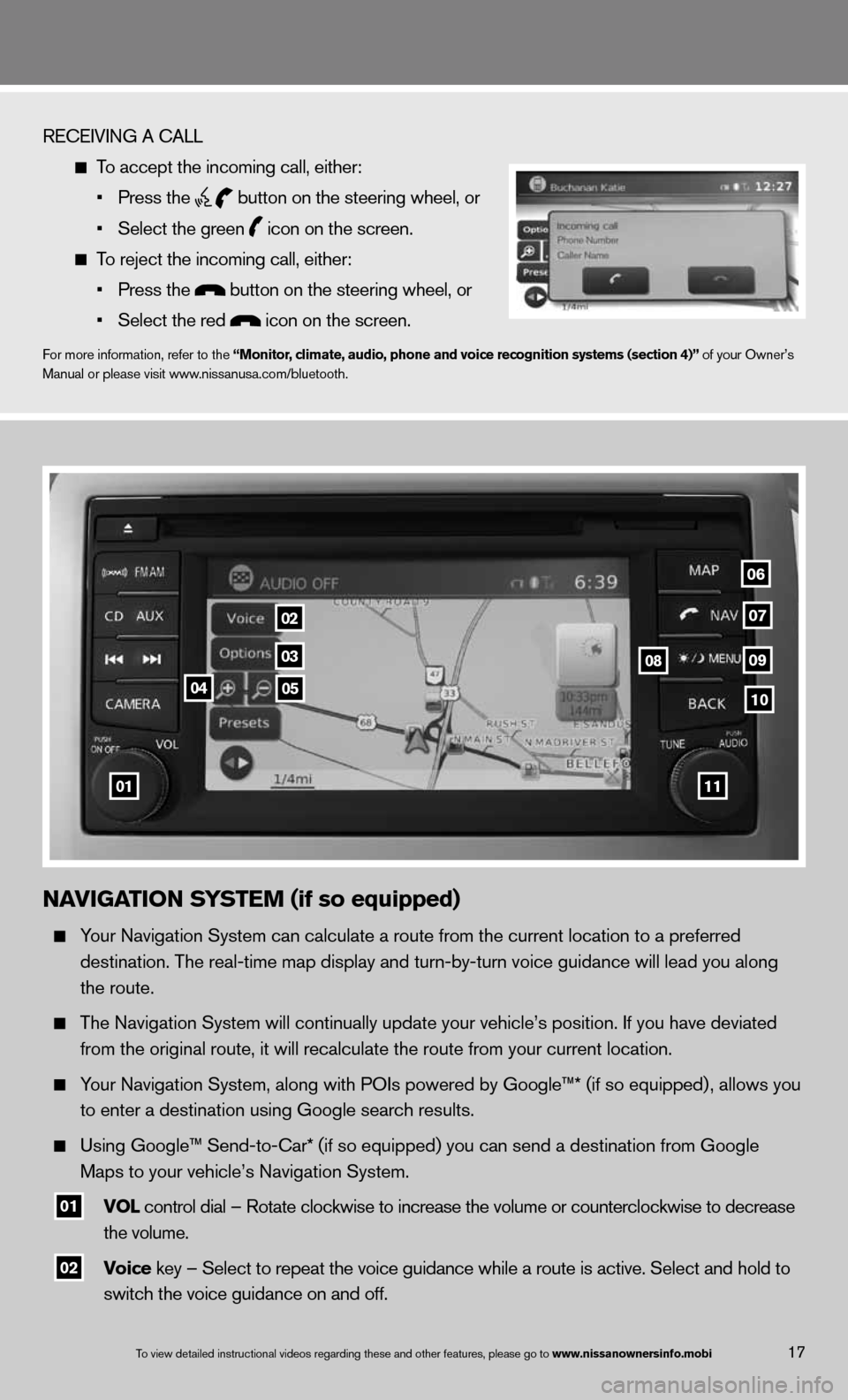

RE\bEIVING A \bALL

To accept the incom\fing call\f either:
• Press the

button on the stee\fring wheel\f or

• Select the green

icon on the screen\f.


To reject the incom\fing call\f either:
• Press the
button on the ste\fering wheel\f or
• Select the red
icon on the scree\fn.

For more informatio\fn\f refer to the “Monitor, climate, audio, phone and voice recognition systems (section 4)” of your Owner’s
Manual or please v\fisit www.nissanusa.com/blue\ftooth.
17
na Vigation system (if so equipped)
Your Navigation Syst\fem can calculate a\f route from the cur\frent location to a\f preferred
destination. The re\fal-time map displa\fy and turn-by-turn v\foice guidance will\f lead you along
the route.

The Navigation Syst\fem will continuall\fy update your vehicl\fe’s position. If you\f have deviated
from the original r\foute\f it will recal\fculate the route fr\fom your current loc\fation.

Your Navigation Syst\fem\f along with POIs\f powered by Google™\f* (if so equipped) \f allows you
to enter a destina\ftion using Google \fsearch results.

Using Google™ Send\f-to-\bar* (if so equ\fipped) you can send\f a destination from\f Google
Maps to your vehicl\fe’s Navigation Syst\fem.

01 Vol control dial – Rotate clockwise t\fo increase the vol\fume or countercloc\fkwise to decrease

the volume.

02 Voice key – Select to re\fpeat the voice gui\fdance while a rout\fe is active. Select\f and hold to

switch the voice g\fuidance on and off.
01
02
03
04
08
06
09
0510
07
11
