2013 NISSAN SENTRA Owners Manual

WARNING
●Objects viewed in the outside mirror on
the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use the inside mirror or
glance over your shoulder to properly
judge distances to other objects.
● Do not adjust the mirrors while driving.
You could lose control of your vehicle
and cause an accident.
Manual folding outside mirrors
Pull the outside mirror toward the door to fold it.
Heated mirrors (if so equipped)
Some outside mirrors can be heated to defrost,
defog, or de-ice for improved visibility. For addi-
tional information, see “Rear window and outside
mirror defroster switch” in the “Instruments and
controls” section of this manual.
LPD2112
3-32Pre-driving checks and adjustments

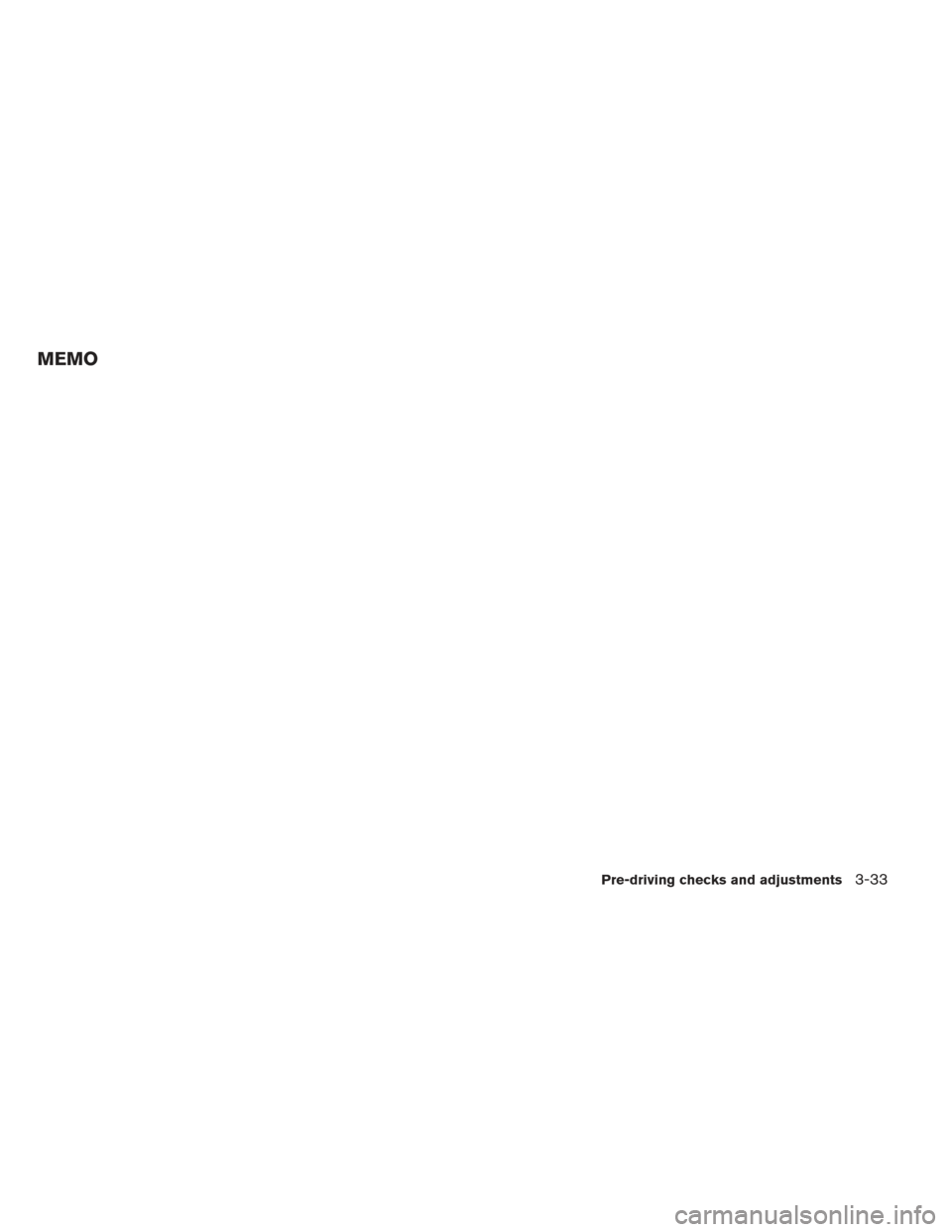

MEMO
Pre-driving checks and adjustments3-33

4 Monitor, climate, audio, phone and voice
recognition systems
Control panel buttons — color screen with
Navigation System (if so equipped)..................4-2
How to use the touch screen ....................4-3
How to use the BACK button ....................4-5
How to use the MENU button ....................4-5
button...................................4-9
RearView Monitor (if so equipped) ...................4-9
How to read the displayed lines .................4-10
Difference between predicted and actual
distances ..................................... 4-10
Adjusting the screen ........................... 4-13
Operating tips ................................. 4-14
Vents . .......................................... 4-15
Heater and air conditioner (manual)
(if so equipped) .................................. 4-15
Controls ...................................... 4-16
Heater operation .............................. 4-17
Air conditioner operation (if so equipped) ........4-18
Air flow charts ................................. 4-19
Heater and air conditioner (automatic)
(if so equipped) .................................. 4-23
Automatic operation ........................... 4-24Manual operation
.............................. 4-24
Operating tips ................................. 4-25
Servicing air conditioner (if so equipped) ............4-26
Audio system .................................... 4-26
Radio ........................................ 4-26
FM radio reception ............................ 4-26
AM radio reception ............................ 4-27
Satellite radio reception (if so equipped) . . . ......4-27
Audio operation precautions ....................4-27
FM/AM radio with compact disc (CD) player
(if so equipped) ............................... 4-35
FM/AM/SAT radio with compact disc (CD)
player (Type A) (if so equipped) .................4-40
FM/AM/SAT radio with compact disc (CD)
player (Type B) (if so equipped) .................4-45
USB interface (models without Navigation
System) (if so equipped) .......................4-51
USB interface (models with Navigation
System) ...................................... 4-53
iPod®* player operation without Navigation
System (if so equipped) ........................ 4-54
iPod®* player operation with Navigation
System (if so equipped) ........................ 4-57

Bluetooth® streaming audio without
Navigation System (if so equipped)..............4-60
Bluetooth® streaming audio with Navigation
System (if so equipped) ........................ 4-60
Pandora® audio (if so equipped) ................4-62
CD care and cleaning .......................... 4-63
Steering wheel switch for audio control
(if so equipped) ............................... 4-64
Antenna ...................................... 4-65
Car phone or CB radio . . .......................... 4-66
Bluetooth® Hands-Free Phone System without
Navigation System (if so equipped) .................4-66
Regulatory Information ......................... 4-68
Using the system .............................. 4-68
Control buttons ............................... 4-70
Getting started ................................ 4-71
List of voice commands ........................ 4-73
Voice Adaptation (VA) mode ....................4-77
Manual control ................................ 4-79
Troubleshooting guide ......................... 4-80
Bluetooth® Hands-Free Phone System with
Navigation System (if so equipped) .................4-81Regulatory Information
......................... 4-82
Voice commands .............................. 4-83
Connecting procedure ......................... 4-83
Vehicle phonebook ............................ 4-84
Making a call .................................. 4-85
Receiving a call ............................... 4-86
During a call .................................. 4-86
Ending a call .................................. 4-86
Text messaging ................................ 4-87
Bluetooth settings ............................. 4-88
Phone settings ................................ 4-90
NISSAN Voice Recognition System
(if so equipped) . . . ............................... 4-91
Using the system .............................. 4-91
System features ............................... 4-92
Bluetooth® Hands-Free Phone System
voice commands .............................. 4-93
Navigation

System voice commands .............4-94
Audio system voice commands ..................4-94
Information voice commands ....................4-95
Help voice commands ......................... 4-95
Troubleshooting guide ......................... 4-96

WARNING
●Positioning of the heating or air condi-
tioning controls and display controls
should not be done while driving in or-
der that full attention may be given to
the driving operation.
● Do not disassemble or modify this sys-
tem. If you do, it may result in accidents,
fire, or electrical shock.
● Do not use this system if you notice any
abnormality, such as a frozen screen or
lack of sound. Continued use of the
system may result in accident, fire or
electric shock.
● In case you notice any foreign object in
the system hardware, spill liquid on it,
or notice smoke or smell coming from
it, stop using the system immediately
and contact your nearest NISSAN
dealer. Ignoring such conditions may
lead to accidents, fire or electrical
shock.
1. Display screen
2.
button**
3. MAP button*
4. NAV button* 5. MENU button
6. BACK button
7. TUNE knob / AUDIO button
8.
(brightness control) button
LHA2516
CONTROL PANEL BUTTONS —
COLOR SCREEN WITH NAVIGATION
SYSTEM (if so equipped)
4-2Monitor, climate, audio, phone and voice recognition systems

9. Power button/VOL (volume) control knob
10. CAMERA button
* For information regarding the Navigation system
control buttons, refer to the separate Navigation
System Owner’s Manual.
** For information regarding the Bluetooth®
Hands-Free Phone System control button, see
“Bluetooth® Hands-Free Phone System” in this
section.
When you use this system, make sure the engine
is running.
If you use the system with the engine not
running (ignition ON or ACC) for a long
time, it will discharge the battery, and the
engine will not start.
Reference symbols:
“Example” — Words marked in quotes refer to a
key shown only on the display. These keys can be
selected by touching the screen.HOW TO USE THE TOUCH
SCREEN
CAUTION
● The glass display screen may break if it
is hit with a hard or sharp object. If the
glass screen breaks, do not touch it.
Doing so could result in an injury.
● To clean the display, never use a rough
cloth, alcohol, benzine, thinner or any
kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or deteriorate the panel.
● Do not splash any liquid such as water
or car fragrance on the display. Contact
with liquid will cause the system to
malfunction.
To help ensure safe driving, some functions can-
not be operated while driving.
The on-screen functions that are not available
while driving will be “grayed out” or muted.
Park the vehicle in a safe location and then oper-
ate the navigation system.
WARNING
● ALWAYS give your full attention to
driving.
● Avoid using vehicle features that could
distract you. If distracted, you could
lose control of your vehicle and cause
an accident.
Monitor, climate, audio, phone and voice recognition systems4-3

Touch screen operation
Selecting the item:
Touch an item to select. For example, to select
the “Audio” key, touch the “Audio” key
1on the
screen. Adjusting the item:
For screens where an item can be adjusted incre-
mentally, such as when adjusting the bass and
treble for the audio system, touch the “+” key1
or the “” key2to adjust the settings of an item.
When there are more items than can be dis-
played on one screen, touch the up arrow
3to
scroll up the page or touch the down arrow
4to
scroll down the page. Other items are adjusted by selecting one of a set
number of conditions. For example, the Display
Mode can be set to “Automatic”, “Day” or “Night”.
To adjust this type of item, touch the item
1. The
item will cycle through the available settings and
the red indicator lights to the left of the setting
condition
2will come on or turn off accordingly.
LHA2245LHA2246LHA1478
4-4Monitor, climate, audio, phone and voice recognition systems

Inputting characters:
Touch the letter key
1.
There are some options available when inputting
characters. ● 123 / ABC:
Changes the available character set to num-
bers.
● Space:
Inserts a space.
● Delete:
Deletes the last inputted character with one
touch. Touch and hold the “Delete” key to
delete all of the characters. ●
OK:
Completes the character input.
Touch screen maintenance
If you clean the display screen, use a dry, soft
cloth. If additional cleaning is necessary, use a
small amount of neutral detergent with a soft
cloth. Never spray the screen with water or de-
tergent. Dampen the cloth first and then wipe the
screen.
HOW TO USE THE BACK BUTTON
Press the BACK button to return to the previous
screen.
HOW TO USE THE MENU BUTTON
For more information about the “POIs Powered
by Google™”, “Google™ Send-To-Car, “Traffic
Information” and “Weather” features, see the
separate Navigation System Owner’s Manual.
For more information about the “Voice Com-
mands” key, see “NISSAN Voice Recognition
System” in this section.
To select and/or adjust several functions, fea-
tures and modes that are available for your ve-
hicle:
1. Press the MENU button.
2. Select the “Settings” key.
LHA2247LHA2253
Monitor, climate, audio, phone and voice recognition systems4-5
