1. Front view camera* (P.4-13)
2. Hood (P.3-19)
3. Headlight and turn signal lights— Switch operation (P.2-30)
— Bulb replacement (P.8-26)
4. Windshield wiper and washer — Switch operation (P.2-28) — Blade replacement (P.8-17)
— Window washer fluid (P.8-12)
5. Roof rack (rail)* (P.2-44)
6. Moonroof* (P.2-47)
7. Outside mirrors (P.3-25) — Side view camera* (P.4-13)
8. Power windows (P.2-45) 9. Recovery hook (P.6-14)
10. License plate installation (P.9-11)
11. Fog lights*
— Switch operation (P.2-34)
— Bulb replacement (P.8-27)
12. Tires — Wheel and tires (P.8-31, P.9-7)
— Flat tire (P.6-2)
— Tire Pressure Monitoring System (TPMS)
(P.2-11, P.5-3)
13. Doors — Keys (P.3-2)
— Door locks (P.3-4)
— Intelligent Key system* (P.3-10)
— Remote keyless entry system* (P.3-7)
— Security system (P.2-25)
14. Child safety rear door lock (P.3-6)
*: if so equipped
Illustrated table of contents0-3
EXTERIOR FRONT

Black plate (16,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
0-10Illustrated table of contents
GUID-65B13399-03E2-4AC9-B527-1CEEE81B9182
Warninglight Name
Page
All-Wheel Drive (AWD) warning
light (AWD models)* 2-9
Anti-lock Braking System (ABS)
warning light2-9
Brake warning light
2-10
Charge warning light2-10
Electric power steering warning
light 2-10
Engine oil pressure warning
light2-11
Low fuel warning light
2-11
Low tire pressure warning light 2-11
Master warning light 2-12
Seat belt warning light 2-12
Supplemental air bag warning
light 2-13
Vehicle Dynamic Control (VDC)
warning light2-13Indicator
light Name Page
All-Wheel Drive (AWD) LOCK
indicator light (AWD models)* 2-13
Exterior light indicator
2-13
Front passenger air bag status
light 2-14
High beam indicator light 2-14
Malfunction Indicator Light
(MIL)2-14
Overdrive off indicator light 2-15
Security indicator light
2-15
SPORT mode indicator light 2-15
Turn signal/hazard indicator
lights 2-15
Vehicle Dynamic Control (VDC)
off indicator light2-15
*: if so equipped
WARNING AND INDICATOR LIGHTS

Black plate (18,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
1-2Safety — Seats, seat belts and supplemental restraint system
S35-D-110201-E7A0F37F-C118-45BC-AF57-B050BFBD9D51
SSS0133
WARNING
.Do not ride in a moving vehicle
when the seatback is reclined. This
can be dangerous. The shoulder belt
will not be against your body. In an
accident, you could be thrown into it
and receive neck or other serious
injuries. You could also slide under
the lap belt and receive serious
internal injuries.
. For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit well back in the seat with both feet
on the floor and adjust the seat
properly. See “Precautions on seat
belt usage” later in this section.
. After adjustment, gently rock in the
seat to make sure it is securely
locked.
. Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious acci-
dents. .
The seatback should not be reclined
any more than needed for comfort.
Seat belts are most effective when
the passenger sits well back and
straight up in the seat. If the seat-
back is reclined, the risk of sliding
under the lap belt and being injured
is increased.
CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or da-
mages.
SEATS

Black plate (21,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
SSS1053
Lumbar support (if so equipped):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The lumbar support feature provides lower back
support to the driver.
Push the front or back end of the switch to
adjust the seat lumbar area.
SSS0796
Folding front passenger’s seat (if so
equipped)
S35-D-110201-C19042A4-37EC-4F5E-A2F3-CC2DCE9D4829The front passenger’s seatback can be folded
down. Some long objects may be loaded in the
vehicle when the rear seats are also folded
down. (See “Rear seats” later in this section for
folding rear seats.)
To fold the front passenger’s seatback, pull the
reclining lever all the way
*1.
When returning the front passenger’s seatback
to a seating position, lift it up to an upright
position. Pull the reclining lever and lean the
seatback to a proper seating position. (See
“Front manual seat adjustment” earlier in this section.)
WARNING
.
If you fold the front passenger’s
seatback down to carry longer ob-
jects, be sure this cargo is properly
secured and not near an air bag. In a
crash, an inflating air bag might
force that object toward a person.
This could cause severe injury or
even death. Secure objects away
from the area in which an air bag
would inflate. See “Precautions on
Supplemental Restraint System” la-
ter in this section.
. Never allow anyone to ride in the
cargo area or on the front passen-
ger’s seat when it is in the fold-
down position. Use of these areas
by passengers could result in ser-
ious injury in an accident or sudden
stop.
Safety — Seats, seat belts and supplemental restraint system1-5

Black plate (22,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
1-6Safety — Seats, seat belts and supplemental restraint system
SSS0797

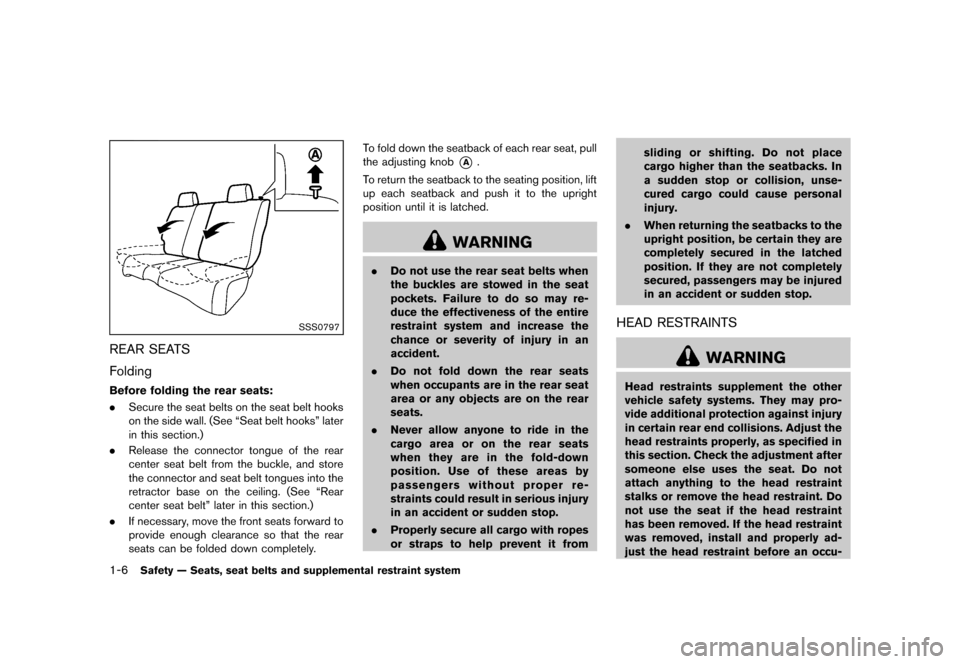

REAR SEATSS35-D-110201-F1069FCA-D94F-46E4-9FA4-8088C2EFB096
FoldingS35-D-110201-F3098F1C-3843-46A3-9934-E20A6D0E0E98
Before folding the rear seats:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407.Secure the seat belts on the seat belt hooks
on the side wall. (See “Seat belt hooks” later
in this section.)
. Release the connector tongue of the rear
center seat belt from the buckle, and store
the connector and seat belt tongues into the
retractor base on the ceiling. (See “Rear
center seat belt” later in this section.)
. If necessary, move the front seats forward to
provide enough clearance so that the rear
seats can be folded down completely. To fold down the seatback of each rear seat, pull
the adjusting knob
*A.
To return the seatback to the seating position, lift
up each seatback and push it to the upright
position until it is latched.
WARNING
. Do not use the rear seat belts when
the buckles are stowed in the seat
pockets. Failure to do so may re-
duce the effectiveness of the entire
restraint system and increase the
chance or severity of injury in an
accident.
. Do not fold down the rear seats
when occupants are in the rear seat
area or any objects are on the rear
seats.
. Never allow anyone to ride in the
cargo area or on the rear seats
when they are in the fold-down
position. Use of these areas by
passengers without proper re-
straints could result in serious injury
in an accident or sudden stop.
. Properly secure all cargo with ropes
or straps to help prevent it from sliding or shifting. Do not place
cargo higher than the seatbacks. In
a sudden stop or collision, unse-
cured cargo could cause personal
injury.
. When returning the seatbacks to the
upright position, be certain they are
completely secured in the latched
position. If they are not completely
secured, passengers may be injured
in an accident or sudden stop.
HEAD RESTRAINTSS35-D-110201-8707514E-311A-4F34-AD80-2FBAE21FA9C7
WARNING
Head restraints supplement the other
vehicle safety systems. They may pro-
vide additional protection against injury
in certain rear end collisions. Adjust the
head restraints properly, as specified in
this section. Check the adjustment after
someone else uses the seat. Do not
attach anything to the head restraint
stalks or remove the head restraint. Do
not use the seat if the head restraint
has been removed. If the head restraint
was removed, install and properly ad-
just the head restraint before an occu-

Black plate (25,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
SSS0995

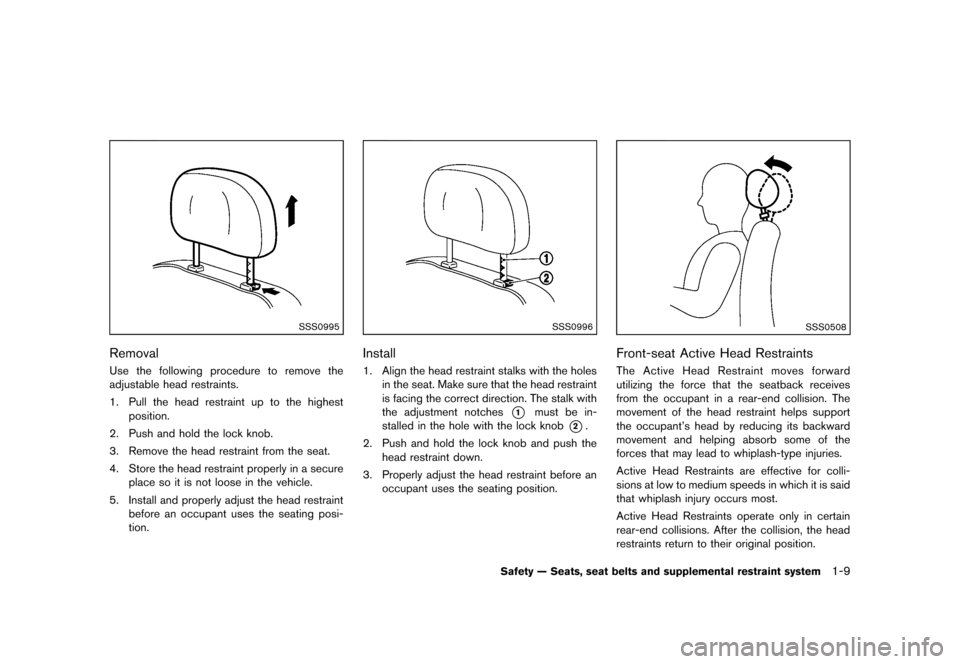

RemovalGUID-C561A9AF-CBB2-4542-89D6-BD973A7B3031Use the following procedure to remove the
adjustable head restraints.
1. Pull the head restraint up to the highestposition.
2. Push and hold the lock knob.
3. Remove the head restraint from the seat.
4. Store the head restraint properly in a secure place so it is not loose in the vehicle.
5. Install and properly adjust the head restraint before an occupant uses the seating posi-
tion.
SSS0996
InstallGUID-6FFAC965-3169-4B2F-AEA8-863C33C198E21. Align the head restraint stalks with the holesin the seat. Make sure that the head restraint
is facing the correct direction. The stalk with
the adjustment notches
*1must be in-
stalled in the hole with the lock knob
*2.
2. Push and hold the lock knob and push the head restraint down.
3. Properly adjust the head restraint before an occupant uses the seating position.
SSS0508
Front-seat Active Head RestraintsGUID-807E7618-FD6F-421A-A613-6003E38F8273The Active Head Restraint moves forward
utilizing the force that the seatback receives
from the occupant in a rear-end collision. The
movement of the head restraint helps support
the occupant’s head by reducing its backward
movement and helping absorb some of the
forces that may lead to whiplash-type injuries.
Active Head Restraints are effective for colli-
sions at low to medium speeds in which it is said
that whiplash injury occurs most.
Active Head Restraints operate only in certain
rear-end collisions. After the collision, the head
restraints return to their original position.
Safety — Seats, seat belts and supplemental restraint system1-9

Black plate (28,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
1-12Safety — Seats, seat belts and supplemental restraint system
WARNING
.Every person who drives or rides in
this vehicle should use a seat belt at
all times. Children should be prop-
erly restrained in the rear seat and,
if appropriate, in a child restraint.
. The seat belt should be properly
adjusted to a snug fit. Failure to do
so may reduce the effectiveness of
the entire restraint system and in-
crease the chance or severity of
injury in an accident. Serious injury
or death can occur if the seat belt is
not worn properly.
. Always route the shoulder belt over
your shoulder and across your
chest. Never put the belt behind
your back, under your arm or across
your neck. The belt should be away
from your face and neck, but not
falling off your shoulder.
. Position the lap belt as low and
snug as possible AROUND THE
HIPS, NOT THE WAIST. A lap belt
worn too high could increase the
risk of internal injuries in an acci-
dent. .
Be sure the seat belt tongue is
securely fastened to the proper
buckle.
. Do not wear the seat belt inside out
or twisted. Doing so may reduce its
effectiveness.
. Do not allow more than one person
to use the same seat belt.
. Never carry more people in the
vehicle than there are seat belts.
. If the seat belt warning light glows
continuously while the ignition is
turned ON with all doors closed and
all seat belts fastened, it may in-
dicate a malfunction in the system.
Have the system checked by a
NISSAN dealer.
. No changes should be made to the
seat belt system. For example, do
not modify the seat belt, add mate-
rial, or install devices that may
change the seat belt routing or
tension. Doing so may affect the
operation of the seat belt system.
Modifying or tampering with the
seat belt system may result in
serious personal injury. .
Once a seat belt with pretensioner
has activated, it cannot be reused
and must be replaced together with
the retractor. See a NISSAN dealer.
. Removal and installation of the
pretensioner system components
should be done by a NISSAN dealer.
. All seat belt assemblies, including
retractors and attaching hardware,
should be inspected after any colli-
sion by a NISSAN dealer. NISSAN
recommends that all seat belt as-
semblies in use during a collision be
replaced unless the collision was
minor and the belts show no da-
mage and continue to operate prop-
erly. Seat belt assemblies not in use
during a collision should also be
inspected and replaced if either
damage or improper operation is
noted.
. All child restraints and attaching
hardware should be inspected after
any collision. Always follow the
restraint manufacturer’s inspection
instructions and replacement re-
commendations. The child restraints
should be replaced if they are

Black plate (30,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

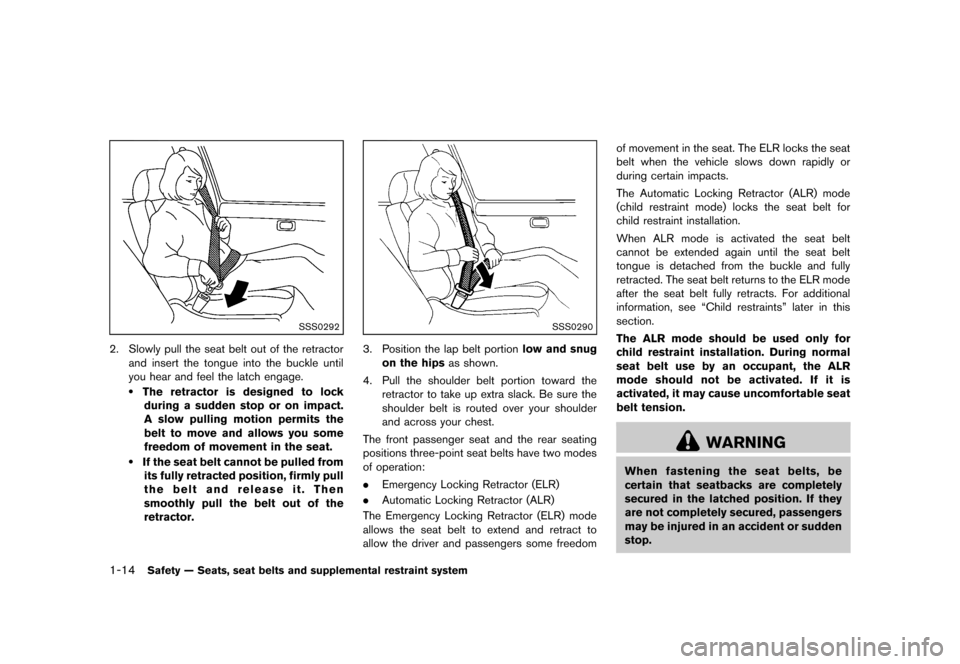

1-14Safety — Seats, seat belts and supplemental restraint system
SSS0292
2. Slowly pull the seat belt out of the retractorand insert the tongue into the buckle until
you hear and feel the latch engage.
.The retractor is designed to lockduring a sudden stop or on impact.
A slow pulling motion permits the
belt to move and allows you some
freedom of movement in the seat.
.If the seat belt cannot be pulled from its fully retracted position, firmly pull
the belt and release it. Then
smoothly pull the belt out of the
retractor.
SSS0290
3. Position the lap belt portion low and snug
on the hips as shown.
4. Pull the shoulder belt portion toward the retractor to take up extra slack. Be sure the
shoulder belt is routed over your shoulder
and across your chest.
The front passenger seat and the rear seating
positions three-point seat belts have two modes
of operation:
. Emergency Locking Retractor (ELR)
. Automatic Locking Retractor (ALR)
The Emergency Locking Retractor (ELR) mode
allows the seat belt to extend and retract to
allow the driver and passengers some freedom of movement in the seat. The ELR locks the seat
belt when the vehicle slows down rapidly or
during certain impacts.
The Automatic Locking Retractor (ALR) mode
(child restraint mode) locks the seat belt for
child restraint installation.
When ALR mode is activated the seat belt
cannot be extended again until the seat belt
tongue is detached from the buckle and fully
retracted. The seat belt returns to the ELR mode
after the seat belt fully retracts. For additional
information, see “Child restraints” later in this
section.
The ALR mode should be used only for
child restraint installation. During normal
seat belt use by an occupant, the ALR
mode should not be activated. If it is
activated, it may cause uncomfortable seat
belt tension.
WARNING
When fastening the seat belts, be
certain that seatbacks are completely
secured in the latched position. If they
are not completely secured, passengers
may be injured in an accident or sudden
stop.
