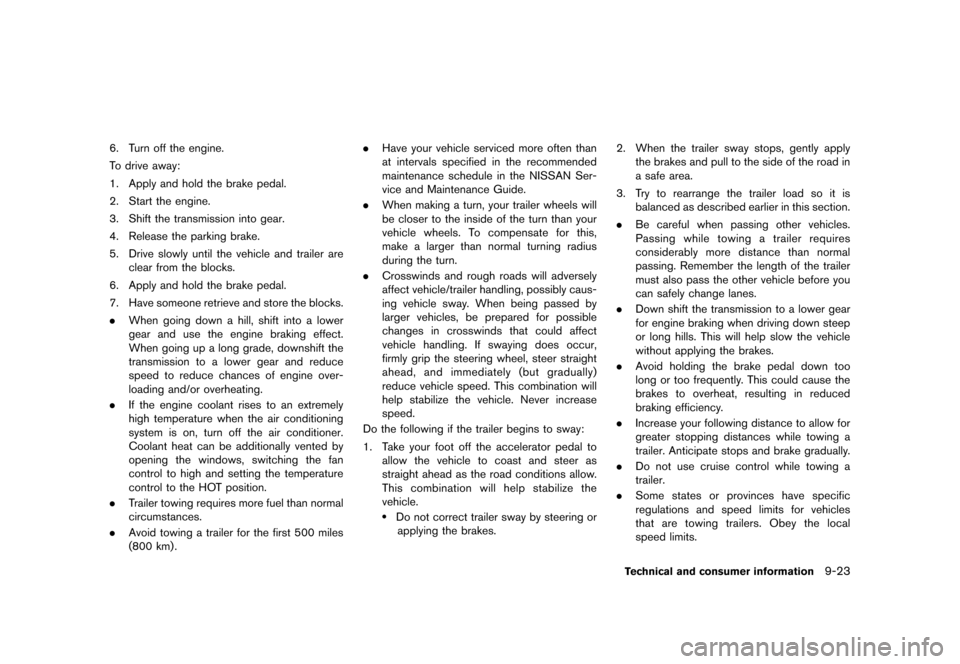

6. Turn off the engine.
To drive away:
1. Apply and hold the brake pedal.
2. Start the engine.
3. Shift the transmission into gear.
4. Release the parking brake.
5. Drive slowly until the vehicle and trailer areclear from the blocks.
6. Apply and hold the brake pedal.
7. Have someone retrieve and store the blocks.
. When going down a hill, shift into a lower
gear and use the engine braking effect.
When going up a long grade, downshift the
transmission to a lower gear and reduce
speed to reduce chances of engine over-
loading and/or overheating.
. If the engine coolant rises to an extremely
high temperature when the air conditioning
system is on, turn off the air conditioner.
Coolant heat can be additionally vented by
opening the windows, switching the fan
control to high and setting the temperature
control to the HOT position.
. Trailer towing requires more fuel than normal
circumstances.
. Avoid towing a trailer for the first 500 miles
(800 km) . .
Have your vehicle serviced more often than
at intervals specified in the recommended
maintenance schedule in the NISSAN Ser-
vice and Maintenance Guide.
. When making a turn, your trailer wheels will
be closer to the inside of the turn than your
vehicle wheels. To compensate for this,
make a larger than normal turning radius
during the turn.
. Crosswinds and rough roads will adversely
affect vehicle/trailer handling, possibly caus-
ing vehicle sway. When being passed by
larger vehicles, be prepared for possible
changes in crosswinds that could affect
vehicle handling. If swaying does occur,
firmly grip the steering wheel, steer straight
ahead, and immediately (but gradually)
reduce vehicle speed. This combination will
help stabilize the vehicle. Never increase
speed.
Do the following if the trailer begins to sway:
1. Take your foot off the accelerator pedal to allow the vehicle to coast and steer as
straight ahead as the road conditions allow.
This combination will help stabilize the
vehicle.
.Do not correct trailer sway by steering orapplying the brakes. 2. When the trailer sway stops, gently apply
the brakes and pull to the side of the road in
a safe area.
3. Try to rearrange the trailer load so it is balanced as described earlier in this section.
. Be careful when passing other vehicles.
Passing while towing a trailer requires
considerably more distance than normal
passing. Remember the length of the trailer
must also pass the other vehicle before you
can safely change lanes.
. Down shift the transmission to a lower gear
for engine braking when driving down steep
or long hills. This will help slow the vehicle
without applying the brakes.
. Avoid holding the brake pedal down too
long or too frequently. This could cause the
brakes to overheat, resulting in reduced
braking efficiency.
. Increase your following distance to allow for
greater stopping distances while towing a
trailer. Anticipate stops and brake gradually.
. Do not use cruise control while towing a
trailer.
. Some states or provinces have specific
regulations and speed limits for vehicles
that are towing trailers. Obey the local
speed limits.
Technical and consumer information9-23

Black plate (361,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

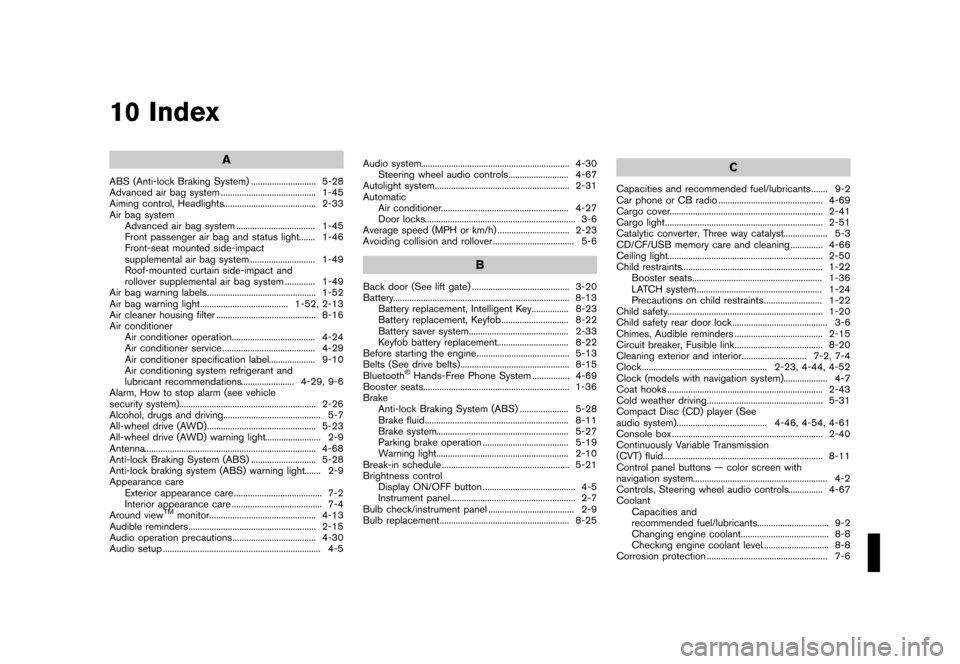

10 Index
A
ABS (Anti-lock Braking System)...
............................ 5-28
Advanced air bag system ...
......................................... 1-45
Aiming control, Headlights ...
........................................ 2-33
Air bag system Advanced air bag system ...
.................................. 1-45
Front passenger air bag and status light ...
....... 1-46
Front-seat mounted side-impact
supplemental air bag system ...
............................ 1-49
Roof-mounted curtain side-impact and
rollover supplemental air bag system ...
............. 1-49
Air bag warning labels ...
............................................... 1-52
Air bag warning light ...
...................................... 1-52, 2-13
Air cleaner housing filter ...
........................................... 8-16
Air conditioner Air conditioner operation ...
.................................... 4-24
Air conditioner service ...
........................................ 4-29
Air conditioner specification label ...
.................... 9-10
Air conditioning system refrigerant and
lubricant recommendations ...
....................... 4-29, 9-6
Alarm, How to stop alarm (see vehicle
security system) ...
........................................................... 2-26
Alcohol, drugs and driving ...
.......................................... 5-7
All-wheel drive (AWD) ...
............................................... 5-23
All-wheel drive (AWD) warning light ...
........................ 2-9
Antenna ...
.......................................................................... 4-68
Anti-lock Braking System (ABS) ...
............................ 5-28
Anti-lock braking system (ABS) warning light ...
....... 2-9
Appearance care Exterior appearance care ...
...................................... 7-2
Interior appearance care ...
....................................... 7-4
Around view
TMmonitor ...
.............................................. 4-13
Audible reminders ...
....................................................... 2-15
Audio operation precautions ...
.................................... 4-30
Audio setup ...
.................................................................... 4-5 Audio system
...
................................................................ 4-30
Steering wheel audio controls ...
.......................... 4-67
Autolight system ...
.......................................................... 2-31
Automatic Air conditioner ...
....................................................... 4-27
Door locks ...
................................................................. 3-6
Average speed (MPH or km/h) ...
............................... 2-23
Avoiding collision and rollover ...
................................... 5-6
B
Back door (See lift gate) ...
.......................................... 3-20
Battery ...
............................................................................ 8-13
Battery replacement, Intelligent Key ...
................ 8-23
Battery replacement, Keyfob ...
............................. 8-22
Battery saver system ...
........................................... 2-33
Keyfob battery replacement ...
............................... 8-22
Before starting the engine ...
........................................ 5-13
Belts (See drive belts) ...
............................................... 8-15
Bluetooth
®Hands-Free Phone System ...
................ 4-69
Booster seats ...
............................................................... 1-36
Brake Anti-lock Braking System (ABS) ...
..................... 5-28
Brake fluid ...
.............................................................. 8-11
Brake system ...
......................................................... 5-27
Parking brake operation ...
..................................... 5-19
Warning light ...
......................................................... 2-10
Break-in schedule ...
....................................................... 5-21
Brightness control Display ON/OFF button ...
........................................ 4-5
Instrument panel ...
...................................................... 2-7
Bulb check/instrument panel ...
..................................... 2-9
Bulb replacement ...
........................................................ 8-25
C
Capacities and recommended fuel/lubricants ...
....... 9-2
Car phone or CB radio ...
............................................. 4-69
Cargo cover ...
.................................................................. 2-41
Cargo light ...
.................................................................... 2-51
Catalytic converter, Three way catalyst ...
................... 5-3
CD/CF/USB memory care and cleaning ...
.............. 4-66
Ceiling light ...
................................................................... 2-50
Child restraints ...
............................................................. 1-22
Booster seats ...
........................................................ 1-36
LATCH system ...
...................................................... 1-24
Precautions on child restraints ...
......................... 1-22
Child safety ...
................................................................... 1-20
Child safety rear door lock ...
......................................... 3-6
Chimes, Audible reminders ...
...................................... 2-15
Circuit breaker, Fusible link ...
...................................... 8-20
Cleaning exterior and interior ...
............................ 7-2, 7-4
Clock ...
...................................................... 2-23, 4-44, 4-52
Clock (models with navigation system) ...
................... 4-7
Coat hooks ...
................................................................... 2-43
Cold weather driving ...
.................................................. 5-31
Compact Disc (CD) player (See
audio system) ...
....................................... 4-46, 4-54, 4-61
Console box ...
................................................................. 2-40
Continuously Variable Transmission
(CVT) fluid ...
..................................................................... 8-11
Control panel buttons — color screen with
navigation system ...
.......................................................... 4-2
Controls, Steering wheel audio controls ...
............... 4-67
Coolant Capacities and
recommended fuel/lubricants ...
............................... 9-2
Changing engine coolant ...
...................................... 8-8
Checking engine coolant level ...
............................. 8-8
Corrosion protection ...
.................................................... 7-6
