2013 NISSAN PATHFINDER refrigerant type

The following are approximate capacities. The actual refill capacities may be slightly different. When refilling, follow the procedure
described in the “Maintenance and do-it-yourself” section to determine the proper refill capacity.
Capacity (Approximate)Recommended Fluids and Lubricants
US measure Imp measure Liter
Fuel 19-1/2 gal 16-1/4 gal 74See “Fuel recommendation” later in this section.
Engine oil *7 Drain and RefillWith oil filter change 5-1/8 qt 4-1/4 qt 4.8 Engine oil with API Certification Mark *1, *2
Viscosity SAE 5W-30 *1, *2
Without oil filter
change 4-3/4 qt 4 qt
4.5
Cooling system With reservoir 2-1/2 gal 2-1/8 gal 9.8 Pre-diluted Genuine NISSAN Long Life Antifreeze/Coolant (blue) or
equivalent
Continuously Variable Transmission (CVT) fluid ——— Genuine NISSAN CVT Fluid NS-3 *3
Power steering fluid (PSF) ——— Genuine NISSAN E-PSF or equivalent.*4
Differential gear oil ——— Genuine NISSAN Differential Oil Hypoid Super Semi-Synthetic API GL-5,
Viscosity SAE 75W-90 *8
Transfer fluid ——— API GL-5, Viscosity SAE 80W-90 or equivalent
Brake fluid ——— Genuine NISSAN Super Heavy Duty Brake Fluid *5 or equivalent DOT 3
Multi-purpose grease ——— NLGI No. 2 (Lithium Soap base)
Air conditioning system refrigerant ——— HFC-134a (R-134a) *6
Air conditioning system oil ——— Genuine NISSAN A/C System Oil Type S or equivalent *6
Windshield-washer fluid 1 gal7/8 gal 3.8 Genuine NISSAN Windshield Washer Concentrate Cleaner & Antifreeze
fluid or equivalent
*1: For further details, see “Engine oil and oil filter recommendations” in this section.
*2: NISSAN recommends Genuine NISSAN Ester Oil available at a NISSAN dealer.
*3: Use only Genuine NISSAN CVT Fluid NS-3. Using transmission fluid other than Genuine NISSAN CVT Fluid NS-3 will damage the CVT, which is not covered by
the NISSAN new vehicle limited warranty.
*4: Use of power steering fluid other than Genuine NISSAN E-PSF will prevent the power steering system from operating properly.
*5: Available in mainland USA through a NISSAN dealer.
*6: For further details, see “Air conditioner system refrigerant and oil recommendations” in this section.
*7: For further details, see “Engine Oil” in the “Maintenance and do-it-yourself” section of this manual.
*8: The use of differential gear oil other than the specified may cause vehicle malfunctions and result in non-warranty vehicle repairs.
CAPACITIES AND RECOMMENDED
FUEL/LUBRICANTS
9-2Technical and consumer information

Your engine was filled with a high-quality engine
oil when it was built. You do not have to change
the oil before the first recommended change
interval. Oil and filter change intervals depend
upon how you use your vehicle.
Operation under the following conditions may
require more frequent oil and filter changes:● repeated short distance driving at cold out-
side temperatures
● driving in dusty conditions
● extensive idling
● towing a trailer
● stop and go commuting
Refer to the “NISSAN Service and Maintenance
Guide” for the maintenance schedule.
AIR CONDITIONER SYSTEM
REFRIGERANT AND OIL
RECOMMENDATIONS
The air conditioner system in your NISSAN
vehicle must be charged with the refriger-
ant HFC-134a (R-134a) and NISSAN A/C
system oil Type S or the exact equivalents.
CAUTION
The use of any other refrigerant or oil will
cause severe damage to the air condition-
ing system and will require the replace-
ment of all air conditioner system
components.
The refrigerant HFC-134a (R-134a) in your
NISSAN vehicle does not harm the earth’s ozone
layer. Although this refrigerant does not affect the
earth’s atmosphere, certain government regula-
tions require the recovery and recycling of any
refrigerant during automotive air conditioner sys-
tem service. A NISSAN dealer has the trained
technicians and equipment needed to recover
and recycle your air conditioner system refriger-
ant.
Contact a NISSAN dealer when servicing your air
conditioner system.
9-6Technical and consumer information

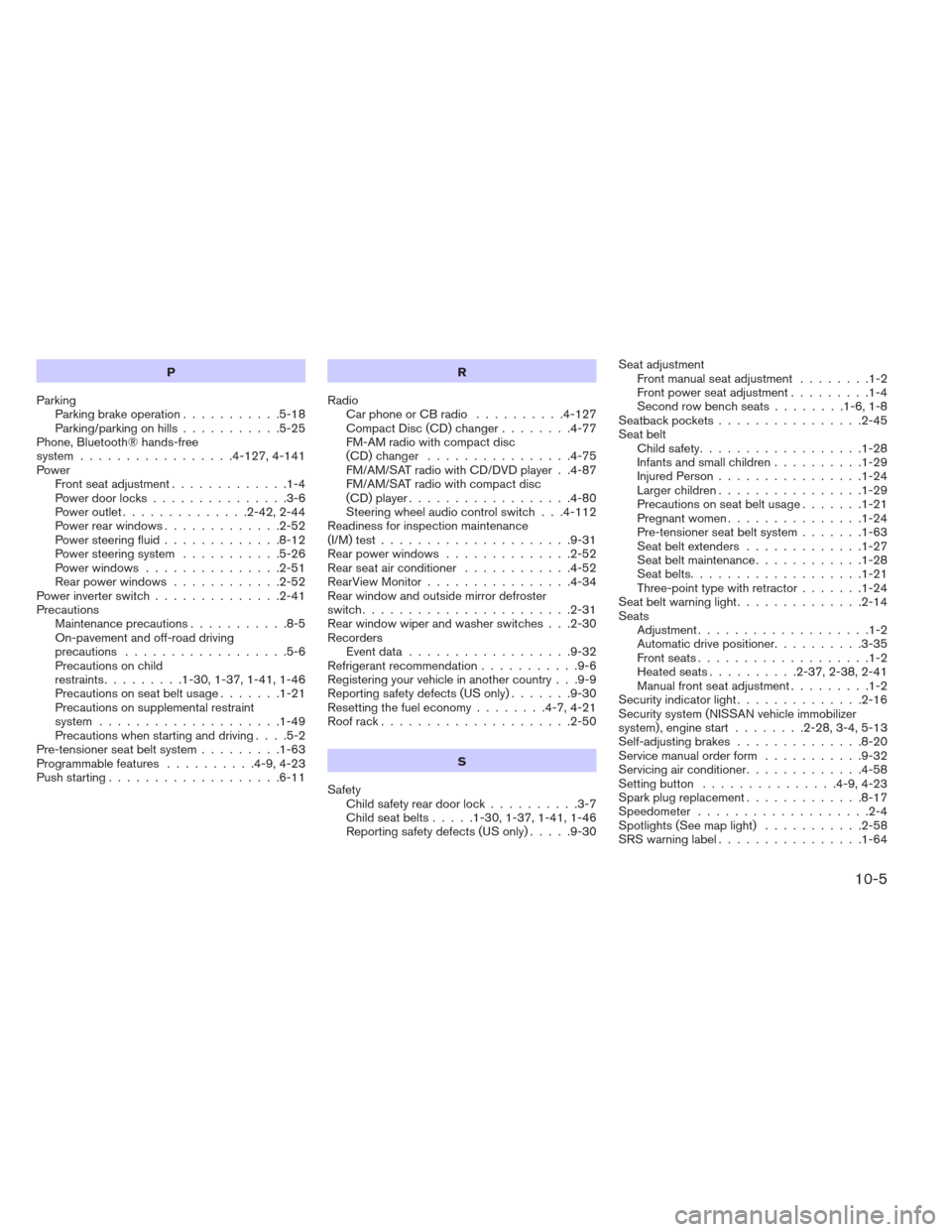

P
Parking Parking brake operation ...........5-18
Parking/parking on hills ...........5-25
Phone, Bluetooth® hands-free
system.................4- 127, 4-141
Power Front seat adjustment .............1-4
Power door locks ...............3-6
Power outlet ..............2-42,2-44
Power rear windows .............2-52
Power steering fluid .............8-12
Power steering system ...........5-26
Power windows ...............2-51
Rear power windows ............2-52
Powerinverterswitch..............2-41
Precautions Maintenanceprecautions...........8-5
On-pavement and off-road driving
precautions ..................5-6
Precautions on child
restraints .........1-30,1-37,1-41,1-46
Precautionsonseatbeltusage.......1-21
Precautions on supplemental restraint
system ....................1-49
Precautions when starting and driving ....5-2
Pre-tensioner seat belt system .........1-63
Programmable features ..........4-9,4-23
Push starting ...................6-11 R
Radio Car phone or CB radio ..........4-127
Compact Disc (CD) changer ........4-77
FM-AM radio with compact disc
(CD) changer ................4-75
FM/AM/SAT radio with CD/DVD player . .4-87
FM/AM/SAT radio with compact disc
(CD) player ..................4-80
Steering wheel audio control switch . . .4-112
Readiness for inspection maintenance
(I/M) test .....................9-31
Rear power windows ..............2-52
Rear seat air conditioner ............4-52
RearViewMonitor................4-34
Rear window and outside mirror defroster
switch .......................2-31
Rear window wiper and washer switches . . .2-30
Recorders Eventdata..................9-32
Refrigerant recommendation ...........9-6
Registering your vehicle in another country . . .9-9
Reporting safety defects (US only) .......9-30
Resetting the fuel economy ........4-7,4-21
Roof rack .....................2-50
S
Safety Child safety rear door lock ..........3-7
Child seat belts .....1-30,1-37,1-41,1-46
Reporting safety defects (US only) .....9-30Seat adjustment
Frontmanualseatadjustment ........1-2
Front power seat adjustment .........1-4
Second row bench seats ........1-6,1-8
Seatback pockets ................2-45
Seat belt Child safety ..................1-28
Infants and small children ..........1-29
Injured Person ................1-24
Larger children ................1-29
Precautions on seat belt usage .......1-21
Pregnant women ...............1-24
Pre-tensioner seat belt system .......1-63
Seat belt extenders .............1-27
Seat belt maintenance ............1-28
Seat belts ...................
1-21
Three-point type with retractor .......1-24
Seat belt warning light ..............2-14
Seats Adjustment ...................1-2
Automatic drive positioner ..........3-35
Frontseats...................1-2
Heated seats ..........2-37,2-38,2-41
Manual front seat adjustment .........1-2
Security indicator light ..............2-16
Security system (NISSAN vehicle immobilizer
system) , engine start ........2-28,3-4,5-13
Self-adjusting brakes ..............8-20
Service manual order form ...........9-32
Servicing air conditioner .............4-58
Setting button ...............4-9,4-23
Spark plug replacement .............8-17
Speedometer ...................2-4
Spotlights(Seemaplight) ...........2-58
SRSwarninglabel................1-64
10-5
