To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.3
BLIND SPOT WARNING (BSW) SYSTEM (if so equipped)
The Blind Spot Warning (BSW) system alerts the
driver when another vehicle moves into the vehicle’s
blind spot area.
An indicator light near the driver’s outside mirror will
illuminate if the radar sensors detect a vehicle in the
detection zone.
The indicator light will fi rst illuminate in orange
and then turn green while the system is on. This
indicates that the Blind Spot Warning (BSW) system
is operational.
For more information, refer to the “Starting and driving (section 5) ” of your
Owner’s Manual.
LANE DEPARTURE WARNING (LDW) SYSTEM (if so equipped)
The LANE DEPARTURE WARNING (LDW)
system alerts the driver when the vehicle moves
close to either the left or the right of a clearly marked
traveling lane.
When the vehicle approaches either the left or right
of the clearly marked traveling lane a chime will sound
and the LDW light
01 (orange) on the instrument
panel will blink.
For more information, refer to the “Starting and driving (section 5) ” of your Owner’s Manual.
01
13

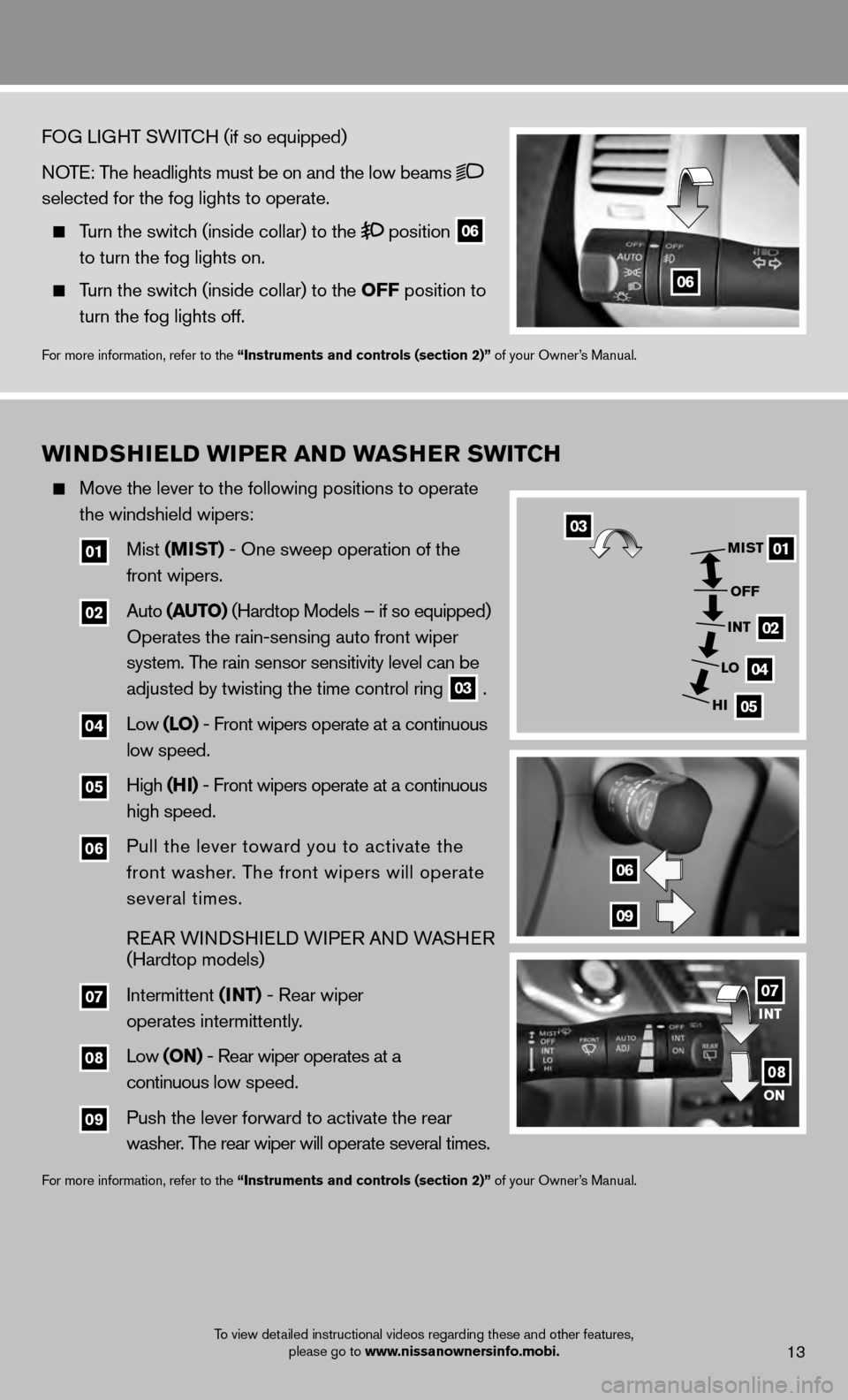

WINDSHIELD WIPER AND WASHER SWITCH
Move the lever to the following positions to operate
the windshield wipers:
01 Mist (MIST) - One sweep operation of the
front wipers.
02 Auto (AUTO) (Hardtop Models – if so equipped)
Operates the rain-sensing auto front wiper
system. The rain sensor sensitivity level can be
adjusted by twisting the time control ring
03 .
04 Low (LO) - Front wipers operate at a continuous
low speed.
05 High (HI) - Front wipers operate at a continuous
high speed.
06 Pull the lever toward you to activate the
front washer. The front wipers will operate
several times.
REAR WINDSHIELD WIPER AND WASHER
(Hardtop models)
07 Intermittent (INT) - Rear wiper
operates intermittently.
08 Low (ON) - Rear wiper operates at a
continuous low speed.
09 Push the lever forward to activate the rear
washer. The rear wiper will operate several times.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
01
02
04
05
MIST
OFF
INT
LO
HI
06
09
03
INT
ON07
08
FOG LIGHT SWITCH (if so equipped)
NOTE: The headlights must be on and the low beams
selected for the fog lights to operate.
Turn the switch (inside collar) to the position
06
to turn the fog lights on.
Turn the switch (inside collar) to the OFF position to
turn the fog lights off.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
06
To view detailed instructional videos regarding these and other features,
please go to www.nissanownersinfo.mobi.
