2013 NISSAN LEAF stop start

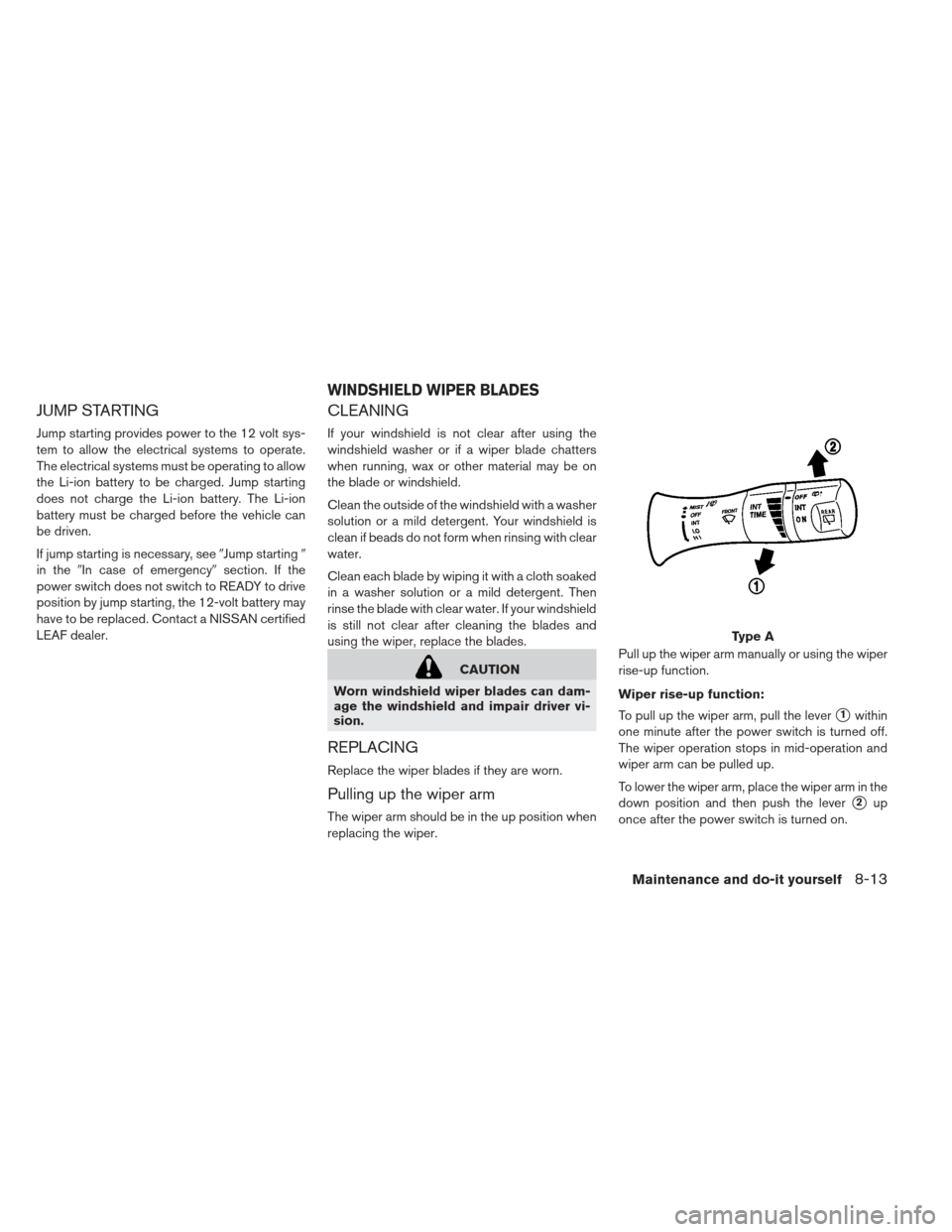

JUMP STARTING
Jump starting provides power to the 12 volt sys-
tem to allow the electrical systems to operate.
The electrical systems must be operating to allow
the Li-ion battery to be charged. Jump starting
does not charge the Li-ion battery. The Li-ion
battery must be charged before the vehicle can
be driven.
If jump starting is necessary, seeJump starting
in the In case of emergency section. If the
power switch does not switch to READY to drive
position by jump starting, the 12-volt battery may
have to be replaced. Contact a NISSAN certified
LEAF dealer.
CLEANING
If your windshield is not clear after using the
windshield washer or if a wiper blade chatters
when running, wax or other material may be on
the blade or windshield.
Clean the outside of the windshield with a washer
solution or a mild detergent. Your windshield is
clean if beads do not form when rinsing with clear
water.
Clean each blade by wiping it with a cloth soaked
in a washer solution or a mild detergent. Then
rinse the blade with clear water. If your windshield
is still not clear after cleaning the blades and
using the wiper, replace the blades.
CAUTION
Worn windshield wiper blades can dam-
age the windshield and impair driver vi-
sion.
REPLACING
Replace the wiper blades if they are worn.
Pulling up the wiper arm
The wiper arm should be in the up position when
replacing the wiper. Pull up the wiper arm manually or using the wiper
rise-up function.
Wiper rise-up function:
To pull up the wiper arm, pull the lever
1within
one minute after the power switch is turned off.
The wiper operation stops in mid-operation and
wiper arm can be pulled up.
To lower the wiper arm, place the wiper arm in the
down position and then push the lever
2up
once after the power switch is turned on.
Type A
WINDSHIELD WIPER BLADES
Maintenance and do-it yourself8-13

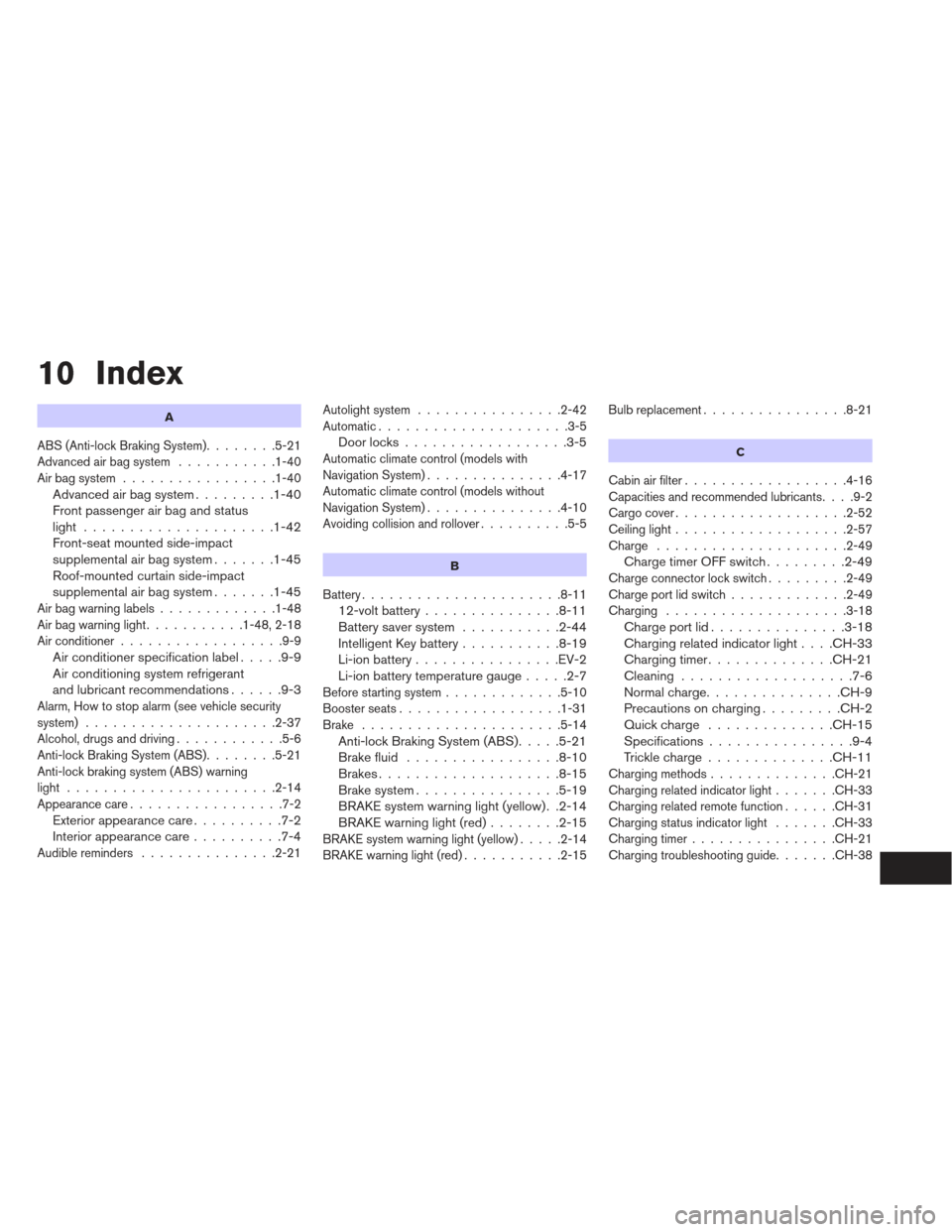

10 Index
A
ABS (Anti-lock Braking System)........5-21
Advanced air bag system ...........1-40
Air bag system .................1-40
Advanced air bag system .........1-40
Front passenger air bag and status
light .................... .1-42
Front-seat mounted side-impact
supplemental air bag system .......1-45
Roof-mounted curtain side-impact
supplemental air bag system .......1-45
Airbagwarninglabels.............1-48
Airbagwarninglight...........1-48,2-18
Air conditioner..................9-9
Air conditioner specification label .....9-9
Air conditioning system refrigerant
and lubricant recommendations ......9-3
Alarm, How to stop alarm (see vehicle security
system) .....................2-37
Alcohol, drugs and driving............5-6
Anti-lock Braking System (ABS) ........5-21
Anti-lock braking system (ABS) warning
light .......................2-14
Appearance care .................7-2
Exterior appearance care ..........7-2
Interior appearance care ..........7-4
Audible reminders...............2-21 Autolight system
................2-42
Automatic.....................3-5
Door locks ................. .3-5
Automatic climate control (models with
Navigation System)...............4-17
Automatic climate control (models without
Navigation System) ...............4-10
Avoiding collision and rollover ..........5-5
B
Battery......................8-11
12-volt battery .............. .8-11
Battery saver system ...........2-44
Intelligent Key battery ...........8-19
Li-ion battery ............... .EV-2
Li-ion battery temperature gauge .....2-7
Before starting system.............5-10
Boosterseats..................1-31
Brake ......................5-14
Anti-lock Braking System (ABS) .....5-21
Brake fluid ................ .8-10
Brakes ................... .8-15
Brake system ............... .5-19
BRAKE system warning light (yellow) . .2-14
BRAKE warning light (red) ........2-15
BRAKE system warning light (yellow) .....2-14
BRAKE warning light (red) ...........2-15 Bulbreplacement................8-21
C
Cabin air filter
..................4-16
Capacities and recommended lubricants ....9-2
Cargocover...................2-52
Ceiling light ...................2-57
Charge .....................2-49
Charge timer OFF switch .........2-49
Charge connector lock switch .........2-49
Chargeportlidswitch.............2-49
Charging ....................3-18
Charge port lid .............. .3-18
Charging related indicator light . . . .CH-33
Charging timer ............. .CH-21
Cleaning .................. .7-6
Normal charge .............. .CH-9
Precautions on charging .........CH-2
Quick charge ............. .CH-15
Specifications ............... .9-4
Trickle charge ............. .CH-11
Chargingmethods..............CH-21
Charging related indicator light .......CH-33
Charging related remote function ......CH-31
Charging status indicator light .......CH-33
Chargingtimer................CH-21
Chargingtroubleshootingguide.......CH-38

When starting and driving..........5-2
Push starting...................6-12
Q
Quickcharge .................CH-15
R
Rapidairpressureloss..............5-6
Rearcenterseatbelt ..............1-14
Rear door lock, Child safety rear door lock . . .3-6
Rear hatch....................3-17
Rearseats.....................1-4
Rearview monitor .................4-2
Rear window and outside mirror defroster
switch .......................2-41
Rear window wiper and washer switch ....2-40
Reductiongearfluid................8-9
Remotecharge ................CH-31
Remoteclimatecontrol.............4-23
Remote keyless entry function, For Intelligent
Keysystem....................3-13
Repairing flat tire .................6-4
Repairing tire ...................6-6
Reporting safety defects ............9-15
Road accident precautions ...........EV-8
Roadside assistance program ..........6-2
Rollover ......................5-5
S
Safety.......................1-15
Child seat belts .............. .1-15
Reporting safety defects ..........9-15
Sceneguide..................EV-22
At home after driving...........EV-22
Before driving your vehicle (models
with navigation system) ..........EV-13
Charging the Li-ion battery .......EV-10
Driving the vehicle .............EV-18
Parking the vehicle ............EV-21
Starting your vehicle ...........EV-17
Seat adjustment..................1-3
Front manual seat adjustment ........1-3
Front seats ................. .1-3
Seat belt(s)....................1-15
Child safety ................ .1-15
Infants ................... .1-15
Injured persons .............. .1-10
Larger children .............. .1-16
Precautions on seat belt usage .......1-7
Pregnant women ............. .1-10
Rear center seat belt ............1-14
Seat belt cleaning ............. .7-5
Seat belt extenders .............1-14
Seat belt hooks .............. .1-13
Seat belt maintenance ...........1-14
Seat belts .................. .1-7
Seat belts with pretensioners .......1-47
Seat belt warning light ...........2-18 Shoulder belt height adjustment
.....1-13
Small children ............... .1-15
Three-point type ............. .1-10
Seat(s) , Seats...................1-2
Heated seats............... .2-47
Security system (NISSAN Vehicle Immobilizer
System) , EV system start ............2-37
Servicing climate control ............4-16
Shifting ......................5-11
Electric shift control system ........5-11
Shoulder belt height adjustment, For front
seats.......................1-13
Soft bottle holders ................2-51
Solar cell module .................7-3
Speedometer ...................2-6
Starting ......................5-10
Before starting system ...........5-10
Jump starting ............... .6-10
Precautions when starting and driving . . .5-2
Push starting ............... .6-12
Status light, Front passenger air bag ......1-42
Steering .....................2-45
Heated steering wheel ...........2-45
Power steering system ...........5-19
Tilting steering column ...........3-20
Stopping the vehicle...............6-5
Storage......................2-50
Stowing golf bags ................2-53
Sun visors ....................3-21
Supplemental air bag warning labels ......1-48
Supplemental air bag warning light . . .1-48, 2-18
Index10-5
