SPECIAL WINTER EQUIPMENT
It is recommended that the following items be
carried in the vehicle during winter:
A scraper and stiff-bristled brush to remove iceand snow from the windows and wiper blades.
A shovel to dig the vehicle out of snow-drifts.
Extra window washer fluid to refill the reservoir tank.
DRIVING ON SNOW OR ICE
WARNING
Wet ice (32°F, 0°C and freezing rain) , very cold snow or ice can be slick and
very hard to drive on. The vehicle will
have much less traction or “grip” under
these conditions. Try to avoid driving
on wet ice until the road is salted or
sanded.
Whatever the conditions, drive with caution. Accelerate and slow down
with care. If accelerating too fast, the
drive wheels will lose even more trac-
tion.
Allow more stopping distance under these conditions. Braking should be
started sooner than on dry pavement. Allow greater following distances on
slippery roads.
Watch for slippery spots (glare ice) . These may appear on an otherwise
clear road in shaded areas. If a patch
of ice is seen ahead, brake before
reaching it. Try not to brake while on
the ice, and avoid any sudden steering
maneuvers.
Do not use cruise control on slippery roads.
FREEING A FROZEN CHARGE
PORT LID
When the charge port is frozen, melt the ice using
a hair dryer.
5-26Starting and driving

8 Maintenance and do-it yourself
Maintenance requirement................. .8-2
Scheduled maintenance ................ .8-2
General maintenance .................. .8-2
Where to go for service ................ .8-2
General maintenance .................... .8-2
Explanation of maintenance items ...........8-2
Maintenance precautions ................. .8-5
Motor compartment check locations ............8-7
Cooling system ....................... .8-7
Checking coolant level ................. .8-8
Changing coolant .................... .8-9
Reduction gear fluid .................... .8-9
Brake fluid ......................... .8-10
Window washer fluid ................... .8-10
12-volt battery ....................... .8-11
Jump starting ...................... .8-13
Windshield wiper blades ................. .8-13
Cleaning ........................ .8-13
Replacing ........................ .8-13Rear window wiper blade
.................8-15
Brakes ........................... .8-15
Brake pad wear warning ................8-15
Fuses ............................ .8-16
Motor compartment .................. .8-16
Passenger compartment ................8-18
Nissan Intelligent Key® battery replacement ......8-19
Lights ............................ .8-21
Headlights ....................... .8-22
Exterior and interior lights ...............8-23
Wheels and tires ..................... .8-26
Tire pressure ...................... .8-26
Tire labeling ...................... .8-28
Types of tires ...................... .8-30
Tire chains .......................
.8-31
Changing

wheels and tires .............. .8-32
Emergency tire puncture repair kit ..........8-34

Seat belts:Check that all parts of the seat belt
system (for example, buckles, anchors, adjusters
and retractors) operate properly and smoothly,
and are installed securely. Check the belt web-
bing for cuts, fraying, wear or damage.
Steering wheel: Check for changes in the
steering conditions, such as excessive free play,
hard steering or strange noises.
Warning lights and chimes: Make sure that all
warning lights and chimes are operating properly.
Windshield defroster: Check that the air emits
from the defroster outlets properly and in suffi-
cient quantity when operating the heater or air
conditioner.
Windshield wiper and washer*: Check that
the wipers and washers operate properly and
that the wipers do not streak.
Under hood and vehicle
The maintenance items listed here should be
checked periodically.
12-volt battery (for serviceable battery)*:
Check the fluid level in each cell.
It should be between the MAX and MIN lines.
Vehicles operated in high temperatures or under severe conditions require frequent checks of the
12-volt battery fluid level.
NOTE:
Care should be taken to avoid situations
that can lead to potential battery discharge
and potential no-start conditions such as:
1. Installation or extended use of electronic ac-
cessories that consume battery power when
the engine is not running (Phone chargers,
GPS, DVD players, etc.)
2. Vehicle is not driven regularly and/or only driven short distances.
In these cases, the battery may need to be
charged to maintain battery health.
Brake fluid level*: Make sure that the brake
fluid level is between the MAX and MIN lines on
the reservoir.
Coolant level*: Check the coolant level when
the motor compartment is cold.
Fluid leaks: Check under the vehicle for water
or other fluid leaks after the vehicle has been
parked for a short period of time. Water dripping
from the air conditioner after use is normal. If you
notice any leaks, check for the cause and have it
corrected immediately. Radiator and hoses:
Check the front of the
radiator and clean off any dirt, insects, leaves,
etc., that may have accumulated. Make sure that
the hoses have no cracks, deformation, rot or
loose connections.
Underbody: The underbody is frequently ex-
posed to corrosive substances such as those
used on icy roads or to control dust. It is very
important to remove these substances, other-
wise rust will form on the floor pan and frame. At
the end of winter, the underbody should be thor-
oughly flushed with plain water, being careful to
clean those areas where mud and dirt may accu-
mulate. For additional information, see Cleaning
exterior in theAppearance and care section.
Windshield washer fluid*: Check that there is
an adequate amount of fluid in the reservoir.
8-4Maintenance and do-it yourself

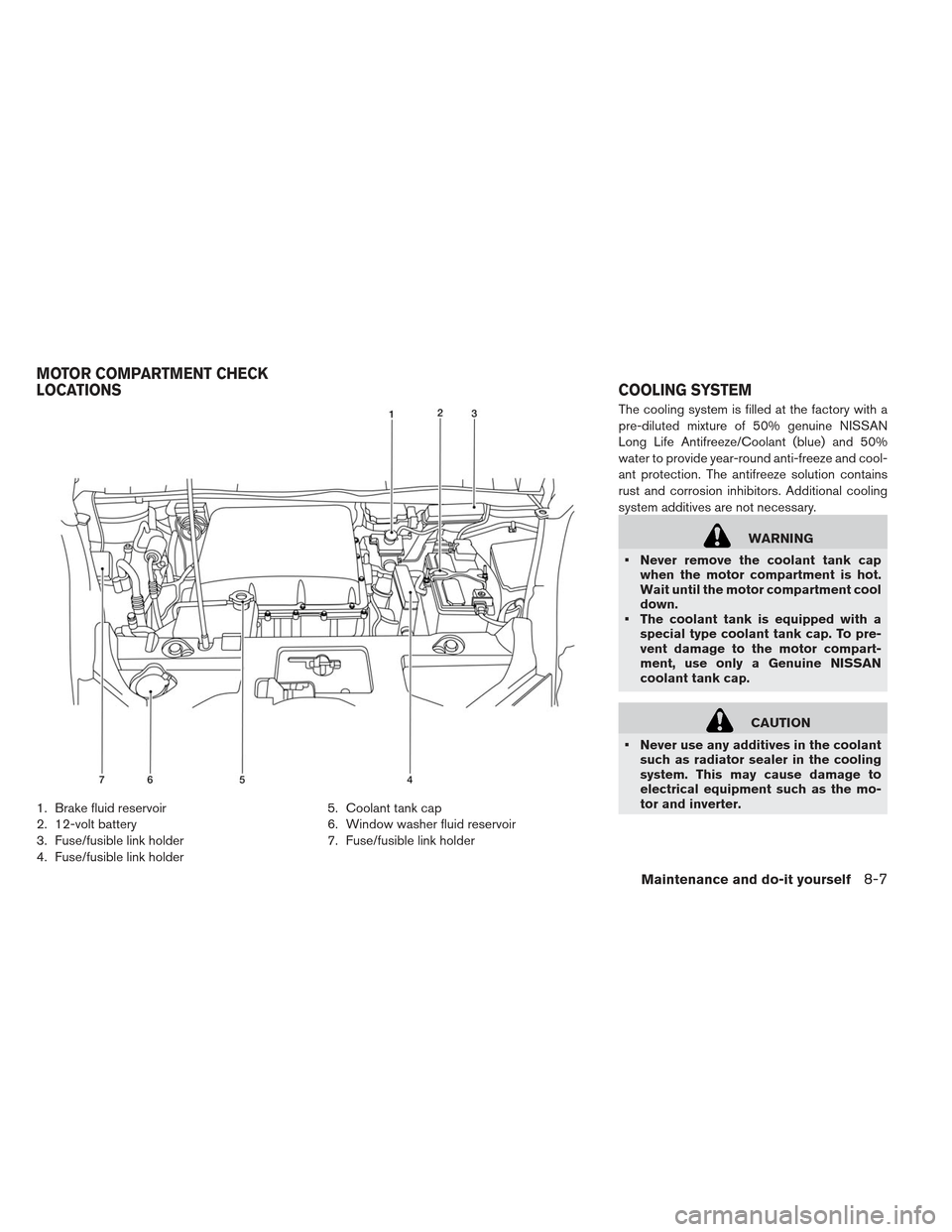

1. Brake fluid reservoir
2. 12-volt battery
3. Fuse/fusible link holder
4. Fuse/fusible link holder5. Coolant tank cap
6. Window washer fluid reservoir
7. Fuse/fusible link holderThe cooling system is filled at the factory with a
pre-diluted mixture of 50% genuine NISSAN
Long Life Antifreeze/Coolant (blue) and 50%
water to provide year-round anti-freeze and cool-
ant protection. The antifreeze solution contains
rust and corrosion inhibitors. Additional cooling
system additives are not necessary.
WARNING
Never remove the coolant tank cap when the motor compartment is hot.
Wait until the motor compartment cool
down.
The coolant tank is equipped with a special type coolant tank cap. To pre-
vent damage to the motor compart-
ment, use only a Genuine NISSAN
coolant tank cap.
CAUTION
Never use any additives in the coolant such as radiator sealer in the cooling
system. This may cause damage to
electrical equipment such as the mo-
tor and inverter.
MOTOR COMPARTMENT CHECK
LOCATIONS COOLING SYSTEM
Maintenance and do-it yourself8-7

For additional brake fluid information, seeCa-
pacities and recommended lubricants in the
Technical and consumer information section of
this manual.
WARNING
Use only new fluid from a sealed con- tainer. Old, inferior or contaminated
fluid may damage the brake system.
The use of improper fluids can damage
the brake system, and affect the vehi-
cle’s stopping ability.
Clean the filler cap before removing.
Brake fluid is poisonous and should be stored carefully in marked containers
out of the reach of children.
CAUTION
Do not spill the fluid on any painted sur-
faces. This will damage the paint. If fluid
is spilled, immediately wash the surface
with water. Check the fluid level in the reservoir. If the fluid is
below the MIN line
1or the brake warning light
illuminates, add Genuine NISSAN Super Heavy
Duty Brake Fluid or equivalent DOT 3fluid up to
the MAX line
2. If fluid must be added fre-
quently, the system should be checked by a
NISSAN certified LEAF dealer. Except for Canada
To check the fluid level, use your finger to plug the
center hole
1of the cap/tube assembly, then
remove it from the reservoir. If there is no fluid in
the tube, add fluid.
For Canada
Fill the window washer fluid reservoir periodically.
Add window washer fluid when the low washer
fluid warning appears on the dot matrix liquid
crystal display. (See 9. Low washer warning (if
so equipped) in theInstruments and controls
section.)
BRAKE FLUID WINDOW WASHER FLUID
8-10Maintenance and do-it yourself

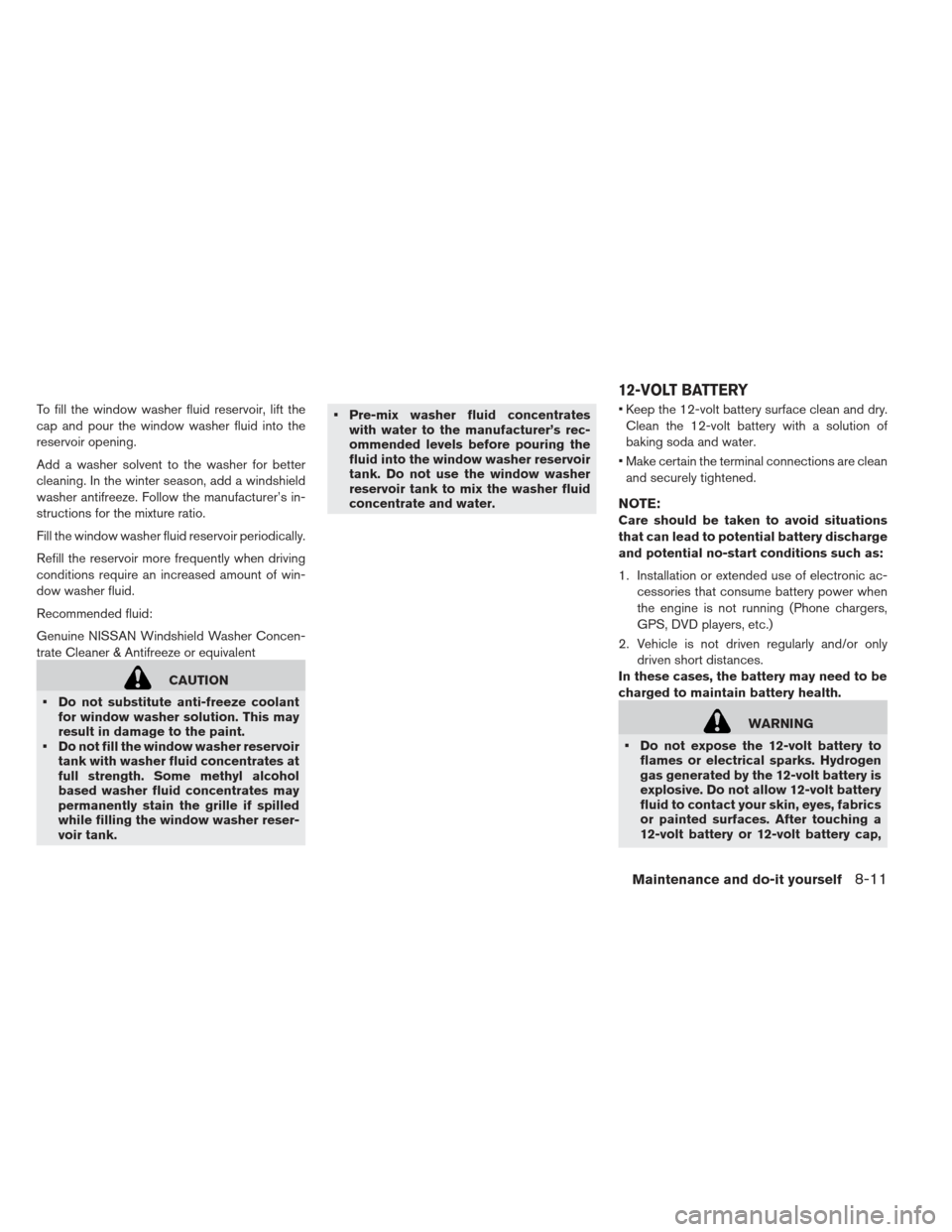

To fill the window washer fluid reservoir, lift the
cap and pour the window washer fluid into the
reservoir opening.
Add a washer solvent to the washer for better
cleaning. In the winter season, add a windshield
washer antifreeze. Follow the manufacturer’s in-
structions for the mixture ratio.
Fill the window washer fluid reservoir periodically.
Refill the reservoir more frequently when driving
conditions require an increased amount of win-
dow washer fluid.
Recommended fluid:
Genuine NISSAN Windshield Washer Concen-
trate Cleaner & Antifreeze or equivalent
CAUTION
Do not substitute anti-freeze coolant for window washer solution. This may
result in damage to the paint.
Do not fill the window washer reservoir tank with washer fluid concentrates at
full strength. Some methyl alcohol
based washer fluid concentrates may
permanently stain the grille if spilled
while filling the window washer reser-
voir tank. Pre-mix washer fluid concentrates
with water to the manufacturer’s rec-
ommended levels before pouring the
fluid into the window washer reservoir
tank. Do not use the window washer
reservoir tank to mix the washer fluid
concentrate and water. Keep the 12-volt battery surface clean and dry.
Clean the 12-volt battery with a solution of
baking soda and water.
Make certain the terminal connections are clean and securely tightened.
NOTE:
Care should be taken to avoid situations
that can lead to potential battery discharge
and potential no-start conditions such as:
1. Installation or extended use of electronic ac- cessories that consume battery power when
the engine is not running (Phone chargers,
GPS, DVD players, etc.)
2. Vehicle is not driven regularly and/or only driven short distances.
In these cases, the battery may need to be
charged to maintain battery health.
WARNING
Do not expose the 12-volt battery to flames or electrical sparks. Hydrogen
gas generated by the 12-volt battery is
explosive. Do not allow 12-volt battery
fluid to contact your skin, eyes, fabrics
or painted surfaces. After touching a
12-volt battery or 12-volt battery cap,
12-VOLT BATTERY
Maintenance and do-it yourself8-11

Checking.....................2-13
Checking bulbs .............. .2-13
Checking coolant level ............8-8
Child restraints..................1-17
Booster seats............... .1-31
Precautions on child restraints ......1-17
Top tether strap .............. .1-20
Child safety....................1-15
Child safety rear door lock ............3-6
Circuitbreaker,Fusiblelink...........8-17
Cleaning exterior and interior ........7-2,7-4
Climatecontrol..................4-16
Climate control service ...........4-16
Climate control system refrigerant
and lubricant recommendations .....4-16
In-cabin microfilter .............4-16
Climate control system ..............4-7
Climate control operation ..........4-7
Climate Ctrl. Timer............4-12,4-19
Clock.......................2-11
Cockpit .......................2-3
Cold weather driving ..............5-24
Console box ...................2-52
Coolant.......................9-2
Capacities and recommended
lubricants .................. .9-2
Changing coolant .............. .8-9
Checking coolant level ............8-8
Cooling system..................8-7
Corrosionprotection ...............7-6
Cruise control ..................5-15 Cupholders...................2-50
D
Defroster switch, Rear window and outside
mirror defroster switch
..............2-41
Dimensionsandweights.............9-6
Dot matrix liquid crystal display .........2-22
Driving ......................5-24
Cold weather driving ............5-24
Driving vehicle ............... .5-11
Precautions when starting and driving . . .5-2
Driving range ....................2-8
Driving vehicle ..................5-11
E
ECO .......................2-46
ECO switch................ .2-46
ECOindicator..................2-10
Efficient use of your vehicle ..........EV-23
Emergency charge ..............CH-11
Emergency EV (Electric Vehicle) shut off. .5-9, 6-2
Emergency shutoff system ...........EV-9
Emission control information label ........9-8
EV Characteristics ...............EV-9
Event Data Recorder (EDR) ...........9-18
EVSE (Electric Vehicle Supply
Equipment) ...................CH-11 EVSE (Electric Vehicle Supply Equipment)
cleaning
......................7-6
EV system ....................EV-2
EV unique information .............EV-25
F
Flashers (See hazard warning flasher switch) . .6-2
Flat tire.......................6-3
Flattowing....................9-14
Floormatcleaning.................7-5
Fluid ........................8-10
Brake fluid ................. .8-10
Capacities and recommended
lubricants .................. .9-2
coolant .................... .8-7
Reduction gear fluid .............8-9
Window washer fluid ............8-10
F.M.V.S.S./C.M.V.S.S. certification label .....9-8
Foglightswitch .................2-45
Frontmanualseatadjustment ..........1-3
Front passenger air bag and status light ....1-42
Front seat, Front seat adjustment ........1-3
Fuses.......................8-16
Fusiblelinks ...................8-17
G
Garage door open, HomeLink® Universal . . .2-58
Transceiver ................. .2-58
10-2Index

When starting and driving..........5-2
Push starting...................6-12
Q
Quickcharge .................CH-15
R
Rapidairpressureloss..............5-6
Rearcenterseatbelt ..............1-14
Rear door lock, Child safety rear door lock . . .3-6
Rear hatch....................3-17
Rearseats.....................1-4
Rearview monitor .................4-2
Rear window and outside mirror defroster
switch .......................2-41
Rear window wiper and washer switch ....2-40
Reductiongearfluid................8-9
Remotecharge ................CH-31
Remoteclimatecontrol.............4-23
Remote keyless entry function, For Intelligent
Keysystem....................3-13
Repairing flat tire .................6-4
Repairing tire ...................6-6
Reporting safety defects ............9-15
Road accident precautions ...........EV-8
Roadside assistance program ..........6-2
Rollover ......................5-5
S
Safety.......................1-15
Child seat belts .............. .1-15
Reporting safety defects ..........9-15
Sceneguide..................EV-22
At home after driving...........EV-22
Before driving your vehicle (models
with navigation system) ..........EV-13
Charging the Li-ion battery .......EV-10
Driving the vehicle .............EV-18
Parking the vehicle ............EV-21
Starting your vehicle ...........EV-17
Seat adjustment..................1-3
Front manual seat adjustment ........1-3
Front seats ................. .1-3
Seat belt(s)....................1-15
Child safety ................ .1-15
Infants ................... .1-15
Injured persons .............. .1-10
Larger children .............. .1-16
Precautions on seat belt usage .......1-7
Pregnant women ............. .1-10
Rear center seat belt ............1-14
Seat belt cleaning ............. .7-5
Seat belt extenders .............1-14
Seat belt hooks .............. .1-13
Seat belt maintenance ...........1-14
Seat belts .................. .1-7
Seat belts with pretensioners .......1-47
Seat belt warning light ...........2-18 Shoulder belt height adjustment
.....1-13
Small children ............... .1-15
Three-point type ............. .1-10
Seat(s) , Seats...................1-2
Heated seats............... .2-47
Security system (NISSAN Vehicle Immobilizer
System) , EV system start ............2-37
Servicing climate control ............4-16
Shifting ......................5-11
Electric shift control system ........5-11
Shoulder belt height adjustment, For front
seats.......................1-13
Soft bottle holders ................2-51
Solar cell module .................7-3
Speedometer ...................2-6
Starting ......................5-10
Before starting system ...........5-10
Jump starting ............... .6-10
Precautions when starting and driving . . .5-2
Push starting ............... .6-12
Status light, Front passenger air bag ......1-42
Steering .....................2-45
Heated steering wheel ...........2-45
Power steering system ...........5-19
Tilting steering column ...........3-20
Stopping the vehicle...............6-5
Storage......................2-50
Stowing golf bags ................2-53
Sun visors ....................3-21
Supplemental air bag warning labels ......1-48
Supplemental air bag warning light . . .1-48, 2-18
Index10-5
