2013 NISSAN JUKE navigation system

Black plate (150,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
4-6Heater, air conditioner, audio and phone systems
to disable the feature entirely.
AUX Level:
GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Controls the volume level of incoming sound
when an auxiliary device is connected to the
system. Available options are Quiet, Medium
and Loud.
Navigation setupGUID-3EFB012C-F2C5-41F3-BBBB-4485DDADCA81Refer to the separate Navigation System Own-
er’s Manual for information regarding this item.
XM setupGUID-11A982AF-5034-427F-9B90-77832221F770For SiriusXM Satellite Radio setup, refer to “FM-
AM-SAT radio with Compact Disc (CD) player
(Type B)” (P.4-39).SAA3391
System setupGUID-AADB642F-B2B4-44E5-97CC-DC2DAA28F744Select the “System” key to select and/or adjust
various functions of the system. A screen with
additional options will appear.
SAA3392
Display:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Select the “Display” key to adjust the appear-
ance of the display. The following settings can
be adjusted:
.Brightness:
The brightness of the display can be set to Very
Bright, Bright, Default, Dark or Very Dark. Touch
the “Brightness” key to cycle through the
options.
. Display Mode:
The display can be adjusted to fit the level of
lighting in the vehicle. Touch the “Display Mode”
key to cycle through the options. “Day” and
“Night” modes are suited for the respective
Condition:

Black plate (151,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

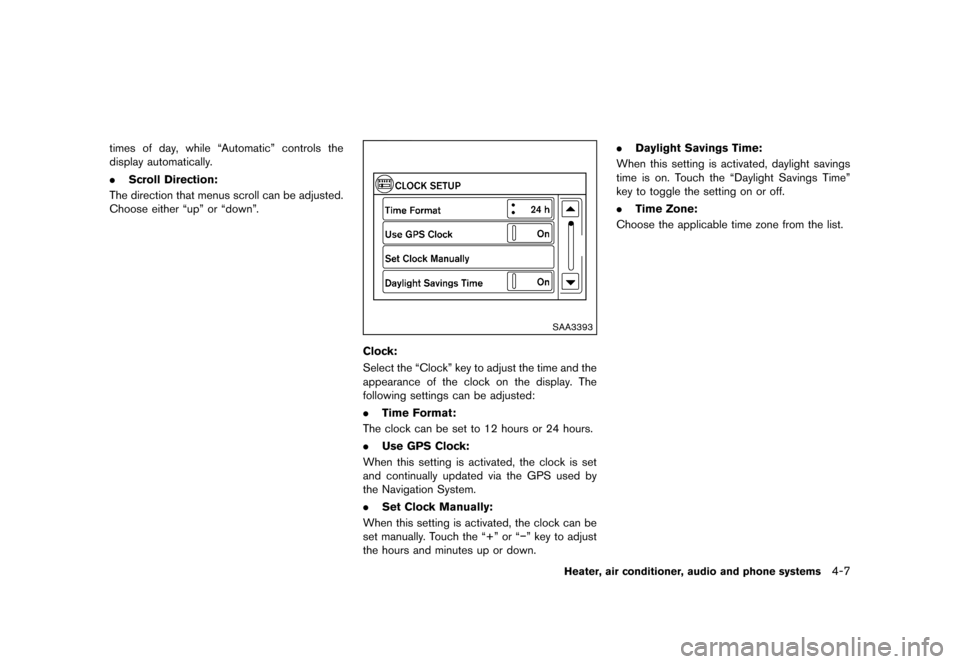

times of day, while “Automatic” controls the
display automatically.
.Scroll Direction:
The direction that menus scroll can be adjusted.
Choose either “up” or “down”.
SAA3393
Clock:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Select the “Clock” key to adjust the time and the
appearance of the clock on the display. The
following settings can be adjusted:
. Time Format:
The clock can be set to 12 hours or 24 hours.
. Use GPS Clock:
When this setting is activated, the clock is set
and continually updated via the GPS used by
the Navigation System.
. Set Clock Manually:
When this setting is activated, the clock can be
set manually. Touch the “+” or “−” key to adjust
the hours and minutes up or down. .
Daylight Savings Time:
When this setting is activated, daylight savings
time is on. Touch the “Daylight Savings Time”
key to toggle the setting on or off.
. Time Zone:
Choose the applicable time zone from the list.
Heater, air conditioner, audio and phone systems4-7
Condition:

Black plate (152,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
4-8Heater, air conditioner, audio and phone systems

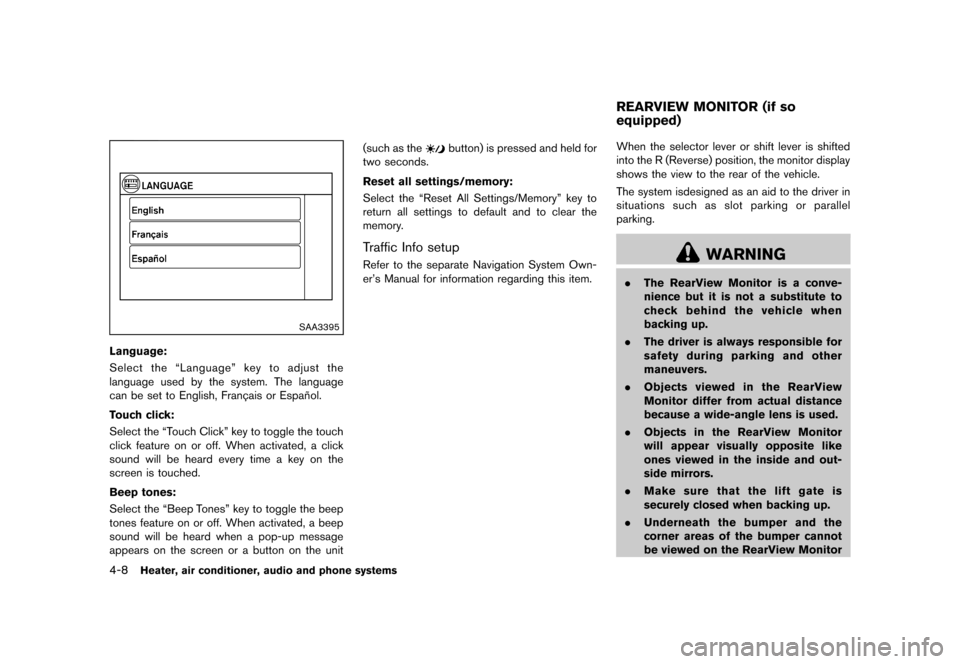

SAA3395
Language:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Select the “Language” key to adjust the
language used by the system. The language
can be set to English, Franc¸ ais or Espan˜
ol.
Touch click:
GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Select the “Touch Click” key to toggle the touch
click feature on or off. When activated, a click
sound will be heard every time a key on the
screen is touched.
Beep tones:
GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Select the “Beep Tones” key to toggle the beep
tones feature on or off. When activated, a beep
sound will be heard when a pop-up message
appears on the screen or a button on the unit (such as the
button) is pressed and held for
two seconds.
Reset all settings/memory:
GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Select the “Reset All Settings/Memory” key to
return all settings to default and to clear the
memory.
Traffic Info setupGUID-2B2C7F3D-0740-4693-AF6F-14E43A6C1D6BRefer to the separate Navigation System Own-
er’s Manual for information regarding this item.
GUID-E32CDD38-B834-4D2E-9F15-7E5C88FAB9C5When the selector lever or shift lever is shifted
into the R (Reverse) position, the monitor display
shows the view to the rear of the vehicle.
The system isdesigned as an aid to the driver in
situations such as slot parking or parallel
parking.
WARNING
. The RearView Monitor is a conve-
nience but it is not a substitute to
check behind the vehicle when
backing up.
. The driver is always responsible for
safety during parking and other
maneuvers.
. Objects viewed in the RearView
Monitor differ from actual distance
because a wide-angle lens is used.
. Objects in the RearView Monitor
will appear visually opposite like
ones viewed in the inside and out-
side mirrors.
. Make sure that the lift gate is
securely closed when backing up.
. Underneath the bumper and the
corner areas of the bumper cannot
be viewed on the RearView Monitor
REARVIEW MONITOR (if so
equipped)
Condition:

Black plate (230,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
5-24Starting and driving

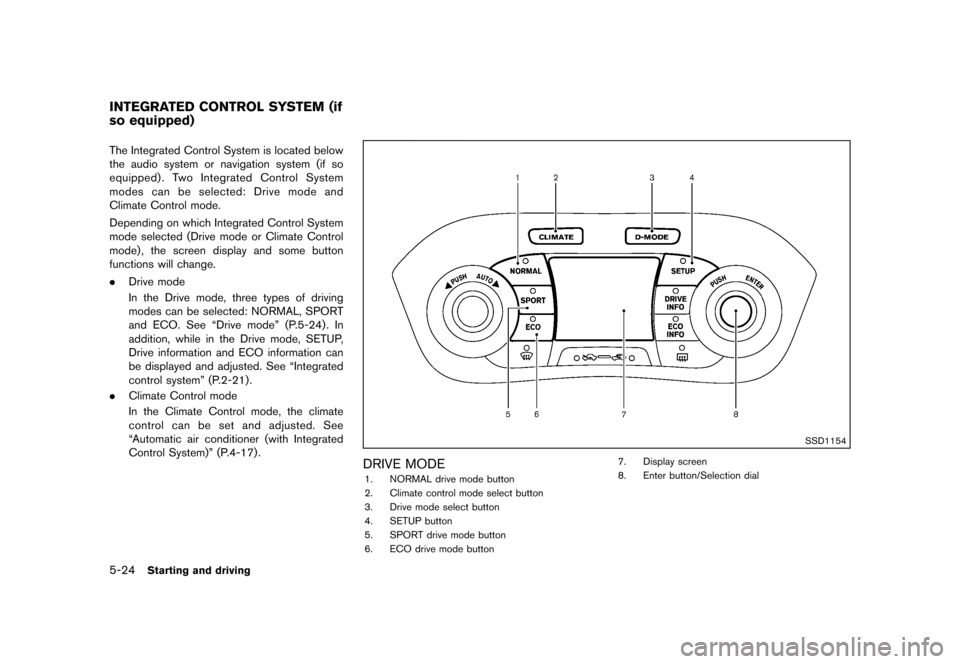

GUID-0732A6EE-A1B3-4CC3-BD33-7DB3C73B83E2The Integrated Control System is located below
the audio system or navigation system (if so
equipped) . Two Integrated Control System
modes can be selected: Drive mode and
Climate Control mode.
Depending on which Integrated Control System
mode selected (Drive mode or Climate Control
mode) , the screen display and some button
functions will change.
.Drive mode
In the Drive mode, three types of driving
modes can be selected: NORMAL, SPORT
and ECO. See “Drive mode” (P.5-24). In
addition, while in the Drive mode, SETUP,
Drive information and ECO information can
be displayed and adjusted. See “Integrated
control system” (P.2-21).
. Climate Control mode
In the Climate Control mode, the climate
control can be set and adjusted. See
“Automatic air conditioner (with Integrated
Control System)” (P.4-17) .
SSD1154
DRIVE MODEGUID-2823EE2D-393A-4DD3-A706-4BE90023CB771. NORMAL drive mode button
2. Climate control mode select button
3. Drive mode select button
4. SETUP button
5. SPORT drive mode button
6. ECO drive mode button 7. Display screen
8. Enter button/Selection dial
INTEGRATED CONTROL SYSTEM (if
so equipped)
Condition:

Black plate (237,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

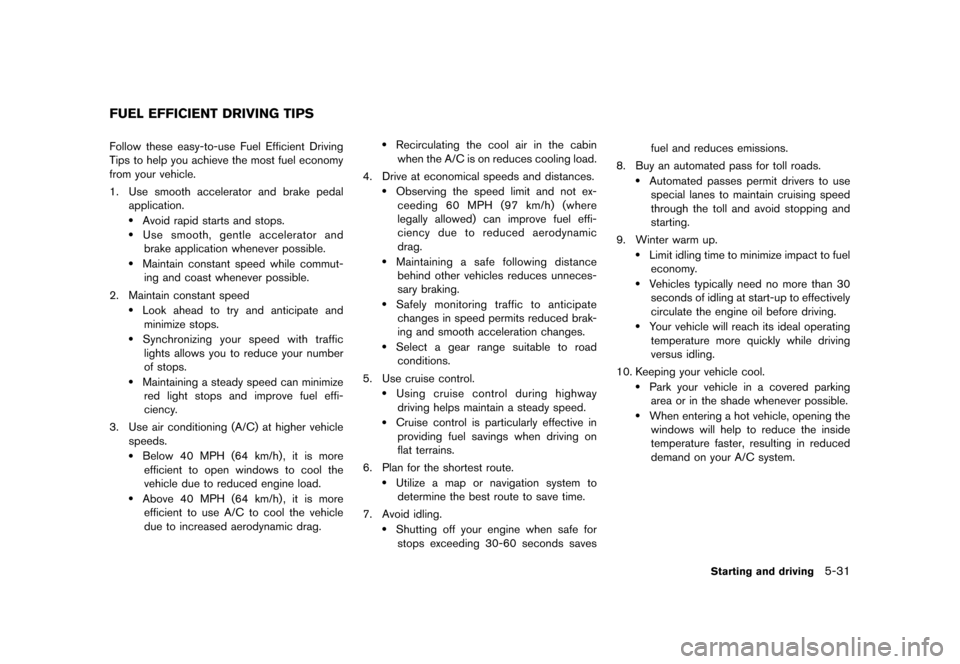

GUID-7C03A534-EF0E-40B7-84F0-13B8CB4EE473Follow these easy-to-use Fuel Efficient Driving
Tips to help you achieve the most fuel economy
from your vehicle.
1. Use smooth accelerator and brake pedalapplication.
.Avoid rapid starts and stops..Use smooth, gentle accelerator andbrake application whenever possible.
.Maintain constant speed while commut-
ing and coast whenever possible.
2. Maintain constant speed
.Look ahead to try and anticipate and minimize stops.
.Synchronizing your speed with traffic
lights allows you to reduce your number
of stops.
.Maintaining a steady speed can minimize red light stops and improve fuel effi-
ciency.
3. Use air conditioning (A/C) at higher vehicle speeds.
.Below 40 MPH (64 km/h), it is moreefficient to open windows to cool the
vehicle due to reduced engine load.
.Above 40 MPH (64 km/h) , it is moreefficient to use A/C to cool the vehicle
due to increased aerodynamic drag.
.Recirculating the cool air in the cabinwhen the A/C is on reduces cooling load.
4. Drive at economical speeds and distances.
.Observing the speed limit and not ex- ceeding 60 MPH (97 km/h) (where
legally allowed) can improve fuel effi-
ciency due to reduced aerodynamic
drag.
.Maintaining a safe following distancebehind other vehicles reduces unneces-
sary braking.
.Safely monitoring traffic to anticipatechanges in speed permits reduced brak-
ing and smooth acceleration changes.
.Select a gear range suitable to road conditions.
5. Use cruise control.
.Using cruise control during highway driving helps maintain a steady speed.
.Cruise control is particularly effective in providing fuel savings when driving on
flat terrains.
6. Plan for the shortest route.
.Utilize a map or navigation system to determine the best route to save time.
7. Avoid idling.
.Shutting off your engine when safe for stops exceeding 30-60 seconds saves fuel and reduces emissions.
8. Buy an automated pass for toll roads.
.Automated passes permit drivers to use special lanes to maintain cruising speed
through the toll and avoid stopping and
starting.
9. Winter warm up.
.Limit idling time to minimize impact to fuel economy.
.Vehicles typically need no more than 30seconds of idling at start-up to effectively
circulate the engine oil before driving.
.Your vehicle will reach its ideal operatingtemperature more quickly while driving
versus idling.
10. Keeping your vehicle cool.
.Park your vehicle in a covered parking area or in the shade whenever possible.
.When entering a hot vehicle, opening thewindows will help to reduce the inside
temperature faster, resulting in reduced
demand on your A/C system.
Starting and driving5-31
FUEL EFFICIENT DRIVING TIPS
Condition:

Black plate (337,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
10 Index
A
ABS (Anti-lock Braking System)...
............................ 5-39
Advanced air bag system ...
......................................... 1-41
Air bag system Advanced air bag system ...
.................................. 1-41
Front passenger air bag and status light ...
....... 1-43
Front-seat mounted side-impact
supplemental air bag system ...
............................ 1-46
Roof-mounted curtain side-impact
supplemental air bag system ...
............................ 1-46
Air bag warning labels ...
............................................... 1-49
Air bag warning light ...
...................................... 1-49, 2-17
Air cleaner housing filter ...
........................................... 8-16
Air conditioner Air conditioner operation ...
.................................... 4-13
Air conditioner service ...
........................................ 4-20
Air conditioner specification label ...
.................... 9-10
Air conditioning system refrigerant and
lubricant recommendations ...
....................... 4-20, 9-6
In-cabin microfilter ...
............................................... 4-19
Air conditioner operation ...
........................................... 4-15
Alarm, How to stop alarm (see vehicle
security system) ...
........................................................... 2-30
Alcohol, drugs and driving ...
.......................................... 5-8
All-wheel drive (AWD) ...
............................................... 5-32
Antenna ...
.......................................................................... 4-48
Anti-lock Braking System (ABS) ...
............................ 5-39
Anti-lock braking system (ABS) warning light ...
..... 2-13
Appearance care Exterior appearance care ...
...................................... 7-2
Interior appearance care ...
....................................... 7-4
Audible reminders ...
....................................................... 2-19
Audio operation precautions ...
.................................... 4-20
Audio setup ...
.................................................................... 4-5
Audio system ...
................................................................ 4-20 Steering wheel audio controls
...
.......................... 4-47
Autolight system ...
.......................................................... 2-35
Automatic Air conditioner ...
....................................................... 4-17
Door locks ...
................................................................. 3-6
Moonroof ...
................................................................ 2-47
AUX (Auxiliary) input ...
....................................... 4-38, 4-42
Average fuel consumption ...
........................................ 2-11
Avoiding collision and rollover ...
................................... 5-7
B
Back door (See lift gate) ...
.......................................... 3-21
Battery ...
............................................................................ 8-13
Battery replacement, Intelligent Key ...
................ 8-24
Battery replacement, Keyfob ...
............................. 8-23
Battery saver system ...
........................................... 2-36
Variable voltage control system ...
........................ 8-14
Before starting the engine ...
........................................ 5-15
Bluetooth
®Hands-Free Phone System ...
................ 4-49
Booster seats ...
............................................................... 1-31
Brake Anti-lock Braking System (ABS) ...
..................... 5-39
Brake and clutch fluid ...
......................................... 8-11
Brake system ...
......................................................... 5-38
Parking brake operation ...
..................................... 5-28
Warning light ...
......................................................... 2-13
Break-in schedule ...
....................................................... 5-30
Brightness control Display ON/OFF button ...
........................................ 4-5
Instrument panel ...
................................................... 2-37
Bulb check/instrument panel ...
................................... 2-13
Bulb replacement ...
........................................................ 8-26
C
Cabin air filter ...
............................................................... 4-19
Capacities and recommended fuel/lubricants ...
....... 9-2
Car phone or CB radio ...
............................................. 4-49
Cargo cover ...
.................................................................. 2-44
Cargo floor box ...
............................................................ 2-43
Catalytic converter, Three way catalyst ...
................... 5-4
CD/USB memory care and cleaning ...
..................... 4-47
Check tire pressure warning ...
...................................... 2-7
Child restraints ...
............................................................. 1-17
Booster seats ...
........................................................ 1-31
LATCH system ...
...................................................... 1-19
Precautions on child restraints ...
......................... 1-17
Child safety ...
................................................................... 1-15
Child safety rear door lock ...
......................................... 3-7
Chimes, Audible reminders ...
...................................... 2-19
Circuit breaker, Fusible link ...
...................................... 8-20
Cleaning exterior and interior ...
............................ 7-2, 7-4
Clock ...
.............................................................................. 2-40
Clock (models with navigation system) ...
................... 4-7
Clutch fluid ...
.................................................................... 8-11
Coat hook ...
..................................................................... 2-43
Cockpit ...
............................................................................ 2-3
Cold weather driving ...
.................................................. 5-42
Compact Disc (CD) player (See
audio system) ...
................................................... 4-34, 4-40
Continuously Variable Transmission
(CVT) fluid ...
..................................................................... 8-11
Control panel buttons — color screen with
navigation system ...
.......................................................... 4-2
Controls, Steering wheel audio controls ...
............... 4-47
Coolant Capacities and
recommended fuel/lubricants ...
............................... 9-2
Changing engine coolant ...
...................................... 8-8
Condition:

Black plate (340,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
10-4
Mechanical key (Intelligent Key system)...
................. 3-4
Meter Trip computer ...
........................................................ 2-10
Meters and gauges ...
....................................................... 2-5
Instrument brightness control ...
........................... 2-37
Mirror Inside mirror ...
........................................................... 3-25
Outside mirrors ...
..................................................... 3-25
Vanity mirror ...
........................................................... 3-27
Monitor, Rearview monitor ...
.......................................... 4-8
Moonroof ...
....................................................................... 2-47
N
Navigation setup ...
............................................................ 4-6
New vehicle break-in ...
.................................................. 5-30
NISSAN Vehicle Immobilizer System ...
..................... 2-30
O
Odometer ...
........................................................................ 2-6
Off-road recovery ...
.......................................................... 5-7
Oil Capacities and
recommended fuel/lubricants ...
............................... 9-2
Changing engine oil and filter ...
.............................. 8-9
Checking engine oil level ...
...................................... 8-8
Engine oil ...
................................................................... 8-8
Engine oil viscosity ...
.................................................. 9-5
Outside air temperature display ...
.............................. 2-10
Outside mirrors ...
............................................................ 3-25
Overheat, If your vehicle overheats ...
........................ 6-10
Owner’s Manual/Service Manual
order information ...
......................................................... 9-19
P
Panic alarm ...
.......................................................... 3-9, 3-18
Parking Brake break-in ...
....................................................... 5-38
Parking brake operation ...
..................................... 5-28
Parking on hills ...
..................................................... 5-36
Phone Bluetooth
®Hands-Free Phone System ...
......... 4-49
Car phone or CB radio ...
...................................... 4-49
Power Electric power steering system ...
........................ 5-37
Power door lock ...
...................................................... 3-4
Power outlet ...
.......................................................... 2-41
Power windows ...
.................................................... 2-45
Precautions Audio operation ...
.................................................... 4-20
Braking precautions ...
............................................. 5-38
Child restraints ...
...................................................... 1-17
Cruise control ...
........................................................ 5-29
Driving safety ...
............................................................ 5-8
Maintenance ...
............................................................. 8-5
Seat belt usage ...
....................................................... 1-9
Supplemental restraint system ...
.......................... 1-35
When starting and driving ...
.................................... 5-3
Push starting ...
................................................................ 6-10
Push-button ignition switch ...
.......................... 5-12, 5-13
R
Radio ...
.............................................................................. 4-20
Car phone or CB radio ...
...................................... 4-49
Radio operation ...
.................................................... 4-32
Steering wheel audio controls ...
.......................... 4-47
Rapid air pressure loss ...
................................................ 5-7
Readiness for inspection/maintenance
(I/M) test ...
........................................................................ 9-18 Rear door lock, Child safety rear door lock
...
........... 3-7
Rear seats ...
....................................................................... 1-4
Rear window and outside mirror
defroster switch ...
........................................................... 2-34
Rear window wiper and washer switch ...
................ 2-33
Rearview monitor ...
........................................................... 4-8
Recorders, Event data ...
............................................... 9-19
Registering your vehicle in another country ...
........... 9-8
Remote keyless entry function, For Intelligent
Key system ...
.................................................................... 3-17
Remote keyless entry system ...
..................................... 3-7
Reporting safety defects ...
........................................... 9-17
Rollover ...
............................................................................ 5-7
Roof, Moonroof ...
............................................................ 2-48
S
Safety
Child seat belts ...
.................................................... 1-15
Reporting safety defects ...
.................................... 9-17
Satellite radio operation ...
............................................ 4-39
Seat adjustment Front manual seat adjustment ...
.............................. 1-3
Front seats ...
................................................................ 1-3
Seat belt(s) Child safety ...
............................................................ 1-15
Infants ...
...................................................................... 1-16
Injured persons ...
..................................................... 1-11
Larger children ...
...................................................... 1-16
Precautions on seat belt usage ...
........................... 1-9
Pregnant women ...
.................................................. 1-11
Seat belt cleaning ...
................................................... 7-6
Seat belt extenders ...
.............................................. 1-14
Seat belt hooks ...
.................................................... 1-14
Seat belt maintenance ...
........................................ 1-14
Seat belt warning light ...
........................................ 2-16
Seat belts ...
.................................................................. 1-9
Condition:
