2013 NISSAN GT-R light

*See your Owner’s Manual and Multi Function Display Owner’s Manual\
for information.
INSTRUMENT BRIGHTNESS CONTROL*
NEXT / ENTER SWITCHES
DRIVE COMPUTER
OUTSIDE MIRROR CONTROL SWITCH
HEADLIGHT AND TURN SIGNAL CONTROLPADDLE SHIFTERS*
VEHICLE INFORMATION DISPLAY*
LOW TIRE PRESSURE WARNING LIGHT
WINDSHIELD WIPER / WASHER SWITCH
STEERING WHEEL SWITCHES FOR AUDIO
CONTROL* / BLUETOOTH
® / NAVIGATIONCRUISE CONTROL
TRUNK RELEASE
INTELLIGENT KEY PORT
HOOD RELEASE*
STEERING WHEEL TILT AND TELESCOPIC
ADJUSTMENT*
MULTI FUNCTION DISPLAY
AU D I O SYSTE M
AUTOMATIC CLIMATE CONTROLS
VDC, TRANSMISSION AND
SUSPENSION SETUP SWITCHES*
FRONT PASSENGER AIR BAG
STATUS LIGHT*
0102030504
06
11
16
0709
12
17181920
0810
131415
01
02
03
04
05
09
06
06
12
07
08
14
15
161718
19
20
13
10
11

TABLE OF CONTENTS
Additional Information about your vehicle is also available in your Owner’s Manual, Multi Function Display Owner’s Manual and at www.nissanusa.com.
New SYSTe M FeaTureS
RearView Monitor ............................................... 2
USB/iPod
® Interface ............................................ 2
DVD Player .................................................... 2
XM NavTraffic
® and XM NavWeather™ (if so equipped) ............... 3
eSS eNTial iNF orMa TioN
Fuel-Filler Cap ................................................. 4
Tire Pressure Monitoring System (TPMS) ...........................4
Unique Noises ................................................. 5
Vehicle Modifications ............................................ 5
Vehicle Dynamic Control (VDC) ................................... 5
Fir ST Drive Fea TureS
NISSAN Intelligent Key
® System .................................. 6
Trunk Lid Release ............................................... 7
Seat Adjustments .............................................. 7
Outside Mirror Control Switch .................................... 8
Starting/Stopping the Engine ..................................... 8
Headlight Control Switch ........................................ 8
Windshield Wiper/Washer Switch ................................. 9
Automatic Climate Controls ..................................... 10
FM/AM/XM
® Satellite Radio with CD/DVD Player ...................11

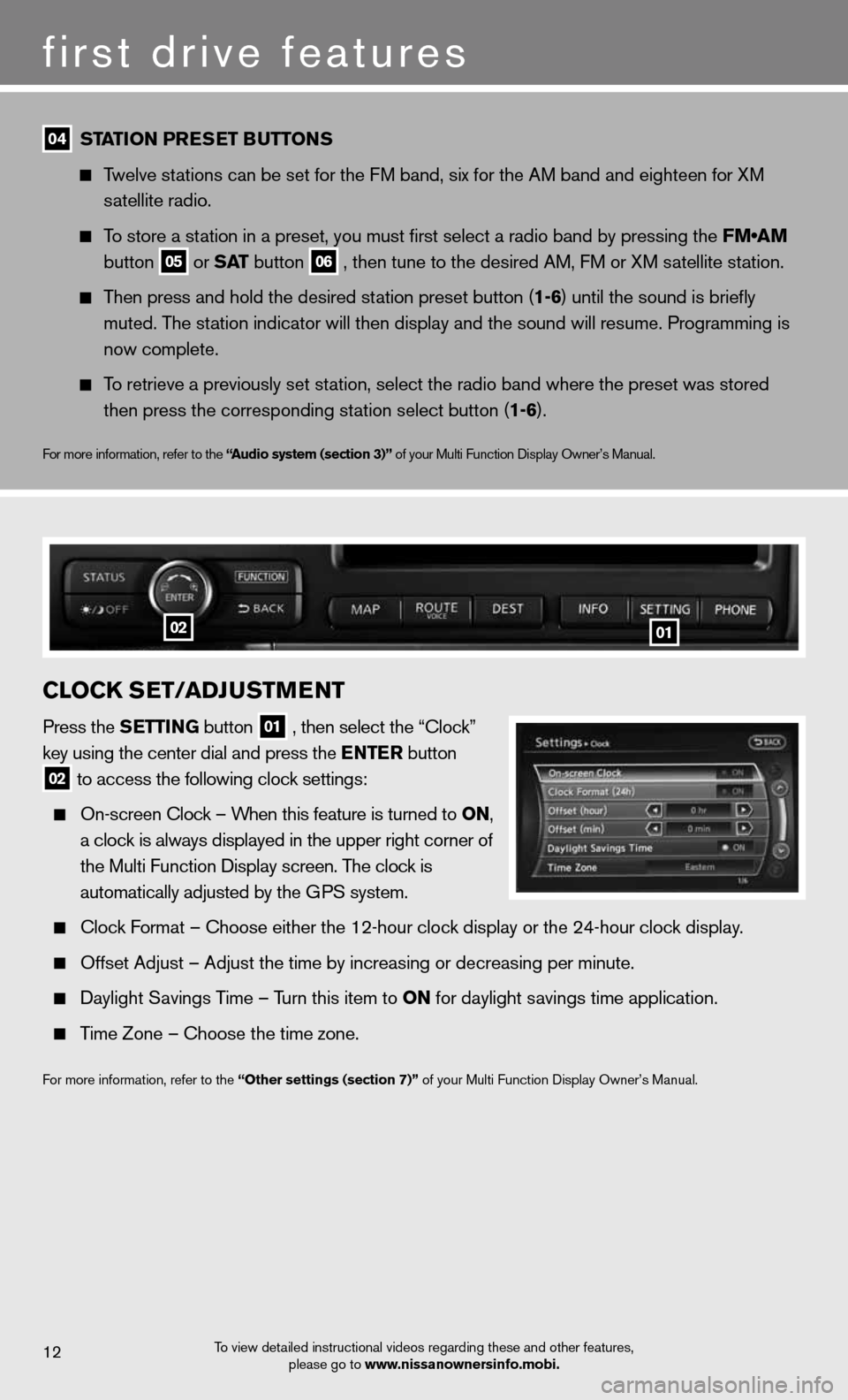

Clock Set/Adjustment .......................................... 12
Cruise Control ................................................ 13
Fuel-Filler Door ................................................ 13
S YST eM GuiDe
Drive Computer ............................................... 14
Bluetooth
® Hands-free Phone System ............................. 14
Navigation System ............................................. 17
HomeLink
® Universal Transceiver ................................. 20
• A cellular telephone should not be used for any purpose while
driving so full attention may be given to vehicle operation.
• Always wear your seat belt.
• Supplemental air bags do not replace proper seat belt usage.
• Children 12 and under should always ride in the rear seat
properly secured in child restraints or seat belts according to
their age and weight.
• Do not drink and drive.
For more information, refer to the “Safety –– Seats, seat belts and
supplemental restraint system (section 1)” and the “Starting and
driving (section 5)” of your Owner’s Manual and the “ audio System
(section 3)” of your Multi Function Display Owner’s Manual.
To view detailed
instructional videos, go to
www.nissanownersinfo.mobi/2013/gtr or snap this barcode with an appropriate barcode reader.

Tire PreSSure M oNiTori NG SYSTe M (TPMS)
A Tire l ow PreSS ure warning message will

appear in the vehicle information display
01 and
the low tire pressure warning light 02 will illuminate
when one or more tires are low on pressure
and air is needed.
• The tire pressures should be checked when the
tires are cold. The tires are considered cold after
the vehicle has been parked for 3 hours or more or
driven less than 1 mile (1.6km) at moderate speeds.

After tire pressures are adjusted, drive the vehicle
at speeds above 16 MPH (25km/h). The T ire
low PreSS ure warning message and low tire
pressure warning light will disappear.

Tire pressure rises and falls depending on the heat
caused by the vehicle’s operation and the outside
temperature. Low outside temperature can lower the
temperature of the air inside the tire, which can cause
a lower tire inflation pressure. This may cause the low
tire pressure warning light to illuminate. If the warning
light illuminates in low ambient temperature, check
the tire pressure in your tires.
• Check the tire pressure often and always prior to long distance trips.

The Tire and Loading Information Label contains valuable information. Please refer to section 9,
“Technical and consumer information” in your Owner’s Manual for the lo\
cation of the Tire and
Loading Information Label.
For more information, refer to the “instruments and controls (section 2)”, the “Starting and driving (section 5)” and the
“Maintenance and do-it-yourself (section 8)” of your Owner’s Manual.
Fuel-Filler caP
To tighten, turn the fuel-filler cap clockwise until
a single click is heard. If the cap is not fully
tightened, the Malfunction Indicator Light (MIL)

may illuminate.


If the
light illuminates because the fuel-filler
cap is loose or missing, tighten or reinstall the cap.
The

light should turn off after a few driving trips.
For more information, refer to the “instruments and controls (section 2)”

and the “Pre-driving checks and adjustments (section 3)” of your
Owner’s Manual.
4
essential information
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.
02
01

NiSSaN i NTelliGeNT K eY® SYST eM
The NISSAN Intelligent Key® system allows you to lock or
unlock the vehicle, open the trunk and start the engine.
NOTE: It is important to make sure the Intelligent Key is
with you (that is, in your pocket or purse).

The operating range of the Intelligent Key is within
31.5 in (80 cm) from each request switch.

To lock the vehicle, push either door handle request switch
01 once or
press the

button
02 on the keyfob.

To unlock the vehicle, perform one of the following procedures:
• Push either door handle request switch

01 once; the corresponding
door will unlock. Push the door handle request switch
01 again within
1 minute; all other doors will unlock, or
• Press the

button
03 on the keyfob to unlock the driver’s side door.
Press the
button again; all other doors will unlock.

To release the trunk lid, press the button
04 for more than 1 second.
Lift the trunk lid to access the trunk.

The Intelligent Key can also be used to activate the panic alarm by pressing and holding \
the

button
05 for more than 1 second. Once activated, the panic alarm and headlights w\
ill stay on

for 25 seconds.
NISSAN INTELLIGENT KEY
® BATTERY DISCHARGE

If the battery in the Intelligent Key is almost discharged,
the guide light

06 of the Intelligent Key port blinks and
the Intelligent Key insertion indicator
07 is displayed
in the vehicle information display.

To start the engine under these circumstances, insert
the Intelligent Key into the key port with the mechanical
key facing backward until it latches into place. Then
push the ignition switch to start the engine.

To remove the Intelligent Key from the port, push the
ignition switch to turn the engine off and then pull the
Intelligent Key out of the port.

The Intelligent Key port does not charge the Intelligent
Key battery. If you see the Intelligent Key warning light

08 , replace the battery in the Intelligent Key.
For more information, refer to the “Pre-driving checks and adjustments
(section 3)”, “Starting and driving (section 5)” and the “Maintenance
and do-it yourself (section 8)” of your Owner’s Manual.
06
F
E
07
08
6
first drive features
01
To view detailed instructional videos regarding these and other features,
please go to www.nissanownersinfo.mobi.
02
03
04
05

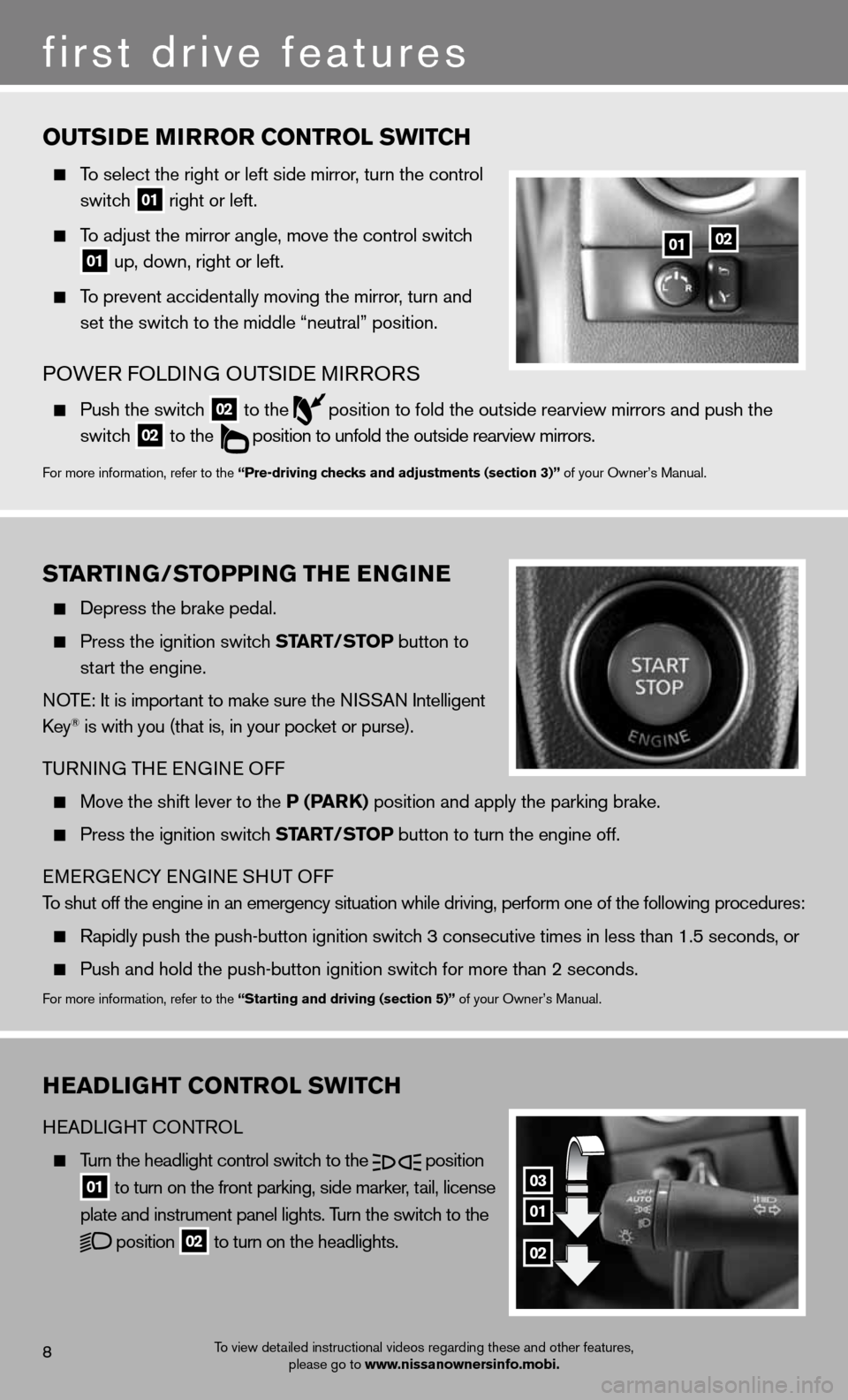

ouTSiD e M irror coNTrol SwiT ch
To select the right or left side mirror , turn the control
switch

01 right or left.

To adjust the mirror angle, move the control switch

01 up, down, right or left.

To prevent accidentally moving the mirror, turn and
set the switch to the middle “neutral” position.
POWER FOLDING OUTSIDE MIRRORS
Push the switch
02 to the
position to fold the outside rearview mirrors and push the
switch

02 to the
position to unfold the outside rearview mirrors.
For more information, refer to the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
heaDliGhT coNTrol SwiT ch
HEADLIGHT CONTROL

Turn the headlight control switch to the
position
01 to turn on the front parking, side marker, tail, license
plate and instrument panel lights. Turn the switch to the

position
02 to turn on the headlights.


03
01
02
first drive features
8
01
ST arTi NG/ST oPPiNG The e NGiN e
Depress the brake pedal.

Press the ignition switch ST arT/SToP button to
start the engine.
NOTE: It is important to make sure the NISSAN Intelligent
Key
® is with you (that is, in your pocket or purse).

TURNING THE ENGINE OFF

Move the shift lever to the P (P arK) position and apply the parking brake.

Press the ignition switch ST arT/SToP button to turn the engine off.
EMERGENCY ENGINE SHUT OFF
To shut off the engine in an emergency situation while driving, perform o\
ne of the following procedures:

Rapidly push the push-button ignition switch 3 consecutive times in less than 1.5 seconds, or

Push and hold the push-button ignition switch for more than 2 seconds.
For more information, refer to the “Starting and driving (section 5)” of your Owner’s Manual.
02
To view detailed instructional videos regarding these and other features,
please go to www.nissanownersinfo.mobi.

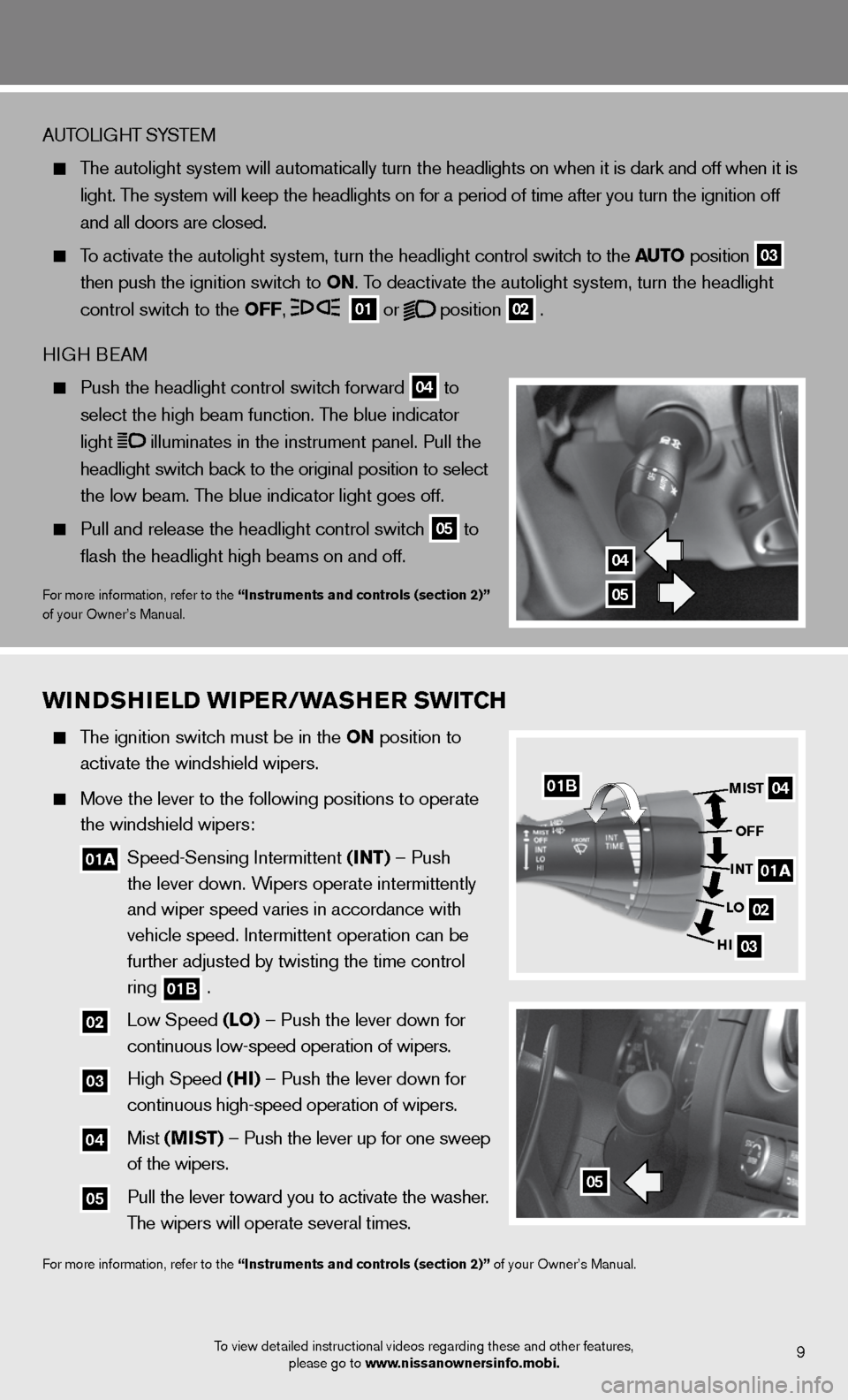

wiNDShielD wiPer/waSher Swi Tch
The ignition switch must be in the oN position to
activate the windshield wipers.

Move the lever to the following positions to operate
the windshield wipers:

01a Speed-Sensing Intermittent (i NT) – Push
the lever down. Wipers operate intermittently
and wiper speed varies in accordance with
vehicle speed. Intermittent operation can be
further adjusted by twisting the time control
ring
01B .

02 Low Speed (lo) – Push the lever down for
continuous low-speed operation of wipers.

03 High Speed (hi) – Push the lever down for
continuous high-speed operation of wipers.

04 Mist (MiST) – Push the lever up for one sweep
of the wipers.

05 Pull the lever toward you to activate the washer.
The wipers will operate several times.
For more information, refer to the “instruments and controls (section 2)” of your Owner’s Manual.
9
AUTOLIGHT SYSTEM

The autolight system will automatically turn the headlights on when it is dark and off when it is
light. The system will keep the headlights on for a period of time after you tur\
n the ignition off
and all doors are closed.

To activate the autolight system, turn the headlight control switch to the auTo position
03
then push the ignition switch to
oN. To deactivate the autolight system, turn the headlight
control switch to the oFF,
01 or
position
02 .

HIGH BEAM

Push the headlight control switch forward 04 to
select the high beam function. The blue indicator
light
illuminates in the instrument panel. Pull the
headlight switch back to the original position to select
the low beam. The blue indicator light goes off.

Pull and release the headlight control switch 05 to
flash the headlight high beams on and off.
For more information, refer to the “instruments and controls (section 2)”
of your Owner’s Manual.
04
05
To view detailed instructional videos regarding these and other features,
please go to www.nissanownersinfo.mobi.
04
02
03
MiST
oFF
i NT
lo
hi
05
01a
01B

first drive features
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.12
04 ST
aTioN Pre SeT B uTToNS

Twelve stations can be set for the FM band, six for the AM band and eighteen for XM
satellite radio.

To store a station in a preset, you must first select a radio band by pressing the \
FM•AM
button

05 or
SaT button
06 , then tune to the desired AM, FM or XM satellite station.


Then press and hold the desired station preset button (1-6) until the sound is briefly
muted. The station indicator will then display and the sound will resume. Programming\
is
now complete.

To retrieve a previously set station, select the radio band where the preset was stored
then press the corresponding station select button (1-6).
For more information, refer to the “ audio system (section 3)” of your Multi Function Display Owner’s Manual.
clocK S eT/aDJ uSTM eNT
Press the S eTTiNG button
01 , then select the “Clock”

key using the center dial and press the e NTer button

02 to access the following clock settings:

On-screen Clock – When this feature is turned to oN,
a clock is always displayed in the upper right corner of
the Multi Function Display screen. The clock is
automatically adjusted by the GPS system.

Clock Format – Choose either the 12-hour clock display or the 24-hour clock display.

Offset Adjust – Adjust the time by increasing or decreasing per minut\
e.

Daylight Savings Time – Turn this item to oN for daylight savings time application.

Time Zone – Choose the time zone.
For more information, refer to the “other settings (section 7)” of your Multi Function Display Owner’s Manual.
0102

cruiSe coNTrol
The cruise control system enables you to set a
constant cruising speed above 25 MPH.

The system will automatically maintain the set speed
until you tap the brake pedal, accelerate, cancel or
turn the system off.

To activate the cruise control, push the oN/oFF
switch

01 . The cruiSe
indicator light in the
instrument panel will illuminate.

To set cruising speed, accelerate the vehicle to the
desired speed, push the coaST/S eT switch

02
and release. The S
eT indicator light in the instrument panel will illuminate. Take
your foot off the accelerator pedal. Your vehicle will maintain the set speed.

To reset at a faster cruising speed, push and hold the reS/ accel switch
03 . When the

vehicle attains the desired speed, release the switch.

To reset at a slower cruising speed, push and hold the coaST/S eT switch
02 . Release

the switch when the vehicle slows to the desired speed.

To turn cruise control off without erasing the set speed, push the caN cel switch
04 . The

SeT indicator light in the instrument panel will turn off.

To turn off cruise control, push the oN/oFF switch
01 . Both the cruiSe
indicator light
and the S eT indicator light in the instrument panel will turn off.
For more information, refer to the “Starting and driving (section 5)” of your Owner’s Manual.
01
02
03
04
To view detailed instructional videos regarding these and other features,
please go to www.nissanownersinfo.mobi.13
Fuel-Filler D oor
The fuel-filler door is located on the right, rear side of the
vehicle.

When the doors of the vehicle are locked or unlocked,
the fuel-filler door is automatically locked or unlocked
at the same time.

Push one of the power door lock switches to unlock
the fuel-filler door from inside the vehicle or push the
door handle request switch to unlock the fuel-filler door from outside the vehicle.

To open the fuel-filler door, press the left side of the door to release the door lock and pull
the door open.
For more information, refer to the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
