2013 NISSAN GT-R ECO mode

8-22Maintenance and do-it-yourself
Be careful not to clog the washer nozzle*A.
This may cause improper windshield washer
operation. If the nozzle is clogged, remove any
objects with a needle or small pin
*B.Be
careful not to damage the nozzle.
If the brakes do not operate properly, have the
brakes checked by a GT-R certified NISSAN
dealer.
SELF-ADJUSTING BRAKES
Your vehicle is equipped with self-adjusting
brakes.
The disc-type brakes self-adjust every time the
brake pedal is applied.
WARNING
See a GT-R certified NISSAN dealer for
a brake system check if the brake pedal
height does not return to normal.
BRAKE PAD WEAR WARNING
The disc brake pads have audible wear warn-
ings. When a brake pad requires replacement, it
will make a high pitched scraping sound when
the vehicle is in motion. This scraping sound will
first occur only when the brake pedal is
depressed. After more wear of the brake pad,
the sound will always be heard even if the brake
pedal is not depressed. Have the brakes
checked as soon as possible if the wear warning
sound is heard.
Under some driving or climate conditions, occasional brake squeak, squeal or other noise
may be heard. Occasional brake noise during
light to moderate stops is normal and does not
affect the function or performance of the brake
system.
Proper brake inspection intervals should
be followed.
For additional information, see the
maintenance log section of your NISSAN
Service and Maintenance Guide for mainte-
nance intervals.
HIGH PERFORMANCE BRAKE SYS-
TEM
This vehicle is equipped with high performance
brake pads that provide appropriate braking
force in a broad range of driving environments.
Due to the material used for the brake pads, the
road wheels may become more easily covered
by brake dust, however this does not indicate
that there is a malfunction.
The GT-R brake pads use material that contains
a lot of iron to maintain steady braking perfor-
mance even in high and low temperatures.
However, if the brake system is wet and the
parking brake is applied for a long time, the iron
in this material may get rusty and the brake pad
and disc rotor may be fixed together. This may
cause noise and vibration while driving. Before
parking the vehicle, dry the brake by driving on a
BRAKES

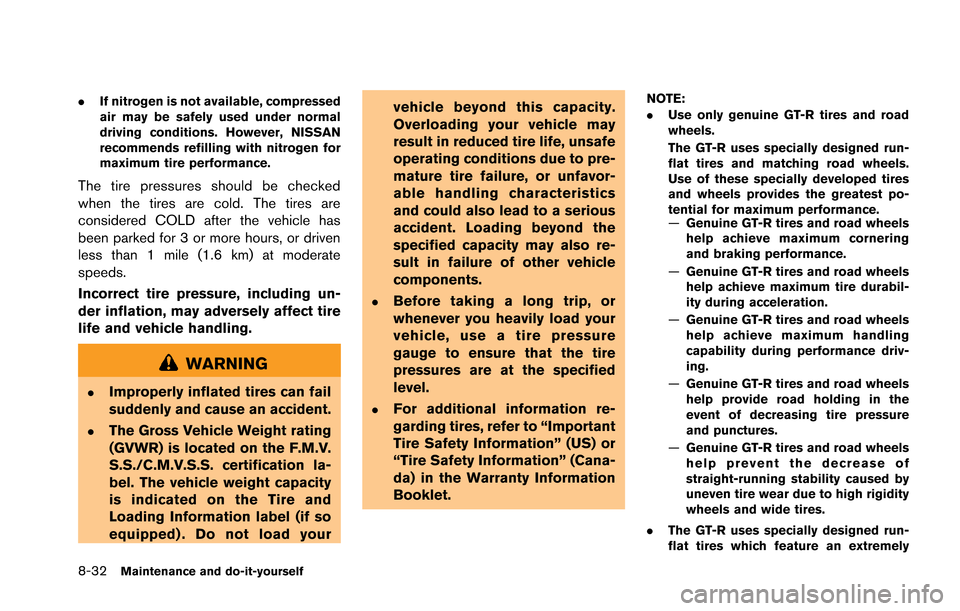

8-32Maintenance and do-it-yourself
.If nitrogen is not available, compressed
air may be safely used under normal
driving conditions. However, NISSAN
recommends refilling with nitrogen for
maximum tire performance.
The tire pressures should be checked
when the tires are cold. The tires are
considered COLD after the vehicle has
been parked for 3 or more hours, or driven
less than 1 mile (1.6 km) at moderate
speeds.
Incorrect tire pressure, including un-
der inflation, may adversely affect tire
life and vehicle handling.
WARNING
.Improperly inflated tires can fail
suddenly and cause an accident.
.The Gross Vehicle Weight rating
(GVWR) is located on the F.M.V.
S.S./C.M.V.S.S. certification la-
bel. The vehicle weight capacity
is indicated on the Tire and
Loading Information label (if so
equipped) . Do not load your vehicle beyond this capacity.
Overloading your vehicle may
result in reduced tire life, unsafe
operating conditions due to pre-
mature tire failure, or unfavor-
able handling characteristics
and could also lead to a serious
accident. Loading beyond the
specified capacity may also re-
sult in failure of other vehicle
components.
.Before taking a long trip, or
whenever you heavily load your
vehicle, use a tire pressure
gauge to ensure that the tire
pressures are at the specified
level.
.For additional information re-
garding tires, refer to “Important
Tire Safety Information” (US) or
“Tire Safety Information” (Cana-
da) in the Warranty Information
Booklet.
NOTE:
.
Use only genuine GT-R tires and road
wheels.
The GT-R uses specially designed run-
flat tires and matching road wheels.
Use of these specially developed tires
and wheels provides the greatest po-
tential for maximum performance.
—Genuine GT-R tires and road wheels
help achieve maximum cornering
and braking performance.
— Genuine GT-R tires and road wheels
help achieve maximum tire durabil-
ity during acceleration.
— Genuine GT-R tires and road wheels
help achieve maximum handling
capability during performance driv-
ing.
— Genuine GT-R tires and road wheels
help provide road holding in the
event of decreasing tire pressure
and punctures.
— Genuine GT-R tires and road wheels
help prevent the decrease of
straight-running stability caused by
uneven tire wear due to high rigidity
wheels and wide tires.
. The GT-R uses specially designed run-
flat tires which feature an extremely

8-34Maintenance and do-it-yourself
*4Cold tire pressure: Inflate the tires to
this pressure when the tires are cold.
Tires are considered COLD after the
vehicle has been parked for 3 or more
hours, or driven less than 1 mile (1.6
km) at moderate speeds. The recom-
mended cold tire inflation is set by the
manufacturer to provide the best bal-
ance of tire wear, vehicle handling,
driveability, tire noise, etc., up to the
vehicle’s GVWR.
*5Tire size — see the following section.
(
“Tire labeling” page 8-35)
*6Spare tire size or compact spare tire
size (if so equipped)CHECKING THE TIRE PRESSURE
1.Remove the valve stem cap from the
tire.
2.Press the pressure gauge squarely onto
the valve stem. Do not press too hard or
force the valve stem sideways, or air will
escape. If the hissing sound of air
escaping from the tire is heard while
checking the pressure, reposition the
gauge to eliminate this leakage.
3.Remove the gauge.
4.Read the tire pressure on the gauge
stem and compare it to the specifica-tion shown on the Tire and Loading
Information label.
5.Add air to the tire as needed. If too
much air is added, press the core of the
valve stem briefly with the tip of the
gauge stem to release pressure. Re-
check the pressure and add or release
air as needed.
6.Install the valve stem cap.
7.Check the pressure of all other tires.
NOTE:
.
You can check the pressure of all
four tires on the multi function
display. See the separate Multi
Function Display Owner’s Manual.
.The tires of this vehicle are filled
with nitrogen gas. When the tire
pressure is low, fill the tires with
nitrogen. Contact a GT-R certified
NISSAN dealer for information on
filling the tires with nitrogen.
.If nitrogen is not available, com-
pressed air may be safely used
under normal driving conditions.
However, NISSAN recommends re-

6.Term of “tubeless” or “tube type”
Indicates whether the tire requires an
inner tube (“tube type”) or not (“tube-
less”) .
7.The word “radial”
The word “radial” is shown, if the tire
has radial structure.
8.Manufacturer or brand name
Manufacturer or brand name is shown.
Other tire-related terminology:
In addition to the many terms that are
defined throughout this section, Intended
Outboard Sidewall is (1) the sidewall that
contains a whitewall, bears white lettering
or bears manufacturer, brand and/or model
name molding that is higher or deeper than
the same molding on the other sidewall of
the tire, or (2) the outward facing sidewall
of an asymmetrical tire that has a particular
side that must always face outward when
mounted on a vehicle.
TYPES OF TIRES
WARNING
. When changing or replacing tires,
be sure all four tires are of the same
type (Examples: Summer or All
Season) and construction. A GT-R
certified NISSAN dealer may be able
to help you with information about
tire type, size, speed rating and
availability.
. Replacing tires with those not ori-
ginally specified by NISSAN could
affect the proper operation of the
TPMS.
. For additional information regard-
ing tires, refer to “Important Tire
Safety Information” (US) or “Tire
Safety Information” (Canada) in the
Warranty Information Booklet.
All-season tires
NISSAN specifies all-season tires on some
models to provide good performance for use
all year around, including snowy and icy road
conditions. All-season tires are identified by ALL
SEASON on the tire sidewall.
Summer tires
The GT-R summer tires are made from a
specially formulated rubber to maximize the
vehicle’s performance capabilities. Performance
of summer tires is substantially reduced when
temperatures are less than 328F(0 8C) so you
must drive carefully. NISSAN recommends the
use of winter or all-season tires on all four
wheels if you plan to operate your vehicle in
snowy or icy conditions when temperatures are
less than 328F(0 8C) .
WARNING
Never use summer tires when the
temperature is below −48F(−208C) to
prevent permanent tread deformation
which may cause tire damage or tire
failure. This may cause a loss of vehicle
control which can result in serious
personal injury or death.
Run-flat tires
Your vehicle is equipped with run-flat tires. You
can continue driving to a safe location even if
they are punctured. Always use run-flat tires of
the specified size on all four wheels. Mixing tire
sizes or construction may reduce vehicle hand-
Maintenance and do-it-yourself8-37

10-2
Cruise control................................................... 2-15, 5-34
Cruise control operations.......................................... 5-36
Cruise control system warning................................ 2-39
Cup holders.................................................................. 2-55
Current fuel consumption ......................................... 2-15
D
Differential oil............................................................ GTR-4
Dimensions ................................................................... 9-11
Distance to empty....................................................... 2-17
Distortion of rear spoiler...................................... GTR-25
Door pocket.................................................................. 2-57
Door/trunk open warning .......................................... 2-40
Doors................................................................................ 3-4
Draining of coolant water.......................................... 5-51
Drinking alcohol/drugs and driving........................... 5-8
Drive belts..................................................................... 8-19
Drive computer ............................................................ 2-14
DrivingAll-Wheel Drive driving safety precautions ...... 5-9
Cold weather driving........................................... 5-51
Drinking alcohol/drugs and driving..................... 5-8
Driving on snow or ice........................................ 5-52
Driving the vehicle................................................ 5-15
Driving tips............................................................. 5-21
Precautions when starting and driving .............. 5-3
Driving after replacing tires ................................ GTR-12
Dry carbon fiber rear spoiler ..... GTR-7, GTR-27, 7-4
Dual clutch transmission ......................... GTR-28, 5-15
E
Elapsed time and trip odometer.............................. 2-16
Emergency engine shut off.............................. 5-11, 6-2
Emergency trunk lid release..................................... 3-22
Emission control information label.......................... 9-13
Emission control system warranty........................... 9-19
Engine.............................................................................. 9-8 Before starting the engine................................. 5-13
Changing engine coolant................................... 8-12
Changing engine oil and filter........................... 8-13
Checking engine coolant level.......................... 8-11
Checking engine oil level................................... 8-12
Emergency engine shut off....................... 5-11, 6-2
Engine block heater............................................. 5-53
Engine compartment ........................................... 8-23
Engine compartment check locations................ 8-8
Engine coolant temperature gauge .................... 2-7
Engine cooling system........................................ 8-10
Engine oil................................................. GTR-3, 8-12
Engine oil and oil filter recommendation........... 9-6
Engine oil level display........................................ 2-12
Engine oil low pressure warning...................... 2-33
Engine serial number........................................... 9-12
Engine start operation indicator ....................... 2-41
Engine system warning....................................... 2-33
Operating range for engine start ..................... 5-10
Starting the engine .............................................. 5-13
Engine and powertrain....................... GTR-15, GTR-23
Engine oil maintenance.......................................... GTR-3
Engine output......................................................... GTR-24 Engine output according to the
coolant temperature.............................................. GTR-24
Engine settings (balancing right and left
air flow)...................................................................... GTR-8
Engine speed is restricted.................................. GTR-24
Environmental factors influence the rate
of corrosion..................................................................... 7-8
Event Data Recorders................................................ 9-21
Exhaust gas .................................................................... 5-3
Exhaust muffler and trunk carpet ........................ GTR-6
Explanation of maintenance items ............................ 8-4
Extended storage switch........................................... 8-25
Exterior and interior lights ......................................... 8-29
Exterior parts (spoiler, etc.) .................................. GTR-6
F
F.M.V.S.S./C.M.V.S.S. certification label ............... 9-12
Features of each mode.............................................. 5-27
Flat tire............................................................................. 6-2
Flat towing .................................................................... 9-17
Floor mats ....................................................................... 7-6
Fluid
Brake fluid............................................... GTR-4, 8-15
Fluid level check................................................... 8-17
Low brake fluid warning ..................................... 2-35
Low washer fluid warning.................................. 2-40
Power steering fluid............................................. 8-14
Window washer fluid .......................................... 8-16
Fluids...................................................... GTR-14, GTR-19

Forward-facing child restraint installation
using LATCH................................................................ 1-22
Forward-facing child restraint installation using
the seat belts ............................................................... 1-24
Freeing a frozen door lock........................................ 5-51
Front seat-mounted side-impact supplemental
air bag and roof-mounted curtain side-impact
supplemental air bag systems ................................. 1-41
Front seats...................................................................... 1-3
Front/rear tire size discrepancy warning............... 2-37
Fuel........................................................................... GTR-12Average fuel consumption and speed............ 2-16
Capacities and
recommended fuel/lubricants............................... 9-2
Closing the fuel-filler door ................................. 3-25
Current fuel consumption .................................. 2-15
Fuel gauge................................................................ 2-8
Fuel recommendation............................................. 9-4
Fuel-filler door....................................................... 3-23
Increasing fuel economy..................................... 5-40
Low fuel warning.................................................. 2-39
Opening the fuel filler door ............................... 3-24
Fuses.............................................................................. 8-23
G
Gasoline smell ....................................................... GTR-24
Gauge Engine coolant temperature gauge .................... 2-7
Fuel gauge................................................................ 2-8
Meters and gauges................................................. 2-5 General maintenance .......................................... 8-3, 8-4
Glass................................................................................ 7-3
Glove box...................................................................... 2-57
GT-R performance optimization services.......... GTR-7
GT-R special specification parts......................... GTR-3
GT-R specific information ..................................... GTR-3
GT-R specific vehicle characteristics .............. GTR-24
H
Handling of data.......................................................... 9-21
Hazard warning flasher switch................................. 2-52
Head restraints .............................................................. 1-5
Headlight
Headlight and turn signal switch ..................... 2-49
Headlight switch................................................... 2-49
Headlights.............................................................. 8-29
Xenon headlights.................................................. 2-49
Heated seats................................................................ 2-53
High altitude ........................................................... GTR-24
High performance brake system ............................. 8-22
Hill Start Assist............................................................ 5-38
HomeLink
®Universal Transceiver ........................... 2-63
Hood............................................................................... 3-18
Horn................................................................................ 2-53
How to switch the modes ........................................ 5-25
How to use R mode start function......................... 5-33
I
Idle speed is not steady...................................... GTR-24
If your vehicle is stolen.............................................. 2-66 If your vehicle overheats.............................................. 6-7
Ignition switch operation ........................................... 5-10
Ignition switch positions............................................ 5-10
Increase tightening of the drive shaft and
center nut on hub ................................................... GTR-8
Increase tightening of the strut support bar
attachment section with the shock absorber.... GTR-9
Increasing fuel economy............................................ 5-40
Indicator lights.............................................................. 2-61
Indicators and display................................................ 5-36
Infants............................................................................. 1-13
Injured persons.............................................................. 1-8
Inside mirror.................................................................. 3-27
Inspection and adjustments after driving........ GTR-19
Inspection and adjustments before driving .... GTR-14
Installing front license plate...................................... 9-14
Installing top tether strap .......................................... 1-27
Instrument brightness control .................................. 2-11
Instrument panel............................................................ 2-4
Intelligent Key................................................................. 3-2
Intelligent Key battery discharge............................. 5-11
Intelligent Key battery discharge indicator............ 2-43
Intelligent Key battery replacement ........................ 8-26
Intelligent Key functions............................................... 3-9
Intelligent Key insertion indicator ............................ 2-43
Intelligent Key removal indicator.............................. 2-43
Intelligent Key system .................................................. 3-8
Interior light control switch ....................................... 2-62
Interior lights................................................................. 2-61
10-3

OilChanging engine oil and filter........................... 8-13
Checking engine oil level................................... 8-12
Differential oil...................................................... GTR-4
Engine oil................................................. GTR-3, 8-12
Engine oil and oil filter recommendation........... 9-6
Engine oil level display........................................ 2-12
Engine oil low pressure warning...................... 2-33
Transmission oil ..................................... GTR-4, 8-14
Transmission oil high temperature warning.... 2-34
Opening and closing the trunk................................ 3-21
Opening the doors ....................................................... 3-7
Opening the fuel filler door ...................................... 3-24
Opening the hood....................................................... 3-18
Operating range for engine start ............................ 5-10
Operating the HomeLink
®
universal transceiver ................................................... 2-65
Operation displays...................................................... 2-41
Outside air temperature ............................................ 2-17
Outside door handles .................................................. 7-4
Outside mirrors............................................................ 3-28
Outside temperature display indicates
higher temperature................................................ GTR-24
Overheat If your vehicle overheats........................................ 6-7
Owner’s Manual/Service Manual
order information ......................................................... 9-22
P
Parking Parking brake ........................................................ 5-33
Parking brake break-in........................................ 5-47
Parking brake release warning ......................... 2-35
Parking/parking on hills ...................................... 5-45
Passenger compartment ........................................... 8-24
Power
Locking with power door lock switch................ 3-5
Power outlets ........................................................ 2-54
Power steering...................................................... 5-46
Power steering fluid............................................. 8-14
Power windows .................................................... 2-59
Trunk release power cancel switch................. 3-21
Precautions................................................................... 8-17 All-Wheel Drive driving safety precautions ...... 5-9
Braking precautions............................................. 5-47
Maintenance precautions...................................... 8-6
Precautions on child restraints......................... 1-14
Precautions on cruise control........................... 5-35
Precautions on seat belt usage........................... 1-6
Precautions on supplemental
restraint system..................................................... 1-31
Precautions when starting and driving .............. 5-3
Precautions before driving.................................. GTR-10
Precautions on performance driving ................ GTR-13
Pregnant women ........................................................... 1-8
Programming HomeLink
®.......................................... 2-64
Programming HomeLink®for
Canadian customers .................................................. 2-65 Programming trouble-diagnosis .............................. 2-65
Push starting .................................................................. 6-7
“PUSH” warning.......................................................... 2-42
Push-button ignition switch........................................ 5-9
R
R mode start function ................................................ 5-32
Rapid air pressure loss................................................ 5-8
Readiness for Inspection/Maintenance test......... 9-20
Rear window defroster switch................................. 2-48
Rear-facing child restraint installation
using LATCH................................................................ 1-18
Rear-facing child restraint installation using the
seat belts....................................................................... 1-20
Recommended fluids and
maintenance interval............................................. GTR-20
Reducing tight corner braking phenomenon ....... 5-42
Refueling precautions .......................................... GTR-24
Remote keyless entry functions............................... 3-12
Removing spots............................................................. 7-3
Removing the cowl top cover.................................... 8-9
Repair and replacement procedure........................ 1-44
Replacement of brake pads and disc rotors.... GTR-5
Replacing spark plugs ............................................... 8-20
Replacing the brake pads......................................... 8-23
Replacing the wiper blades...................................... 8-21
Reporting safety defects .......................................... 9-19
Reprogramming a single HomeLink
®button ....... 2-66
Roadside assistance program ................................... 6-2
Run-flat tire warning................................................... 2-38
10-5

T
Tachometer ..................................................................... 2-7
Temperature A, B and C........................................... 9-18
Terms.............................................................................. 9-14
Three-point type seat belt with retractor ................ 1-8
Three-way catalyst........................................................ 5-3
Tight corner braking phenomenon.......................... 5-42
Tilt/telescopic steering column................................ 3-26
TireChanging wheels and tires................................ 8-39
Checking the tire pressure................................ 8-34
Flat tire....................................................................... 6-2
Front/rear tire size discrepancy warning........ 2-37
Low tire pressure warning ................................. 2-38
Run-flat tire warning............................................ 2-38
Run-flat tires............................................................. 6-3
Tire and loading information label......... 8-33, 9-13
Tire chains.............................................................. 8-39
Tire dressing............................................................. 7-4
Tire equipment...................................................... 5-52
Tire labeling ........................................................... 8-35
Tire pressure ......................................................... 8-31
Tire Pressure Monitoring System............... 5-4, 6-2
Tire Pressure Monitoring System warning..... 2-38
Tires......................................................................... 5-43
Types of tires......................................................... 8-37
Uniform tire quality grading ............................... 9-18
Wheels and tires......................................... 8-31, 9-9
Tires and road wheels ........................................... GTR-4
To protect your vehicle from corrosion.................... 7-8 Towing
Flat towing ............................................................. 9-17
Towing a trailer ..................................................... 9-17
Towing recommended by NISSAN .................... 6-9
Towing your vehicle................................................ 6-8
Traction AA, A, B and C........................................... 9-18
Transmission
Dual clutch transmission .................................... 5-15
Transmission clutch high
temperature warning............................................ 2-35
Transmission oil ..................................... GTR-4, 8-14
Transmission oil high temperature warning.... 2-34
Transmission position indicator ........................... 2-8
Transmission system check display................. 2-13
Transmission system warning ........................... 2-34
VDC, transmission and suspension
setup switches...................................................... 5-24
Transmission operation characteristics............ GTR-29
Transmission settings............................................. GTR-9
Treadwear...................................................................... 9-18
Troubleshooting guide ............................................... 3-17
Trunk............................................................................... 3-20
Trunk lid release switch............................................. 3-20
Trunk open request switch ....................................... 3-20
Trunk release power cancel switch........................ 3-21
Turbocharger system.................................................. 5-31
Turning off the heaters............................................... 2-53
Turning on the heaters............................................... 2-53
Types of tires................................................................ 8-37
U
Underbody....................................................................... 7-3
Uneven wear of tires ............................................ GTR-25
Uniform tire quality grading ...................................... 9-18
Upshift indicator ............................................................ 2-9
Using the washer ........................................................ 2-48
Using the wipers ......................................................... 2-47
V
Vanity mirror.................................................................. 3-29
Vanity mirror lights ...................................................... 2-63
VDC, transmission and suspension
setup switches............................................................. 5-24
Vehicle Dynamic Control (VDC) OFF mode .... GTR-10
Vehicle Dynamic Control (VDC) warning light .... 2-30
Vehicle Dynamic Control system ............................ 5-49
Vehicle Dynamic Control system warning ............ 2-36
Vehicle identification................................................... 9-11 Vehicle identification number ............................ 9-12
Vehicle Identification Number plate................. 9-11
Vehicle information display........................................ 2-11
Vehicle load capacity.................................................. 9-15
Vehicle loading information....................................... 9-14
Vehicle recovery........................................................... 6-10
Vehicle security system ............................................. 2-44
Vehicle speed............................................................... 2-15
Vehicle status data recorder .................................... 9-21
10-7
