2013 NISSAN GT-R Owners Manual

2-34Instruments and controls
SHIFT LEVER POSITION WARNING
This will appear if the system cannot detect the
shift lever position.
Stop the vehicle in a safe location. Depress the
brake pedal and move this shift lever to another
position then move the lever back to the desired
position. If the warning is still displayed after the
above operation is performed, have the system
checked by a GT-R certified NISSAN dealer.
(
“Driving the vehicle” page 5-15)
TRANSMISSION SYSTEM WARN-
ING
This will appear if a transmission system
malfunction occurs. (“Transmission warn-
ing light” page 2-29)
TRANSMISSION OIL HIGH TEM-
PERATURE WARNING
This will appear if the transmission oil tempera-
ture becomes unusually high.
(
“Transmission warning light” page 2-29)

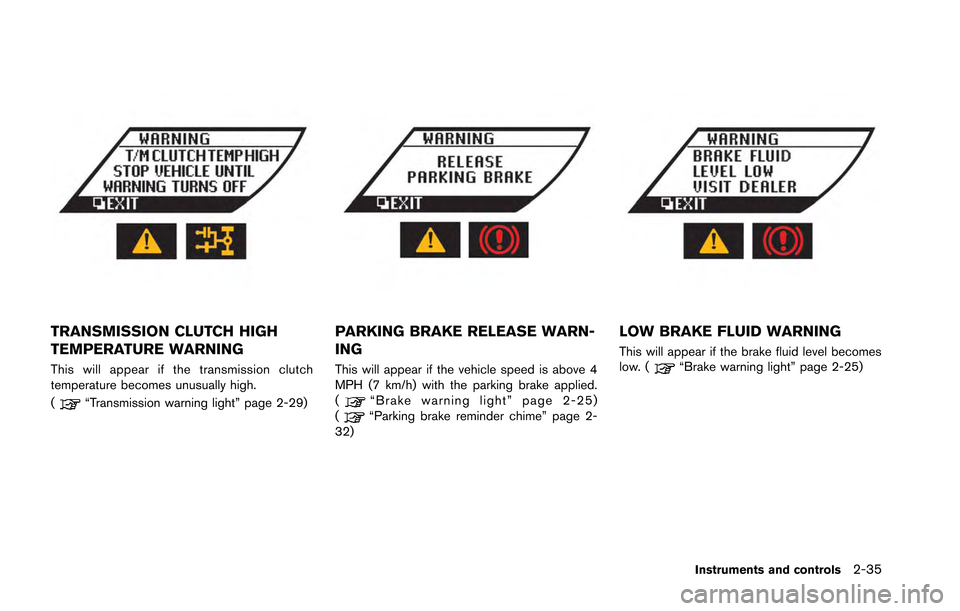

TRANSMISSION CLUTCH HIGH
TEMPERATURE WARNING
This will appear if the transmission clutch
temperature becomes unusually high.
(
“Transmission warning light” page 2-29)
PARKING BRAKE RELEASE WARN-
ING
This will appear if the vehicle speed is above 4
MPH (7 km/h) with the parking brake applied.
(
“Brake warning light” page 2-25)
(“Parking brake reminder chime” page 2-
32)
LOW BRAKE FLUID WARNING
This will appear if the brake fluid level becomes
low. (“Brake warning light” page 2-25)
Instruments and controls2-35

2-36Instruments and controls
ANTI-LOCK BRAKING SYSTEM
(ABS) WARNING
This will appear if the Anti-lock Braking System
(ABS) is not functioning properly. (“Anti-
lock Braking System (ABS) warning light” page
2-25) (
“Brake warning light” page 2-25)
VEHICLE DYNAMIC CONTROL (VDC)
SYSTEM WARNING
This will appear if the Vehicle Dynamic Control
(VDC) system or the hill start assist system is
not functioning properly. (
“Vehicle Dynamic
Control (VDC) warning light” page 2-30)
(
“Vehicle Dynamic Control (VDC) off in-
dicator light” page 2-31)
AWD CLUTCH HIGH TEMPERATURE
WARNING
This will appear if the temperature of the AWD
clutch becomes unusually high. (“All-
Wheel Drive (AWD) warning light” page 2-24)
NOTE:
If the vehicle is driven in a way which
causes the rear wheels to slip, the AWD
clutch temperature will increase and the
warning indicator may flash. Continuing to
drive in a way that causes the warning light
to flash may cause the clutch to reach
excessive temperatures that could result in

damage to the AWD system.
FRONT/REAR TIRE SIZE DISCRE-
PANCY WARNING
This will appear if the diameter of the front and
the rear wheels are different. (“All-Wheel
Drive (AWD) warning light” page 2-24)
AWD SYSTEM WARNING
This will appear if the AWD system is not
functioning properly while the engine is running.
(
“All-Wheel Drive (AWD) warning light”
page 2-24)
Instruments and controls2-37

2-38Instruments and controls
LOW TIRE PRESSURE WARNING
This will appear if the vehicle is being driven with
low tire pressure. (“Low tire pressure
warning light” page 2-26)
RUN-FLAT TIRE WARNING
This will appear and a chime will sound if the
vehicle is being driven with one or more flat tires.
(
“Low tire pressure warning light” page 2-
26)
TIRE PRESSURE MONITORING
SYSTEM (TPMS) WARNING
This will appear if the Tire Pressure Monitoring
System (TPMS) is not functioning properly.
(
“Low tire pressure warning light” page
2-26)

CRUISE CONTROL SYSTEM WARN-
ING
This will appear if the cruise control system is
not functioning properly. (“Cruise set
switch indicator light” page 2-30)
LOW FUEL WARNING
This will appear when the fuel level in the tank is
getting low. Refuel as soon as it is convenient,
preferably before the fuel gauge reaches the
empty (E) position.
This displays the approximate distance that the
vehicle can be driven based on the amount of
fuel remaining in the fuel tank and the actual fuel
consumption. NOTE:
.
The low fuel warning will appear when
the amount of fuel remaining in the
tank decreases to approximately 3 US
gallons (12 liters) .
. The timing of the low fuel warning
display may change depending on
braking, turning, acceleration, or going
up or down hills.
. If the vehicle is not refueled after the
low fuel warning appears, the display
will change to “
”. This change
timing may become earlier depending
on the driving conditions. This does not
indicate that there is a malfunction.
Instruments and controls2-39

2-40Instruments and controls
DOOR/TRUNK OPEN WARNING
This will appear if any of the doors and/or trunk
lid are open or not closed securely. The vehicle
icon indicates which door or the trunk lid is
open.
LOW WASHER FLUID WARNING
This will appear when the washer tank fluid is at
a low level. Add washer fluid as necessary.
(
“Window washer fluid” page 8-16)
NO KEY WARNING
This will appear in either of the following
conditions.
No key inside the vehicle
The warning appears when the door is closed
with the Intelligent Key left outside the vehicle
and the ignition switch in the ACC or ON
position. Make sure that the Intelligent Key is
inside the vehicle.
Unregistered Intelligent Key
The warning appears when the ignition switch is
pushed from the LOCK position and the
Intelligent Key cannot be recognized by the

system. You cannot start the engine with an
unregistered Intelligent Key.
(
“Intelligent Key system” page 3-8)
These displays appear when an appropriate
operation is required in starting or stopping the
engine.
ENGINE START OPERATION INDI-
CATOR
This indicator appears when the shift lever is in
the&Pposition.
This indicator means that the engine will start by
pushing the ignition switch with the brake pedal
depressed.
Instruments and controls2-41
OPERATION DISPLAYS
