2013 NISSAN GT-R heating

5 Heater and air conditioner
Operation precautions .............................................................. 5-2How to view screen ............................................................ 5-2
Automatic operation .................................................................. 5-2 Cooling and/or dehumidified heating (AUTO) ............. 5-2
Heating (A/C OFF) ............................................................. 5-3
Dehumidified defrosting or defogging ............................ 5-4
Manual operation ....................................................................... 5-4 Fan speed control ................................................................ 5-4
Air recirculation ..................................................................... 5-4 Outside air circulation ...................................................... 5-5
Automatic air intake control ............................................ 5-5
Air flow control ................................................................... 5-5
To turn the system OFF........................................................... 5-5
Ventilators........................................................................\
............ 5-6
Operating tips ........................................................................\
.... 5-6
In-cabin microfilter .................................................................... 5-6
Servicing air conditioner.......................................................... 5-7

5-2Heater and air conditioner
WARNING
.The air conditioner cooling function
operates only when the engine is
running.
. Do not leave children or adults who
would normally require the support
of others alone in your vehicle. Pets
should not be left alone either. On
hot, sunny days, temperatures in a
closed vehicle could quickly become
high enough to cause severe or
possibly fatal injuries to people or
animals.
. Do not use the recirculation mode
for long periods as it may cause the
interior air to become stale and the
windows to fog up.
Start the engine and operate the heater and air
conditioner system.
You can individually set the driver and front
passenger side temperature using each tem-
perature control button.
HOW TO VIEW SCREEN
Push to display the heater and air
conditioner status screen.
&1Displays the temperature setting for the driver
side.
&2Displays the ventilator mode.&3Displays that the air conditioner is set to the
AUTO mode when the DUAL mode is turned to
ON.
&4Displays the fan speed setting.&5Displays the temperature setting for the passen-
ger side.
COOLING AND/OR DEHUMIDIFIED
HEATING (AUTO)
This mode may be used all year round. The
system works automatically to control the inside
temperature, air flow distribution and fan speed
after the preferred temperature is set manually.
1. Push . (The indicator on
the button will illuminate and AUTO will be
displayed.)
OPERATION PRECAUTIONS AUTOMATIC OPERATION

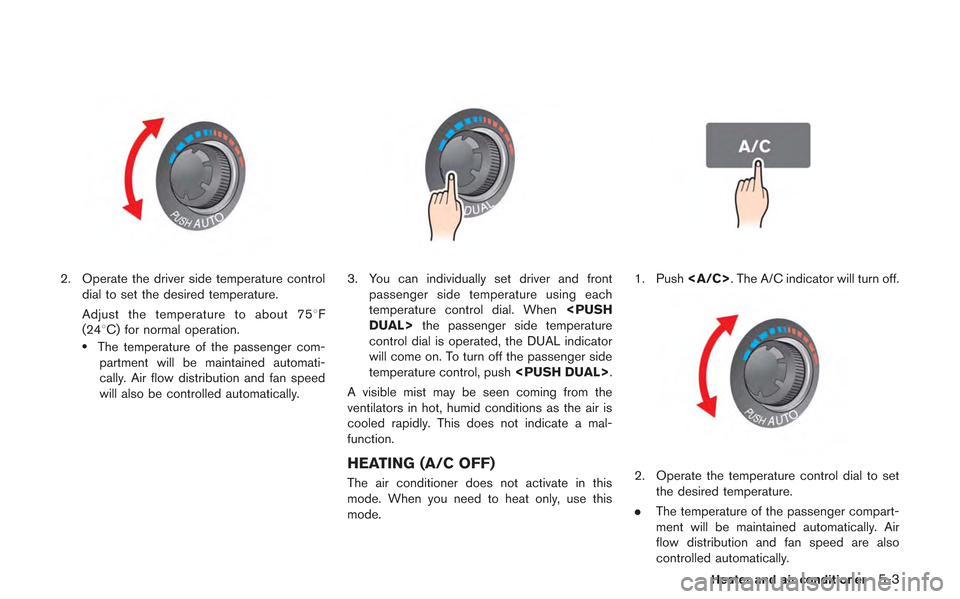

2. Operate the driver side temperature controldial to set the desired temperature.
Adjust the temperature to about 758 F
(248C) for normal operation.
.The temperature of the passenger com- partment will be maintained automati-
cally. Air flow distribution and fan speed
will also be controlled automatically.
3. You can individually set driver and front passenger side temperature using each
temperature control dial. When DUAL> the passenger side temperature
control dial is operated, the DUAL indicator
will come on. To turn off the passenger side
temperature control, push .
A visible mist may be seen coming from the
ventilators in hot, humid conditions as the air is
cooled rapidly. This does not indicate a mal-
function.
HEATING (A/C OFF)
The air conditioner does not activate in this
mode. When you need to heat only, use this
mode.
1. Push . The A/C indicator will turn off.
2. Operate the temperature control dial to set
the desired temperature.
. The temperature of the passenger compart-
ment will be maintained automatically. Air
flow distribution and fan speed are also
controlled automatically.
Heater and air conditioner5-3
