2013 NISSAN CUBE rear view mirror

Black plate (11,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
GUID-F9FBB279-4BFE-4A96-A411-7D9886C26875
SSI0634
1. Rear pillar pocket (P.2-33)
2. Soft bottle holders (P.2-32)
3. Ceiling light (P.2-39)
4. Utility hooks (P.2-34)
5. Jack and tools (P.6-4)
6. Door armrest— Power window switch (P.2-35) — Power door lock switch (P.3-5)
7. Microphone — Bluetooth
®Hands-Free Phone System
(P.4-50)
8. Sun visors (P.3-24)
9. Map lights (P.2-38)
10. Inside rearview mirror (P.3-24) 11. Cargo area
— Luggage hooks (P.2-34)
— Cargo light (P.2-40, 8-28)
12. Rear cup holders (P.2-31)
13. Front cup holders (P.2-31)
*: if so equipped
Illustrated table of contents0-5
PASSENGER COMPARTMENT
Condition:

Black plate (136,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
3-24Pre-driving checks and adjustments
GUID-B510B2B4-2FF0-4332-97B4-365D74F8BF95
SIC2872
1. To block out glare from the front, swingdown the sun visor
*1.
2. To block glare from the side, remove the sun visor from the center mount and swing it to
the side
*2.
GUID-869D65B6-5B4B-401F-A2DF-05887025E8C7
SPA2447
INSIDE MIRRORGUID-6EA43DC3-C1C2-4675-B0C4-A69817707754Adjust the angle of the inside mirror to the
desired position.
SPA2143
Manual anti-glare typeGUID-A061BF8E-7012-4982-946F-04252299F4C1The night position*1will reduce glare from the
headlights of vehicles behind you at night.
Use the day position
*2when driving in daylight
hours.
WARNING
Use the night position only when ne-
cessary, because it reduces rear view
clarity.
SUN VISORS MIRRORS
Condition:

Black plate (137,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]

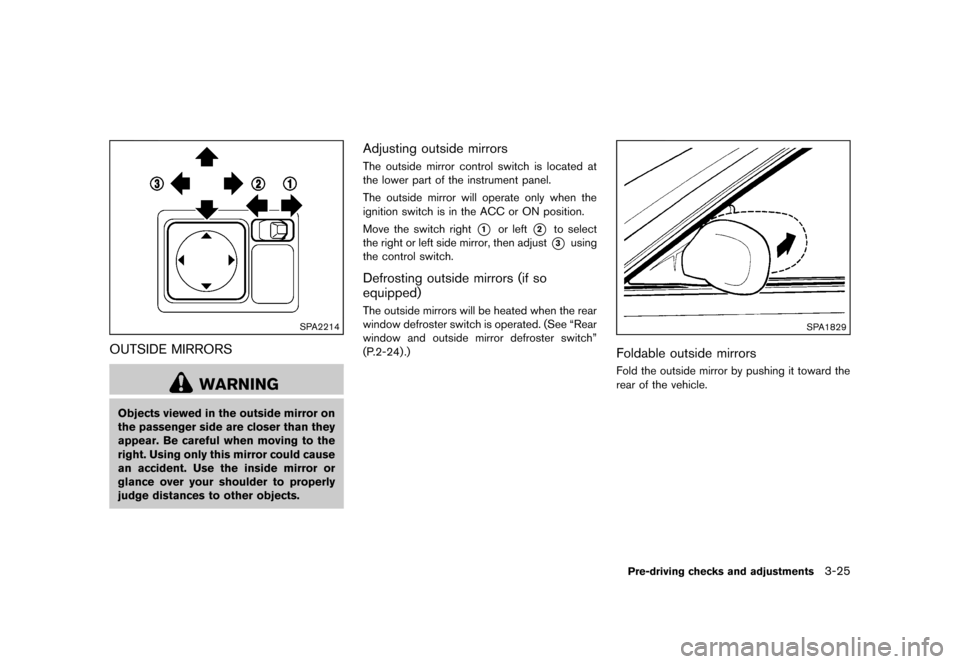

SPA2214
OUTSIDE MIRRORSGUID-10BB2C4A-8E17-4FFC-B87A-7D386278E1B9
WARNING
Objects viewed in the outside mirror on
the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use the inside mirror or
glance over your shoulder to properly
judge distances to other objects.
Adjusting outside mirrorsGUID-303B2814-F433-45BE-BF35-6FC2CA57C20AThe outside mirror control switch is located at
the lower part of the instrument panel.
The outside mirror will operate only when the
ignition switch is in the ACC or ON position.
Move the switch right
*1or left*2to select
the right or left side mirror, then adjust
*3using
the control switch.
Defrosting outside mirrors (if so
equipped)
GUID-C8473E87-D5D8-4B41-9F68-5CF1BB43B020The outside mirrors will be heated when the rear
window defroster switch is operated. (See “Rear
window and outside mirror defroster switch”
(P.2-24) .)
SPA1829
Foldable outside mirrorsGUID-62773ED2-AB92-4E3C-BA3C-A75E7751CFA2Fold the outside mirror by pushing it toward the
rear of the vehicle.
Pre-driving checks and adjustments3-25
Condition:

Black plate (149,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
(such as thebutton) is pressed and held for
two seconds.
Reset all settings/memory:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the “Reset All Settings/Memory” key to
return all settings to default and to clear the
memory.
Traffic Info setupGUID-E541E048-993C-4A50-8ED2-D08298160732Refer to the separate Navigation System Own-
er’s Manual for information regarding this item.
GUID-FFDE0754-CF72-4AAF-BB09-7BF7D1AFD643When the shift/selector lever is shifted into the R
(Reverse) position, the monitor display shows
the view to the rear of the vehicle.
The system isdesigned as an aid to the driver in
situations such as slot parking or parallel
parking.
WARNING
. The RearView Monitor is a conve-
nience but it is not a substitute to
check behind the vehicle when
backing up.
. The driver is always responsible for
safety during parking and other
maneuvers.
. Objects viewed in the RearView
Monitor differ from actual distance
because a wide-angle lens is used.
. Objects in the RearView Monitor
will appear visually opposite like
ones viewed in the inside and out-
side mirrors.
. Make sure that the back door is
securely closed when backing up.
. Underneath the bumper and the
corner areas of the bumper cannot
be viewed on the RearView Monitor because of its monitoring range
limitation.
. Do not put anything on the rear view
camera.
. When washing the vehicle with
high-pressure water, be sure not to
spray it around the camera. Other-
wise, water may enter the camera
unit causing water condensation on
the lens, a malfunction, fire or an
electric shock.
. Do not strike the camera. It is a
precision instrument. Otherwise, it
may malfunction or cause damage
resulting in a fire or an electric
shock.
CAUTION
Do not scratch the camera lens when
cleaning dirt or snow from the lens.
Center display, heater, air conditioner, audio and phone systems4-9
REARVIEW MONITOR (if so
equipped)
Condition:

Black plate (324,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
10-4
Map lights...
..................................................................... 2-38
Mechanical key (Intelligent Key system) ...
................. 3-4
Meter Trip computer ...
........................................................... 2-9
Meters and gauges ...
....................................................... 2-4
Instrument brightness control ...
........................... 2-27
Mirror Inside mirror ...
........................................................... 3-24
Outside mirrors ...
..................................................... 3-25
Vanity mirror ...
........................................................... 3-26
Monitor, Rearview monitor ...
.......................................... 4-9
N
Navigation setup ...
............................................................ 4-6
New vehicle break-in ...
.................................................. 5-23
NISSAN Vehicle Immobilizer System ...
..................... 2-20
O
Odometer ...
........................................................................ 2-5
Off-road recovery ...
.......................................................... 5-6
Oil Capacities and
recommended fuel/lubricants ...
............................... 9-2
Changing engine oil and filter ...
.............................. 8-9
Checking engine oil level ...
...................................... 8-9
Engine oil ...
................................................................... 8-9
Engine oil viscosity ...
.................................................. 9-5
Outside air temperature display ...
................................ 2-9
Outside mirrors ...
............................................................ 3-25
Overdrive OFF switch ...
................................................ 5-17
Overheat, If your vehicle overheats ...
........................ 6-12
Owner’s Manual/Service Manual
order information ...
......................................................... 9-20
P
Panic alarm ...
.......................................................... 3-8, 3-17
Parking Parking brake operation ...
..................................... 5-21
Parking on hills ...
..................................................... 5-25
Phone Bluetooth
®Hands-Free Phone System ...
......... 4-50
Car phone or CB radio ...
...................................... 4-49
Power Electric power steering system ...
........................ 5-26
Power door lock ...
...................................................... 3-4
Power outlet ...
.......................................................... 2-30
Power windows ...
.................................................... 2-35
Precautions Audio operation ...
.................................................... 4-20
Braking precautions ...
............................................. 5-27
Child restraints ...
...................................................... 1-22
Cruise control ...
........................................................ 5-21
Maintenance ...
............................................................. 8-5
Seat belt usage ...
.................................................... 1-10
Supplemental restraint system ...
.......................... 1-40
When starting and driving ...
.................................... 5-2
Push starting ...
................................................................ 6-12
Push-button ignition switch ...
............................. 5-9, 5-10
R
Radio ...
.............................................................................. 4-20
Car phone or CB radio ...
...................................... 4-49
Radio operation ...
.................................................... 4-34
Steering wheel audio controls ...
.......................... 4-47
Rapid air pressure loss ...
................................................ 5-6
Readiness for inspection/maintenance
(I/M) test ...
........................................................................ 9-19
Rear center seat belt ...
................................................. 1-17
Rear door lock, Child safety rear door lock ...
........... 3-6 Rear seats
...
....................................................................... 1-4
Rear window and outside mirror
defroster switch ...
........................................................... 2-24
Rear window wiper and washer switch ...
................ 2-23
Rearview monitor ...
........................................................... 4-9
Recorders, Event data ...
............................................... 9-19
Registering your vehicle in another country ...
........... 9-8
Remote keyless entry function, For Intelligent
Key system ...
.................................................................... 3-16
Remote keyless entry system ...
..................................... 3-7
Reporting safety defects ...
........................................... 9-18
Rollover ...
............................................................................ 5-6
S
Safety, Child seat belts ...
............................................. 1-20
Satellite radio operation ...
............................................ 4-39
Seat adjustment Front manual seat adjustment ...
.............................. 1-3
Front seats ...
................................................................ 1-3
Seat belt(s)
Child safety ...
............................................................ 1-20
Infants ...
...................................................................... 1-20
Injured persons ...
..................................................... 1-13
Larger children ...
...................................................... 1-21
Precautions on seat belt usage ...
........................ 1-10
Pregnant women ...
.................................................. 1-13
Rear center seat belt ...
.......................................... 1-17
Seat belt cleaning ...
................................................... 7-6
Seat belt extenders ...
.............................................. 1-19
Seat belt hooks ...
.................................................... 1-16
Seat belt maintenance ...
........................................ 1-19
Seat belt warning light ...
........................................ 2-15
Seat belts ...
............................................................... 1-10
Seat belts with pretensioners ...
........................... 1-52
Shoulder belt height adjustment ...
...................... 1-16
Small children ...
........................................................ 1-21
Condition:
