1. Side ventilator (P.4-13)
2. Meters and gauges (P.2-4)
3. Center ventilator (P.4-13)
4. Hazard warning flasher switch (P.6-2)
5. Audio system* (P.4-20) or Navigation system**— Clock* (P.4-6, 4-32)
6. Front passenger air bag status light (P.1-48) 7. Front passenger supplemental air bag (P.1-40)
8. Fuel-filler door release handle (P.3-21)
9. Hood release handle (P.3-19)
10. Ignition switch (models without Intelligent Key
system) (P.5-8)
11. Push-button ignition switch (models with Intel- ligent Key system) (P.5-9) 12. Heater and air conditioner* control (P.4-14)
— Rear window and outside mirror* defroster
switch (P.2-24)
13. Utility hooks (P.2-34)
14. Heated seat switch* (P.2-29)
15. iPod
®connector* (P.4-23)/USB connector*
(P.4-24)
16. Power outlet (P.2-30)
17. Glove box (P.2-33)
*: if so equipped
**: Refer to the separate Navigation System Own- er’s Manual (if so equipped) .
Illustrated table of contents0-7
INSTRUMENT PANEL
Condition:

Black plate (63,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
.Until you have confirmed with your
dealer that your passenger seat
occupant classification system is
working properly, position the occu-
pants in the rear seating positions.
This vehicle is equipped with the NISSAN
Advanced Air Bag System for the driver and
front passenger seats. This system is designed
to meet certification requirements under U.S.
regulations. It is also permitted in Canada.
However, all of the information, cautions
and warnings in this manual still apply and
must be followed.
The driver supplemental front-impact air bag is
located in the center of the steering wheel. The
passenger supplemental front-impact air bag is
mounted in the instrument panel above the glove
box. The front air bags are designed to inflate in
higher severity frontal collisions, although they
may inflate if the forces in another type of
collision are similar to those of a higher severity
frontal impact. They may not inflate in certain
frontal collisions. Vehicle damage (or lack of it) is
not always an indication of proper front air bag
operation.
The NISSAN Advanced Air Bag System has
dual stage air bag inflators. The system monitors
information from the Air bag Control Unit (ACU) , seat belt buckle sensors and the occupant
classification sensors (weight sensors) . Inflator
operation is based on the severity of a collision
and seat belt usage for the driver. For the front
passenger, the occupant classification sensors
are also monitored. Based on information from
the sensors, only one front air bag may inflate in
a crash, depending on the crash severity and
whether the front occupants are belted or
unbelted. Additionally, the front passenger air
bag may be automatically turned OFF under
some conditions, depending on the information
provided by the occupant classification sensors.
If the front passenger air bag is OFF, the
passenger air bag status light will be illuminated
(if the seat is unoccupied, the light will not be
illuminated, but the air bag will be off) . (See
“Front passenger air bag and status light” (P.1-
48) for further details.) One front air bag inflating
does not indicate improper performance of the
system.
If you have any questions about your air bag
system, contact NISSAN or a NISSAN dealer. If
you are considering modification of your vehicle
due to a disability, you may also contact
NISSAN. Contact information is contained in
the front of this Owner’s Manual.
When a front air bag inflates, a fairly loud noise
may be heard, followed by release of smoke.
This smoke is not harmful and does not indicatea fire. Care should be taken not to inhale it, as it
may cause irritation and choking. Those with a
history of a breathing condition should get fresh
air promptly.
Front air bags, along with the use of seat belts,
help to cushion the impact force on the head
and chest of the front occupants. They can help
save lives and reduce serious injuries. However,
an inflating front air bag may cause facial
abrasions or other injuries. Front air bags do
not provide restraint to the lower body.
Even with NISSAN Advanced Air Bags, seat
belts should be correctly worn and the driver
and passenger seated upright as far as practical
away from the steering wheel or instrument
panel. The front air bags inflate quickly in order
to help protect the front occupants. Because of
this, the force of the front air bag inflating can
increase the risk of injury if the occupant is too
close to, or is against, the air bag module during
inflation.
The front air bags deflate quickly after a collision.
The front air bags operate only when the
ignition switch is in the ON position.
After the ignition is placed in the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7
seconds if the system is operational.
Safety — Seats, seat belts and supplemental restraint system1-47
Condition:

Black plate (73,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
2 Instruments and controls
Cockpit...
........................................................................\
................ 2-2
Instrument panel ...
........................................................................\
2-3
Meters and gauges ...
................................................................... 2-4
Speedometer and odometer ...
............................................ 2-5
Tachometer ...
........................................................................\
... 2-7
Engine coolant temperature gauge ...
................................ 2-7
Fuel gauge ...
........................................................................\
.... 2-8
Vehicle information display ...
................................................ 2-8
Outside air temperature (if so equipped) ...
..................... 2-9
Continuously Variable Transmission (CVT) position
indicator (if so equipped) ...
.................................................. 2-9
Trip computer ...
....................................................................... 2-9
Warning/indicator lights and audible reminders ...
............ 2-11
Checking bulbs ...
................................................................. 2-12
Warning lights ...
................................................................... 2-12
Indicator lights ...
................................................................... 2-16
Audible reminders ...
............................................................ 2-18
Security systems ...
.................................................................... 2-19
Vehicle security system ...
.................................................. 2-19
NISSAN Vehicle Immobilizer System ...
.......................... 2-20
Windshield wiper and washer switch ...
............................... 2-22
Rear window wiper and washer switch ...
........................... 2-23 Rear window and outside mirror defroster switch
...
....... 2-24
Headlight and turn signal switch ...
....................................... 2-24
Headlight switch ...
............................................................ 2-24
Turn signal switch ...
.......................................................... 2-27
Fog light switch (if so equipped) ...
.............................. 2-28
Horn ...
........................................................................\
.................. 2-28
Vehicle Dynamic Control (VDC) OFF switch ...
................. 2-28
Heated seats (if so equipped) ...
........................................... 2-29
Power outlet ...
........................................................................\
.... 2-30
Storage ...
........................................................................\
............ 2-31
Cup holders ...
..................................................................... 2-31
Glove box ...
........................................................................\
. 2-33
Rear pillar pocket ...
........................................................... 2-33
Luggage hooks ...
............................................................... 2-34
Utility hooks ...
..................................................................... 2-34
Windows ...
........................................................................\
......... 2-35
Power windows ...
.............................................................. 2-35
Interior lights ...
........................................................................\
.. 2-37
Map lights ...
........................................................................\
2-38
Map light control switch ...
............................................... 2-38
Ceiling light ...
...................................................................... 2-39
Cargo light ...
........................................................................\
...... 2-40
Condition:
>

Black plate (75,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
GUID-741A14C4-F1A6-472D-9228-7C1146AF8138
SSI0840
1. Side ventilator
2. Meters and gauges
3. Center ventilator
4. Hazard warning flasher switch
5. Audio system* or Navigation system**— Clock*
6. Front passenger air bag status light 7. Front passenger supplemental air bag
8. Fuel-filler door release handle
9. Hood release handle
10. Ignition switch (models without Intelligent Key
system)
11. Push-button ignition switch (models with Intel- ligent Key system) 12. Heater and air conditioner* control
— Rear window and outside mirror* defroster
switch
13. Utility hooks
14. Heated seat switch*
15. iPod
®connector*/USB connector*
16. Power outlet
17. Glove box
*: if so equipped
**: Refer to the separate Navigation System Own- er’s Manual (if so equipped) .
Instruments and controls2-3
INSTRUMENT PANEL
Condition:

Black plate (105,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
SIC4138

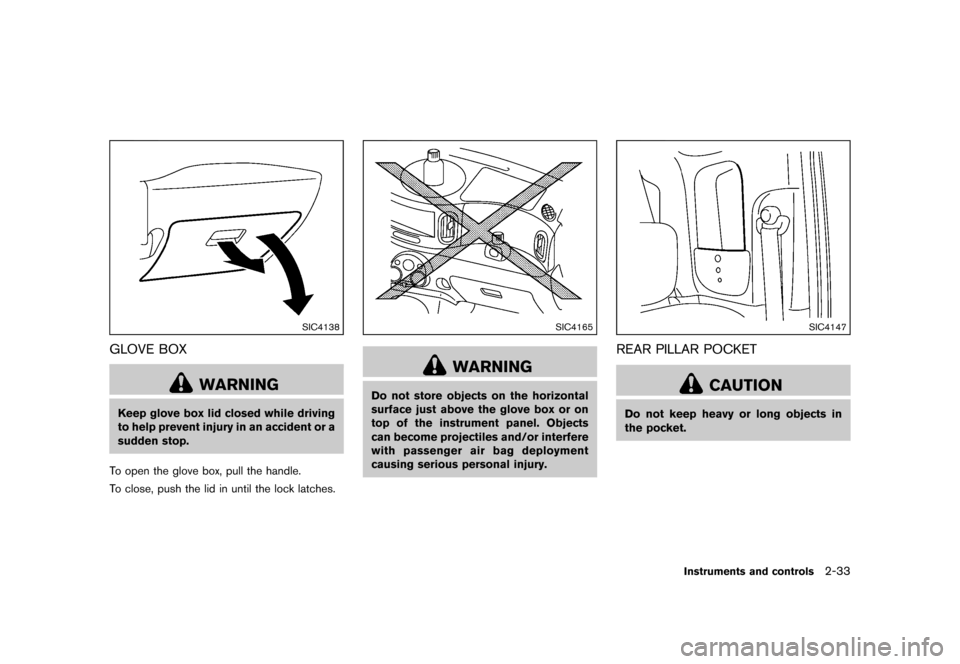

GLOVE BOXGUID-400E9A5C-5A22-46EE-9F61-79D7C2EB5223
WARNING
Keep glove box lid closed while driving
to help prevent injury in an accident or a
sudden stop.
To open the glove box, pull the handle.
To close, push the lid in until the lock latches.
SIC4165
WARNING
Do not store objects on the horizontal
surface just above the glove box or on
top of the instrument panel. Objects
can become projectiles and/or interfere
with passenger air bag deployment
causing serious personal injury.
SIC4147
REAR PILLAR POCKETGUID-56D74CC3-4A3F-44F1-9101-862D64BE81E4
CAUTION
Do not keep heavy or long objects in
the pocket.
Instruments and controls2-33
Condition:

Black plate (212,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
5-10Starting and driving
SSD0436
OPERATING RANGE FOR ENGINE
START FUNCTION
GUID-CA6883CE-D745-40B9-A1E6-6113667F97EDThe Intelligent Key can only be used for starting
the engine when the Intelligent Key is within the
specified operating range
*1.
When the Intelligent Key battery is almost
discharged or strong radio waves are present
near the operating location, the Intelligent Key
system’s operating range becomes narrower
and may not function properly.
If the Intelligent Key is within the operating
range, it is possible for anyone, even someone
who does not carry the Intelligent Key, to push
the ignition switch to start the engine. .
The cargo room area is not included in the
operating range but the Intelligent Key may
function.
. If the Intelligent Key is placed on the
instrument panel, inside the glove box or
door pocket, the Intelligent Key may not
function.
. If the Intelligent Key is placed near the door
or window outside the vehicle, the Intelligent
Key may function.
SSD0859
PUSH-BUTTON IGNITION SWITCH
OPERATION
GUID-57E19B59-4E55-4425-B9AE-FEB85DC524C4When the ignition switch is pushed without
depressing the brake pedal, the ignition switch
position will change as follows:
.Push center once to change to ACC.
. Push center two times to change to ON.
. Push center three times to change to OFF.
. Push center four times to return to ACC.
. Open or close any door to return to LOCK
during the OFF position.
The indicator light
*Aon the ignition switch
illuminates when the ignition switch is in the
ACC or ON position.
Condition:

Black plate (322,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
10-2
Checking engine coolant level...
............................. 8-8
Corrosion protection ...
.................................................... 7-6
Cruise control ...
............................................................... 5-21
Cup holders ...
.................................................................. 2-31
CVT, Driving with CVT (Continuously
Variable Transmission) ...
...................................... 5-8, 5-15
D
Daytime running light system ...
................................... 2-26
Defroster switch, Rear window and outside
mirror defroster switch ...
............................................... 2-24
Dimensions and weights ...
............................................. 9-8
Door open warning light ...
............................................ 2-13
Drive belt ...
....................................................................... 8-15
Driving Cold weather driving ...
........................................... 5-30
Driving with CVT (Continuously
Variable Transmission) ...
............................... 5-8, 5-15
Driving with manual transmission ...
............ 5-9, 5-19
Precautions when starting and driving ...
.............. 5-2
E
Economy, Fuel ...
.............................................................. 5-24
Electric power steering system ...
............................... 5-26
Electric power steering warning light ...
.................... 2-13
Emission control information label ...
.......................... 9-10
Emission control system warranty ...
........................... 9-17
Engine Before starting the engine ...
................................. 5-12
Break-in schedule ...
................................................ 5-23
Capacities and
recommended fuel/lubricants ...
............................... 9-2
Changing engine coolant ...
...................................... 8-8
Changing engine oil and filter ...
.............................. 8-9
Checking engine coolant level ...
............................. 8-8 Checking engine oil level
...
...................................... 8-9
Coolant temperature gauge ...
................................. 2-7
Emergency engine shut off ...
................................ 5-11
Engine block heater ...
............................................. 5-31
Engine compartment check locations ...
................ 8-6
Engine cooling system ...
........................................... 8-7
Engine oil ...
................................................................... 8-9
Engine oil and oil filter recommendation ...
........... 9-5
Engine oil viscosity ...
.................................................. 9-5
Engine serial number ...
.............................................. 9-9
Engine specifications ...
............................................. 9-7
If your vehicle overheats ...
..................................... 6-12
Starting the engine ...
.............................................. 5-13
Event Data Recorders (EDR) ...
................................... 9-19
Exhaust gas (carbon monoxide) ...
................................ 5-2
Extended storage fuse warning ...
................................. 2-6
F
F.M.V.S.S./C.M.V.S.S. certification label ...
................. 9-9
Filter
Air cleaner housing filter ...
.................................... 8-17
Changing engine oil and filter ...
.............................. 8-9
Flashers (See hazard warning flasher switch) ...
....... 6-2
Flat tire ...
............................................................................. 6-3
Flat towing ...
.................................................................... 9-16
Floor mat cleaning ...
........................................................ 7-5
Fluid Brake and clutch fluid ...
......................................... 8-12
Capacities and
recommended fuel/lubricants ...
............................... 9-2
Continuously Variable Transmission
(CVT) fluid ...
.............................................................. 8-11
Engine coolant ...
......................................................... 8-7
Engine oil ...
................................................................... 8-9
Window washer fluid ...
.......................................... 8-12
FM-AM radio with Compact Disc (CD) player ...
.... 4-32 FM-AM-SAT radio with Compact Disc
(CD) player
...
................................................................... 4-39
Fog light switch ...
........................................................... 2-28
Front manual seat adjustment ...
.................................... 1-3
Front passenger air bag and status light ...
.............. 1-48
Front seat, Front seat adjustment ...
............................. 1-3
Front-seat active head restraints ...
.............................. 1-9
Fuel Capacities and
recommended fuel/lubricants ...
............................... 9-2
Distance to empty ...
................................................... 2-9
Fuel economy ...
........................................................ 5-24
Fuel octane rating ...
................................................... 9-3
Fuel recommendation ...
............................................. 9-3
Fuel-filler cap ...
......................................................... 3-21
Fuel-filler door ...
....................................................... 3-21
Gauge ...
........................................................................ 2-8
Fuel Efficient Driving Tips ...
......................................... 5-23
Fuses ...
.............................................................................. 8-20
Fusible links ...
.................................................................. 8-21
G
Gas cap ...
......................................................................... 3-21
Gauge ...
.............................................................................. 2-4
Engine coolant temperature gauge ...
.................... 2-7
Fuel gauge ...
................................................................ 2-8
Odometer ...
.................................................................. 2-5
Speedometer ...
............................................................ 2-5
Tachometer ...
............................................................... 2-7
Trip computer ...
........................................................... 2-9
General maintenance ...
................................................... 8-2
Glove box ...
...................................................................... 2-33
Condition:
