2013 NISSAN CUBE height adjustment

Black plate (19,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
SSS0792

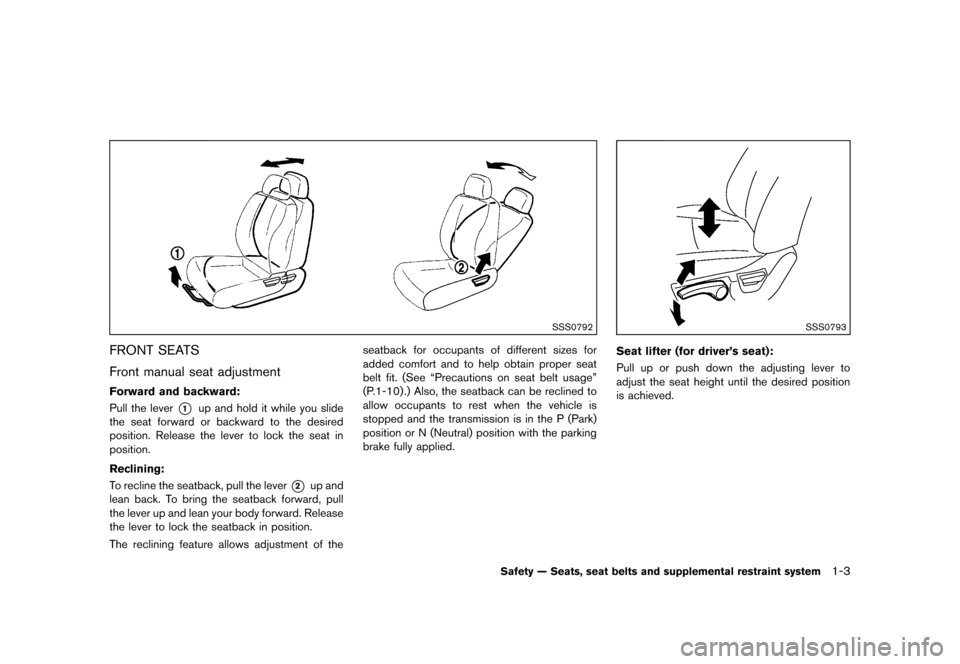

FRONT SEATSGUID-59C4CE25-AF59-4D31-B272-A40AA149A400
Front manual seat adjustmentGUID-31887FF4-3286-4D54-906B-1A5A974F78F7
Forward and backward:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pull the lever*1up and hold it while you slide
the seat forward or backward to the desired
position. Release the lever to lock the seat in
position.
Reclining:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To recline the seatback, pull the lever*2up and
lean back. To bring the seatback forward, pull
the lever up and lean your body forward. Release
the lever to lock the seatback in position.
The reclining feature allows adjustment of the seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “Precautions on seat belt usage”
(P.1-10) .) Also, the seatback can be reclined to
allow occupants to rest when the vehicle is
stopped and the transmission is in the P (Park)
position or N (Neutral) position with the parking
brake fully applied.
SSS0793
Seat lifter (for driver’s seat):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pull up or push down the adjusting lever to
adjust the seat height until the desired position
is achieved.
Safety — Seats, seat belts and supplemental restraint system1-3
Condition:

Black plate (32,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
1-16Safety — Seats, seat belts and supplemental restraint system
SSS0351A

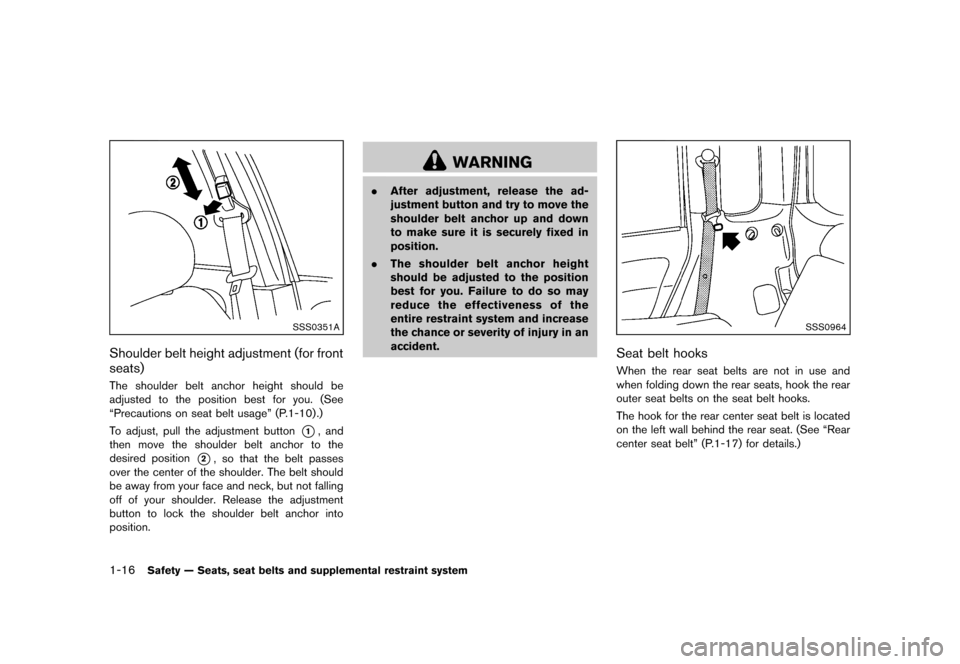

Shoulder belt height adjustment (for front
seats)
GUID-CBDAF3AB-5249-49D4-846E-C9A9EDE36C8DThe shoulder belt anchor height should be
adjusted to the position best for you. (See
“Precautions on seat belt usage” (P.1-10) .)
To adjust, pull the adjustment button
*1, and
then move the shoulder belt anchor to the
desired position
*2, so that the belt passes
over the center of the shoulder. The belt should
be away from your face and neck, but not falling
off of your shoulder. Release the adjustment
button to lock the shoulder belt anchor into
position.
WARNING
. After adjustment, release the ad-
justment button and try to move the
shoulder belt anchor up and down
to make sure it is securely fixed in
position.
. The shoulder belt anchor height
should be adjusted to the position
best for you. Failure to do so may
reduce the effectiveness of the
entire restraint system and increase
the chance or severity of injury in an
accident.
SSS0964
Seat belt hooksGUID-9DEAC6D4-7B45-4853-93A8-3C351C5A19F3When the rear seat belts are not in use and
when folding down the rear seats, hook the rear
outer seat belts on the seat belt hooks.
The hook for the rear center seat belt is located
on the left wall behind the rear seat. (See “Rear
center seat belt” (P.1-17) for details.)
Condition:

Black plate (39,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
“Lower Anchors and Tethers for CHildren
System (LATCH) ” (P.1-23).
If you do not have a LATCH compatible child
restraint, the vehicle seat belts can be used.
Several manufacturers offer child restraints for
infants and small children of various sizes. When
selecting any child restraint, keep the following
points in mind:
.Choose only a restraint with a label certifying
that it complies with Federal Motor Vehicle
Safety Standard 213 or Canadian Motor
Vehicle Safety Standard 213.
. Check the child restraint in your vehicle to
be sure it is compatible with the vehicle’s
seat and seat belt system.
. If the child restraint is compatible with your
vehicle, place your child in the child restraint
and check the various adjustments to be
sure the child restraint is compatible with
your child. Choose a child restraint that is
designed for your child’s height and weight.
Always follow all recommended procedures.
All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved child
restraint at all times while the vehicle is
being operated. Canadian law requires the
top tether strap on forward-facing child
restraints be secured to the designated anchor point on the vehicle.

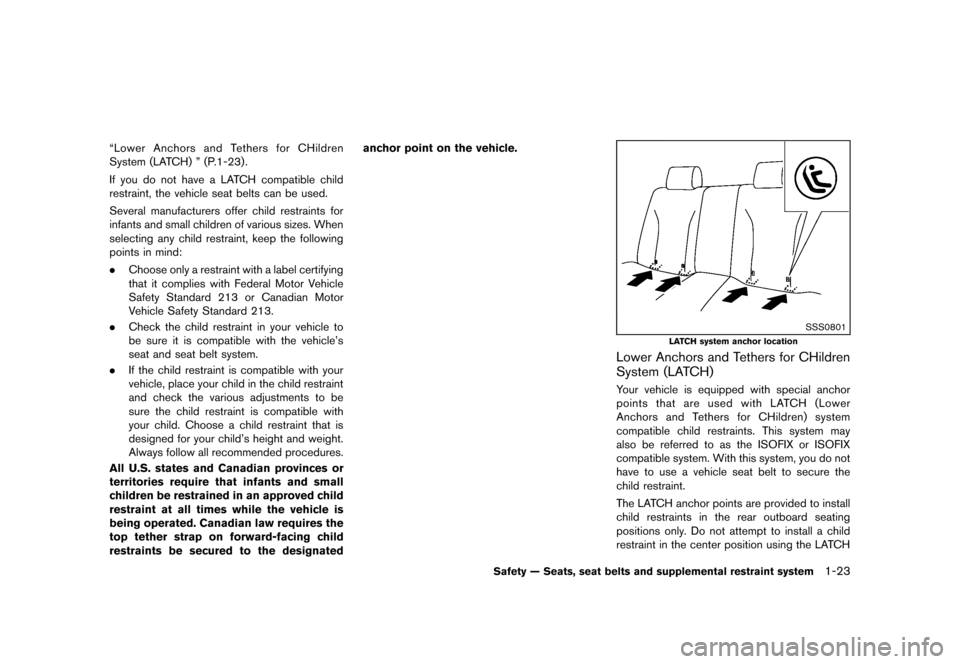

SSS0801
LATCH system anchor location
Lower Anchors and Tethers for CHildren
System (LATCH)
GUID-F078005E-1A52-4626-BFE8-ADE05DBD81B7Your vehicle is equipped with special anchor
points that are used with LATCH (Lower
Anchors and Tethers for CHildren) system
compatible child restraints. This system may
also be referred to as the ISOFIX or ISOFIX
compatible system. With this system, you do not
have to use a vehicle seat belt to secure the
child restraint.
The LATCH anchor points are provided to install
child restraints in the rear outboard seating
positions only. Do not attempt to install a child
restraint in the center position using the LATCH
Safety — Seats, seat belts and supplemental restraint system1-23
Condition:

Black plate (324,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
10-4
Map lights...
..................................................................... 2-38
Mechanical key (Intelligent Key system) ...
................. 3-4
Meter Trip computer ...
........................................................... 2-9
Meters and gauges ...
....................................................... 2-4
Instrument brightness control ...
........................... 2-27
Mirror Inside mirror ...
........................................................... 3-24
Outside mirrors ...
..................................................... 3-25
Vanity mirror ...
........................................................... 3-26
Monitor, Rearview monitor ...
.......................................... 4-9
N
Navigation setup ...
............................................................ 4-6
New vehicle break-in ...
.................................................. 5-23
NISSAN Vehicle Immobilizer System ...
..................... 2-20
O
Odometer ...
........................................................................ 2-5
Off-road recovery ...
.......................................................... 5-6
Oil Capacities and
recommended fuel/lubricants ...
............................... 9-2
Changing engine oil and filter ...
.............................. 8-9
Checking engine oil level ...
...................................... 8-9
Engine oil ...
................................................................... 8-9
Engine oil viscosity ...
.................................................. 9-5
Outside air temperature display ...
................................ 2-9
Outside mirrors ...
............................................................ 3-25
Overdrive OFF switch ...
................................................ 5-17
Overheat, If your vehicle overheats ...
........................ 6-12
Owner’s Manual/Service Manual
order information ...
......................................................... 9-20
P
Panic alarm ...
.......................................................... 3-8, 3-17
Parking Parking brake operation ...
..................................... 5-21
Parking on hills ...
..................................................... 5-25
Phone Bluetooth
®Hands-Free Phone System ...
......... 4-50
Car phone or CB radio ...
...................................... 4-49
Power Electric power steering system ...
........................ 5-26
Power door lock ...
...................................................... 3-4
Power outlet ...
.......................................................... 2-30
Power windows ...
.................................................... 2-35
Precautions Audio operation ...
.................................................... 4-20
Braking precautions ...
............................................. 5-27
Child restraints ...
...................................................... 1-22
Cruise control ...
........................................................ 5-21
Maintenance ...
............................................................. 8-5
Seat belt usage ...
.................................................... 1-10
Supplemental restraint system ...
.......................... 1-40
When starting and driving ...
.................................... 5-2
Push starting ...
................................................................ 6-12
Push-button ignition switch ...
............................. 5-9, 5-10
R
Radio ...
.............................................................................. 4-20
Car phone or CB radio ...
...................................... 4-49
Radio operation ...
.................................................... 4-34
Steering wheel audio controls ...
.......................... 4-47
Rapid air pressure loss ...
................................................ 5-6
Readiness for inspection/maintenance
(I/M) test ...
........................................................................ 9-19
Rear center seat belt ...
................................................. 1-17
Rear door lock, Child safety rear door lock ...
........... 3-6 Rear seats
...
....................................................................... 1-4
Rear window and outside mirror
defroster switch ...
........................................................... 2-24
Rear window wiper and washer switch ...
................ 2-23
Rearview monitor ...
........................................................... 4-9
Recorders, Event data ...
............................................... 9-19
Registering your vehicle in another country ...
........... 9-8
Remote keyless entry function, For Intelligent
Key system ...
.................................................................... 3-16
Remote keyless entry system ...
..................................... 3-7
Reporting safety defects ...
........................................... 9-18
Rollover ...
............................................................................ 5-6
S
Safety, Child seat belts ...
............................................. 1-20
Satellite radio operation ...
............................................ 4-39
Seat adjustment Front manual seat adjustment ...
.............................. 1-3
Front seats ...
................................................................ 1-3
Seat belt(s)
Child safety ...
............................................................ 1-20
Infants ...
...................................................................... 1-20
Injured persons ...
..................................................... 1-13
Larger children ...
...................................................... 1-21
Precautions on seat belt usage ...
........................ 1-10
Pregnant women ...
.................................................. 1-13
Rear center seat belt ...
.......................................... 1-17
Seat belt cleaning ...
................................................... 7-6
Seat belt extenders ...
.............................................. 1-19
Seat belt hooks ...
.................................................... 1-16
Seat belt maintenance ...
........................................ 1-19
Seat belt warning light ...
........................................ 2-15
Seat belts ...
............................................................... 1-10
Seat belts with pretensioners ...
........................... 1-52
Shoulder belt height adjustment ...
...................... 1-16
Small children ...
........................................................ 1-21
Condition:

Black plate (325,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
Three-point type...
................................................... 1-13
Seat(s) Heated seats ...
......................................................... 2-29
Seats ...
.......................................................................... 1-2
Security system (NISSAN Vehicle Immobilizer
System) , Engine start ...
................................................. 2-20
Security system, Vehicle security system ...
............. 2-19
Selector lever Shift lock release ...
.................................................. 5-18
Servicing air conditioner ...
............................................ 4-20
Shift lock release Transmission ...
.......................................................... 5-18
Shifting CVT (Continuously
Variable Transmission) ...
............................... 5-8, 5-15
Manual transmission ...
................................... 5-9, 5-19
Shoulder belt height adjustment, For
front seats ...
..................................................................... 1-16
SOURCE select switch ...
............................................. 4-47
Spare tire ...
.............................................................. 8-38, 9-7
Spark plugs ...
.................................................................. 8-16
Speedometer ...
.................................................................. 2-5
Starting Before starting the engine ...
................................. 5-12
Jump starting ...
......................................................... 6-10
Precautions when starting and driving ...
.............. 5-2
Push starting ...
......................................................... 6-12
Starting the engine ...
.............................................. 5-13
Status light, Front passenger air bag ...
.................... 1-48
Steering Electric power steering system ...
........................ 5-26
Steering wheel switch for audio controls ...
...... 4-47
Tilting steering column ...
........................................ 3-23
Storage ...
.......................................................................... 2-31
Sun visors ...
..................................................................... 3-24
Supplemental air bag warning labels ...
..................... 1-53
Supplemental air bag warning light ...
............ 1-54, 2-15 Supplemental restraint system
...
................................. 1-40
Precautions on supplemental
restraint system ...
..................................................... 1-40
Switch Audio control steering wheel switch ...
............... 4-47
Autolight switch ...
.................................................... 2-25
Fog light switch ...
.................................................... 2-28
Hazard warning flasher switch ...
............................. 6-2
Headlight switch ...
................................................... 2-24
Overdrive OFF switch ...
......................................... 5-17
Power door lock switch ...
......................................... 3-5
Rear window and outside mirror
defroster switch ...
.................................................... 2-24
Turn signal switch ...
................................................ 2-27
Vehicle dynamic control (VDC) off switch ...
..... 2-28
System setup ...
................................................................. 4-7
T
Tachometer ...
..................................................................... 2-7
Temperature display ...
...................................................... 2-9
Temperature gauge, Engine coolant
temperature gauge ...
........................................................ 2-7
Theft (NISSAN Vehicle Immobilizer System) ,
Engine start ...
................................................................... 2-20
Three-way catalyst ...
........................................................ 5-3
Tilt steering column ...
.................................................... 3-23
Tire pressure, Low tire pressure warning light ...
.... 2-14
Tires Flat tire ...
....................................................................... 6-3
Low tire pressure warning system ...
...................... 5-3
Tire and Loading information label ...
....... 8-31, 9-10
Tire chains ...
.............................................................. 8-35
Tire dressing ...
............................................................. 7-4
Tire pressure ...
......................................................... 8-30
Tire pressure monitoring
system (TPMS) ...
............................................... 5-3, 6-3 Tire rotation
...
............................................................ 8-36
Types of tires ...
......................................................... 8-35
Uniform tire quality grading ...
............................... 9-16
Wheel/tire size ...
......................................................... 9-7
Wheels and tires ...
.................................................. 8-30
Touch screen ...
.................................................................. 4-3
Towing Flat towing ...
............................................................. 9-16
Tow truck towing ...
.................................................. 6-14
Towing a trailer ...
..................................................... 9-15
TPMS, Tire pressure monitoring system ...
................. 5-3
TPMS, Tire pressure warning system ...
...................... 6-3
Traffic info setup ...
............................................................ 4-9
Trailer towing ...
................................................................ 9-15
Transmission Continuously Variable Transmission
(CVT) fluid ...
.............................................................. 8-11
Driving with CVT (Continuously
Variable Transmission) ...
............................... 5-8, 5-15
Driving with manual transmission ...
............ 5-9, 5-19
Transmission selector lever lock release ...
........ 5-18
Transmitter (See remote keyless entry system) ...
.... 3-7
Transmitter, With Intelligent Key system
(See Intelligent Key system) ...
..................................... 3-16
Traveling or registering your vehicle in
another country ...
.............................................................. 9-8
Trip computer ...
................................................................. 2-9
Turn signal switch ...
....................................................... 2-27
U
Underbody cleaning ...
..................................................... 7-3
Uniform tire quality grading ...
...................................... 9-16
USB memory operation ...
............................................. 4-42
10-5
Condition:
