2013 NISSAN CUBE navigation system

Black plate (13,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
GUID-82FC4D0B-6D6C-4BE2-B5E5-2F547E9C8A98
SSI0840

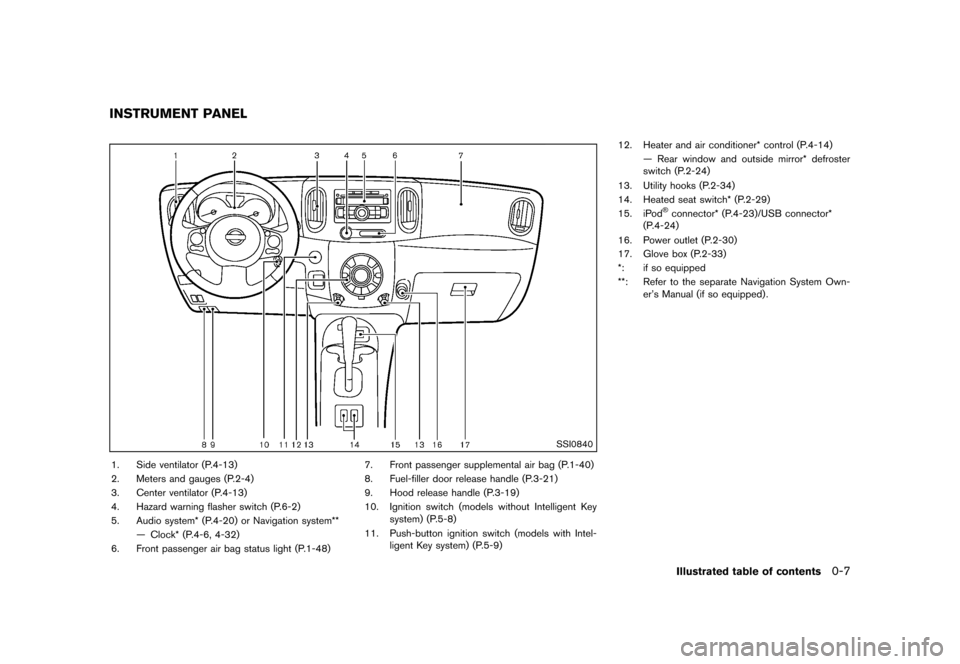

1. Side ventilator (P.4-13)
2. Meters and gauges (P.2-4)
3. Center ventilator (P.4-13)
4. Hazard warning flasher switch (P.6-2)
5. Audio system* (P.4-20) or Navigation system**— Clock* (P.4-6, 4-32)
6. Front passenger air bag status light (P.1-48) 7. Front passenger supplemental air bag (P.1-40)
8. Fuel-filler door release handle (P.3-21)
9. Hood release handle (P.3-19)
10. Ignition switch (models without Intelligent Key
system) (P.5-8)
11. Push-button ignition switch (models with Intel- ligent Key system) (P.5-9) 12. Heater and air conditioner* control (P.4-14)
— Rear window and outside mirror* defroster
switch (P.2-24)
13. Utility hooks (P.2-34)
14. Heated seat switch* (P.2-29)
15. iPod
®connector* (P.4-23)/USB connector*
(P.4-24)
16. Power outlet (P.2-30)
17. Glove box (P.2-33)
*: if so equipped
**: Refer to the separate Navigation System Own- er’s Manual (if so equipped) .
Illustrated table of contents0-7
INSTRUMENT PANEL
Condition:

Black plate (75,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
GUID-741A14C4-F1A6-472D-9228-7C1146AF8138
SSI0840

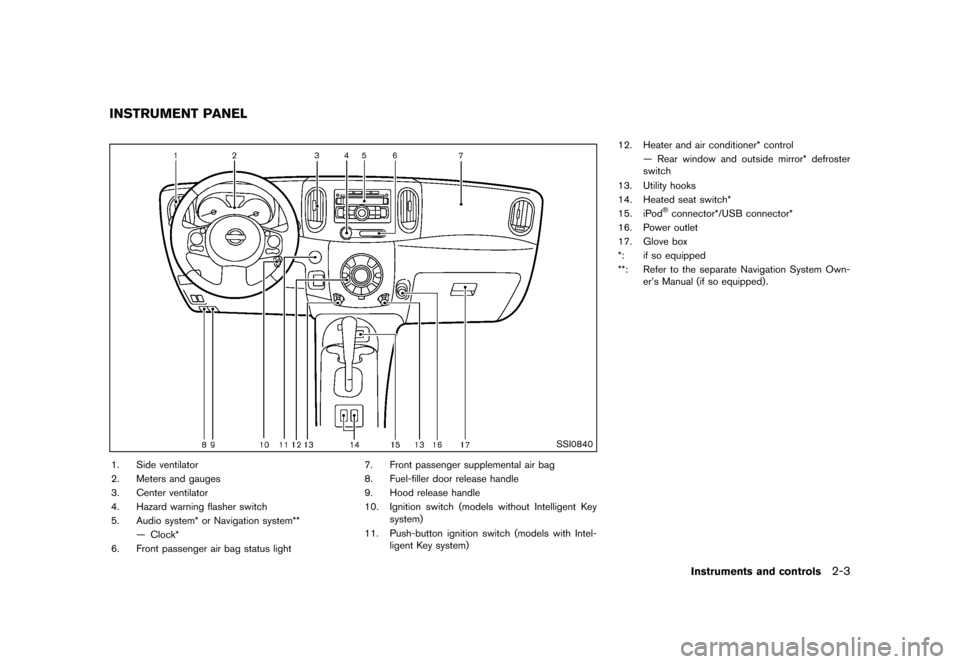

1. Side ventilator
2. Meters and gauges
3. Center ventilator
4. Hazard warning flasher switch
5. Audio system* or Navigation system**— Clock*
6. Front passenger air bag status light 7. Front passenger supplemental air bag
8. Fuel-filler door release handle
9. Hood release handle
10. Ignition switch (models without Intelligent Key
system)
11. Push-button ignition switch (models with Intel- ligent Key system) 12. Heater and air conditioner* control
— Rear window and outside mirror* defroster
switch
13. Utility hooks
14. Heated seat switch*
15. iPod
®connector*/USB connector*
16. Power outlet
17. Glove box
*: if so equipped
**: Refer to the separate Navigation System Own- er’s Manual (if so equipped) .
Instruments and controls2-3
INSTRUMENT PANEL
Condition:

Black plate (119,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]

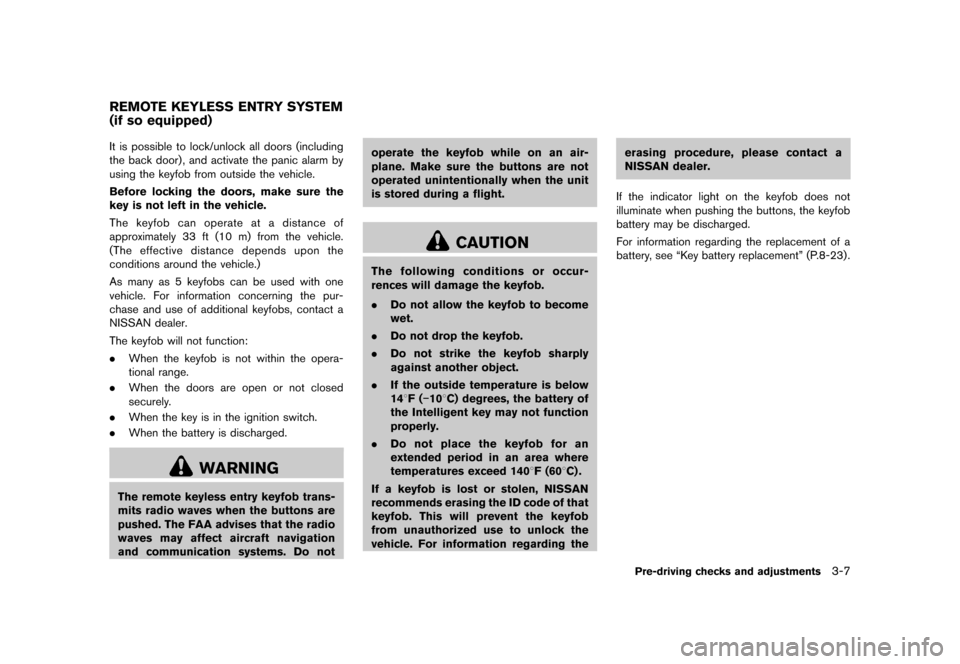

GUID-272D50DE-FC46-4244-BC88-C50E80D38271It is possible to lock/unlock all doors (including
the back door), and activate the panic alarm by
using the keyfob from outside the vehicle.
Before locking the doors, make sure the
key is not left in the vehicle.
The keyfob can operate at a distance of
approximately 33 ft (10 m) from the vehicle.
(The effective distance depends upon the
conditions around the vehicle.)
As many as 5 keyfobs can be used with one
vehicle. For information concerning the pur-
chase and use of additional keyfobs, contact a
NISSAN dealer.
The keyfob will not function:
.When the keyfob is not within the opera-
tional range.
. When the doors are open or not closed
securely.
. When the key is in the ignition switch.
. When the battery is discharged.
WARNING
The remote keyless entry keyfob trans-
mits radio waves when the buttons are
pushed. The FAA advises that the radio
waves may affect aircraft navigation
and communication systems. Do not operate the keyfob while on an air-
plane. Make sure the buttons are not
operated unintentionally when the unit
is stored during a flight.
CAUTION
The following conditions or occur-
rences will damage the keyfob.
.
Do not allow the keyfob to become
wet.
. Do not drop the keyfob.
. Do not strike the keyfob sharply
against another object.
. If the outside temperature is below
148F (−108C) degrees, the battery of
the Intelligent key may not function
properly.
. Do not place the keyfob for an
extended period in an area where
temperatures exceed 1408F (608C) .
If a keyfob is lost or stolen, NISSAN
recommends erasing the ID code of that
keyfob. This will prevent the keyfob
from unauthorized use to unlock the
vehicle. For information regarding the erasing procedure, please contact a
NISSAN dealer.
If the indicator light on the keyfob does not
illuminate when pushing the buttons, the keyfob
battery may be discharged.
For information regarding the replacement of a
battery, see “Key battery replacement” (P.8-23) .
Pre-driving checks and adjustments3-7
REMOTE KEYLESS ENTRY SYSTEM
(if so equipped)
Condition:

Black plate (141,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]

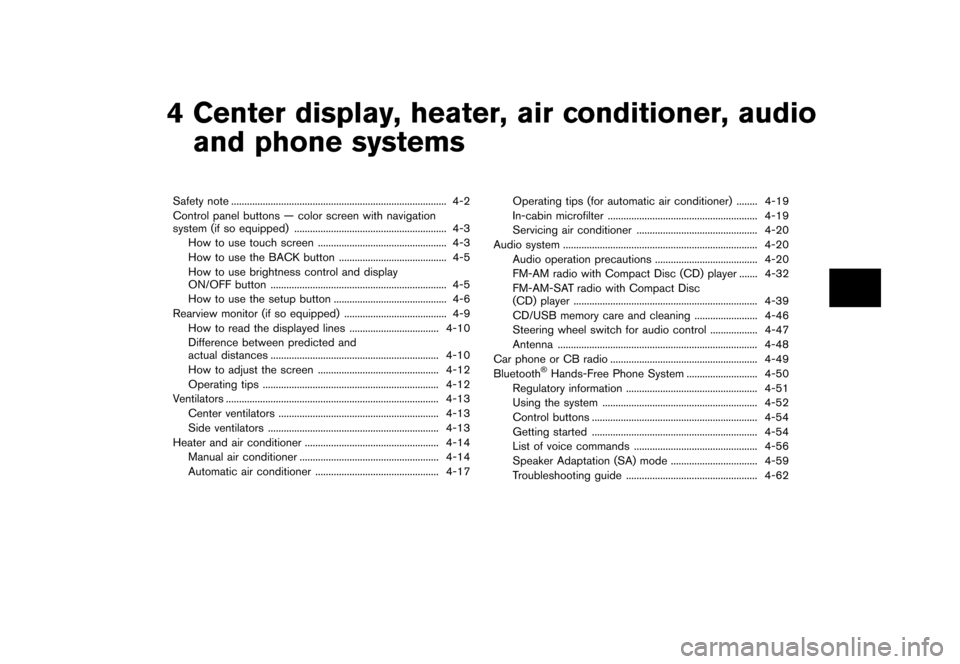

4 Center display, heater, air conditioner, audioand phone systems
Safety note ...
........................................................................\
.......... 4-2
Control panel buttons — color screen with navigation
system (if so equipped) ...
.......................................................... 4-3
How to use touch screen ...
................................................. 4-3
How to use the BACK button ...
......................................... 4-5
How to use brightness control and display
ON/OFF button ...
................................................................... 4-5
How to use the setup button ...
........................................... 4-6
Rearview monitor (if so equipped) ...
....................................... 4-9
How to read the displayed lines ...
.................................. 4-10
Difference between predicted and
actual distances ...
................................................................ 4-10
How to adjust the screen ...
.............................................. 4-12
Operating tips ...
................................................................... 4-12
Ventilators ...
........................................................................\
......... 4-13
Center ventilators ...
............................................................. 4-13
Side ventilators ...
................................................................. 4-13
Heater and air conditioner ...
................................................... 4-14
Manual air conditioner ...
..................................................... 4-14
Automatic air conditioner ...
............................................... 4-17 Operating tips (for automatic air conditioner)
...
........ 4-19
In-cabin microfilter ...
......................................................... 4-19
Servicing air conditioner ...
.............................................. 4-20
Audio system ...
........................................................................\
.. 4-20
Audio operation precautions ...
....................................... 4-20
FM-AM radio with Compact Disc (CD) player ...
....... 4-32
FM-AM-SAT radio with Compact Disc
(CD) player ...
...................................................................... 4-39
CD/USB memory care and cleaning ...
........................ 4-46
Steering wheel switch for audio control ...
.................. 4-47
Antenna ...
........................................................................\
.... 4-48
Car phone or CB radio ...
........................................................ 4-49
Bluetooth
®Hands-Free Phone System ...
........................... 4-50
Regulatory information ...
.................................................. 4-51
Using the system ...
........................................................... 4-52
Control buttons ...
............................................................... 4-54
Getting started ...
............................................................... 4-54
List of voice commands ...
............................................... 4-56
Speaker Adaptation (SA) mode ...
................................. 4-59
Troubleshooting guide ...
.................................................. 4-62
Condition:

Black plate (143,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
GUID-77BE3028-5610-4B98-B29B-706550CA7BEC
SAA3377

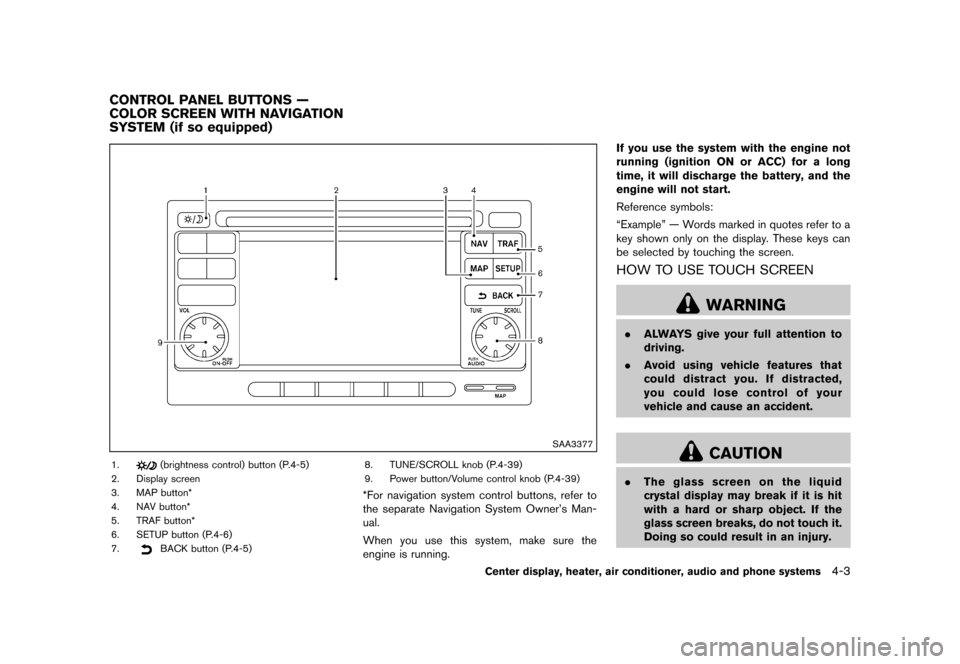

1.(brightness control) button (P.4-5)
2. Display screen
3. MAP button*
4. NAV button*
5. TRAF button*
6. SETUP button (P.4-6)
7.
BACK button (P.4-5) 8. TUNE/SCROLL knob (P.4-39)
9. Power button/Volume control knob (P.4-39)
*For navigation system control buttons, refer to
the separate Navigation System Owner’s Man-
ual.
When you use this system, make sure the
engine is running. If you use the system with the engine not
running (ignition ON or ACC) for a long
time, it will discharge the battery, and the
engine will not start.
Reference symbols:
“Example” — Words marked in quotes refer to a
key shown only on the display. These keys can
be selected by touching the screen.
HOW TO USE TOUCH SCREENGUID-57FAF9F1-1C70-421C-B85C-FA7E4F3E4877
WARNING
.
ALWAYS give your full attention to
driving.
. Avoid using vehicle features that
could distract you. If distracted,
you could lose control of your
vehicle and cause an accident.
CAUTION
.The glass screen on the liquid
crystal display may break if it is hit
with a hard or sharp object. If the
glass screen breaks, do not touch it.
Doing so could result in an injury.
Center display, heater, air conditioner, audio and phone systems4-3
CONTROL PANEL BUTTONS —
COLOR SCREEN WITH NAVIGATION
SYSTEM (if so equipped)
Condition:

Black plate (144,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
4-4Center display, heater, air conditioner, audio and phone systems
.To clean the display, never use a
rough cloth, alcohol, benzine, thin-
ner or any kind of solvent or paper
towel with a chemical cleaning
agent. They will scratch or deterio-
rate the panel.
. Do not splash any liquid such as
water or car fragrance on the dis-
play. Contact with liquid will cause
the system to malfunction.
To help ensure safe driving, some functions
cannot be operated while driving.
The on-screen functions that are not available
while driving will be “grayed out” or muted.
Park the vehicle in a safe location and then
operate the navigation system.
SAA3422

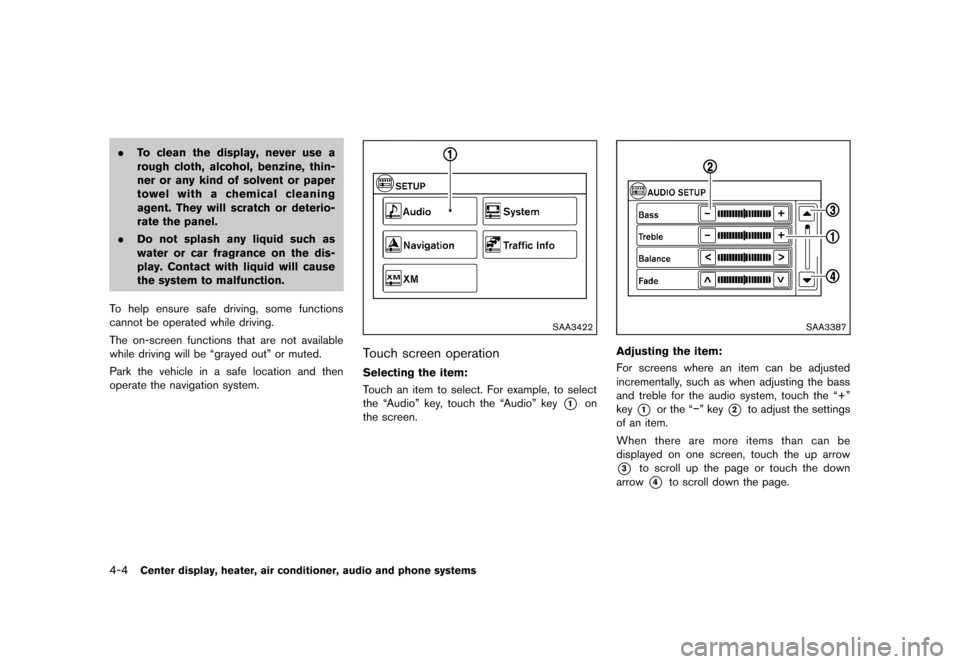

Touch screen operationGUID-FC23526F-C8C5-41C8-B9C0-A148C4063B84
Selecting the item:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Touch an item to select. For example, to select
the “Audio” key, touch the “Audio” key
*1on
the screen.
SAA3387
Adjusting the item:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407For screens where an item can be adjusted
incrementally, such as when adjusting the bass
and treble for the audio system, touch the “+”
key
*1or the “−” key*2to adjust the settings
of an item.
When there are more items than can be
displayed on one screen, touch the up arrow
*3to scroll up the page or touch the down
arrow
*4to scroll down the page.
Condition:

Black plate (146,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
4-6Center display, heater, air conditioner, audio and phone systems
SAA3390

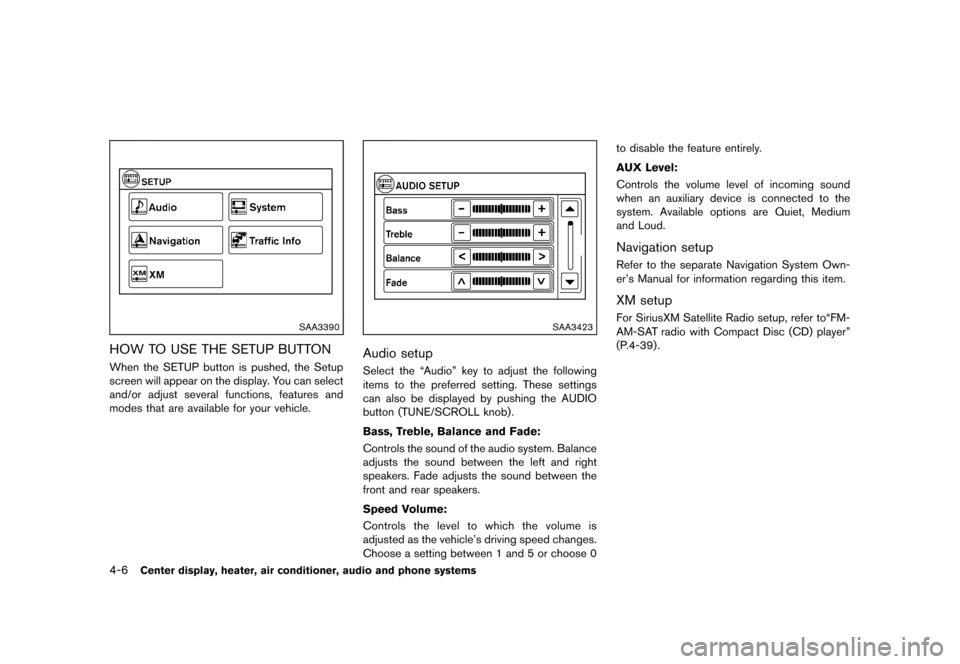

HOW TO USE THE SETUP BUTTONGUID-4CBDAAF0-0590-45C2-9BBB-172B1E828580When the SETUP button is pushed, the Setup
screen will appear on the display. You can select
and/or adjust several functions, features and
modes that are available for your vehicle.
SAA3423
Audio setupGUID-6668D6AE-8BA9-459C-A310-B33FF4E574EFSelect the “Audio” key to adjust the following
items to the preferred setting. These settings
can also be displayed by pushing the AUDIO
button (TUNE/SCROLL knob).
Bass, Treble, Balance and Fade:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Controls the sound of the audio system. Balance
adjusts the sound between the left and right
speakers. Fade adjusts the sound between the
front and rear speakers.
Speed Volume:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Controls the level to which the volume is
adjusted as the vehicle’s driving speed changes.
Choose a setting between 1 and 5 or choose 0to disable the feature entirely.
AUX Level:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Controls the volume level of incoming sound
when an auxiliary device is connected to the
system. Available options are Quiet, Medium
and Loud.
Navigation setupGUID-961A6B3F-9394-47AC-A1CD-119DE37AEF59Refer to the separate Navigation System Own-
er’s Manual for information regarding this item.
XM setupGUID-3FB403E1-0D60-408E-8DEE-E5C33C563C4DFor SiriusXM Satellite Radio setup, refer to“FM-
AM-SAT radio with Compact Disc (CD) player”
(P.4-39) .
Condition:

Black plate (148,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]

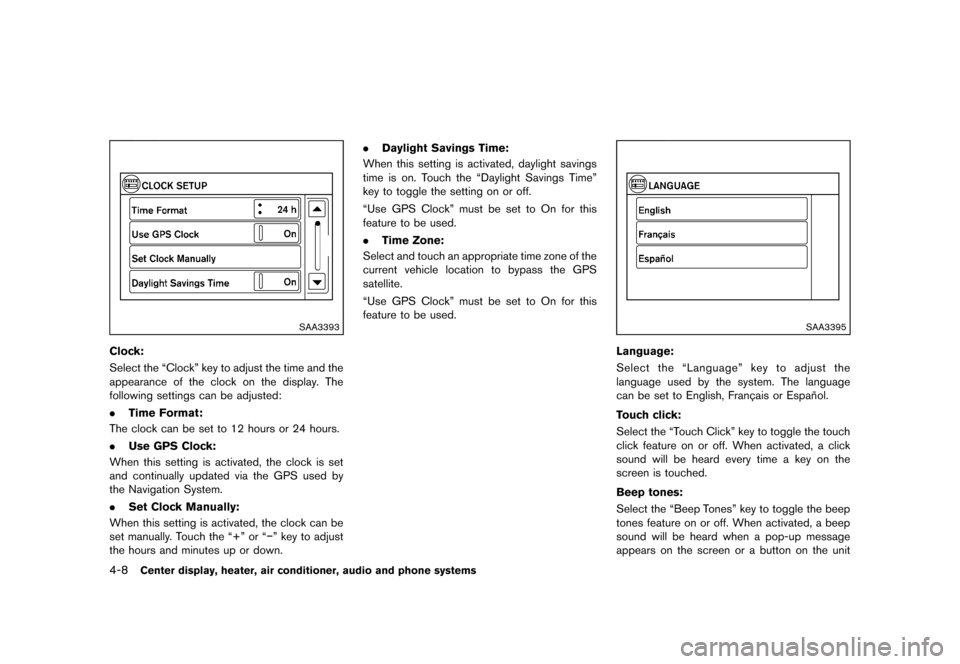

4-8Center display, heater, air conditioner, audio and phone systems
SAA3393
Clock:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the “Clock” key to adjust the time and the
appearance of the clock on the display. The
following settings can be adjusted:
.Time Format:
The clock can be set to 12 hours or 24 hours.
. Use GPS Clock:
When this setting is activated, the clock is set
and continually updated via the GPS used by
the Navigation System.
. Set Clock Manually:
When this setting is activated, the clock can be
set manually. Touch the “+” or “−” key to adjust
the hours and minutes up or down. .
Daylight Savings Time:
When this setting is activated, daylight savings
time is on. Touch the “Daylight Savings Time”
key to toggle the setting on or off.
“Use GPS Clock” must be set to On for this
feature to be used.
. Time Zone:
Select and touch an appropriate time zone of the
current vehicle location to bypass the GPS
satellite.
“Use GPS Clock” must be set to On for this
feature to be used.
SAA3395
Language:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the “Language” key to adjust the
language used by the system. The language
can be set to English, Franc¸ ais or Espan ˜
ol.
Touch click:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the “Touch Click” key to toggle the touch
click feature on or off. When activated, a click
sound will be heard every time a key on the
screen is touched.
Beep tones:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the “Beep Tones” key to toggle the beep
tones feature on or off. When activated, a beep
sound will be heard when a pop-up message
appears on the screen or a button on the unit
Condition:
