[ Edit: 2012/ 7/ 19 Model: Z12-D ]
4-44Center display, heater, air conditioner, audio and phone systems
Repeat:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Touch the “Repeat” key to apply a repeat play
pattern to the USB device. When the repeat
mode is active, the
icon is displayed to the
left of the song title or album name to denote
which repeat pattern is applied. To cancel
Repeat mode, touch the “Repeat” key until no
icon is displayed.
SAA3648
iPod®player operationGUID-71F483E8-8B1C-42C7-9836-12FEE1F2B3D6
Connecting iPod®:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Open the USB port cover and connect the
iPod®cable to the USB connector. If the iPod®
supports charging via USB, the battery of the
iPod®will be charged while connected to the
vehicle.
Depending on the iPod
®model, the display on
the iPod®shows a NISSAN or Accessory
Attached screen when the connection is com-
pleted. When the iPod
®is connected to the
vehicle, the iPod®music library can only be
operated by the vehicle audio controls.
* iPod®is a trademark of Apple Inc., registered in the U.S. and other countries.
CAUTION
.
Do not force the iPod®cable into
the USB port. Inserting the iPod®
cable tilted or up-side-down into the
port may damage the iPod®cable
and the port. Make sure that the
iPod
®cable is connected correctly
into the USB port. (Some iPod®
cable come with amark as a
guide. Make sure that the mark is
facing the correct direction before
inserting the iPod
®cable.)
. Do not locate objects near the iPod®
cable to prevent the objects from
leaning on the iPod®cable and the
port. Pressure from the objects may
damage the iPod
®cable and the
port.
Compatibility:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The following models are available:
. Fifth generation iPod®(firmware version
1.2.3 or later)
. iPod classic
®(firmware version 1.1.1 or
later)
Condition:

Black plate (186,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]

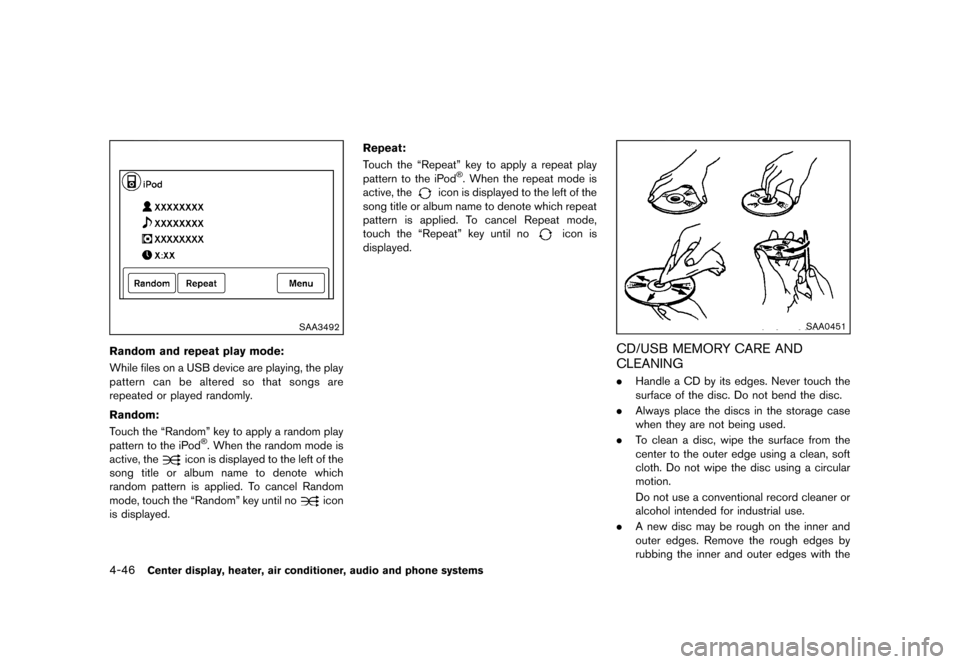

4-46Center display, heater, air conditioner, audio and phone systems
SAA3492
Random and repeat play mode:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407While files on a USB device are playing, the play
pattern can be altered so that songs are
repeated or played randomly.
Random:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Touch the “Random” key to apply a random play
pattern to the iPod®. When the random mode is
active, the
icon is displayed to the left of the
song title or album name to denote which
random pattern is applied. To cancel Random
mode, touch the “Random” key until no
icon
is displayed. Repeat:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Touch the “Repeat” key to apply a repeat play
pattern to the iPod®. When the repeat mode is
active, the
icon is displayed to the left of the
song title or album name to denote which repeat
pattern is applied. To cancel Repeat mode,
touch the “Repeat” key until no
icon is
displayed.
SAA0451
CD/USB MEMORY CARE AND
CLEANING
GUID-0119E759-D100-43D1-BC8F-92B30FC02332. Handle a CD by its edges. Never touch the
surface of the disc. Do not bend the disc.
. Always place the discs in the storage case
when they are not being used.
. To clean a disc, wipe the surface from the
center to the outer edge using a clean, soft
cloth. Do not wipe the disc using a circular
motion.
Do not use a conventional record cleaner or
alcohol intended for industrial use.
. A new disc may be rough on the inner and
outer edges. Remove the rough edges by
rubbing the inner and outer edges with the
Condition:

Black plate (195,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
1. Push thebutton on the steering wheel.
The system announces the available com-
mands.
2. Say: “Connect Phone”
*A. The system
acknowledges the command and an-
nounces the next set of available commands.
3. Say: “Add phone”
*B. The system acknowl-
edges the command and asks you to initiate
pairing from the phone handset
*C.
The connecting procedure of the cellular
phone varies according to each cellular
phone. See the cellular phone Owner’s
Manual for details. You can also visit www.
nissanusa.com/bluetooth for instructions on
connecting NISSAN recommended cellular
phones.
When prompted for a Passkey code, enter
“1234” from the handset. The Passkey code
“1234” has been assigned by NISSAN and
cannot be changed.
4. The system asks you to say a name for the phone
*D.
If the name is too long or too short, the
system tells you, then prompts you for a
name again.
Also, if more than one phone is connected
and the name sounds too much like a name
already used, the system tells you, then prompts you for a name again.
Making a call by entering a phone
number
GUID-8FCA68FF-8E0D-47DA-961D-4469B705130E
NOS2624
1. Push thebutton on steering wheel. A
tone will sound.
2. Say: “Call”
*A. The system acknowledges
the command and announces the next set of
available commands.
3. Say: “Phone Number”
*B. The system
acknowledges the command and an-
nounces the next set of available commands.
Say: “Special Number” to dial more than 10
digits or any special characters.
4. Say the number you wish to call starting with the area code in single digit format. If the
system has trouble recognizing the correct
phone number, try entering the number in
the following groups: 3-digit area code, 3-
digit prefix and the last 4-digits. For example,
555-121-3354 can be said as “five five five”
as the 1st group, then “one two one” as the
2nd group, and “three three five four” as the
3rd group. For dialing more than 10 digits or any special characters, say “Special Num-
ber”. See “How to say numbers” (P.4-53) ,
for more information.
5. When you have finished speaking the phone number, the system repeats it back and
announces the available commands.
6. Say: “Dial”
*C. The system acknowledges
the command and makes the call.
For additional command options, see “List of
voice commands” (P.4-56) .
Receiving a callGUID-47D9F646-3156-41F4-B0AA-62467184D8C3When you hear the ring tone, press the
button on the steering wheel.
Once the call has ended, press the
button
on the steering wheel.
NOTE:
If you do not wish to take the call when you
hear the ring tone, press the
button on
the steering wheel to reject the call.
Center display, heater, air conditioner, audio and phone systems4-55
Condition:

Black plate (203,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
5 Starting and driving
Precautions when starting and driving...
................................ 5-2
Exhaust gas (carbon monoxide) ...
...................................... 5-2
Three-way catalyst ...
.............................................................. 5-3
Tire Pressure Monitoring System (TPMS) ...
.................... 5-3
Avoiding collision and rollover ...
......................................... 5-6
Off-road recovery ...
................................................................ 5-6
Rapid air pressure loss ...
...................................................... 5-6
Drinking alcohol/drugs and driving ...
................................. 5-7
Ignition switch (models without Intelligent
Key system) ...
........................................................................\
........ 5-8
Continuously Variable Transmission (CVT) ...
................... 5-8
Manual Transmission (MT) ...
................................................ 5-9
Key positions ...
........................................................................\
5-9
Push-button ignition switch (models with Intelligent
Key system) ...
........................................................................\
........ 5-9
Operating range for engine start function ...
................. 5-10
Push-button ignition switch operation ...
........................ 5-10
Push-button ignition switch positions ...
......................... 5-11
Emergency engine shut off ...
............................................ 5-11
Intelligent Key battery discharge ...
.................................. 5-12
Before starting the engine ...
................................................... 5-12
Starting the engine ...
................................................................ 5-13
Models without Intelligent Key system ...
....................... 5-13
Models with Intelligent Key system ...
............................. 5-13 Driving the vehicle
...
................................................................. 5-15
Continuously Variable Transmission (CVT) ...
............. 5-15
Manual Transmission (MT) ...
........................................... 5-19
Parking brake ...
........................................................................\
.. 5-21
Cruise control ...
........................................................................\
. 5-21
Precautions on cruise control ...
..................................... 5-21
Cruise control operations ...
............................................ 5-22
Break-in schedule ...
................................................................. 5-23
Fuel Efficient Driving Tips ...
................................................... 5-23
Increasing fuel economy ...
...................................................... 5-24
Parking/parking on hills ...
........................................................ 5-25
Electric power steering system ...
......................................... 5-26
Brake system ...
........................................................................\
.. 5-27
Braking precautions ...
...................................................... 5-27
Anti-lock Braking System (ABS) ...
............................... 5-27
Vehicle Dynamic Control (VDC) system ...
......................... 5-29
Cold weather driving ...
............................................................ 5-30
Freeing a frozen door lock ...
........................................... 5-30
Anti-freeze ...
........................................................................\
5-30
Battery ...
........................................................................\
....... 5-30
Draining of coolant water ...
............................................. 5-30
Tire equipment ...
................................................................ 5-31
Special winter equipment ...
............................................ 5-31
Driving on snow or ice ...
................................................. 5-31
Engine block heater (if so equipped) ...
....................... 5-31
Condition:

Black plate (210,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]

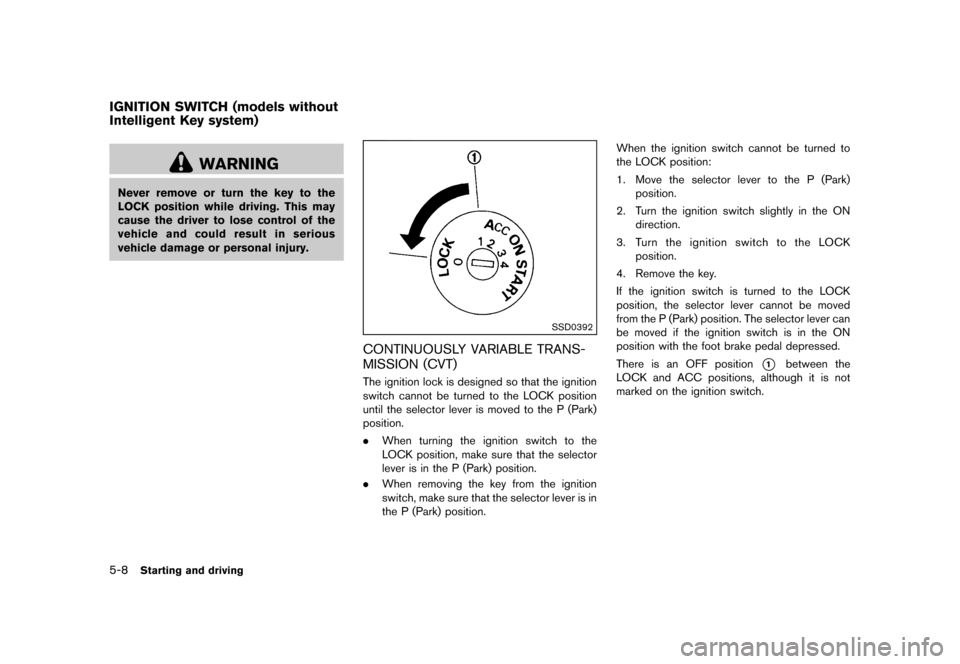

5-8Starting and driving
GUID-FA87BF20-6BA6-4446-BC33-BC2CC934B404
WARNING
Never remove or turn the key to the
LOCK position while driving. This may
cause the driver to lose control of the
vehicle and could result in serious
vehicle damage or personal injury.
SSD0392
CONTINUOUSLY VARIABLE TRANS-
MISSION (CVT)
GUID-2AEB1133-5A40-47D4-AE94-7EA3936E01D8The ignition lock is designed so that the ignition
switch cannot be turned to the LOCK position
until the selector lever is moved to the P (Park)
position.
.When turning the ignition switch to the
LOCK position, make sure that the selector
lever is in the P (Park) position.
. When removing the key from the ignition
switch, make sure that the selector lever is in
the P (Park) position. When the ignition switch cannot be turned to
the LOCK position:
1. Move the selector lever to the P (Park)
position.
2. Turn the ignition switch slightly in the ON direction.
3. Turn the ignition switch to the LOCK
position.
4. Remove the key.
If the ignition switch is turned to the LOCK
position, the selector lever cannot be moved
from the P (Park) position. The selector lever can
be moved if the ignition switch is in the ON
position with the foot brake pedal depressed.
There is an OFF position
*1between the
LOCK and ACC positions, although it is not
marked on the ignition switch.
IGNITION SWITCH (models without
Intelligent Key system)
Condition:

Black plate (211,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
SSD0503
MANUAL TRANSMISSION (MT)GUID-683E6947-7098-4B1E-9827-221F33643DC8The ignition switch includes a device that helps
prevent accidental removal of the key while
driving.
The key can only be removed when the ignition
switch is in the LOCK position.
To turn the ignition switch to the LOCK position
from the ACC or ON position, turn the key to the
OFF position, push the key in, then turn the key
to the LOCK position.
There is an OFF position
*1in between the
LOCK and ACC positions. The OFF position is
indicated by a “1” on the key cylinder.
KEY POSITIONSGUID-DAF558D1-4555-409A-ADC1-F948D85CCF8A
LOCK (0)GUID-98083028-88C7-4D4B-A216-E3C6398A172FThe key can only be removed from the ignition
switch at this position.
OFF (1)GUID-2C8D8848-08A5-40C7-B052-B37A006DC4C3The engine is turned off. The power supply is
turned off.
ACC (2)GUID-A135DF39-65FA-484B-94A4-0CDB337AD713The electrical accessory power activates without
the engine turned on.
ON (3)GUID-624026CF-CC99-41CF-A33F-CA6C3BD8D95DThe ignition system and the electrical accessory
power activate without the engine turned on.
START (4)GUID-DFD991A6-2B11-4CD2-8812-150815090A54The engine starter activates and the engine will
start. The ignition switch, when released, will
automatically turn to the ON position.
CAUTION
As soon as the engine has started,
release the ignition switch immediately.
GUID-2672CE70-91CE-4F19-ACBB-B84A3CB26A0D
WARNING
Do not operate the push-button ignition
switch while driving the vehicle except
in an emergency. (The engine will stop
when the ignition switch is pushed 3
consecutive times or the ignition switch
is pushed and held for more than 2
seconds.) If the engine stops while the
vehicle is being driven, this could lead
to a crash and serious injury.
Before operating the push-button ignition
switch, be sure to move the selector lever to
the P (Park) position.
Starting and driving5-9
PUSH-BUTTON IGNITION SWITCH
(models with Intelligent Key system)
Condition:

Black plate (212,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
5-10Starting and driving
SSD0436
OPERATING RANGE FOR ENGINE
START FUNCTION
GUID-CA6883CE-D745-40B9-A1E6-6113667F97EDThe Intelligent Key can only be used for starting
the engine when the Intelligent Key is within the
specified operating range
*1.
When the Intelligent Key battery is almost
discharged or strong radio waves are present
near the operating location, the Intelligent Key
system’s operating range becomes narrower
and may not function properly.
If the Intelligent Key is within the operating
range, it is possible for anyone, even someone
who does not carry the Intelligent Key, to push
the ignition switch to start the engine. .
The cargo room area is not included in the
operating range but the Intelligent Key may
function.
. If the Intelligent Key is placed on the
instrument panel, inside the glove box or
door pocket, the Intelligent Key may not
function.
. If the Intelligent Key is placed near the door
or window outside the vehicle, the Intelligent
Key may function.
SSD0859
PUSH-BUTTON IGNITION SWITCH
OPERATION
GUID-57E19B59-4E55-4425-B9AE-FEB85DC524C4When the ignition switch is pushed without
depressing the brake pedal, the ignition switch
position will change as follows:
.Push center once to change to ACC.
. Push center two times to change to ON.
. Push center three times to change to OFF.
. Push center four times to return to ACC.
. Open or close any door to return to LOCK
during the OFF position.
The indicator light
*Aon the ignition switch
illuminates when the ignition switch is in the
ACC or ON position.
Condition:

Black plate (213,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
The ignition lock is designed so that the ignition
switch position cannot be switched to LOCK
until the selector lever is moved to the P (Park)
position.
When the ignition switch cannot be pushed
toward the LOCK position, proceed as follows:
1. Move the selector lever into the P (Park)position.
2. Push the ignition switch to the OFF position.
3. Open the door. The ignition switch will
change to the LOCK position.
The selector lever can be moved from the P
(Park) position if the ignition switch is in
the ON position and the brake pedal is
depressed.
PUSH-BUTTON IGNITION SWITCH
POSITIONS
GUID-2A03313B-0624-4CF9-AC4F-3CBB01242928
LOCK (Normal parking position)GUID-C8A337C1-6656-448E-94A5-268385FC021AThe ignition switch can only be locked in this
position.
The ignition switch will be unlocked when it is
pushed to the ACC position while carrying the
Intelligent Key.
ACC (Accessories)GUID-A89CD9F7-7211-4743-A8E6-576093504A3EThis position activates electrical accessories
such as the radio, when the engine is not
running.
ON (Normal operating position)GUID-8BFE4DFC-D9E2-41F6-BFE7-FFD22F1A4B71This position turns on the ignition system and
electrical accessories.
OFFGUID-81644029-36B2-44DD-8F48-F26D05681948The engine can be turned off in this position.
The ignition lock is designed so that the ignition
switch cannot be switched to the LOCK position
until the selector lever is moved to the P (Park)
position.
CAUTION
Do not leave the vehicle with the push-
button ignition switch in ACC or ON
position when the engine is not running
for an extended period. This can dis-
charge the battery.
EMERGENCY ENGINE SHUT OFFGUID-0A5A6368-7D21-49C1-A0F8-C89C25FF7002To shut off the engine in an emergency situation
while driving, perform the following procedure:
. Rapidly push the push-button ignition switch
3 consecutive times in less than 1.5
seconds, or
. Push and hold the push-button ignition
switch for more than 2 seconds.
Starting and driving5-11
Condition:
