2013 NISSAN CUBE display

Black plate (151,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]

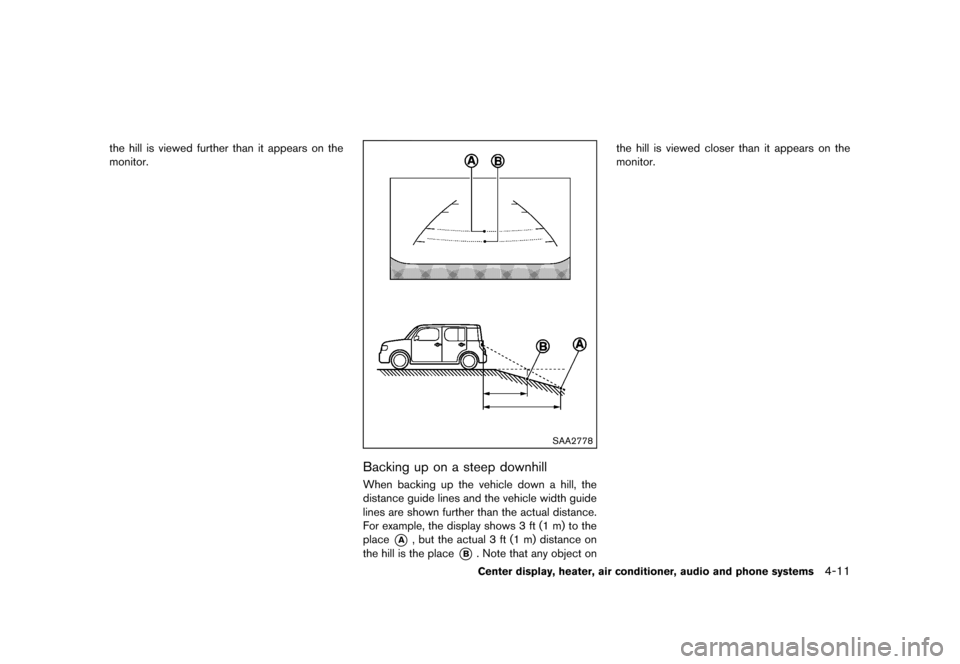

the hill is viewed further than it appears on the
monitor.
SAA2778
Backing up on a steep downhillGUID-980FADF5-406D-49B0-B4AE-452CC6E37CF8When backing up the vehicle down a hill, the
distance guide lines and the vehicle width guide
lines are shown further than the actual distance.
For example, the display shows 3 ft (1 m) to the
place
*A, but the actual 3 ft (1 m) distance on
the hill is the place
*B. Note that any object on the hill is viewed closer than it appears on the
monitor.
Center display, heater, air conditioner, audio and phone systems4-11
Condition:

Black plate (152,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]

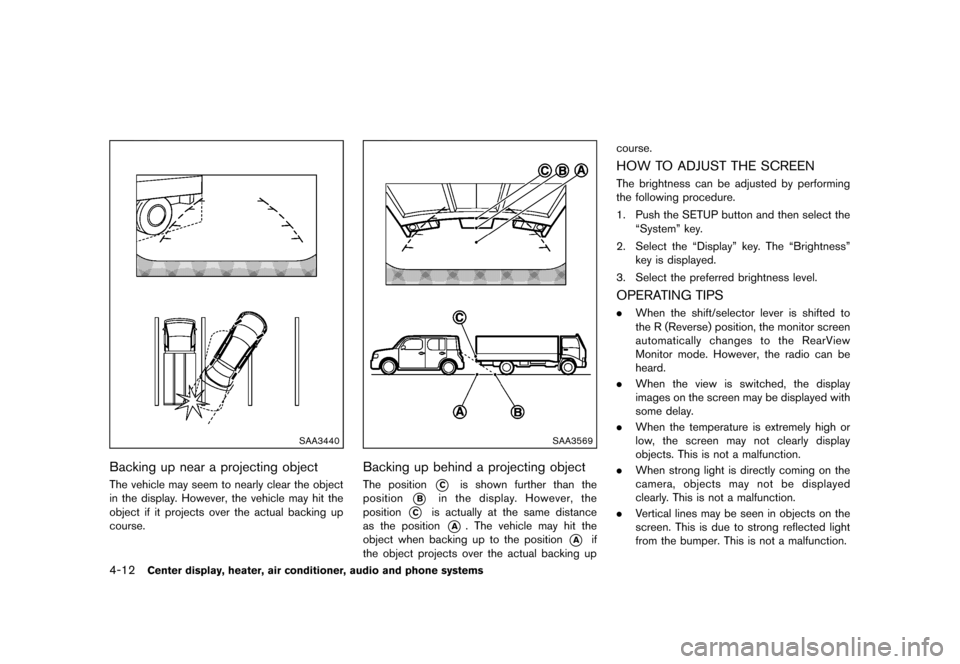

4-12Center display, heater, air conditioner, audio and phone systems
SAA3440
Backing up near a projecting objectGUID-5843C9B8-2CA8-43D5-984A-EE4D44A2B8B7The vehicle may seem to nearly clear the object
in the display. However, the vehicle may hit the
object if it projects over the actual backing up
course.
SAA3569
Backing up behind a projecting objectGUID-A8B0C4B8-4F6E-452C-89A9-D6D1300C5067The position*Cis shown further than the
position
*Bin the display. However, the
position
*Cis actually at the same distance
as the position
*A. The vehicle may hit the
object when backing up to the position
*Aif
the object projects over the actual backing up course.
HOW TO ADJUST THE SCREENGUID-512F1D20-BC68-4BEE-A09D-B5267A5F3BB8The brightness can be adjusted by performing
the following procedure.
1. Push the SETUP button and then select the
“System” key.
2. Select the “Display” key. The “Brightness” key is displayed.
3. Select the preferred brightness level.
OPERATING TIPSGUID-CF192D52-15A1-4285-A15C-176D34451068. When the shift/selector lever is shifted to
the R (Reverse) position, the monitor screen
automatically changes to the RearView
Monitor mode. However, the radio can be
heard.
. When the view is switched, the display
images on the screen may be displayed with
some delay.
. When the temperature is extremely high or
low, the screen may not clearly display
objects. This is not a malfunction.
. When strong light is directly coming on the
camera, objects may not be displayed
clearly. This is not a malfunction.
. Vertical lines may be seen in objects on the
screen. This is due to strong reflected light
from the bumper. This is not a malfunction.
Condition:

Black plate (153,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]

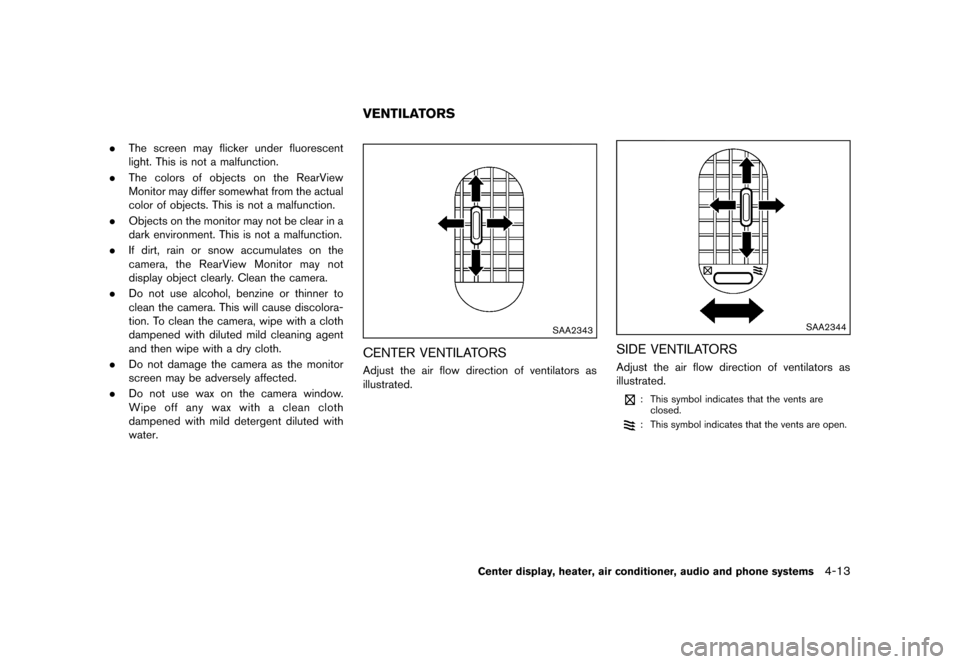

.The screen may flicker under fluorescent
light. This is not a malfunction.
. The colors of objects on the RearView
Monitor may differ somewhat from the actual
color of objects. This is not a malfunction.
. Objects on the monitor may not be clear in a
dark environment. This is not a malfunction.
. If dirt, rain or snow accumulates on the
camera, the RearView Monitor may not
display object clearly. Clean the camera.
. Do not use alcohol, benzine or thinner to
clean the camera. This will cause discolora-
tion. To clean the camera, wipe with a cloth
dampened with diluted mild cleaning agent
and then wipe with a dry cloth.
. Do not damage the camera as the monitor
screen may be adversely affected.
. Do not use wax on the camera window.
Wipe off any wax with a clean cloth
dampened with mild detergent diluted with
water.GUID-E7475120-355A-4C2F-8E32-EE8EF30CC2D4
SAA2343
CENTER VENTILATORSGUID-896BD46B-EEA2-462A-8389-9F46DF506EC0Adjust the air flow direction of ventilators as
illustrated.
SAA2344
SIDE VENTILATORSGUID-80F5B1F6-8C52-4FC3-855E-8DA6008F77A8Adjust the air flow direction of ventilators as
illustrated.
: This symbol indicates that the vents are
closed.
: This symbol indicates that the vents are open.
Center display, heater, air conditioner, audio and phone systems4-13
VENTILATORS
Condition:

Black plate (154,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]

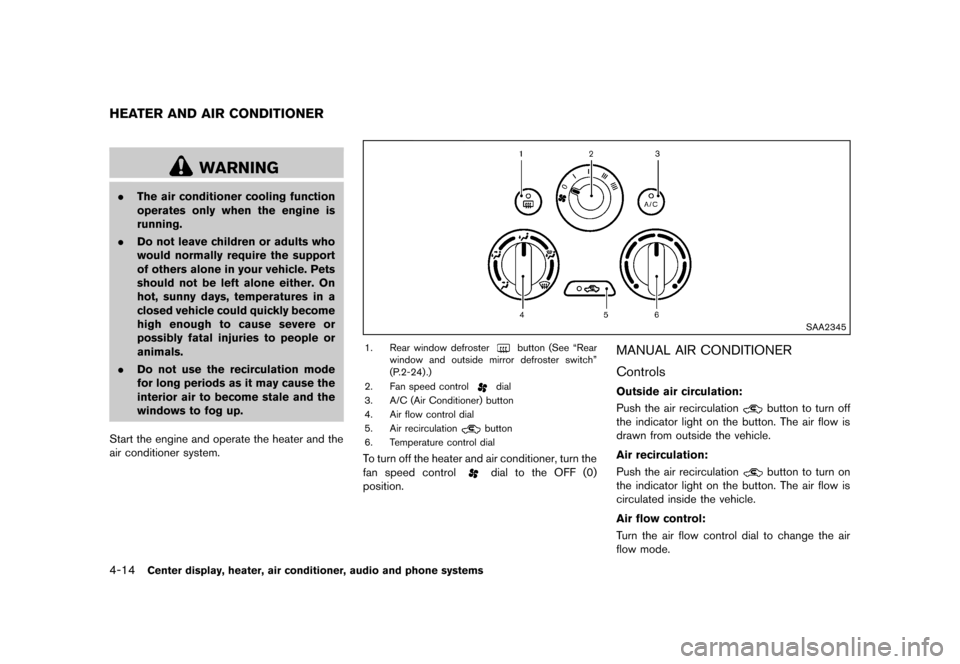

4-14Center display, heater, air conditioner, audio and phone systems
GUID-6910CB30-C22A-4C3E-A10E-51A4D2692584
WARNING
.The air conditioner cooling function
operates only when the engine is
running.
. Do not leave children or adults who
would normally require the support
of others alone in your vehicle. Pets
should not be left alone either. On
hot, sunny days, temperatures in a
closed vehicle could quickly become
high enough to cause severe or
possibly fatal injuries to people or
animals.
. Do not use the recirculation mode
for long periods as it may cause the
interior air to become stale and the
windows to fog up.
Start the engine and operate the heater and the
air conditioner system.
SAA2345
1. Rear window defrosterbutton (See “Rear
window and outside mirror defroster switch”
(P.2-24) .)
2. Fan speed control
dial
3. A/C (Air Conditioner) button
4. Air flow control dial
5. Air recirculation
button
6. Temperature control dial
To turn off the heater and air conditioner, turn the
fan speed control
dial to the OFF (0)
position.
MANUAL AIR CONDITIONERGUID-A59E0D38-22C1-43F4-A867-494EDE2D6B9F
ControlsGUID-998E8CC9-0165-45E0-B2C1-1213DDD2B250
Outside air circulation:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the air recirculationbutton to turn off
the indicator light on the button. The air flow is
drawn from outside the vehicle.
Air recirculation:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the air recirculationbutton to turn on
the indicator light on the button. The air flow is
circulated inside the vehicle.
Air flow control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Turn the air flow control dial to change the air
flow mode.
HEATER AND AIR CONDITIONER
Condition:

Black plate (155,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]

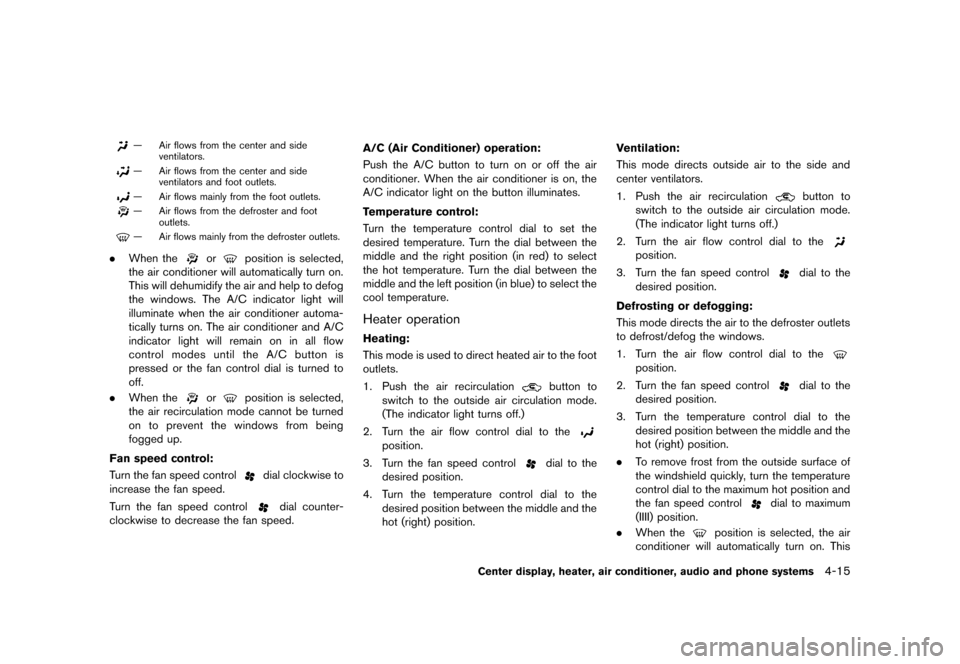

— Air flows from the center and sideventilators.
— Air flows from the center and sideventilators and foot outlets.
— Air flows mainly from the foot outlets.
— Air flows from the defroster and footoutlets.
— Air flows mainly from the defroster outlets.
.When theorposition is selected,
the air conditioner will automatically turn on.
This will dehumidify the air and help to defog
the windows. The A/C indicator light will
illuminate when the air conditioner automa-
tically turns on. The air conditioner and A/C
indicator light will remain on in all flow
control modes until the A/C button is
pressed or the fan control dial is turned to
off.
. When the
orposition is selected,
the air recirculation mode cannot be turned
on to prevent the windows from being
fogged up.
Fan speed control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Turn the fan speed controldial clockwise to
increase the fan speed.
Turn the fan speed control
dial counter-
clockwise to decrease the fan speed. A/C (Air Conditioner) operation:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the A/C button to turn on or off the air
conditioner. When the air conditioner is on, the
A/C indicator light on the button illuminates.
Temperature control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Turn the temperature control dial to set the
desired temperature. Turn the dial between the
middle and the right position (in red) to select
the hot temperature. Turn the dial between the
middle and the left position (in blue) to select the
cool temperature.
Heater operationGUID-4A47C2E5-9809-4364-B01D-5EB40097EAF7
Heating:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode is used to direct heated air to the foot
outlets.
1. Push the air recirculation
button to
switch to the outside air circulation mode.
(The indicator light turns off.)
2. Turn the air flow control dial to the
position.
3. Turn the fan speed control
dial to the
desired position.
4. Turn the temperature control dial to the desired position between the middle and the
hot (right) position. Ventilation:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode directs outside air to the side and
center ventilators.
1. Push the air recirculation
button to
switch to the outside air circulation mode.
(The indicator light turns off.)
2. Turn the air flow control dial to the
position.
3. Turn the fan speed control
dial to the
desired position.
Defrosting or defogging:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode directs the air to the defroster outlets
to defrost/defog the windows.
1. Turn the air flow control dial to the
position.
2. Turn the fan speed control
dial to the
desired position.
3. Turn the temperature control dial to the desired position between the middle and the
hot (right) position.
. To remove frost from the outside surface of
the windshield quickly, turn the temperature
control dial to the maximum hot position and
the fan speed control
dial to maximum
(IIII) position.
. When the
position is selected, the air
conditioner will automatically turn on. This
Center display, heater, air conditioner, audio and phone systems4-15
Condition:

Black plate (156,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]

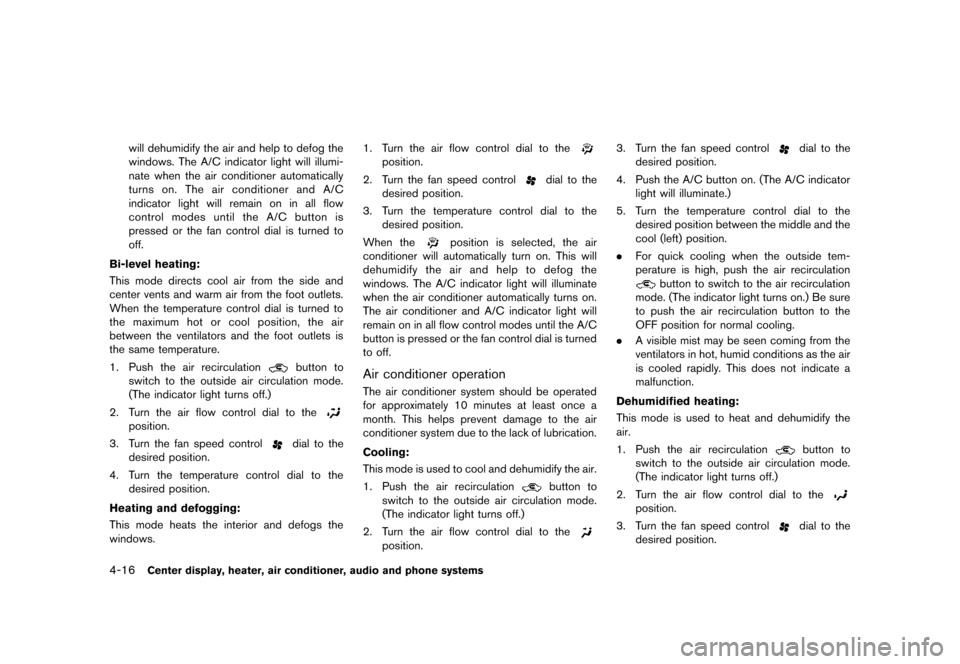

4-16Center display, heater, air conditioner, audio and phone systems
will dehumidify the air and help to defog the
windows. The A/C indicator light will illumi-
nate when the air conditioner automatically
turns on. The air conditioner and A/C
indicator light will remain on in all flow
control modes until the A/C button is
pressed or the fan control dial is turned to
off.
Bi-level heating:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode directs cool air from the side and
center vents and warm air from the foot outlets.
When the temperature control dial is turned to
the maximum hot or cool position, the air
between the ventilators and the foot outlets is
the same temperature.
1. Push the air recirculation
button to
switch to the outside air circulation mode.
(The indicator light turns off.)
2. Turn the air flow control dial to the
position.
3. Turn the fan speed control
dial to the
desired position.
4. Turn the temperature control dial to the desired position.
Heating and defogging:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode heats the interior and defogs the
windows. 1. Turn the air flow control dial to the
position.
2. Turn the fan speed control
dial to the
desired position.
3. Turn the temperature control dial to the desired position.
When the
position is selected, the air
conditioner will automatically turn on. This will
dehumidify the air and help to defog the
windows. The A/C indicator light will illuminate
when the air conditioner automatically turns on.
The air conditioner and A/C indicator light will
remain on in all flow control modes until the A/C
button is pressed or the fan control dial is turned
to off.
Air conditioner operationGUID-77623B4A-2B76-4A5F-9A8D-F6D41E0A8F27The air conditioner system should be operated
for approximately 10 minutes at least once a
month. This helps prevent damage to the air
conditioner system due to the lack of lubrication.
Cooling:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode is used to cool and dehumidify the air.
1. Push the air recirculation
button to
switch to the outside air circulation mode.
(The indicator light turns off.)
2. Turn the air flow control dial to the
position. 3. Turn the fan speed control
dial to the
desired position.
4. Push the A/C button on. (The A/C indicator light will illuminate.)
5. Turn the temperature control dial to the desired position between the middle and the
cool (left) position.
. For quick cooling when the outside tem-
perature is high, push the air recirculation
button to switch to the air recirculation
mode. (The indicator light turns on.) Be sure
to push the air recirculation button to the
OFF position for normal cooling.
. A visible mist may be seen coming from the
ventilators in hot, humid conditions as the air
is cooled rapidly. This does not indicate a
malfunction.
Dehumidified heating:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode is used to heat and dehumidify the
air.
1. Push the air recirculation
button to
switch to the outside air circulation mode.
(The indicator light turns off.)
2. Turn the air flow control dial to the
position.
3. Turn the fan speed control
dial to the
desired position.
Condition:

Black plate (157,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]

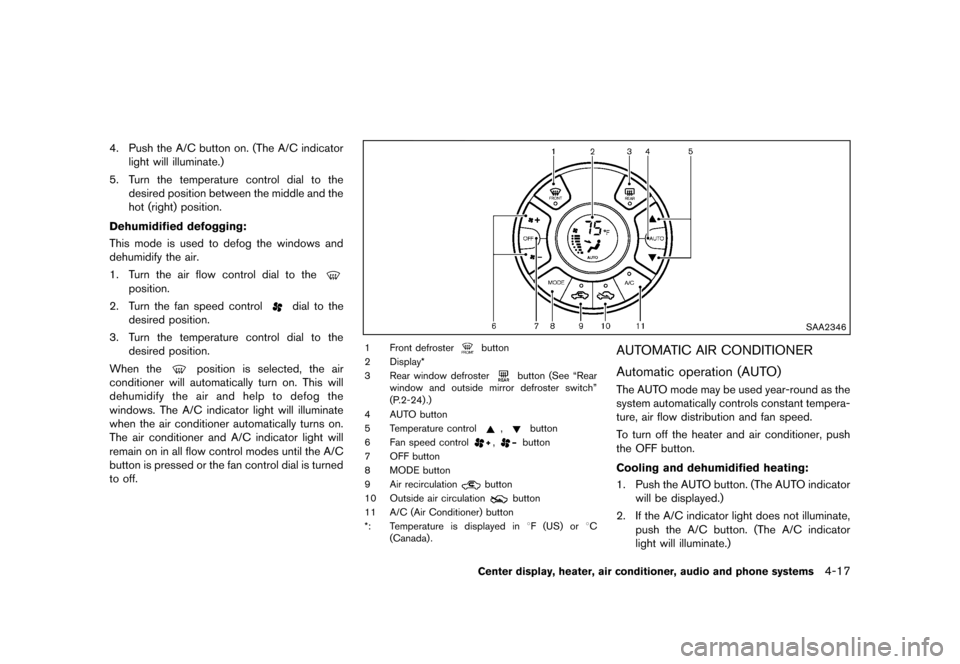

4. Push the A/C button on. (The A/C indicatorlight will illuminate.)
5. Turn the temperature control dial to the desired position between the middle and the
hot (right) position.
Dehumidified defogging:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode is used to defog the windows and
dehumidify the air.
1. Turn the air flow control dial to the
position.
2. Turn the fan speed control
dial to the
desired position.
3. Turn the temperature control dial to the desired position.
When the
position is selected, the air
conditioner will automatically turn on. This will
dehumidify the air and help to defog the
windows. The A/C indicator light will illuminate
when the air conditioner automatically turns on.
The air conditioner and A/C indicator light will
remain on in all flow control modes until the A/C
button is pressed or the fan control dial is turned
to off.
SAA2346
1 Front defrosterbutton
2 Display*
3 Rear window defroster
button (See “Rear
window and outside mirror defroster switch”
(P.2-24) .)
4 AUTO button
5 Temperature control
,button
6 Fan speed control
,button
7 OFF button
8 MODE button
9 Air recirculation
button
10 Outside air circulation
button
11 A/C (Air Conditioner) button
*: Temperature is displayed in 8F (US) or8C
(Canada) .
AUTOMATIC AIR CONDITIONERGUID-225E3D23-9BC7-4CCA-A6FC-C8F8A02290FE
Automatic operation (AUTO)GUID-812BB990-A2E6-4751-A03B-3689D9F14620The AUTO mode may be used year-round as the
system automatically controls constant tempera-
ture, air flow distribution and fan speed.
To turn off the heater and air conditioner, push
the OFF button.
Cooling and dehumidified heating:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. Push the AUTO button. (The AUTO indicator will be displayed.)
2. If the A/C indicator light does not illuminate, push the A/C button. (The A/C indicator
light will illuminate.)
Center display, heater, air conditioner, audio and phone systems4-17
Condition:

Black plate (158,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]

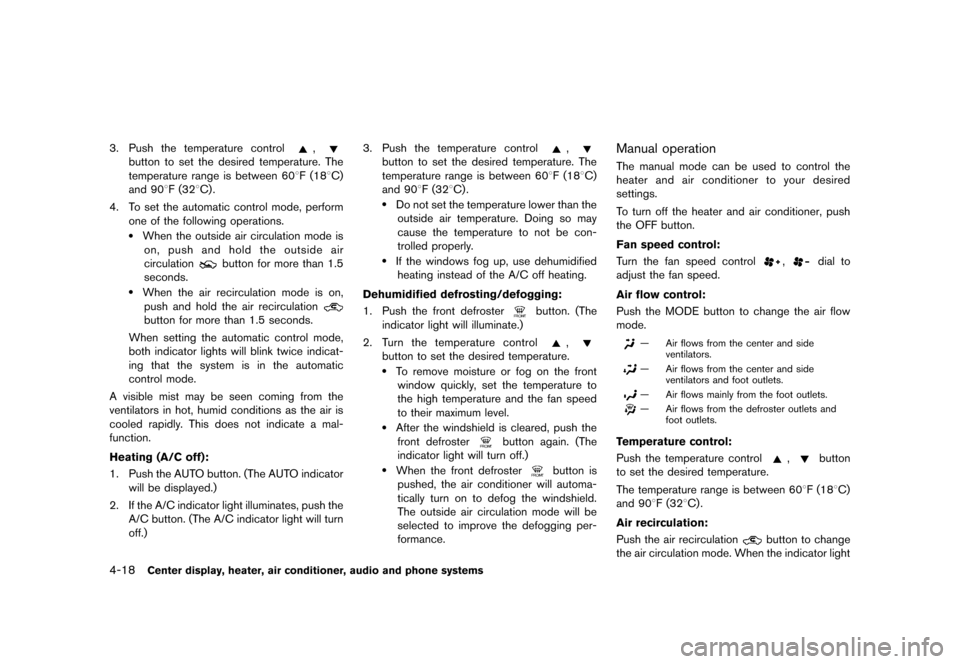

4-18Center display, heater, air conditioner, audio and phone systems
3.Push the temperature control,
button to set the desired temperature. The
temperature range is between 608F (188C)
and 908F (328C) .
4. To set the automatic control mode, perform one of the following operations.
.When the outside air circulation mode ison, push and hold the outside air
circulation
button for more than 1.5
seconds.
.When the air recirculation mode is on,
push and hold the air recirculation
button for more than 1.5 seconds.
When setting the automatic control mode,
both indicator lights will blink twice indicat-
ing that the system is in the automatic
control mode.
A visible mist may be seen coming from the
ventilators in hot, humid conditions as the air is
cooled rapidly. This does not indicate a mal-
function.
Heating (A/C off):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. Push the AUTO button. (The AUTO indicator will be displayed.)
2. If the A/C indicator light illuminates, push the A/C button. (The A/C indicator light will turn
off.) 3.
Push the temperature control
,
button to set the desired temperature. The
temperature range is between 608F (188C)
and 908F (328C) .
.Do not set the temperature lower than the
outside air temperature. Doing so may
cause the temperature to not be con-
trolled properly.
.If the windows fog up, use dehumidifiedheating instead of the A/C off heating.
Dehumidified defrosting/defogging:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. Push the front defrosterbutton. (The
indicator light will illuminate.)
2. Turn the temperature control
,
button to set the desired temperature..To remove moisture or fog on the front
window quickly, set the temperature to
the high temperature and the fan speed
to their maximum level.
.After the windshield is cleared, push thefront defroster
button again. (The
indicator light will turn off.)
.When the front defrosterbutton is
pushed, the air conditioner will automa-
tically turn on to defog the windshield.
The outside air circulation mode will be
selected to improve the defogging per-
formance.
Manual operationGUID-A2341AD8-51C3-4E07-B92B-C8913C04B2AAThe manual mode can be used to control the
heater and air conditioner to your desired
settings.
To turn off the heater and air conditioner, push
the OFF button.
Fan speed control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Turn the fan speed control,dial to
adjust the fan speed.
Air flow control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the MODE button to change the air flow
mode.
— Air flows from the center and side ventilators.
— Air flows from the center and sideventilators and foot outlets.
— Air flows mainly from the foot outlets.
— Air flows from the defroster outlets andfoot outlets.
Temperature control:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the temperature control,button
to set the desired temperature.
The temperature range is between 608F (188C)
and 908F (328C) .
Air recirculation:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the air recirculationbutton to change
the air circulation mode. When the indicator light
Condition:
