Black plate (194,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
4-54Center display, heater, air conditioner, audio and phone systems
SAA2351
CONTROL BUTTONSGUID-63823C53-F5A4-411C-9351-82BA330E8090The control buttons for the Bluetooth®Hands-
Free Phone System are located on the steering
wheel.
PHONE SEND
Push the
button to initiate a VR session or
answer an incoming call.
You can also use the
button to interrupt
system feedback and give a command at once.
PHONE END
While the voice recognition system is active,
press the
button to go back one step. Press
and hold the
button for 5 seconds to quit
the voice recognition system at any time.
GETTING STARTEDGUID-54190CAE-5C85-4990-85C9-093EEF2A5B99The following procedures will help you get
started using the Bluetooth®Hands-Free Phone
System with NISSAN Voice Recognition. For
additional command options, refer to “List of
voice commands” (P.4-56) .
Choosing a languageGUID-4E10D404-3084-49A0-AE12-0B5AF448ED17You can interact with the Bluetooth®Hands-
Free Phone System using English, Spanish or
French.
. Models with navigation system
For information on selecting a different
language, see “How to use the setup
button” (P.4-6).
. Models without navigation system
To change the language, perform the
following.
1) Press and hold the
button for more
than 5 seconds.
2) The system announces: “Press the PHONE SEND (
) button for the
hands-free phone system to enter the
speaker adaptation mode or press the
PHONE END (
) button to select a
different language.”
3) Push the
button.
For information on speaker adaptation, see
“Speaker Adaptation (SA) mode” (P.4-59) . 4) The system announces the current
language and gives you the option to
change the language to Spanish (in
Spanish) or French (in French) . To
select the current language, press the
button. To select a different lan-
guage, tilt the tuning switch (
or
) up or down.
NOTE:
You must press the
button within 5
seconds to change the language.
5) If you decide not to change the lan- guage, do not press either button. After
5 seconds, the VR session will end, and
the language will not be changed.
Connecting procedureGUID-EEB22E89-677C-41B8-B4E8-48D4229D5CD0NOTE:
The connecting procedure must be per-
formed when the vehicle is stationary. If
the vehicle starts moving during the pro-
cedure, the procedure will be cancelled.
NOS2623
Condition:

Black plate (284,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]

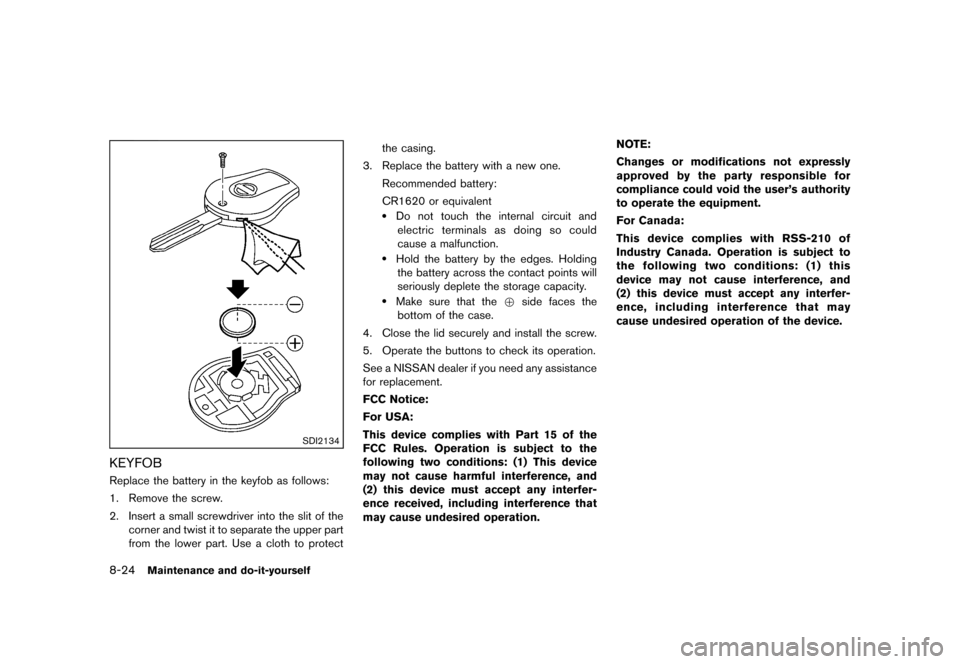

8-24Maintenance and do-it-yourself
SDI2134
KEYFOBGUID-2B6E65D5-DCE7-4AD6-99EF-EF57D3879503Replace the battery in the keyfob as follows:
1. Remove the screw.
2. Insert a small screwdriver into the slit of thecorner and twist it to separate the upper part
from the lower part. Use a cloth to protect the casing.
3. Replace the battery with a new one.
Recommended battery:
CR1620 or equivalent
.Do not touch the internal circuit andelectric terminals as doing so could
cause a malfunction.
.Hold the battery by the edges. Holdingthe battery across the contact points will
seriously deplete the storage capacity.
.Make sure that the +side faces the
bottom of the case.
4. Close the lid securely and install the screw.
5. Operate the buttons to check its operation.
See a NISSAN dealer if you need any assistance
for replacement.
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation. NOTE:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority
to operate the equipment.
For Canada:
This device complies with RSS-210 of
Industry Canada. Operation is subject to
the following two conditions: (1) this
device may not cause interference, and
(2) this device must accept any interfer-
ence, including interference that may
cause undesired operation of the device.
Condition:

Black plate (285,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
SDI2451

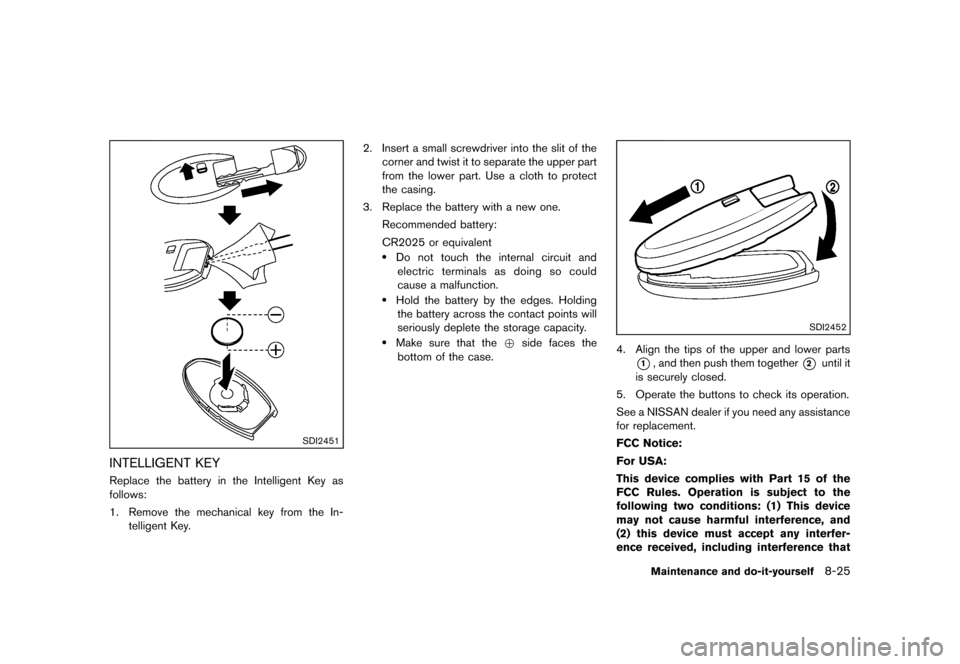

INTELLIGENT KEYGUID-6C6B4156-79F0-4E2F-8F72-CAD4CC92DFE3Replace the battery in the Intelligent Key as
follows:
1. Remove the mechanical key from the In-telligent Key. 2. Insert a small screwdriver into the slit of the
corner and twist it to separate the upper part
from the lower part. Use a cloth to protect
the casing.
3. Replace the battery with a new one. Recommended battery:
CR2025 or equivalent
.Do not touch the internal circuit andelectric terminals as doing so could
cause a malfunction.
.Hold the battery by the edges. Holdingthe battery across the contact points will
seriously deplete the storage capacity.
.Make sure that the +side faces the
bottom of the case.
SDI2452
4. Align the tips of the upper and lower parts
*1, and then push them together*2until it
is securely closed.
5. Operate the buttons to check its operation.
See a NISSAN dealer if you need any assistance
for replacement.
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
Maintenance and do-it-yourself8-25
Condition:

Black plate (321,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
10 Index
A
A/C (Air Conditioner) operation...
.............................. 4-15
ABS (Anti-lock Braking System) ...
............................ 5-27
Advanced air bag system ...
......................................... 1-46
Air bag system Advanced air bag system ...
.................................. 1-46
Front passenger air bag and status light ...
....... 1-48
Front-seat mounted side-impact
supplemental air bag system ...
............................ 1-51
Roof-mounted curtain side-impact
supplemental air bag system ...
............................ 1-51
Air bag warning labels ...
............................................... 1-53
Air bag warning light ...
...................................... 1-54, 2-15
Air cleaner housing filter ...
........................................... 8-17
Air conditioner Air conditioner operation ...
.................................... 4-14
Air conditioner service ...
........................................ 4-20
Air conditioner specification label ...
.................... 9-10
Air conditioning system refrigerant and
lubricant recommendations ...
....................... 4-20, 9-6
In-cabin microfilter ...
............................................... 4-19
Alarm, How to stop alarm (see vehicle
security system) ...
........................................................... 2-20
Alcohol, drugs and driving ...
.......................................... 5-7
Antenna ...
.......................................................................... 4-48
Anti-lock Braking System (ABS) ...
............................ 5-27
Anti-lock braking system (ABS) warning light ...
..... 2-12
Appearance care Exterior appearance care ...
...................................... 7-2
Interior appearance care ...
....................................... 7-4
Armrest ...
............................................................................ 1-9
Audible reminders ...
....................................................... 2-18
Audio operation precautions ...
.................................... 4-20
Audio setup ...
.................................................................... 4-6
Audio system ...
................................................................ 4-20 Steering wheel audio controls
...
.......................... 4-47
Autolight system ...
.......................................................... 2-25
Automatic Air conditioner ...
....................................................... 4-17
Door locks ...
................................................................. 3-6
AUX (Auxiliary) button ...
.................................... 4-38, 4-42
AUX (Auxiliary) input ...
....................................... 4-38, 4-42
Average fuel consumption ...
........................................ 2-10
Average speed ...
............................................................. 2-10
Avoiding collision and rollover ...
................................... 5-6
B
Back door ...
...................................................................... 3-20
Battery ...
............................................................................ 8-13
Battery replacement, Intelligent Key ...
................ 8-25
Battery replacement, Keyfob ...
............................. 8-24
Battery saver system ...
........................................... 2-26
Variable voltage control system ...
........................ 8-15
Before starting the engine ...
........................................ 5-12
Bluetooth
®Hands-Free Phone System ...
................ 4-50
Booster seats ...
............................................................... 1-36
Brake Anti-lock Braking System (ABS) ...
..................... 5-27
Brake and clutch fluid ...
......................................... 8-12
Brake system ...
......................................................... 5-27
Parking brake operation ...
..................................... 5-21
Warning light ...
......................................................... 2-12
Break-in schedule ...
....................................................... 5-23
Brightness control Display ON/OFF button ...
........................................ 4-5
Instrument panel ...
................................................... 2-27
Bulb check/instrument panel ...
................................... 2-12
Bulb replacement ...
........................................................ 8-26
C
Cabin air filter ...
............................................................... 4-19
Capacities and recommended fuel/lubricants ...
....... 9-2
Car phone or CB radio ...
............................................. 4-49
Cargo light ...
.................................................................... 2-40
Catalytic converter, Three way catalyst ...
................... 5-3
CD/USB memory care and cleaning ...
..................... 4-46
Ceiling light ...
................................................................... 2-39
Check tire pressure warning ...
...................................... 2-6
Child restraints ...
............................................................. 1-21
Booster seats ...
........................................................ 1-36
Precautions on child restraints ...
......................... 1-22
Child safety ...
................................................................... 1-20
Child safety rear door lock ...
......................................... 3-6
Chimes, Audible reminders ...
...................................... 2-18
Circuit breaker, Fusible link ...
...................................... 8-21
Cleaning exterior and interior ...
............................ 7-2, 7-4
Clock FM-AM radio with Compact Disc
(CD) player ...
............................................................ 4-32
How to use the setup button ...
............................... 4-6
Clutch fluid ...
.................................................................... 8-12
Cockpit ...
............................................................................ 2-2
Cold weather driving ...
.................................................. 5-30
Compact Disc (CD) player (See
audio system) ...
................................................... 4-35, 4-40
Continuously Variable Transmission
(CVT) fluid ...
..................................................................... 8-11
Control panel buttons — color screen with
navigation system ...
.......................................................... 4-3
Controls, Steering wheel audio controls ...
............... 4-47
Coolant Capacities and
recommended fuel/lubricants ...
............................... 9-2
Changing engine coolant ...
...................................... 8-8
Condition:
