Black plate (218,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]

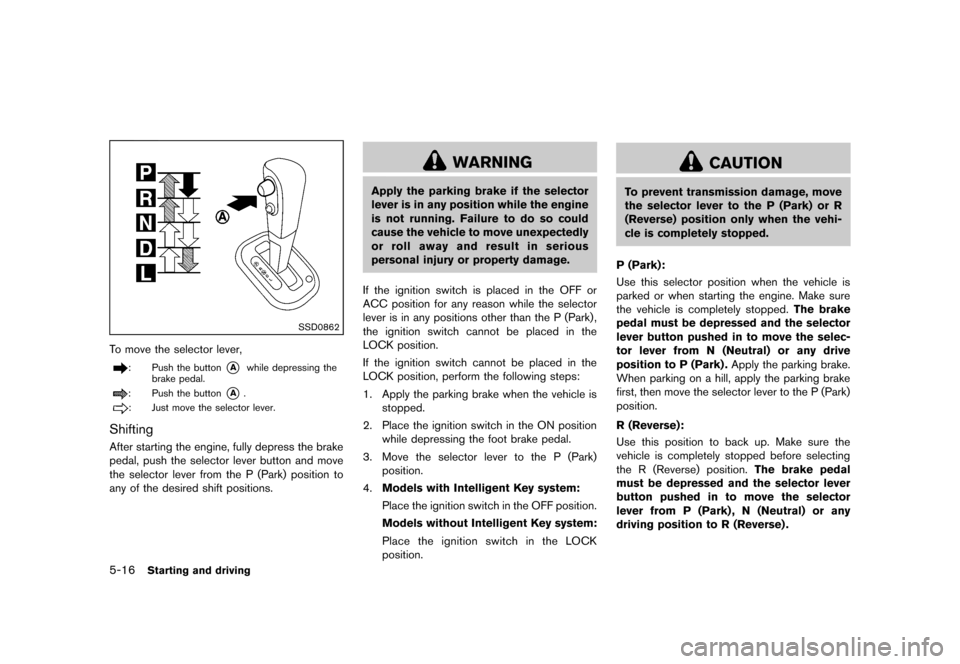

5-16Starting and driving
SSD0862
To move the selector lever,
: Push the button*Awhile depressing the
brake pedal.
: Push the button*A.
: Just move the selector lever.
ShiftingGUID-12C8B6BA-1A20-43EC-BA4A-3CF7FF6C789EAfter starting the engine, fully depress the brake
pedal, push the selector lever button and move
the selector lever from the P (Park) position to
any of the desired shift positions.
WARNING
Apply the parking brake if the selector
lever is in any position while the engine
is not running. Failure to do so could
cause the vehicle to move unexpectedly
or roll away and result in serious
personal injury or property damage.
If the ignition switch is placed in the OFF or
ACC position for any reason while the selector
lever is in any positions other than the P (Park) ,
the ignition switch cannot be placed in the
LOCK position.
If the ignition switch cannot be placed in the
LOCK position, perform the following steps:
1. Apply the parking brake when the vehicle is stopped.
2. Place the ignition switch in the ON position while depressing the foot brake pedal.
3. Move the selector lever to the P (Park) position.
4. Models with Intelligent Key system:
Place the ignition switch in the OFF position.
Models without Intelligent Key system:
Place the ignition switch in the LOCK
position.
CAUTION
To prevent transmission damage, move
the selector lever to the P (Park) or R
(Reverse) position only when the vehi-
cle is completely stopped.
P (Park):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Use this selector position when the vehicle is
parked or when starting the engine. Make sure
the vehicle is completely stopped. The brake
pedal must be depressed and the selector
lever button pushed in to move the selec-
tor lever from N (Neutral) or any drive
position to P (Park) . Apply the parking brake.
When parking on a hill, apply the parking brake
first, then move the selector lever to the P (Park)
position.
R (Reverse):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Use this position to back up. Make sure the
vehicle is completely stopped before selecting
the R (Reverse) position. The brake pedal
must be depressed and the selector lever
button pushed in to move the selector
lever from P (Park) , N (Neutral) or any
driving position to R (Reverse) .
Condition:

Black plate (220,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
5-18Starting and driving
back to the ON position. The vehicle
should return to its normal operating
condition. If it does not return to its normal
operating condition, have a NISSAN dealer
check the transmission and repair if ne-
cessary.
WARNING
When the high fluid temperature pro-
tection mode or fail-safe operation
occurs, vehicle speed may be gradually
reduced. The reduced speed may be
lower than other traffic, which could
increase the chance of a collision. Be
especially careful when driving. If ne-
cessary, pull to the side of the road at a
safe place and allow the transmission
to return to normal operation, or have it
repaired if necessary.
SSD0864
Shift lock releaseGUID-33B3DE9D-415C-4C50-B070-055D453BEFACIf the battery charge is low or discharged, the
selector lever may not be moved from the P
(Park) position even with the brake pedal
depressed and the selector lever button pushed.
To move the selector lever, perform the following
procedure:
1.Models with Intelligent Key system:
Place the ignition switch in the OFF or
LOCK position.
Models without Intelligent Key system:
Place the ignition switch in the LOCK
position, and remove the key if it is inserted. 2. Apply the parking brake.
3. Remove the shift lock release cover
*A
using a suitable tool.
4. Push down the shift lock release using a suitable tool.
5. Push the selector lever button and move the selector lever to the N (Neutral) position
while holding down the shift lock release.
Place the ignition switch in the ON position. The
vehicle may be moved to the desired location.
Replace the removed shift lock release cover
after the operation.
If the selector lever cannot be moved out of the
P (Park) position, have a NISSAN dealer check
the CVT system as soon as possible.
WARNING
If the selector lever cannot be moved
from the P (Park) position while the
engine is running and the brake pedal
is depressed, the stop lights may not
work. Malfunctioning stop lights could
cause an accident injuring yourself and
others.
Condition:

Black plate (321,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
10 Index
A
A/C (Air Conditioner) operation...
.............................. 4-15
ABS (Anti-lock Braking System) ...
............................ 5-27
Advanced air bag system ...
......................................... 1-46
Air bag system Advanced air bag system ...
.................................. 1-46
Front passenger air bag and status light ...
....... 1-48
Front-seat mounted side-impact
supplemental air bag system ...
............................ 1-51
Roof-mounted curtain side-impact
supplemental air bag system ...
............................ 1-51
Air bag warning labels ...
............................................... 1-53
Air bag warning light ...
...................................... 1-54, 2-15
Air cleaner housing filter ...
........................................... 8-17
Air conditioner Air conditioner operation ...
.................................... 4-14
Air conditioner service ...
........................................ 4-20
Air conditioner specification label ...
.................... 9-10
Air conditioning system refrigerant and
lubricant recommendations ...
....................... 4-20, 9-6
In-cabin microfilter ...
............................................... 4-19
Alarm, How to stop alarm (see vehicle
security system) ...
........................................................... 2-20
Alcohol, drugs and driving ...
.......................................... 5-7
Antenna ...
.......................................................................... 4-48
Anti-lock Braking System (ABS) ...
............................ 5-27
Anti-lock braking system (ABS) warning light ...
..... 2-12
Appearance care Exterior appearance care ...
...................................... 7-2
Interior appearance care ...
....................................... 7-4
Armrest ...
............................................................................ 1-9
Audible reminders ...
....................................................... 2-18
Audio operation precautions ...
.................................... 4-20
Audio setup ...
.................................................................... 4-6
Audio system ...
................................................................ 4-20 Steering wheel audio controls
...
.......................... 4-47
Autolight system ...
.......................................................... 2-25
Automatic Air conditioner ...
....................................................... 4-17
Door locks ...
................................................................. 3-6
AUX (Auxiliary) button ...
.................................... 4-38, 4-42
AUX (Auxiliary) input ...
....................................... 4-38, 4-42
Average fuel consumption ...
........................................ 2-10
Average speed ...
............................................................. 2-10
Avoiding collision and rollover ...
................................... 5-6
B
Back door ...
...................................................................... 3-20
Battery ...
............................................................................ 8-13
Battery replacement, Intelligent Key ...
................ 8-25
Battery replacement, Keyfob ...
............................. 8-24
Battery saver system ...
........................................... 2-26
Variable voltage control system ...
........................ 8-15
Before starting the engine ...
........................................ 5-12
Bluetooth
®Hands-Free Phone System ...
................ 4-50
Booster seats ...
............................................................... 1-36
Brake Anti-lock Braking System (ABS) ...
..................... 5-27
Brake and clutch fluid ...
......................................... 8-12
Brake system ...
......................................................... 5-27
Parking brake operation ...
..................................... 5-21
Warning light ...
......................................................... 2-12
Break-in schedule ...
....................................................... 5-23
Brightness control Display ON/OFF button ...
........................................ 4-5
Instrument panel ...
................................................... 2-27
Bulb check/instrument panel ...
................................... 2-12
Bulb replacement ...
........................................................ 8-26
C
Cabin air filter ...
............................................................... 4-19
Capacities and recommended fuel/lubricants ...
....... 9-2
Car phone or CB radio ...
............................................. 4-49
Cargo light ...
.................................................................... 2-40
Catalytic converter, Three way catalyst ...
................... 5-3
CD/USB memory care and cleaning ...
..................... 4-46
Ceiling light ...
................................................................... 2-39
Check tire pressure warning ...
...................................... 2-6
Child restraints ...
............................................................. 1-21
Booster seats ...
........................................................ 1-36
Precautions on child restraints ...
......................... 1-22
Child safety ...
................................................................... 1-20
Child safety rear door lock ...
......................................... 3-6
Chimes, Audible reminders ...
...................................... 2-18
Circuit breaker, Fusible link ...
...................................... 8-21
Cleaning exterior and interior ...
............................ 7-2, 7-4
Clock FM-AM radio with Compact Disc
(CD) player ...
............................................................ 4-32
How to use the setup button ...
............................... 4-6
Clutch fluid ...
.................................................................... 8-12
Cockpit ...
............................................................................ 2-2
Cold weather driving ...
.................................................. 5-30
Compact Disc (CD) player (See
audio system) ...
................................................... 4-35, 4-40
Continuously Variable Transmission
(CVT) fluid ...
..................................................................... 8-11
Control panel buttons — color screen with
navigation system ...
.......................................................... 4-3
Controls, Steering wheel audio controls ...
............... 4-47
Coolant Capacities and
recommended fuel/lubricants ...
............................... 9-2
Changing engine coolant ...
...................................... 8-8
Condition:
