2013 NISSAN CUBE engine

Black plate (309,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]

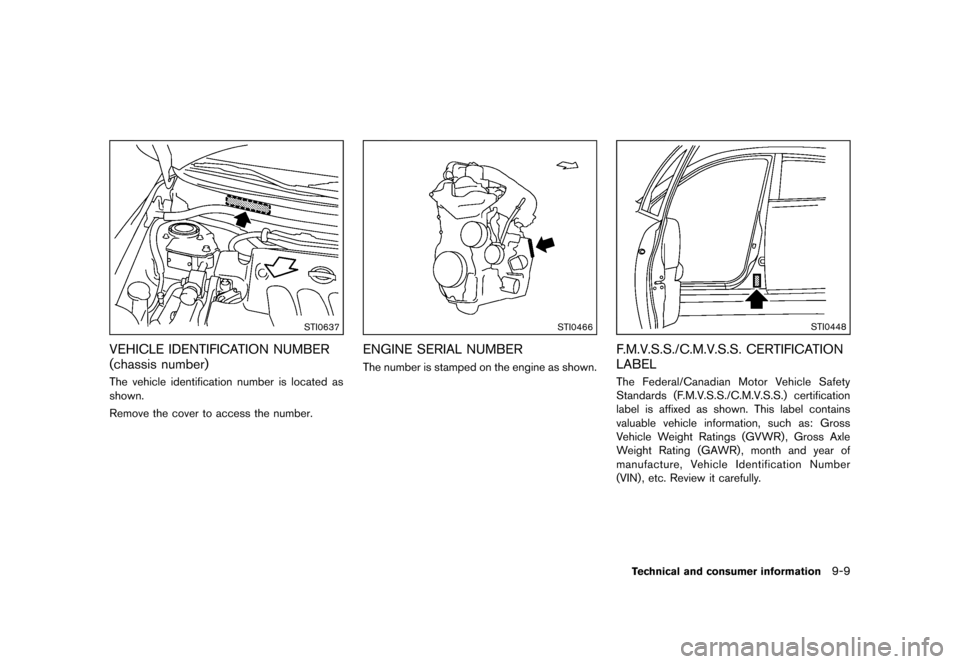

STI0637
VEHICLE IDENTIFICATION NUMBER
(chassis number)
GUID-A2B5715A-2661-4FB5-B903-F5BF27555137The vehicle identification number is located as
shown.
Remove the cover to access the number.
STI0466
ENGINE SERIAL NUMBERGUID-8FEC4A40-041F-4414-BC98-35DB834D507AThe number is stamped on the engine as shown.
STI0448
F.M.V.S.S./C.M.V.S.S. CERTIFICATION
LABEL
GUID-6B9415D7-88D7-4CC2-A606-0311FB13F60BThe Federal/Canadian Motor Vehicle Safety
Standards (F.M.V.S.S./C.M.V.S.S.) certification
label is affixed as shown. This label contains
valuable vehicle information, such as: Gross
Vehicle Weight Ratings (GVWR) , Gross Axle
Weight Rating (GAWR) , month and year of
manufacture, Vehicle Identification Number
(VIN) , etc. Review it carefully.
Technical and consumer information9-9
Condition:

Black plate (316,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
9-16Technical and consumer information
GUID-10B147C7-5318-4AD9-B417-1560105E7A9ATowing your vehicle with all four wheels on the
ground is sometimes called flat towing. This
method is sometimes used when towing a
vehicle behind a recreational vehicle, such as a
motor home.
CAUTION
.Failure to follow these guidelines
can result in severe transmission
damage.
. Whenever flat towing your vehicle,
always tow forward, never back-
ward.
. DO NOT tow any Continuously Vari-
able Transmission (CVT) vehicle
with all four wheels on the ground
(flat towing) . Doing so WILL DA-
MAGE internal transmission parts
due to lack of transmission lubrica-
tion.
. For emergency towing procedures
refer to “Towing your vehicle” (P.6-
14) of this manual.
CONTINUOUSLY VARIABLE TRANS-
MISSION (CVT)
GUID-6682FD4C-4705-4D02-A7FF-39E9A5D63601To tow a vehicle equipped with a Continuously
Variable Transmission (CVT) , an appropriate
vehicle dolly MUSTbe placed under the towed
vehicle’s driving wheels. Alwaysfollow the dolly
manufacturer’s recommendations when using
their product.
MANUAL TRANSMISSIONGUID-0CB68853-A1B6-4748-98C9-A2940FB9425A. Always tow with the manual transmission in
Neutral.
. Your vehicle speed should never exceed 60
MPH (96 km/h) when flat towing your
vehicle.
. After towing 500 miles, start and idle the
engine with the transmission in Neutral for
two minutes. Failure to idle the engine after
every 500 miles of towing may cause
damage to the transmission’s internal parts.
GUID-CFA7D609-DEB3-48B5-826D-8F0EFF33A03FDOT (Department Of Transportation) Quality
Grades: All passenger car tires must conform to
federal safety requirements in addition to these
grades.
Quality grades can be found where applicable
on the tire sidewall between tread shoulder and
maximum section width. For example:
Treadwear 200 Traction AA Temperature A
TREADWEARGUID-517A69BD-F5D0-4D24-B862-4B189D2B689EThe treadwear grade is a comparative rating
based on the wear rate of the tire when tested
under controlled conditions on a specified
government test course. For example, a tire
graded 150 would wear one and one-half (1
1/2) times as well on the government course as
a tire graded 100. The relative performance of
tires depends upon actual conditions of their
use, however, and may depart significantly from
the norm due to variations in driving habits,
service practices and differences in road char-
acteristics and climate.
TRACTION AA, A, B AND CGUID-6A8565EE-43DE-428C-8E4A-C2FBF990772AThe traction grades, from highest to lowest, are
AA, A, B and C. Those grades represent the
tire’s ability to stop on wet pavement as
measured under controlled conditions on spe-
cified government test surfaces of asphalt and
concrete. A tire marked C may have poor
traction performance.
FLAT TOWING UNIFORM TIRE QUALITY GRADING
Condition:

Black plate (319,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
GUID-210207E6-4DD3-4F53-A829-F5EE81B2CAF0Due to legal requirements in some states/areas
or provinces, your vehicle may be required to be
in what is called the “ready condition” for an
Inspection/Maintenance (I/M) test of the emis-
sion control system.
The vehicle is set to the “ready condition” when
it is driven through certain driving patterns.
Usually, the “ready condition” can be obtained
by ordinary usage of the vehicle.
If a powertrain system component is repaired or
the battery is disconnected, the vehicle may be
reset to a “not ready condition”. Before taking
the I/M test, check the vehicle’s inspection/
maintenance test readiness condition. Place the
ignition switch in the ON position without
starting the engine. If the Malfunction Indicator
Light (MIL) comes on steady for 20 seconds and
then blinks for 10 seconds, the I/M test
condition is “not ready”. If the MIL does not
blink after 20 seconds, the I/M test condition is
“ready”.
Contact a NISSAN dealer to set the “ready
condition” or to prepare the vehicle for testing.GUID-2173F18A-4940-4A62-96DF-834B61C4A270This vehicle is equipped with an Event Data
Recorder (EDR) . The main purpose of an EDR is
to record, in certain crash or near crash-like
situations, such as an air bag deployment or
hitting a road obstacle, data that will assist in
understanding how a vehicle’s systems per-
formed. The EDR is designed to record data
related to vehicle dynamics and safety systems
for a short period of time, typically 30 seconds
or less. The EDR in this vehicle is designed to
record such data as:
.How various systems in your vehicle were
operating;
. Whether or not the driver and passenger
safety belts were buckled/fastened;
. How far (if at all) the driver was depressing
the accelerator and/or brake pedal; and,
. How fast the vehicle was traveling.
. Sounds are not recorded.
These data can help provide a better under-
standing of the circumstances in which crashes
and injuries occur.
NOTE: EDR data are recorded by your vehicle
only if a nontrivial crash situation occurs; no data
are recorded by the EDR under normal driving
conditions and no personal data (e.g. name,
gender, age and crash location) are recorded.
However, other parties, such as law enforce-
ment, could combine the EDR data with the type of personally identifying data routinely acquired
during a crash investigation.
To read data recorded by an EDR, special
equipment is required and access to the vehicle
or the EDR is needed. In addition to the vehicle
manufacturer and NISSAN dealer, other parties,
such as law enforcement, that have the special
equipment, can read the information if they have
access to the vehicle or the EDR. EDR data will
only be accessed with the consent of the vehicle
owner or lessee or as otherwise required or
permitted by law.
Technical and consumer information9-19
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST
EVENT DATA RECORDERS (EDR)
Condition:

Black plate (321,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
10 Index
A
A/C (Air Conditioner) operation...
.............................. 4-15
ABS (Anti-lock Braking System) ...
............................ 5-27
Advanced air bag system ...
......................................... 1-46
Air bag system Advanced air bag system ...
.................................. 1-46
Front passenger air bag and status light ...
....... 1-48
Front-seat mounted side-impact
supplemental air bag system ...
............................ 1-51
Roof-mounted curtain side-impact
supplemental air bag system ...
............................ 1-51
Air bag warning labels ...
............................................... 1-53
Air bag warning light ...
...................................... 1-54, 2-15
Air cleaner housing filter ...
........................................... 8-17
Air conditioner Air conditioner operation ...
.................................... 4-14
Air conditioner service ...
........................................ 4-20
Air conditioner specification label ...
.................... 9-10
Air conditioning system refrigerant and
lubricant recommendations ...
....................... 4-20, 9-6
In-cabin microfilter ...
............................................... 4-19
Alarm, How to stop alarm (see vehicle
security system) ...
........................................................... 2-20
Alcohol, drugs and driving ...
.......................................... 5-7
Antenna ...
.......................................................................... 4-48
Anti-lock Braking System (ABS) ...
............................ 5-27
Anti-lock braking system (ABS) warning light ...
..... 2-12
Appearance care Exterior appearance care ...
...................................... 7-2
Interior appearance care ...
....................................... 7-4
Armrest ...
............................................................................ 1-9
Audible reminders ...
....................................................... 2-18
Audio operation precautions ...
.................................... 4-20
Audio setup ...
.................................................................... 4-6
Audio system ...
................................................................ 4-20 Steering wheel audio controls
...
.......................... 4-47
Autolight system ...
.......................................................... 2-25
Automatic Air conditioner ...
....................................................... 4-17
Door locks ...
................................................................. 3-6
AUX (Auxiliary) button ...
.................................... 4-38, 4-42
AUX (Auxiliary) input ...
....................................... 4-38, 4-42
Average fuel consumption ...
........................................ 2-10
Average speed ...
............................................................. 2-10
Avoiding collision and rollover ...
................................... 5-6
B
Back door ...
...................................................................... 3-20
Battery ...
............................................................................ 8-13
Battery replacement, Intelligent Key ...
................ 8-25
Battery replacement, Keyfob ...
............................. 8-24
Battery saver system ...
........................................... 2-26
Variable voltage control system ...
........................ 8-15
Before starting the engine ...
........................................ 5-12
Bluetooth
®Hands-Free Phone System ...
................ 4-50
Booster seats ...
............................................................... 1-36
Brake Anti-lock Braking System (ABS) ...
..................... 5-27
Brake and clutch fluid ...
......................................... 8-12
Brake system ...
......................................................... 5-27
Parking brake operation ...
..................................... 5-21
Warning light ...
......................................................... 2-12
Break-in schedule ...
....................................................... 5-23
Brightness control Display ON/OFF button ...
........................................ 4-5
Instrument panel ...
................................................... 2-27
Bulb check/instrument panel ...
................................... 2-12
Bulb replacement ...
........................................................ 8-26
C
Cabin air filter ...
............................................................... 4-19
Capacities and recommended fuel/lubricants ...
....... 9-2
Car phone or CB radio ...
............................................. 4-49
Cargo light ...
.................................................................... 2-40
Catalytic converter, Three way catalyst ...
................... 5-3
CD/USB memory care and cleaning ...
..................... 4-46
Ceiling light ...
................................................................... 2-39
Check tire pressure warning ...
...................................... 2-6
Child restraints ...
............................................................. 1-21
Booster seats ...
........................................................ 1-36
Precautions on child restraints ...
......................... 1-22
Child safety ...
................................................................... 1-20
Child safety rear door lock ...
......................................... 3-6
Chimes, Audible reminders ...
...................................... 2-18
Circuit breaker, Fusible link ...
...................................... 8-21
Cleaning exterior and interior ...
............................ 7-2, 7-4
Clock FM-AM radio with Compact Disc
(CD) player ...
............................................................ 4-32
How to use the setup button ...
............................... 4-6
Clutch fluid ...
.................................................................... 8-12
Cockpit ...
............................................................................ 2-2
Cold weather driving ...
.................................................. 5-30
Compact Disc (CD) player (See
audio system) ...
................................................... 4-35, 4-40
Continuously Variable Transmission
(CVT) fluid ...
..................................................................... 8-11
Control panel buttons — color screen with
navigation system ...
.......................................................... 4-3
Controls, Steering wheel audio controls ...
............... 4-47
Coolant Capacities and
recommended fuel/lubricants ...
............................... 9-2
Changing engine coolant ...
...................................... 8-8
Condition:

Black plate (322,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
10-2
Checking engine coolant level...
............................. 8-8
Corrosion protection ...
.................................................... 7-6
Cruise control ...
............................................................... 5-21
Cup holders ...
.................................................................. 2-31
CVT, Driving with CVT (Continuously
Variable Transmission) ...
...................................... 5-8, 5-15
D
Daytime running light system ...
................................... 2-26
Defroster switch, Rear window and outside
mirror defroster switch ...
............................................... 2-24
Dimensions and weights ...
............................................. 9-8
Door open warning light ...
............................................ 2-13
Drive belt ...
....................................................................... 8-15
Driving Cold weather driving ...
........................................... 5-30
Driving with CVT (Continuously
Variable Transmission) ...
............................... 5-8, 5-15
Driving with manual transmission ...
............ 5-9, 5-19
Precautions when starting and driving ...
.............. 5-2
E
Economy, Fuel ...
.............................................................. 5-24
Electric power steering system ...
............................... 5-26
Electric power steering warning light ...
.................... 2-13
Emission control information label ...
.......................... 9-10
Emission control system warranty ...
........................... 9-17
Engine Before starting the engine ...
................................. 5-12
Break-in schedule ...
................................................ 5-23
Capacities and
recommended fuel/lubricants ...
............................... 9-2
Changing engine coolant ...
...................................... 8-8
Changing engine oil and filter ...
.............................. 8-9
Checking engine coolant level ...
............................. 8-8 Checking engine oil level
...
...................................... 8-9
Coolant temperature gauge ...
................................. 2-7
Emergency engine shut off ...
................................ 5-11
Engine block heater ...
............................................. 5-31
Engine compartment check locations ...
................ 8-6
Engine cooling system ...
........................................... 8-7
Engine oil ...
................................................................... 8-9
Engine oil and oil filter recommendation ...
........... 9-5
Engine oil viscosity ...
.................................................. 9-5
Engine serial number ...
.............................................. 9-9
Engine specifications ...
............................................. 9-7
If your vehicle overheats ...
..................................... 6-12
Starting the engine ...
.............................................. 5-13
Event Data Recorders (EDR) ...
................................... 9-19
Exhaust gas (carbon monoxide) ...
................................ 5-2
Extended storage fuse warning ...
................................. 2-6
F
F.M.V.S.S./C.M.V.S.S. certification label ...
................. 9-9
Filter
Air cleaner housing filter ...
.................................... 8-17
Changing engine oil and filter ...
.............................. 8-9
Flashers (See hazard warning flasher switch) ...
....... 6-2
Flat tire ...
............................................................................. 6-3
Flat towing ...
.................................................................... 9-16
Floor mat cleaning ...
........................................................ 7-5
Fluid Brake and clutch fluid ...
......................................... 8-12
Capacities and
recommended fuel/lubricants ...
............................... 9-2
Continuously Variable Transmission
(CVT) fluid ...
.............................................................. 8-11
Engine coolant ...
......................................................... 8-7
Engine oil ...
................................................................... 8-9
Window washer fluid ...
.......................................... 8-12
FM-AM radio with Compact Disc (CD) player ...
.... 4-32 FM-AM-SAT radio with Compact Disc
(CD) player
...
................................................................... 4-39
Fog light switch ...
........................................................... 2-28
Front manual seat adjustment ...
.................................... 1-3
Front passenger air bag and status light ...
.............. 1-48
Front seat, Front seat adjustment ...
............................. 1-3
Front-seat active head restraints ...
.............................. 1-9
Fuel Capacities and
recommended fuel/lubricants ...
............................... 9-2
Distance to empty ...
................................................... 2-9
Fuel economy ...
........................................................ 5-24
Fuel octane rating ...
................................................... 9-3
Fuel recommendation ...
............................................. 9-3
Fuel-filler cap ...
......................................................... 3-21
Fuel-filler door ...
....................................................... 3-21
Gauge ...
........................................................................ 2-8
Fuel Efficient Driving Tips ...
......................................... 5-23
Fuses ...
.............................................................................. 8-20
Fusible links ...
.................................................................. 8-21
G
Gas cap ...
......................................................................... 3-21
Gauge ...
.............................................................................. 2-4
Engine coolant temperature gauge ...
.................... 2-7
Fuel gauge ...
................................................................ 2-8
Odometer ...
.................................................................. 2-5
Speedometer ...
............................................................ 2-5
Tachometer ...
............................................................... 2-7
Trip computer ...
........................................................... 2-9
General maintenance ...
................................................... 8-2
Glove box ...
...................................................................... 2-33
Condition:

Black plate (323,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
H
Hands-Free Phone System, Bluetooth®...
............... 4-50
Hazard warning flasher switch ...
................................... 6-2
Head restraints ...
.............................................................. 1-6
Headlights Bulb replacement ...
................................................. 8-27
Headlight switch ...
................................................... 2-24
Heated seats ...
................................................................ 2-29
Heater Engine block heater ...
............................................. 5-31
Heater and air conditioner operation ...
.............. 4-14
Hood release ...
................................................................ 3-19
Hook Luggage hook ...
....................................................... 2-34
Utility hooks ...
........................................................... 2-34
Horn ...
................................................................................ 2-28
How to use the back button ...
...................................... 4-5
How to use the setup button ...
..................................... 4-6
I
Ignition switch
(with Intelligent Key system) ...
................................ 5-9
(without Intelligent Key system) ...
.......................... 5-8
Key positions ...
............................................................ 5-9
Immobilizer system ...
...................................................... 2-20
In-cabin microfilter ...
...................................................... 4-19
Indicator lights ...
.............................................................. 2-16
Inside mirror ...
.................................................................. 3-24
Inspection/maintenance (I/M) test ...
.......................... 9-19
Instrument brightness control ...
.................................. 2-27
Instrument panel ...
............................................................ 2-3
Intelligent Key system ...
................................................ 3-10
Intelligent Key system warning light ...
................ 2-13
Key operating range ...
............................................ 3-12
Key operation ...
........................................................ 3-13 P position selecting warning light
...
.................... 2-15
Remote keyless operation ...
.................................. 3-16
Interior light replacement ...
........................................... 8-28
Interior lights ...
................................................................. 2-37
iPod
®connecting ...
........................................................ 4-36
iPod®player operation ...
............................................... 4-44
ISOFIX child restraint ...
................................................. 1-23
J
Jump starting ...
................................................................ 6-10
K
Keyless entry
(See remote keyless entry system) ...
.................... 3-7
With Intelligent Key system (See Intelligent
Key system) ...
........................................................... 3-16
Keys ...
.................................................................................. 3-2
For Intelligent Key system ...
.................................. 3-10
L
Labels
Air bag warning labels ...
........................................ 1-53
Air conditioner specification label ...
.................... 9-10
Emission control information label ...
................... 9-10
Engine serial number ...
.............................................. 9-9
F.M.V.S.S./C.M.V.S.S. certification label ...
........... 9-9
Tire and Loading information label ...
....... 8-31, 9-10
Vehicle identification number (VIN) ...
.................... 9-8
LATCH system ...
............................................................. 1-23
License plate, Installing front license plate ...
.......... 9-11
Light Air bag warning light ...
........................................... 1-54
Bulb replacement ...
................................................. 8-26
Cargo light ...
............................................................. 2-40 Ceiling light
...
............................................................ 2-39
Fog light switch ...
.................................................... 2-28
Headlight switch ...
................................................... 2-24
Headlights bulb replacement ...
............................ 8-27
Indicator lights ...
....................................................... 2-16
Interior lights ...
.......................................................... 2-37
Map lights ...
.............................................................. 2-38
Replacement ...
.......................................................... 8-26
Warning/indicator lights and
audible reminders ...
................................................. 2-12
Lights, Exterior and interior light replacement ...
..... 8-28
Loading information (See vehicle
loading information) ...
.................................................... 9-12
Lock Automatic door locks ...
............................................. 3-6
Back door lock ...
...................................................... 3-20
Door locks ...
................................................................. 3-4
Power door lock ...
...................................................... 3-4
Low fuel warning light ...
................................................ 2-14
Low tire pressure warning light ...
............................... 2-14
Low tire pressure warning system
(See tire pressure monitoring system (TPMS)) ...
.... 5-3
Luggage hooks ...
............................................................ 2-34M
Maintenance
Battery ...
..................................................................... 8-13
General maintenance ...
............................................. 8-2
Inside the vehicle ...
.................................................... 8-3
Maintenance precautions ...
...................................... 8-5
Maintenance requirements ...
.................................... 8-2
Outside the vehicle ...
................................................. 8-2
Seat belt maintenance ...
........................................ 1-19
Malfunction indicator light (MIL) ...
.............................. 2-17
Manual air conditioner ...
................................................ 4-14
Manual front seat adjustment ...
..................................... 1-3
10-3
Condition:

Black plate (324,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
10-4
Map lights...
..................................................................... 2-38
Mechanical key (Intelligent Key system) ...
................. 3-4
Meter Trip computer ...
........................................................... 2-9
Meters and gauges ...
....................................................... 2-4
Instrument brightness control ...
........................... 2-27
Mirror Inside mirror ...
........................................................... 3-24
Outside mirrors ...
..................................................... 3-25
Vanity mirror ...
........................................................... 3-26
Monitor, Rearview monitor ...
.......................................... 4-9
N
Navigation setup ...
............................................................ 4-6
New vehicle break-in ...
.................................................. 5-23
NISSAN Vehicle Immobilizer System ...
..................... 2-20
O
Odometer ...
........................................................................ 2-5
Off-road recovery ...
.......................................................... 5-6
Oil Capacities and
recommended fuel/lubricants ...
............................... 9-2
Changing engine oil and filter ...
.............................. 8-9
Checking engine oil level ...
...................................... 8-9
Engine oil ...
................................................................... 8-9
Engine oil viscosity ...
.................................................. 9-5
Outside air temperature display ...
................................ 2-9
Outside mirrors ...
............................................................ 3-25
Overdrive OFF switch ...
................................................ 5-17
Overheat, If your vehicle overheats ...
........................ 6-12
Owner’s Manual/Service Manual
order information ...
......................................................... 9-20
P
Panic alarm ...
.......................................................... 3-8, 3-17
Parking Parking brake operation ...
..................................... 5-21
Parking on hills ...
..................................................... 5-25
Phone Bluetooth
®Hands-Free Phone System ...
......... 4-50
Car phone or CB radio ...
...................................... 4-49
Power Electric power steering system ...
........................ 5-26
Power door lock ...
...................................................... 3-4
Power outlet ...
.......................................................... 2-30
Power windows ...
.................................................... 2-35
Precautions Audio operation ...
.................................................... 4-20
Braking precautions ...
............................................. 5-27
Child restraints ...
...................................................... 1-22
Cruise control ...
........................................................ 5-21
Maintenance ...
............................................................. 8-5
Seat belt usage ...
.................................................... 1-10
Supplemental restraint system ...
.......................... 1-40
When starting and driving ...
.................................... 5-2
Push starting ...
................................................................ 6-12
Push-button ignition switch ...
............................. 5-9, 5-10
R
Radio ...
.............................................................................. 4-20
Car phone or CB radio ...
...................................... 4-49
Radio operation ...
.................................................... 4-34
Steering wheel audio controls ...
.......................... 4-47
Rapid air pressure loss ...
................................................ 5-6
Readiness for inspection/maintenance
(I/M) test ...
........................................................................ 9-19
Rear center seat belt ...
................................................. 1-17
Rear door lock, Child safety rear door lock ...
........... 3-6 Rear seats
...
....................................................................... 1-4
Rear window and outside mirror
defroster switch ...
........................................................... 2-24
Rear window wiper and washer switch ...
................ 2-23
Rearview monitor ...
........................................................... 4-9
Recorders, Event data ...
............................................... 9-19
Registering your vehicle in another country ...
........... 9-8
Remote keyless entry function, For Intelligent
Key system ...
.................................................................... 3-16
Remote keyless entry system ...
..................................... 3-7
Reporting safety defects ...
........................................... 9-18
Rollover ...
............................................................................ 5-6
S
Safety, Child seat belts ...
............................................. 1-20
Satellite radio operation ...
............................................ 4-39
Seat adjustment Front manual seat adjustment ...
.............................. 1-3
Front seats ...
................................................................ 1-3
Seat belt(s)
Child safety ...
............................................................ 1-20
Infants ...
...................................................................... 1-20
Injured persons ...
..................................................... 1-13
Larger children ...
...................................................... 1-21
Precautions on seat belt usage ...
........................ 1-10
Pregnant women ...
.................................................. 1-13
Rear center seat belt ...
.......................................... 1-17
Seat belt cleaning ...
................................................... 7-6
Seat belt extenders ...
.............................................. 1-19
Seat belt hooks ...
.................................................... 1-16
Seat belt maintenance ...
........................................ 1-19
Seat belt warning light ...
........................................ 2-15
Seat belts ...
............................................................... 1-10
Seat belts with pretensioners ...
........................... 1-52
Shoulder belt height adjustment ...
...................... 1-16
Small children ...
........................................................ 1-21
Condition:

Black plate (325,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
Three-point type...
................................................... 1-13
Seat(s) Heated seats ...
......................................................... 2-29
Seats ...
.......................................................................... 1-2
Security system (NISSAN Vehicle Immobilizer
System) , Engine start ...
................................................. 2-20
Security system, Vehicle security system ...
............. 2-19
Selector lever Shift lock release ...
.................................................. 5-18
Servicing air conditioner ...
............................................ 4-20
Shift lock release Transmission ...
.......................................................... 5-18
Shifting CVT (Continuously
Variable Transmission) ...
............................... 5-8, 5-15
Manual transmission ...
................................... 5-9, 5-19
Shoulder belt height adjustment, For
front seats ...
..................................................................... 1-16
SOURCE select switch ...
............................................. 4-47
Spare tire ...
.............................................................. 8-38, 9-7
Spark plugs ...
.................................................................. 8-16
Speedometer ...
.................................................................. 2-5
Starting Before starting the engine ...
................................. 5-12
Jump starting ...
......................................................... 6-10
Precautions when starting and driving ...
.............. 5-2
Push starting ...
......................................................... 6-12
Starting the engine ...
.............................................. 5-13
Status light, Front passenger air bag ...
.................... 1-48
Steering Electric power steering system ...
........................ 5-26
Steering wheel switch for audio controls ...
...... 4-47
Tilting steering column ...
........................................ 3-23
Storage ...
.......................................................................... 2-31
Sun visors ...
..................................................................... 3-24
Supplemental air bag warning labels ...
..................... 1-53
Supplemental air bag warning light ...
............ 1-54, 2-15 Supplemental restraint system
...
................................. 1-40
Precautions on supplemental
restraint system ...
..................................................... 1-40
Switch Audio control steering wheel switch ...
............... 4-47
Autolight switch ...
.................................................... 2-25
Fog light switch ...
.................................................... 2-28
Hazard warning flasher switch ...
............................. 6-2
Headlight switch ...
................................................... 2-24
Overdrive OFF switch ...
......................................... 5-17
Power door lock switch ...
......................................... 3-5
Rear window and outside mirror
defroster switch ...
.................................................... 2-24
Turn signal switch ...
................................................ 2-27
Vehicle dynamic control (VDC) off switch ...
..... 2-28
System setup ...
................................................................. 4-7
T
Tachometer ...
..................................................................... 2-7
Temperature display ...
...................................................... 2-9
Temperature gauge, Engine coolant
temperature gauge ...
........................................................ 2-7
Theft (NISSAN Vehicle Immobilizer System) ,
Engine start ...
................................................................... 2-20
Three-way catalyst ...
........................................................ 5-3
Tilt steering column ...
.................................................... 3-23
Tire pressure, Low tire pressure warning light ...
.... 2-14
Tires Flat tire ...
....................................................................... 6-3
Low tire pressure warning system ...
...................... 5-3
Tire and Loading information label ...
....... 8-31, 9-10
Tire chains ...
.............................................................. 8-35
Tire dressing ...
............................................................. 7-4
Tire pressure ...
......................................................... 8-30
Tire pressure monitoring
system (TPMS) ...
............................................... 5-3, 6-3 Tire rotation
...
............................................................ 8-36
Types of tires ...
......................................................... 8-35
Uniform tire quality grading ...
............................... 9-16
Wheel/tire size ...
......................................................... 9-7
Wheels and tires ...
.................................................. 8-30
Touch screen ...
.................................................................. 4-3
Towing Flat towing ...
............................................................. 9-16
Tow truck towing ...
.................................................. 6-14
Towing a trailer ...
..................................................... 9-15
TPMS, Tire pressure monitoring system ...
................. 5-3
TPMS, Tire pressure warning system ...
...................... 6-3
Traffic info setup ...
............................................................ 4-9
Trailer towing ...
................................................................ 9-15
Transmission Continuously Variable Transmission
(CVT) fluid ...
.............................................................. 8-11
Driving with CVT (Continuously
Variable Transmission) ...
............................... 5-8, 5-15
Driving with manual transmission ...
............ 5-9, 5-19
Transmission selector lever lock release ...
........ 5-18
Transmitter (See remote keyless entry system) ...
.... 3-7
Transmitter, With Intelligent Key system
(See Intelligent Key system) ...
..................................... 3-16
Traveling or registering your vehicle in
another country ...
.............................................................. 9-8
Trip computer ...
................................................................. 2-9
Turn signal switch ...
....................................................... 2-27
U
Underbody cleaning ...
..................................................... 7-3
Uniform tire quality grading ...
...................................... 9-16
USB memory operation ...
............................................. 4-42
10-5
Condition:
