2013 NISSAN ARMADA audio

TABLe Of cOnTenTS
Ess Ential i nformation
Loose fuel cap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . 2
Tire Pressure Monitoring System (TPMS) ...........................2
first DrivE fEatur Es
ni SSAn intelligent k ey
® System (if so equipped) ....................3
Power Liftgate Release (if so equipped) ............................3
Power front Seat Adjustments (if so equipped) ......................4
2nd Row Seat Adjustments (if so equipped) ........................ 4
3rd Row Power f olding Seats (if so equipped) ...................... 5
Automatic drive Positioner (if so equipped) ......................... 5
Outside Mirror control Switch .................................... 6
Starting/Stopping the engine (ni SSAn intelligent key
® models only -
if so equipped) ................................................. 6
Headlight control Switch ........................................ 6
Windshield Wiper/Washer Switch ................................. 7
Automatic climate controls ...................................... 8
f M/AM/SiriusXM
™ Satellite Radio with cd/ dVd Player (if so equipped) ....9
u SB/iPod® interface ........................................... 10
cruise control ................................................ 10
Power Outlets ................................................ 11
fuel-filler door ............................................... 11
s yst Em GuiDE
Vehicle information display ...................................... 12
Bluetooth
® Hands-free Phone System ............................. 12
System Operating Tips ....................................... 12
Bluetooth
® System without navigation (if so equipped) ............ 13
Bluetooth® System with navigation (if so equipped) ...............15
navigation System (if so equipped) ...............................17
HomeLink
® universal Transceiver (if so equipped) ...................18
• A cellular telephone should not be used for any purpose while
driving so full attention may be given to vehicle operation.
• Always wear your seat belt.
• Supplemental air bags do not replace proper seat belt usage.
• Children 12 and under should always ride in the rear seat
properly secured in child restraints or seat belts according to
their age and weight.
• Do not drink and drive.
f or more information, refer to the “safety –– seats, seat belts and
supplemental restraint system (section 1)”, “monitor, climate, audio,
phone and voice recognition systems (section 4)” and the “starting
and driving (section 5)” of your Owner’s Manual.
Additional information about your vehicle is also available in your Owner’s Manual, navigation System Owner’s Manual and at www.nissanusa.com.
To view detailed
instructional videos, go to
www.nissanownersinfo.mobi/2013/armada or snap this barcode with an appropriate barcode reader.

fm/am /siriusX m™* satE llitE raD io With CD/DvD PlayE r
(if so equipped)
01 VOLUME/ON•OFF CONTROL KNOB
Press the VOL/ON•OFF control knob to turn the system on or off.

Turn the knob right or left to increase or decrease the volume.
02 tun
E/folDE r/au Dio Control knoB
To manually tune the radio, turn the tunE/fol DEr/auDio knob left or right.
03 s
EE k/C at an D tra Ck Buttons
To scan quickly and stop at the previous or next broadcast station, press the sEEk /Cat
button or the tra Ck button.

f or SiriusXM™ satellite radio, press the sEEk /Cat button or the tra Ck button to
switch to the first channel of the previous or next category.

To change tracks on a cd, press the sEEk /Cat button or the tra Ck button.

To fast forward or rewind a track on a cd, press and hold the sEEk /Cat button or
the tra Ck button.
02
0306
05
01
0404
9
07 air r
ECirCulation B utton

Press the air recirculation button
to recirculate air inside the vehicle. The indicator

light on the button will illuminate. This system is used to avoid outside odors and helps to
adjust the inside vehicle temperature more effectively.

Press the air recirculation button
again to turn air recirculation off. This allows outside

air to be drawn into the passenger compartment to prevent fogging in def\
rost, floor or
defrost/floor modes.

The air recirculation mode can only be selected if the air flow control\
mode is in the
or
position.
08 a/C B
utton

Press the a/C button to manually turn the A/c on or off.
09 off B
utton

Press the off button to turn the climate control system off.
for more information, refer to the “instruments and controls (section 2)” and the “monitor, climate, audio, phone and voice
recognition systems (section 4)” of your Owner’s Manual.
*SiriusXM™ Satellite Radio is only available on vehicles equipped with optional Siri\
usXM™ satellite subscription service.
To view detailed in\fstructional videos\f regarding these a\fnd other features\f \fplease go to www.nissanownersin\Sfo.mobi

WinDshiEl D WiPEr/W ashEr sW itCh
Demonstrate yes
f RO nT W indSHieL d W iPeR A nd WASHeR
01 mist
(one sweep) function
02 intermittent
(int) wiper function
03 Time delay adjustment ring
04 Low
(lo) speed wiper function
05 High
(hi) speed wiper function 06 front washer function
Re
AR W indSHieL d W iPeR A nd WASHeR
(if so equipped)
07 intermittent
(int) wiper function
08 on wiper function
09 Rear washer function
0301
02
04
05
mist
off
int
lo
hi
06
09
int
on07
08
AUDIO S\fSTEM
Demons\bra\be \fes
1. \bow to tune to the \fnext broadcast sta\ftion and skip

to the next catego\fry (if so equipped)\f or CD track
2. \bow to store a radi\fo station in a pre\fset

3. \bow to scan the bro\fadcast stations

BlUETOOTh® hAnDS-frEE PhOnE S \fSTEM
\fe s
1. Connect the custome\fr’s phone


2. Explain voice tagg\fing


3. Identify microphone\f location


4. Explain how to dia\fl a number


5. Explain how to rec\feive and end a cal\fl


hEATIng, VEnTIlATIOn AnD AIr COnDITIOnIng
Demons\bra\be \fes
1. AUTO mode and DUAl mode

2. Fan Speed control

3. Mode control

4. A/C function

5. Defrost and Defog o\fperation
(include recircula\ftion button)

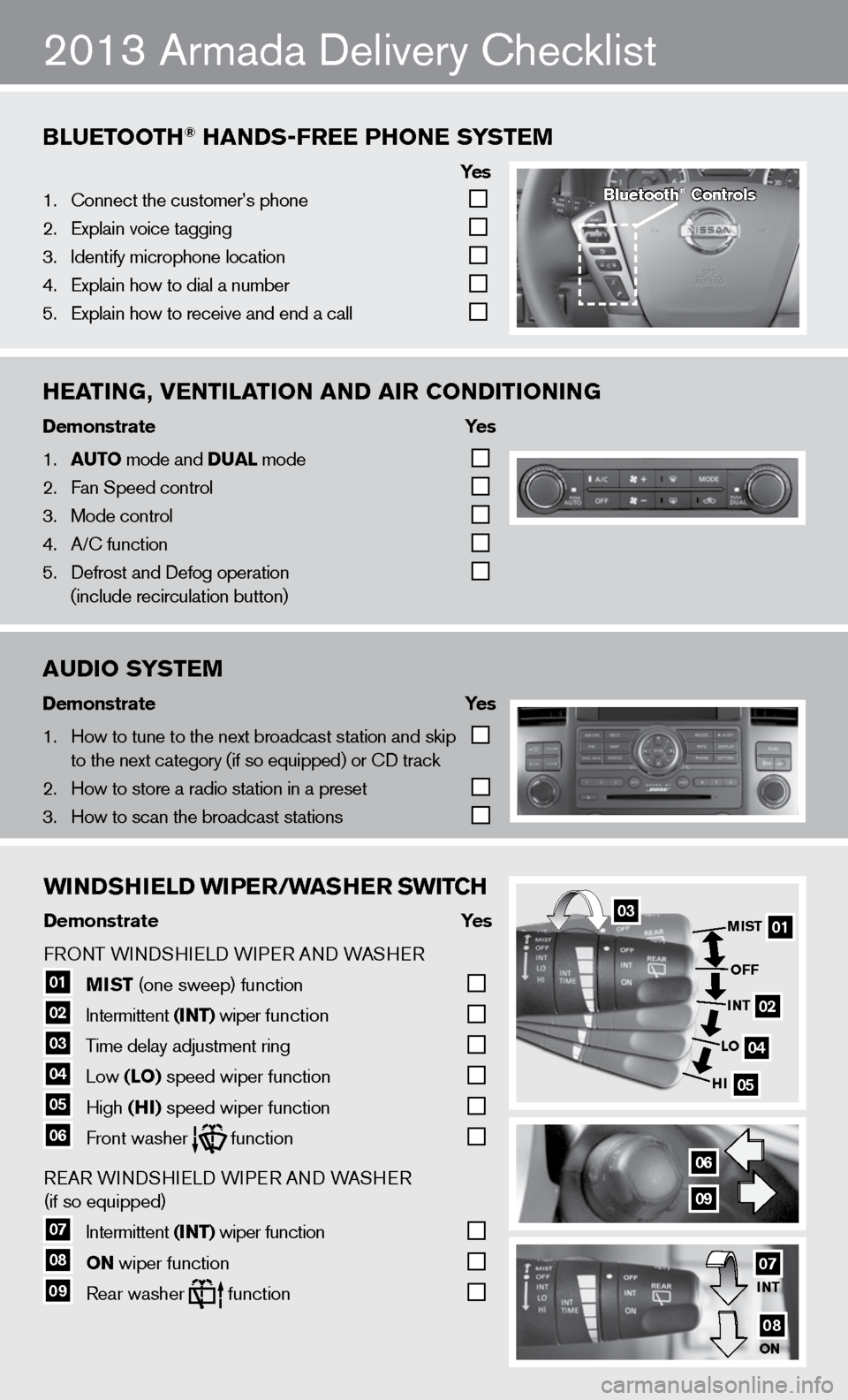

2013 Armada delivery checklist
Blue\boo\bh® Con\brols

10
first drive features
To view detailed in\fstructional videos\f regarding these a\fnd other features\f \fplease go to www.nissanownersin\Sfo.mobi
04 station Pr
Es Et B uttons

Twelve stations can be set for the FM band, six for the AM band and eighteen for SiriusXM
satellite radio.

To store a station in a preset, you must first select a radio band by pressing the \
am /fm
button

05 or
Xm button
06 , then tune to the desired AM, f
M or SiriusXM satellite station.

Then press and hold the desired station preset button (1-6) until the preset number is
updated on the display and the sound is briefly muted. The channel indicator will then
come on and the sound will resume. Programming is now complete.

To retrieve a previously set station, select the radio band where the preset was stored
then press the corresponding station select button (1-6).
for more information, refer to the “monitor, climate, audio, phone and voice recognition systems (section 4)” of your
Owner’s Manual.
Cruis E Control
The cruise control system enables you to set a constant
cruising speed once the vehicle has reached 25 mph.

The system will automatically maintain the set speed
until you tap the brake pedal, accelerate, cancel or
turn the system off.

To activate the cruise control, push the on /off
switch

01 . The C
ruisE indicator light in the
vehicle information display will illuminate.

To set cruising speed, accelerate the vehicle to the
desired speed, push the Coast/ sEt switch

02
and release. The s
Et indicator light in the vehicle information display will illuminate. Take
your foot off the accelerator pedal. Your vehicle will maintain the set speed.

To reset at a faster cruising speed, push and hold the a CCEl/rEs switch
03 . When the
vehicle attains the desired speed, release the switch.
04
03
02
01
usB/iPo D® intE rfa CE
The u SB input jack
01 is located in the center
console under the arm rest.

When a compatible u SB memory device or iPod® is
plugged into the u SB jack, compatible audio files
stored on the device can be played through the
vehicle’s audio system and front display.
for more information, refer to the “monitor, climate, audio, phone and
voice recognition systems (section 4)” of your Owner’s Manual.01

vEhiClE information D isPlay
The vehicle information display
01 is located to the
left of the speedometer.

Press the vehicle information display info button

02 located on the instrument panel to toggle through
the following modes:
• mPG – displays the instant fuel economy since
the last reset.
• ran GE – displays the estimated distance the
vehicle can be driven before refueling.
• Warnin G (if there are any)

To highlight the desired menu option within the
selected mode, turn the info button.

To enter the highlighted menu, press the info button.

f or more information, refer to the “instruments and controls (section 2)” of your Owner’s Manual.
01
02
B lu Etooth® han Ds-fr EE Phon E systEm
With an overhead microphone and sound transmitted
through the audio system speakers, the Bluetooth®
Hands-free Phone System utilizes Bluetooth wireless
technology and voice recognition to provide hands-
free cellular phone communication.

Bluetooth Streaming Audio (available with navigation
System only) allows you to use a compatible Bluetooth
phone to play audio files on your device. Your
compatible cellular phone can be connected to the
vehicle’s audio system allowing audio files to play
through the vehicle’s speakers.

A cellular telephone should not be used while driving
so full attention may be given to vehicle operation.*
SYSTe M OPeRATin G TiPS

close all windows. Surrounding noises may interfere
with system operation and performance.

Press the
or
button on the steering wheel to
activate voice recognition.

Wait for the tone before speaking.

Begin speaking a command within 5 seconds of the tone.
Bluetooth® Controls
microphone
system guide
12To view detailed in\fstructional videos\f regarding these a\fnd other features\f \fplease go to www.nissanownersin\Sfo.mobi
*Some jurisdictions prohibit the use of cellular telephones while drivin\
g.

13To view detailed in\fstructional videos\f regarding these a\fnd other features\f \fplease go to www.nissanownersin\Sfo.mobi
Speak in a clear and natural voice without pausing between words.

Look straight ahead and avoid speaking too loudly or too softly.

To go back to the previous command, say “Go back” or “correction”.

To cancel a voice recognition session, simply wait 5 seconds or say “cancel” or “Quit”.

To interrupt the system voice and give a command quickly, press the
or
button on the

steering wheel.

When speaking Phonebook names, please be aware some phones require the la\
st name to be
spoken before the first name. For example, “Michael Smith” may be spoken as “Smith Michael”.

To increase or decrease the volume of the voice prompts, push the volume \
control switches
on the steering wheel down

or up
or turn the VOL/ON•OFF control knob on the audio

system while the system is responding.

Voice commands (if so equipped) can be used to operate various Bluetoot\
h System features.
See your Owner’s Manual for detailed information.

if the Voice Recognition system does not recognize your voice commands, train th\
e system
using the Speaker Adaptation Mode.

Some commands are not available while the vehicle is in motion.

The “Help” command can be used to hear a list of available commands\
at any time.

Please refer to the cellular phone manufacturer’s Owner’s Manual f\
or detailed information
regarding your Bluetooth phone.

f or recommended phones and detailed instructions, please visit
www.nissanusa.com/bluetooth.

Bluetooth system without navigation* (if so equipped)
PAiR inG PROcedu Re
n OTe: The vehicle must be stationery when pairing the
phone.
1. Press the

button on the steering wheel. The
system announces the available commands.
2. Say: “Setup”. The system acknowledges the
command and announces the next set of available
commands.
3. Say: “Pair phone”. The system acknowledges the
command and announces the next set of available commands.
4. Say: “new phone”. The system acknowledges the command and asks you to initiate pairing
from the phone handset.
5. initiate connecting from the phone.
• The pairing procedure varies according to each cellular phone model. For detailed pairing
instructions and a list of compatible phones, please visit www.nissanusa.com/bluetooth.
• When prompted for a PASSKEY code, enter “1234” from the handset. (The PASSKEY
code is assigned by ni SSAn and cannot be changed.)
*Some jurisdictions prohibit the use of cellular telephones while drivin\
g.

15To view detailed in\fstructional videos\f regarding these a\fnd other features\f \fplease go to www.nissanownersin\Sfo.mobi
3. When you have finished speaking the phone number, wait for the system to repeat it back
to you, then say “dial”.
ReceiVin G/endin G A cALL
When you receive a phone call, a ring tone sounds through the audio syste\
m.

To accept the call, press the
button.

To reject the call, press the button.

To hang up the phone at the end of a call or to disconnect during call pl\
acement, press
the
button.
Bluetooth system with navigation* (if so equipped)
cOnnec TinG PROcedu Re
n OTe: The vehicle must be stationary when connecting
the phone.
1. Press the s EttinG button on the instrument panel
and select the “Bluetooth” key on the display.
2. Select the “connect Bluetooth” key.
3. A popup box will appear on the screen, prompting
you to confirm that the connection is for the phone
system. Select the “Yes” key.
*Some jurisdictions prohibit the use of cellular telephones while drivin\
g.

naviGation systE m (if so equipped)
Your navigation System can calculate a route from the current location to a pr\
eferred destination.
The real-time map display and turn-by-turn voice guidance will lead you a\
long the route.

The navigation System will continually update your vehicle’s position. if you have deviated
from the original route, it will recalculate the route from your current\
location.

01 Touch screen display


02 destination (DEst
) – Press to enter a destination.

03 routE – Press to access guidance control functions (guidance cancellation\
, route

priority, waypoint setting on the route, etc.).
17To view detailed in\fstructional videos\f regarding these a\fnd other features\f \fplease go to www.nissanownersin\Sfo.mobi
ReceiVin G/endin G A cALL

To accept the call, press the Phon E button on the
instrument panel, the
button on the steering
wheel or touch the “Answer” key.

To reject a call, touch the “Reject call” key on the
display or press and hold the

button on the
steering wheel.

To hang-up, press the
button or touch the
“Hang-up” key.
for more information, refer to the “monitor, climate, audio, phone and
voice recognition systems (section 4)” of your Owner’s Manual or
visit www.nissanusa.com/bluetooth.
01
03
05
06
0708
10
1112
0204
09
