2013 NISSAN ALTIMA Owners Manual

Clock Mode
Select the mode for the clock. “Auto” uses the
system’s GPS to automatically maintain the time.
“Manual” allows you to set the clock using the
“Set Clock Manually” key. “Time Zone” maintains
the time based upon the zone selected when
selecting the “Time Zone” key.Set Clock Manually
When this setting is activated, the clock can be
set manually. Touch the “+” or “-” keys to adjust
the hours, minutes, day, month and year up or
down. “Clock Mode” must be set to “Manual” for
this option to be available.
Daylight Savings Time
When this setting is activated, daylight savings
time is on. Touch the “Daylight Savings Time” key
to toggle the setting on or off.
Time Zone
Choose the applicable time zone from the list.Language:
Select the “Language” key to adjust the language
used by the system. The language can be set to
English, Français or Español.
Touchscreen click:
Select the “Touchscreen Click” key to toggle the
touchscreen click feature on or off. When acti-
vated, a click sound will be heard every time a key
on the screen is touched.
System Beeps:
Select the “System Beeps” key to toggle the
system beep tones feature on or off. When acti-
vated, a beep sound will be heard when a pop-up
LHA2251LHA2252
4-10Monitor, climate, audio, phone and voice recognition systems

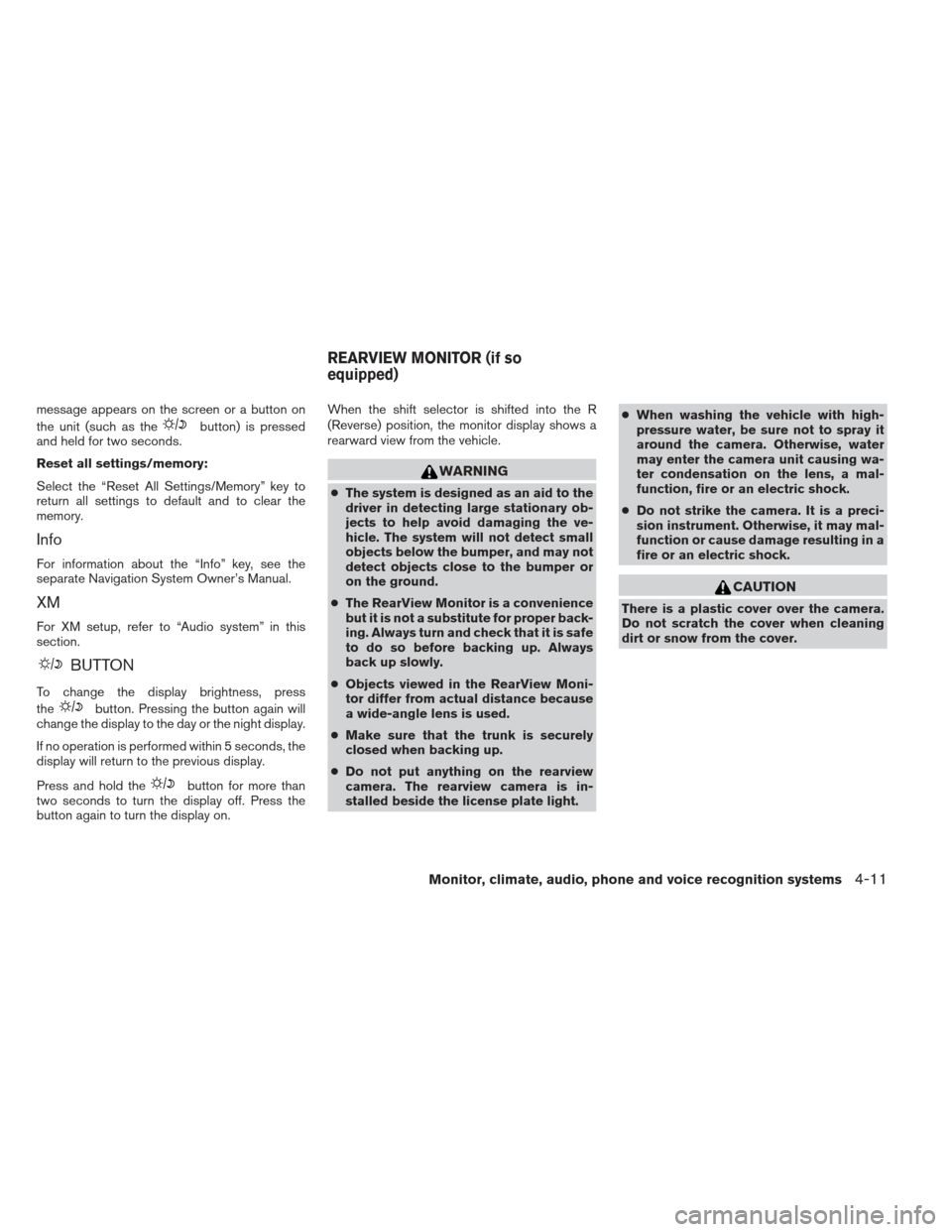

message appears on the screen or a button on
the unit (such as the
button) is pressed
and held for two seconds.
Reset all settings/memory:
Select the “Reset All Settings/Memory” key to
return all settings to default and to clear the
memory.
Info
For information about the “Info” key, see the
separate Navigation System Owner’s Manual.
XM
For XM setup, refer to “Audio system” in this
section.
BUTTON
To change the display brightness, press
the
button. Pressing the button again will
change the display to the day or the night display.
If no operation is performed within 5 seconds, the
display will return to the previous display.
Press and hold the
button for more than
two seconds to turn the display off. Press the
button again to turn the display on. When the shift selector is shifted into the R
(Reverse) position, the monitor display shows a
rearward view from the vehicle.
WARNING
●
The system is designed as an aid to the
driver in detecting large stationary ob-
jects to help avoid damaging the ve-
hicle. The system will not detect small
objects below the bumper, and may not
detect objects close to the bumper or
on the ground.
● The RearView Monitor is a convenience
but it is not a substitute for proper back-
ing. Always turn and check that it is safe
to do so before backing up. Always
back up slowly.
● Objects viewed in the RearView Moni-
tor differ from actual distance because
a wide-angle lens is used.
● Make sure that the trunk is securely
closed when backing up.
● Do not put anything on the rearview
camera. The rearview camera is in-
stalled beside the license plate light. ●
When washing the vehicle with high-
pressure water, be sure not to spray it
around the camera. Otherwise, water
may enter the camera unit causing wa-
ter condensation on the lens, a mal-
function, fire or an electric shock.
● Do not strike the camera. It is a preci-
sion instrument. Otherwise, it may mal-
function or cause damage resulting in a
fire or an electric shock.
CAUTION
There is a plastic cover over the camera.
Do not scratch the cover when cleaning
dirt or snow from the cover.
REARVIEW MONITOR (if so
equipped)
Monitor, climate, audio, phone and voice recognition systems4-11

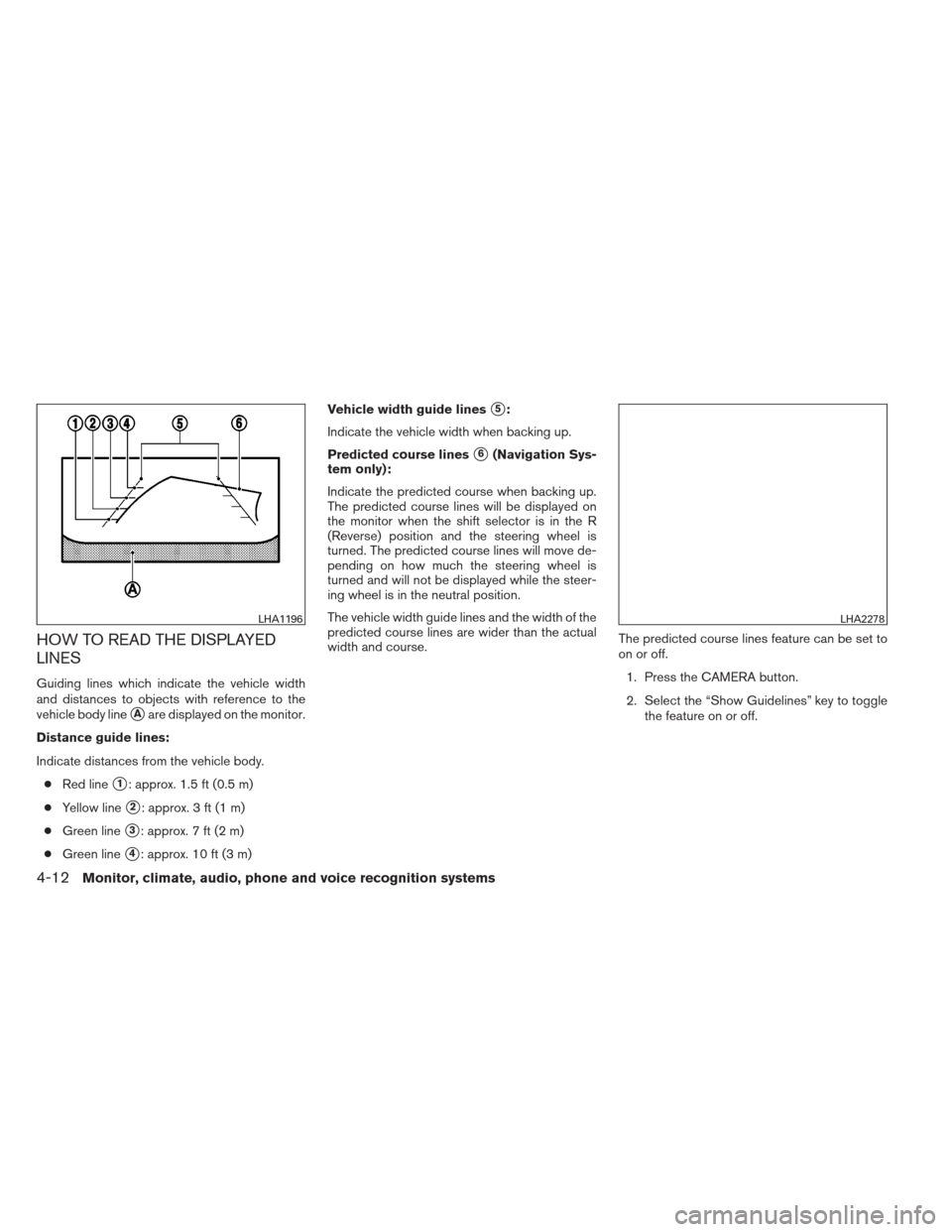

HOW TO READ THE DISPLAYED
LINES
Guiding lines which indicate the vehicle width
and distances to objects with reference to the
vehicle body line
Aare displayed on the monitor.
Distance guide lines:
Indicate distances from the vehicle body. ● Red line
1: approx. 1.5 ft (0.5 m)
● Yellow line
2: approx. 3 ft (1 m)
● Green line
3: approx. 7 ft (2 m)
● Green line
4: approx. 10 ft (3 m) Vehicle width guide lines
5:
Indicate the vehicle width when backing up.
Predicted course lines
6(Navigation Sys-
tem only):
Indicate the predicted course when backing up.
The predicted course lines will be displayed on
the monitor when the shift selector is in the R
(Reverse) position and the steering wheel is
turned. The predicted course lines will move de-
pending on how much the steering wheel is
turned and will not be displayed while the steer-
ing wheel is in the neutral position.
The vehicle width guide lines and the width of the
predicted course lines are wider than the actual
width and course. The predicted course lines feature can be set to
on or off.
1. Press the CAMERA button.
2. Select the “Show Guidelines” key to toggle the feature on or off.
LHA1196LHA2278
4-12Monitor, climate, audio, phone and voice recognition systems

HOW TO PARK WITH PREDICTED
COURSE LINES (Navigation System
only)
WARNING
●Always turn and check that it is safe to
do so before backing up. Always back
up slowly.
● Use the displayed lines as a reference.
The lines are highly affected by the
number of occupants, fuel level, vehicle
position, road conditions and road
grade.
● If the tires are replaced with different
sized tires, the predicted course lines
may be displayed incorrectly.
● On a snow-covered or slippery road,
there may be a difference between the
predicted course line and the actual
course line.
● If the battery is disconnected or be-
comes discharged, the predicted
course lines may be displayed incor-
rectly. If this occurs, please perform the
following procedures:
– Turn the steering wheel from lock to lock while the engine is running. – Drive the vehicle on a straight road
for more than 5 minutes.
● When the steering wheel is turned with
the ignition switch in the ACC position,
the predicted course lines may be dis-
played incorrectly.
● The distance guide line and the vehicle
width line should be used as a refer-
ence only when the vehicle is on a level
paved surface. The distance viewed on
the monitor is for reference only and
may be different than the actual dis-
tance between the vehicle and dis-
played objects.
● When backing up the vehicle up a hill,
objects viewed in the monitor are fur-
ther than they appear. When backing up
the vehicle down a hill, objects viewed
in the monitor are closer than they ap-
pear. Use the inside mirror or glance
over your shoulder to properly judge
distances to other objects.
The vehicle width and predicted course
lines are wider than the actual width and
course. 1. Visually check that the parking space is safe
before parking your vehicle.
2. The rear view of the vehicle is displayed on the screen
Awhen the shift selector is
moved to the R (Reverse) position.
LHA1197
Monitor, climate, audio, phone and voice recognition systems4-13

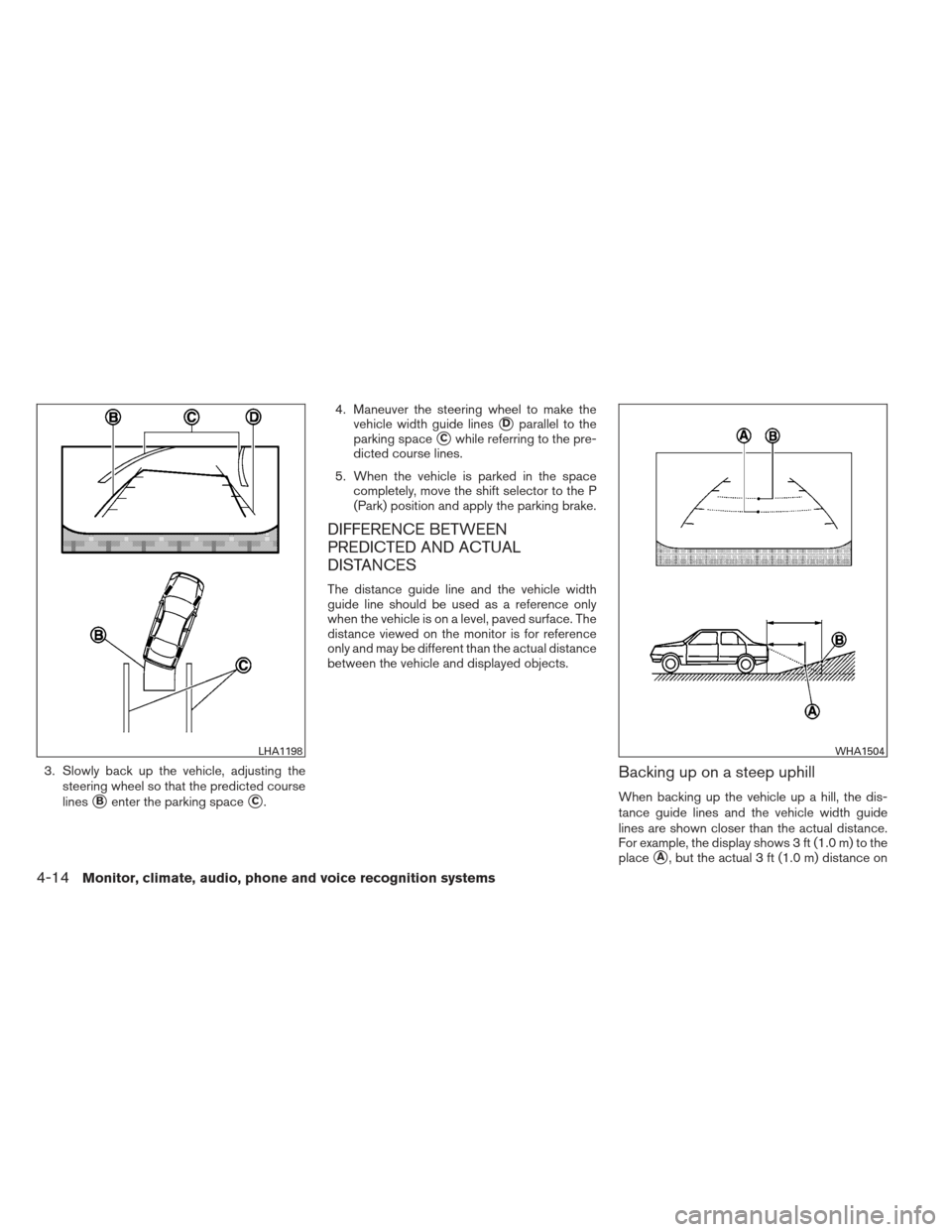

3. Slowly back up the vehicle, adjusting thesteering wheel so that the predicted course
lines
Benter the parking spaceC. 4. Maneuver the steering wheel to make the
vehicle width guide lines
Dparallel to the
parking space
Cwhile referring to the pre-
dicted course lines.
5. When the vehicle is parked in the space completely, move the shift selector to the P
(Park) position and apply the parking brake.
DIFFERENCE BETWEEN
PREDICTED AND ACTUAL
DISTANCES
The distance guide line and the vehicle width
guide line should be used as a reference only
when the vehicle is on a level, paved surface. The
distance viewed on the monitor is for reference
only and may be different than the actual distance
between the vehicle and displayed objects.
Backing up on a steep uphill
When backing up the vehicle up a hill, the dis-
tance guide lines and the vehicle width guide
lines are shown closer than the actual distance.
For example, the display shows 3 ft (1.0 m) to the
place
A, but the actual 3 ft (1.0 m) distance on
LHA1198WHA1504
4-14Monitor, climate, audio, phone and voice recognition systems

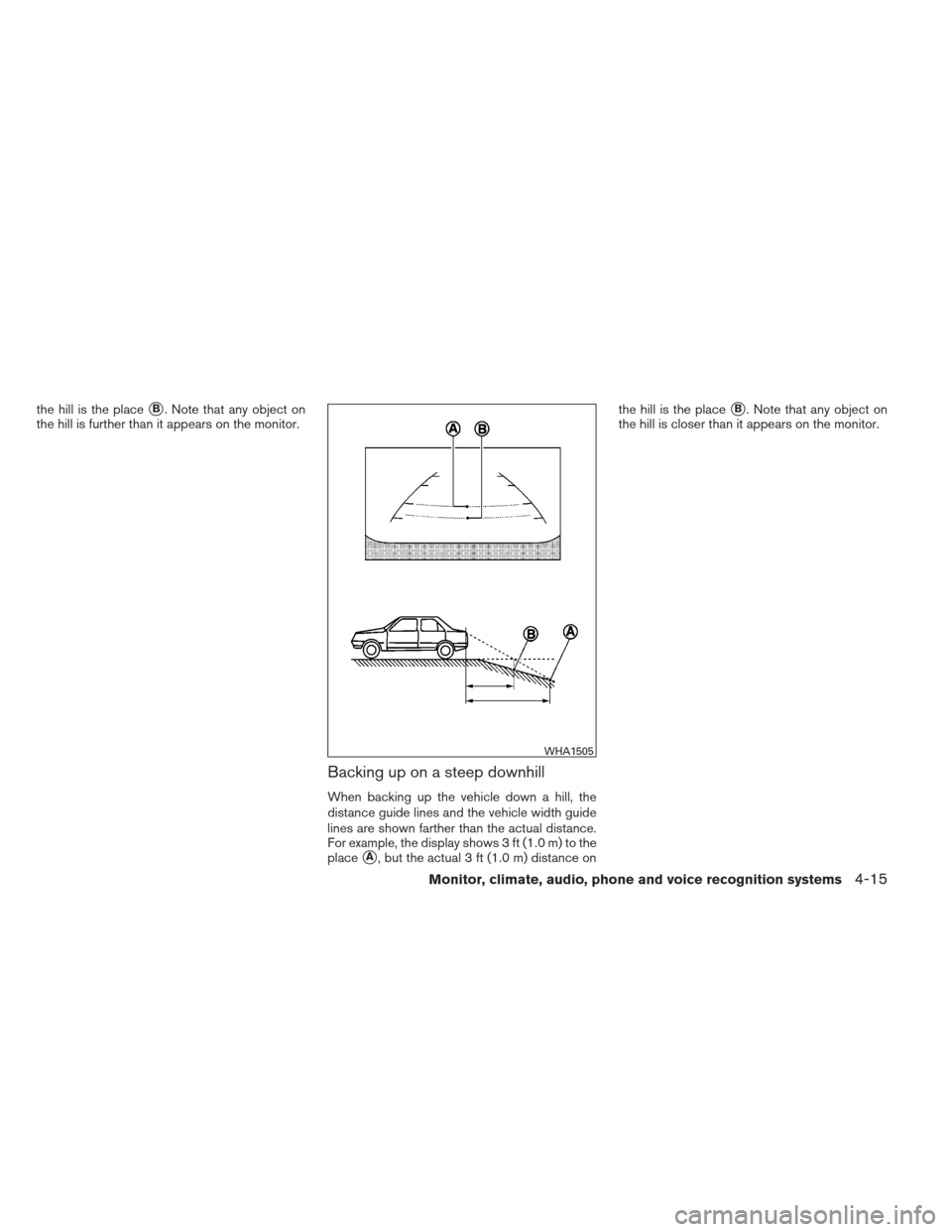

the hill is the placeB. Note that any object on
the hill is further than it appears on the monitor.
Backing up on a steep downhill
When backing up the vehicle down a hill, the
distance guide lines and the vehicle width guide
lines are shown farther than the actual distance.
For example, the display shows 3 ft (1.0 m) to the
place
A, but the actual 3 ft (1.0 m) distance on the hill is the place
B. Note that any object on
the hill is closer than it appears on the monitor.
WHA1505
Monitor, climate, audio, phone and voice recognition systems4-15

Backing up near a projecting object
The predicted course linesAdo not touch the
object in the display. However, the vehicle may hit
the object if it projects over the actual backing up
course.
Backing up behind a projecting object
The positionCis shown farther than the position
Bin the display. However, the positionCis
actually at the same distance as the position
A.
The vehicle may hit the object when backing up to the position
Aif the object projects over the
actual backing up course.
MOVING OBJECT DETECTION
(MOD) (if so equipped)
The Moving Object Detection (MOD) system can
inform the driver of moving objects when driving
out of garages, maneuvering into parking lots and
in other such instances.
The MOD system detects moving objects by
using image processing technology on the image
shown in the display.
When the shift selector is in the R (Reverse)
position and the vehicle speed is approximately
5 MPH (8 km/h) or less, the MOD system detects
moving objects in the rearview or rear-wide view.
The MOD system will not operate if the trunk is
open.
LHA1201WHA1506
4-16Monitor, climate, audio, phone and voice recognition systems

WARNING
●The MOD system is not a substitute for
proper vehicle operation and does not
prevent contact with the objects sur-
rounding the vehicle. When maneuver-
ing, always use the outside mirror and
rear view mirror and turn and look to
check the surroundings to make sure it
is safe to maneuver.
● The MOD system is not designed to
detect surrounding stationary objects.
If the MOD system detects moving objects sur-
rounding the vehicle, a yellow frame will be dis-
played on the camera image and a chime sounds.
When the MOD system detects a moving object
surrounding the vehicle, the yellow frame will be
displayed on the view where the objects are
detected and a chime will sound once. While the
MOD system continues to detect moving ob-
jects, the yellow frame continues to be displayed. Turning the MOD system on or off
The MOD system is turned on or off using the
settings menu in the vehicle information display.
A blue MOD icon is displayed in the view where
the MOD system is operative.
A gray MOD icon is displayed in the view where
the MOD system is not operative.
1. Press the
button until “Settings” dis-
plays in the vehicle information display. Use
the
to select “Driver Assistance”.
Then press the ENTER button. 2. Select “Parking Aids”, and press the ENTER
button.
3. To set the MOD system to on or off, use the
buttons to navigate in the menu
and use the ENTER button to select or
change an item:
● To turn off the warning, use the ENTER
button to check box for “Moving Object”
If the MOD system is turned off, the MOD icon is
not displayed.
MOD malfunction
WARNING
● Do not use the MOD system when tow-
ing a trailer. The system may not func-
tion properly.
● Excessive noise (for example, audio
system volume or open vehicle window)
will interfere with the chime sound, and
it may not be heard.
● The MOD system performance will be
limited according to environmental
conditions and surrounding objects
such as:
– When there is low contrast between background and the moving objects.
MOD icon
LSD2112
Monitor, climate, audio, phone and voice recognition systems4-17
