2013 NISSAN 370Z ROADSTER bluetooth

Black plate (253,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]

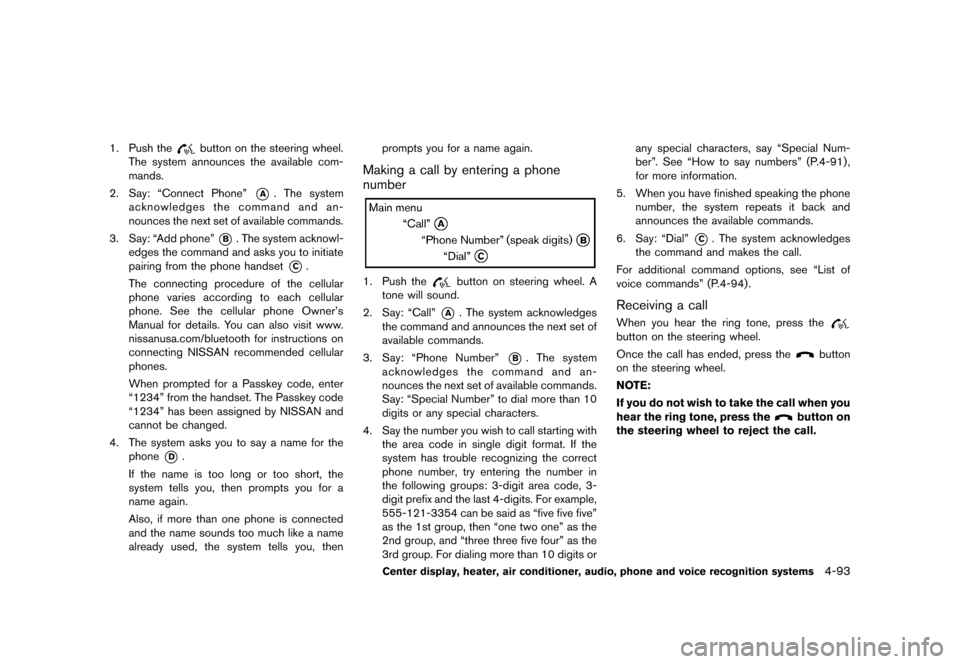

1. Push thebutton on the steering wheel.
The system announces the available com-
mands.
2. Say: “Connect Phone”
*A. The system
acknowledges the command and an-
nounces the next set of available commands.
3. Say: “Add phone”
*B. The system acknowl-
edges the command and asks you to initiate
pairing from the phone handset
*C.
The connecting procedure of the cellular
phone varies according to each cellular
phone. See the cellular phone Owner’s
Manual for details. You can also visit www.
nissanusa.com/bluetooth for instructions on
connecting NISSAN recommended cellular
phones.
When prompted for a Passkey code, enter
“1234” from the handset. The Passkey code
“1234” has been assigned by NISSAN and
cannot be changed.
4. The system asks you to say a name for the phone
*D.
If the name is too long or too short, the
system tells you, then prompts you for a
name again.
Also, if more than one phone is connected
and the name sounds too much like a name
already used, the system tells you, then prompts you for a name again.
Making a call by entering a phone
number
GUID-D0C149B2-170B-4DFB-BDA8-0EDA7B876E93
NOS2624
1. Push thebutton on steering wheel. A
tone will sound.
2. Say: “Call”
*A. The system acknowledges
the command and announces the next set of
available commands.
3. Say: “Phone Number”
*B. The system
acknowledges the command and an-
nounces the next set of available commands.
Say: “Special Number” to dial more than 10
digits or any special characters.
4. Say the number you wish to call starting with the area code in single digit format. If the
system has trouble recognizing the correct
phone number, try entering the number in
the following groups: 3-digit area code, 3-
digit prefix and the last 4-digits. For example,
555-121-3354 can be said as “five five five”
as the 1st group, then “one two one” as the
2nd group, and “three three five four” as the
3rd group. For dialing more than 10 digits or any special characters, say “Special Num-
ber”. See “How to say numbers” (P.4-91) ,
for more information.
5. When you have finished speaking the phone number, the system repeats it back and
announces the available commands.
6. Say: “Dial”
*C. The system acknowledges
the command and makes the call.
For additional command options, see “List of
voice commands” (P.4-94) .
Receiving a callGUID-0EF5536D-EAB9-4359-93C3-D529536737C5When you hear the ring tone, press the
button on the steering wheel.
Once the call has ended, press the
button
on the steering wheel.
NOTE:
If you do not wish to take the call when you
hear the ring tone, press the
button on
the steering wheel to reject the call.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-93

Black plate (255,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]

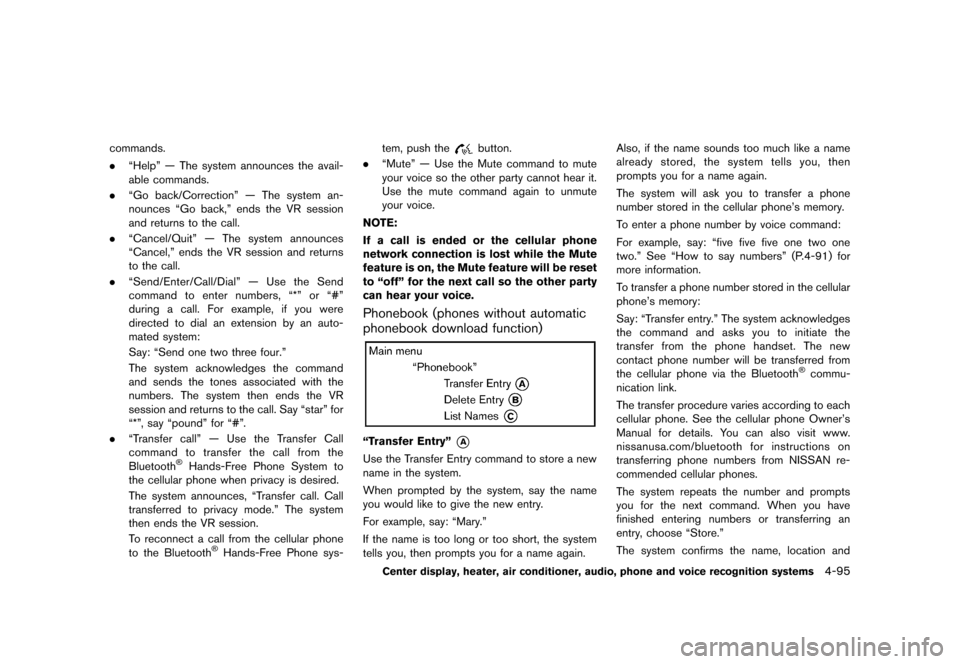

commands.
.“Help” — The system announces the avail-
able commands.
. “Go back/Correction” — The system an-
nounces “Go back,” ends the VR session
and returns to the call.
. “Cancel/Quit” — The system announces
“Cancel,” ends the VR session and returns
to the call.
. “Send/Enter/Call/Dial” — Use the Send
command to enter numbers, “*” or “#”
during a call. For example, if you were
directed to dial an extension by an auto-
mated system:
Say: “Send one two three four.”
The system acknowledges the command
and sends the tones associated with the
numbers. The system then ends the VR
session and returns to the call. Say “star” for
“*”, say “pound” for “#”.
. “Transfer call” — Use the Transfer Call
command to transfer the call from the
Bluetooth
®Hands-Free Phone System to
the cellular phone when privacy is desired.
The system announces, “Transfer call. Call
transferred to privacy mode.” The system
then ends the VR session.
To reconnect a call from the cellular phone
to the Bluetooth
®Hands-Free Phone sys- tem, push the
button.
. “Mute” — Use the Mute command to mute
your voice so the other party cannot hear it.
Use the mute command again to unmute
your voice.
NOTE:
If a call is ended or the cellular phone
network connection is lost while the Mute
feature is on, the Mute feature will be reset
to “off” for the next call so the other party
can hear your voice.
Phonebook (phones without automatic
phonebook download function)
GUID-996229DE-31BC-4E62-8B33-3121724EC090
NOS2627
“Transfer Entry”*A
Use the Transfer Entry command to store a new
name in the system.
When prompted by the system, say the name
you would like to give the new entry.
For example, say: “Mary.”
If the name is too long or too short, the system
tells you, then prompts you for a name again. Also, if the name sounds too much like a name
already stored, the system tells you, then
prompts you for a name again.
The system will ask you to transfer a phone
number stored in the cellular phone’s memory.
To enter a phone number by voice command:
For example, say: “five five five one two one
two.” See “How to say numbers” (P.4-91) for
more information.
To transfer a phone number stored in the cellular
phone’s memory:
Say: “Transfer entry.” The system acknowledges
the command and asks you to initiate the
transfer from the phone handset. The new
contact phone number will be transferred from
the cellular phone via the Bluetooth
®commu-
nication link.
The transfer procedure varies according to each
cellular phone. See the cellular phone Owner’s
Manual for details. You can also visit www.
nissanusa.com/bluetooth for instructions on
transferring phone numbers from NISSAN re-
commended cellular phones.
The system repeats the number and prompts
you for the next command. When you have
finished entering numbers or transferring an
entry, choose “Store.”
The system confirms the name, location and
Center display, heater, air conditioner, audio, phone and voice recognition systems4-95

Black plate (256,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
4-96Center display, heater, air conditioner, audio, phone and voice recognition systems

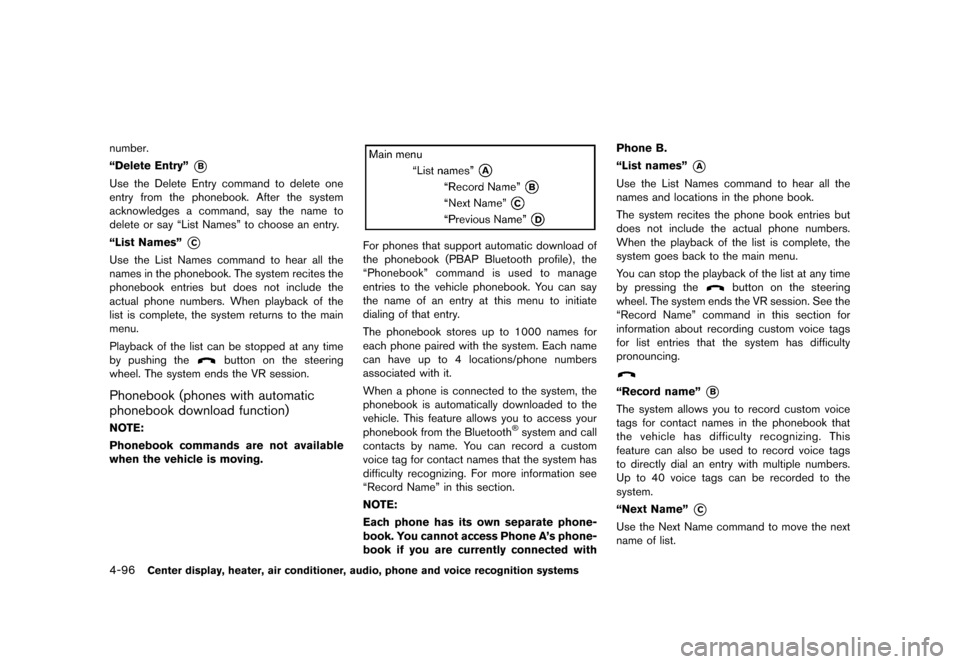

number.
“Delete Entry”
*B
Use the Delete Entry command to delete one
entry from the phonebook. After the system
acknowledges a command, say the name to
delete or say “List Names” to choose an entry.
“List Names”
*C
Use the List Names command to hear all the
names in the phonebook. The system recites the
phonebook entries but does not include the
actual phone numbers. When playback of the
list is complete, the system returns to the main
menu.
Playback of the list can be stopped at any time
by pushing the
button on the steering
wheel. The system ends the VR session.
Phonebook (phones with automatic
phonebook download function)
GUID-FA7EC8AF-D427-467B-ABA5-091555EBC080NOTE:
Phonebook commands are not available
when the vehicle is moving.
JI0200
For phones that support automatic download of
the phonebook (PBAP Bluetooth profile) , the
“Phonebook” command is used to manage
entries to the vehicle phonebook. You can say
the name of an entry at this menu to initiate
dialing of that entry.
The phonebook stores up to 1000 names for
each phone paired with the system. Each name
can have up to 4 locations/phone numbers
associated with it.
When a phone is connected to the system, the
phonebook is automatically downloaded to the
vehicle. This feature allows you to access your
phonebook from the Bluetooth
®system and call
contacts by name. You can record a custom
voice tag for contact names that the system has
difficulty recognizing. For more information see
“Record Name” in this section.
NOTE:
Each phone has its own separate phone-
book. You cannot access Phone A’s phone-
book if you are currently connected with Phone B.
“List names”
*A
Use the List Names command to hear all the
names and locations in the phone book.
The system recites the phone book entries but
does not include the actual phone numbers.
When the playback of the list is complete, the
system goes back to the main menu.
You can stop the playback of the list at any time
by pressing the
button on the steering
wheel. The system ends the VR session. See the
“Record Name” command in this section for
information about recording custom voice tags
for list entries that the system has difficulty
pronouncing.
“Record name”*B
The system allows you to record custom voice
tags for contact names in the phonebook that
the vehicle has difficulty recognizing. This
feature can also be used to record voice tags
to directly dial an entry with multiple numbers.
Up to 40 voice tags can be recorded to the
system.
“Next Name”
*C
Use the Next Name command to move the next
name of list.

Black plate (257,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]

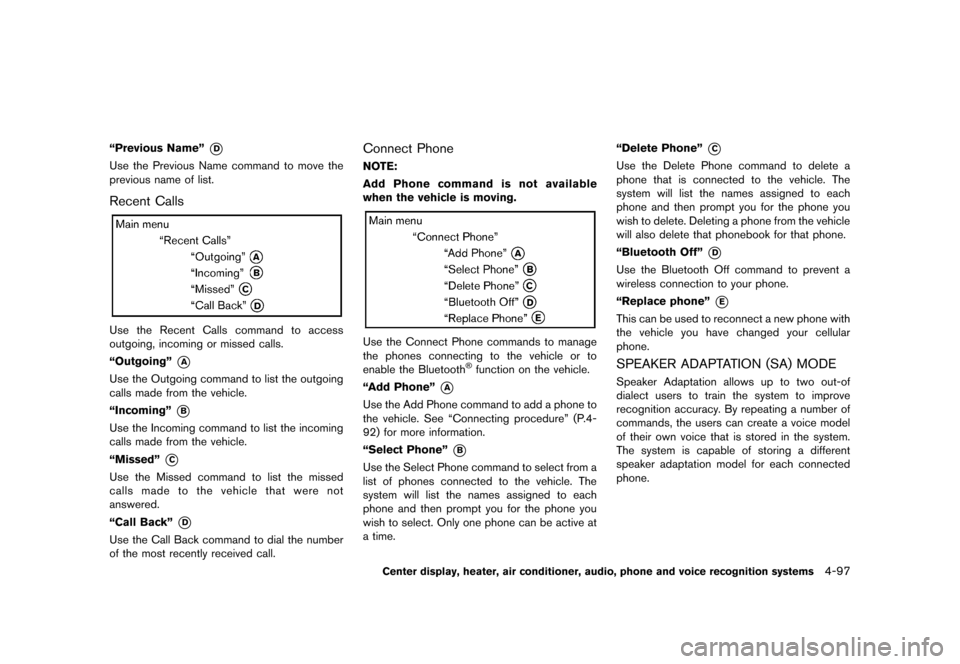

“Previous Name”*D
Use the Previous Name command to move the
previous name of list.
Recent CallsGUID-B3482FA4-8849-443C-921D-D9B3703C50C5
JI0201
Use the Recent Calls command to access
outgoing, incoming or missed calls.
“Outgoing”
*A
Use the Outgoing command to list the outgoing
calls made from the vehicle.
“Incoming”
*B
Use the Incoming command to list the incoming
calls made from the vehicle.
“Missed”
*C
Use the Missed command to list the missed
calls made to the vehicle that were not
answered.
“Call Back”
*D
Use the Call Back command to dial the number
of the most recently received call.
Connect PhoneGUID-BE1ACF6C-ED1B-4F6E-9BDC-CFEEE300F90FNOTE:
Add Phone command is not available
when the vehicle is moving.
JI0202
Use the Connect Phone commands to manage
the phones connecting to the vehicle or to
enable the Bluetooth
®function on the vehicle.
“Add Phone”
*A
Use the Add Phone command to add a phone to
the vehicle. See “Connecting procedure” (P.4-
92) for more information.
“Select Phone”
*B
Use the Select Phone command to select from a
list of phones connected to the vehicle. The
system will list the names assigned to each
phone and then prompt you for the phone you
wish to select. Only one phone can be active at
a time. “Delete Phone”
*C
Use the Delete Phone command to delete a
phone that is connected to the vehicle. The
system will list the names assigned to each
phone and then prompt you for the phone you
wish to delete. Deleting a phone from the vehicle
will also delete that phonebook for that phone.
“Bluetooth Off”
*D
Use the Bluetooth Off command to prevent a
wireless connection to your phone.
“Replace phone”
*E
This can be used to reconnect a new phone with
the vehicle you have changed your cellular
phone.
SPEAKER ADAPTATION (SA) MODEGUID-576FD252-AF0C-4EB9-9115-F746846BB23FSpeaker Adaptation allows up to two out-of
dialect users to train the system to improve
recognition accuracy. By repeating a number of
commands, the users can create a voice model
of their own voice that is stored in the system.
The system is capable of storing a different
speaker adaptation model for each connected
phone.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-97

Black plate (258,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
4-98Center display, heater, air conditioner, audio, phone and voice recognition systems

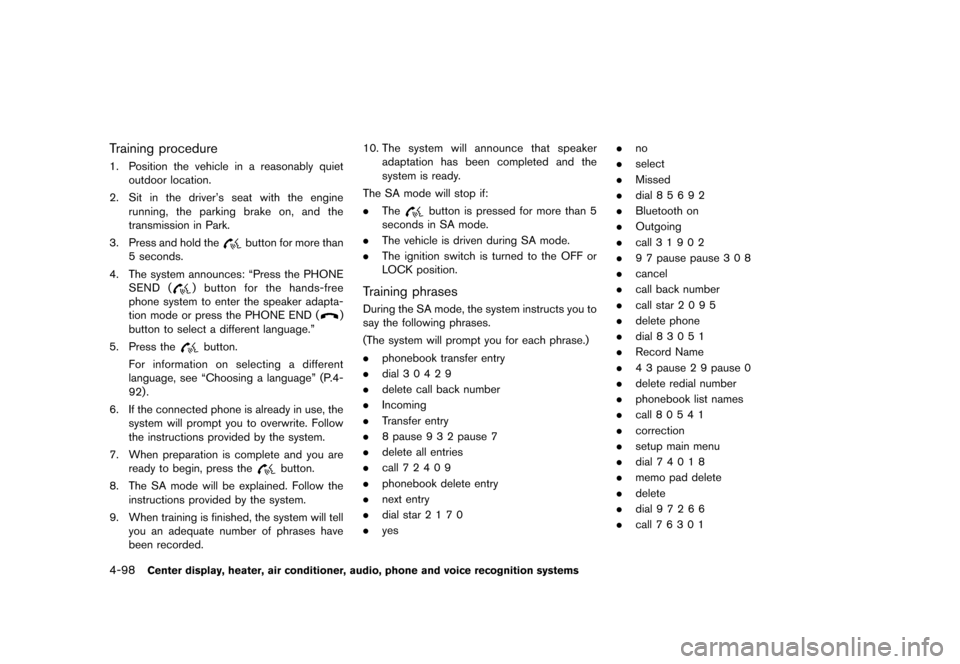

Training procedureGUID-CC68F582-AF8B-439B-9AAB-18C342AFE7531. Position the vehicle in a reasonably quietoutdoor location.
2. Sit in the driver’s seat with the engine
running, the parking brake on, and the
transmission in Park.
3. Press and hold the
button for more than
5 seconds.
4. The system announces: “Press the PHONE SEND (
) button for the hands-free
phone system to enter the speaker adapta-
tion mode or press the PHONE END (
)
button to select a different language.”
5. Press the
button.
For information on selecting a different
language, see “Choosing a language” (P.4-
92).
6. If the connected phone is already in use, the system will prompt you to overwrite. Follow
the instructions provided by the system.
7. When preparation is complete and you are ready to begin, press the
button.
8. The SA mode will be explained. Follow the instructions provided by the system.
9. When training is finished, the system will tell you an adequate number of phrases have
been recorded. 10.
The system will announce that speaker
adaptation has been completed and the
system is ready.
The SA mode will stop if:
. The
button is pressed for more than 5
seconds in SA mode.
. The vehicle is driven during SA mode.
. The ignition switch is turned to the OFF or
LOCK position.
Training phrasesGUID-3011B099-B249-46F1-BC2D-2E2900FDB37EDuring the SA mode, the system instructs you to
say the following phrases.
(The system will prompt you for each phrase.)
.phonebook transfer entry
. dial 3 0 4 2 9
. delete call back number
. Incoming
. Transfer entry
. 8 pause 9 3 2 pause 7
. delete all entries
. call 7 2 4 0 9
. phonebook delete entry
. next entry
. dial star 2 1 7 0
. yes .
no
. select
. Missed
. dial 8 5 6 9 2
. Bluetooth on
. Outgoing
. call 3 1 9 0 2
. 9 7 pause pause 3 0 8
. cancel
. call back number
. call star 2 0 9 5
. delete phone
. dial 8 3 0 5 1
. Record Name
. 4 3 pause 2 9 pause 0
. delete redial number
. phonebook list names
. call 8 0 5 4 1
. correction
. setup main menu
. dial 7 4 0 1 8
. memo pad delete
. delete
. dial 9 7 2 6 6
. call 7 6 3 0 1

Black plate (278,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
4-118Center display, heater, air conditioner, audio, phone and voice recognition systems

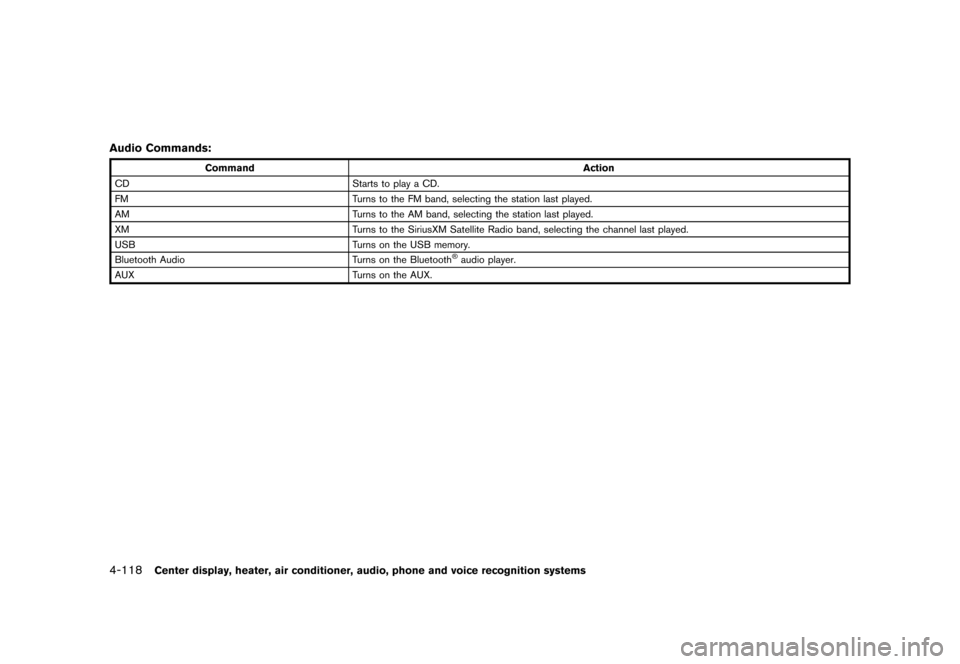

Audio Commands:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
CommandAction
CD Starts to play a CD.
FM Turns to the FM band, selecting the station last played.
AM Turns to the AM band, selecting the station last played.
XM Turns to the SiriusXM Satellite Radio band, selecting the channel last played.
USB Turns on the USB memory.
Bluetooth Audio Turns on the Bluetooth
®audio player.
AUX Turns on the AUX.

Black plate (286,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
4-126Center display, heater, air conditioner, audio, phone and voice recognition systems

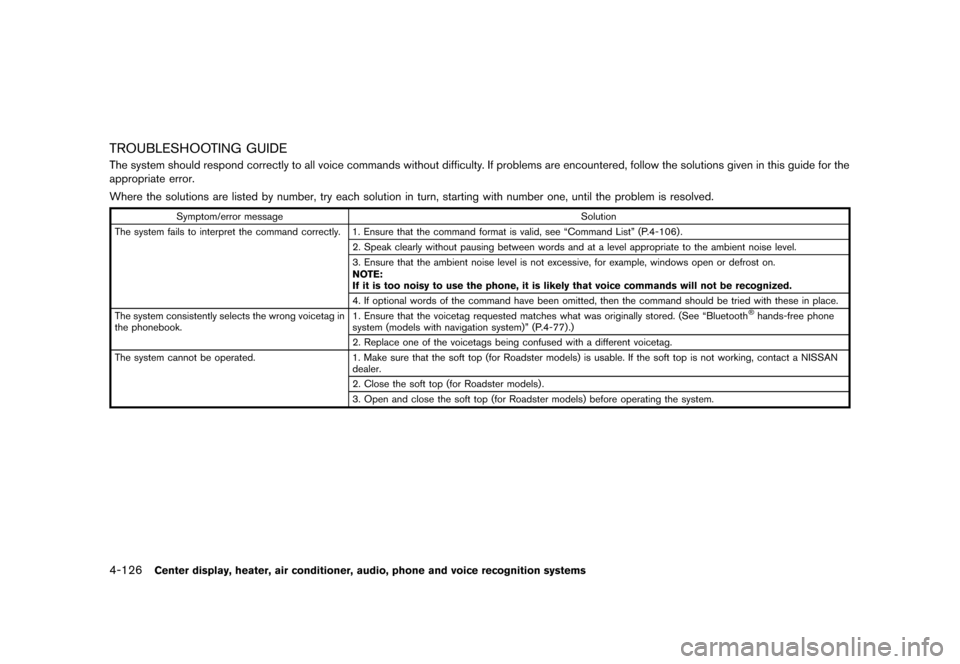

TROUBLESHOOTING GUIDEGUID-816509D7-9C2B-45B6-9DA6-7E6C03020665The system should respond correctly to all voice commands without difficulty. If problems are encountered, follow the solutions given in this guide for the
appropriate error.
Where the solutions are listed by number, try each solution in turn, starting with number one, until the problem is resolved.
Symptom/error messageSolution
The system fails to interpret the command correctly. 1. Ensure that the command format is valid, see “Command List” (P.4-106) . 2. Speak clearly without pausing between words and at a level appropriate to the ambient noise level.
3. Ensure that the ambient noise level is not excessive, for example, windows open or defrost on.
NOTE:
If it is too noisy to use the phone, it is likely that voice commands will not be recognized.
4. If optional words of the command have been omitted, then the command should be tried with these in place.
The system consistently selects the wrong voicetag in
the phonebook. 1. Ensure that the voicetag requested matches what was originally stored. (See “Bluetooth
®hands-free phone
system (models with navigation system)” (P.4-77) .)
2. Replace one of the voicetags being confused with a different voicetag.
The system cannot be operated. 1. Make sure that the soft top (for Roadster models) is usable. If the soft top is not working, contact a NISSAN
dealer.
2. Close the soft top (for Roadster models) .
3. Open and close the soft top (for Roadster models) before operating the system.

Black plate (417,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
10 Index
A
ABS (Anti-lock Braking System)...
............................ 5-26
Advanced air bag system ...
......................................... 1-33
Air bag system Advanced air bag system ...
.................................. 1-33
Front passenger air bag and status light ...
....... 1-35
Front-seat mounted side-impact
supplemental air bag system ...
............................ 1-38
Roof-mounted curtain side-impact
supplemental air bag system ...
............................ 1-38
Air bag warning labels ...
............................................... 1-40
Air bag warning light ...
...................................... 1-40, 2-13
Air cleaner housing filter ...
........................................... 8-20
Air conditioner Air conditioner operation ...
.................................... 4-24
Air conditioner service ...
........................................ 4-30
Air conditioner specification label ...
.................... 9-13
Air conditioning system refrigerant and
lubricant recommendations ...
....................... 4-30, 9-7
In-cabin microfilter ...
............................................... 4-30
Air deflectors ...
................................................................ 9-17
Alarm, How to stop alarm (see vehicle
security system) ...
........................................................... 2-28
Alcohol, drugs and driving ...
.......................................... 5-7
Antenna ...
.......................................................................... 4-75
Anti-lock Braking System (ABS) ...
............................ 5-26
Anti-lock braking system (ABS) warning light ...
..... 2-10
Appearance care Exterior appearance care ...
...................................... 7-2
Interior appearance care ...
....................................... 7-5
Audible reminders ...
....................................................... 2-16
Audio operation precautions ...
.................................... 4-31
Audio system ...
................................................................ 4-31
Steering wheel audio controls ...
.......................... 4-74 Autochanger
Compact Disc (CD) ...
............................................ 4-51
Autolight system ...
.......................................................... 2-33
Automatic Air conditioner (Type A) ...
..................................... 4-25
Air conditioner (Type B) ...
..................................... 4-28
Automatic adjusting function
(front windows) ...
..................................................... 2-46
Automatic transmission fluid (ATF) ...
.................. 8-13
Door locks ...
................................................................. 3-5
Driving with automatic transmission ...
................ 5-12
AUX (Auxiliary) button ...
.................................... 4-48, 4-53
Auxiliary input jacks ...
.................................................... 4-72
Avoiding collision and rollover ...
................................... 5-6
B
Battery ...
............................................................................ 8-16
Battery saver system ...
........................................... 2-34
Intelligent Key ...
........................................................ 8-25
Variable voltage control system ...
........................ 8-18
Before starting the engine ...
........................................ 5-11
Belts (See drive belts) ...
............................................... 8-19
Bluetooth
®hands-free phone system
(models with navigation system) ...
............................. 4-77
Bluetooth
®hands-free phone system
(models without navigation system) ...
....................... 4-88
Bluetooth
®streaming audio ...
..................................... 4-65
Booster seats ...
............................................................... 1-24
Brake Anti-lock Braking System (ABS) ...
..................... 5-26
Brake and clutch fluid ...
......................................... 8-14
Brake fluid ...
.............................................................. 8-14
Brake system ...
......................................................... 5-25
Parking brake operation ...
..................................... 5-21
Warning light ...
......................................................... 2-10 Break-in schedule
...
....................................................... 5-23
Brightness control ...
......................................................... 4-7
Display ON/OFF button ...
........................................ 4-7
Instrument panel ...
................................................... 2-35
Bulb check/instrument panel ...
................................... 2-10
Bulb replacement ...
........................................................ 8-27
C
Cabin air filter ...
............................................................... 4-30
Capacities and recommended fuel/lubricants ...
....... 9-2
Car phone or CB radio ...
............................................. 4-76
Cargo cover ...
.................................................................. 2-43
Catalytic converter, Three way catalyst ...
................... 5-3
CD/CF/USB memory care and cleaning ...
.............. 4-73
Center multi-function control panel (models with
navigation system) ...
........................................................ 4-3
Child restraints ...
............................................................. 1-18
Booster seats ...
........................................................ 1-24
Precautions on child restraints ...
......................... 1-18
Top tether strap ...
.................................................... 1-19
Child safety ...
................................................................... 1-15
Chimes Audible reminders ...
................................................ 2-16
Seat belt warning light and chime ...
................... 2-13
Circuit breaker, Fusible link ...
...................................... 8-23
Cleaning exterior and interior ...
............................ 7-2, 7-5
Clock ...
..................................................................... 2-8, 2-25
Clutch fluid ...
.................................................................... 8-14
Cockpit ...
............................................................................ 2-3
Cold weather driving ...
.................................................. 5-31
Compact Disc (CD) changer (See
audio system) ...
............................................................... 4-51
Compact Disc (CD) player (See
audio system) ...
................................................... 4-47, 4-56
Compact spare tire ...
..................................................... 8-40
