2013 NISSAN 370Z COUPE air condition

Black plate (393,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]

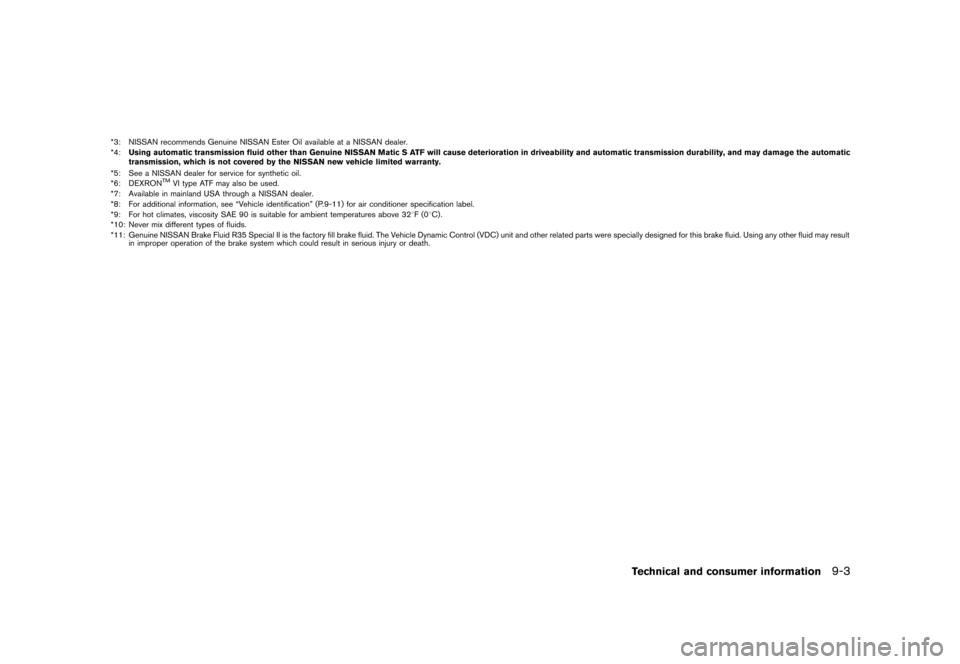

*3: NISSAN recommends Genuine NISSAN Ester Oil available at a NISSAN dealer.
*4:Using automatic transmission fluid other than Genuine NISSAN Matic S ATF will cause deterioration in driveability and automatic transmission durability, and may damage the automatic
transmission, which is not covered by the NISSAN new vehicle limited warranty.
*5: See a NISSAN dealer for service for synthetic oil.
*6: DEXRON
TMVI type ATF may also be used.
*7: Available in mainland USA through a NISSAN dealer.
*8: For additional information, see “Vehicle identification” (P.9-11) for air conditioner specification label.
*9: For hot climates, viscosity SAE 90 is suitable for ambient temperatures above 328F (08C).
*10: Never mix different types of fluids.
*11: Genuine NISSAN Brake Fluid R35 Special II is the factory fill brake fluid. The Vehicle Dynamic Control (VDC) unit and other related parts were specially designed for this brake fluid. Using any other fluid may result in improper operation of the brake system which could result in serious injury or death.
Technical and consumer information9-3

Black plate (397,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
the oil before the first recommended change
interval. Oil and filter change intervals depend
upon how you use your vehicle. Operation under
the following conditions may require more
frequent oil and filter changes.
.repeated short distance driving at cold
outside temperatures,
. driving in dusty conditions,
. extensive idling,
. stop and go “rush hour” traffic,
Refer to the “NISSAN Service and Maintenance
Guide” for the maintenance schedule.

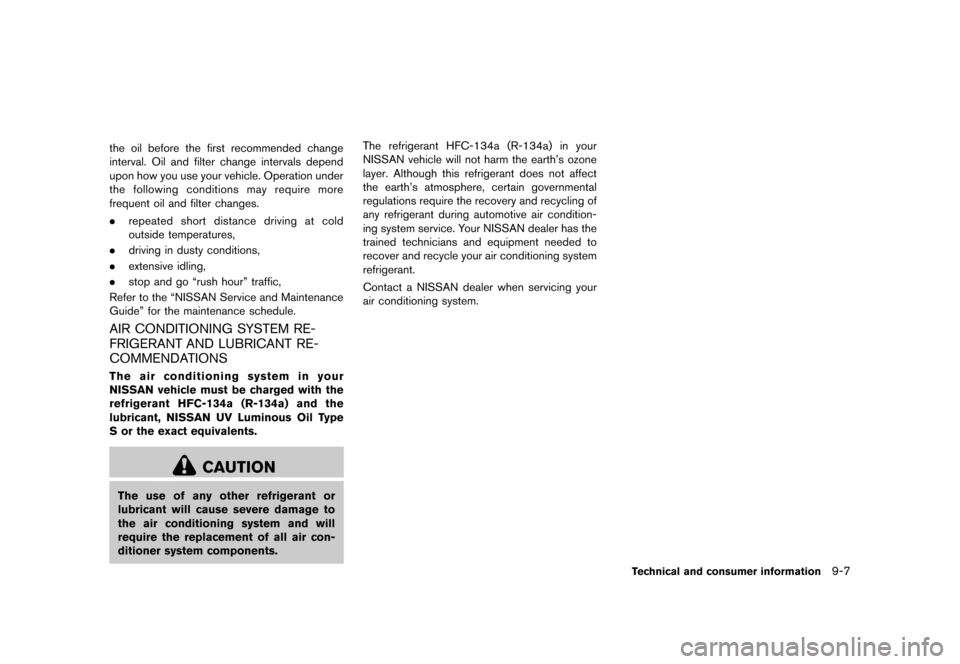

AIR CONDITIONING SYSTEM RE-
FRIGERANT AND LUBRICANT RE-
COMMENDATIONS
GUID-C8BC5B0A-509E-4BBB-A256-2025D90300BBThe air conditioning system in your
NISSAN vehicle must be charged with the
refrigerant HFC-134a (R-134a) and the
lubricant, NISSAN UV Luminous Oil Type
S or the exact equivalents.
CAUTION
The use of any other refrigerant or
lubricant will cause severe damage to
the air conditioning system and will
require the replacement of all air con-
ditioner system components. The refrigerant HFC-134a (R-134a) in your
NISSAN vehicle will not harm the earth’s ozone
layer. Although this refrigerant does not affect
the earth’s atmosphere, certain governmental
regulations require the recovery and recycling of
any refrigerant during automotive air condition-
ing system service. Your NISSAN dealer has the
trained technicians and equipment needed to
recover and recycle your air conditioning system
refrigerant.
Contact a NISSAN dealer when servicing your
air conditioning system.
Technical and consumer information9-7

Black plate (403,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
STI0614

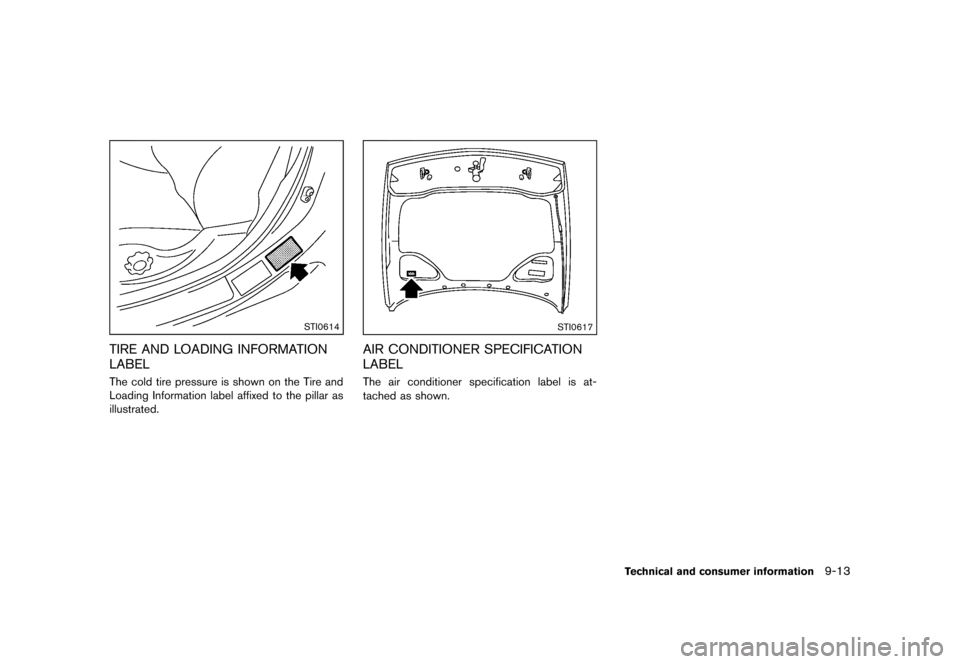

TIRE AND LOADING INFORMATION
LABEL
GUID-03DF1D3B-CED7-4DC2-8F58-9CADF0356870The cold tire pressure is shown on the Tire and
Loading Information label affixed to the pillar as
illustrated.
STI0617
AIR CONDITIONER SPECIFICATION
LABEL
GUID-2FD3981B-F497-40A9-B4B3-1CAFFA44ECB0The air conditioner specification label is at-
tached as shown.
Technical and consumer information9-13

Black plate (412,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
9-22Technical and consumer information
WARNING
The traction grade assigned to this tire
is based on straight-ahead braking
traction tests, and does not include
acceleration, cornering, hydroplaning,
or peak traction characteristics.
TEMPERATURE A, B AND CGUID-BBEBDBD5-A2E0-4A4D-9AA5-A82F3FBAD2EFThe temperature grades A (the highest), B, and
C, representing the tire’s resistance to the
generation of heat and its ability to dissipate
heat when tested under controlled conditions on
a specified indoor laboratory test wheel. Sus-
tained high temperature can cause the material
of the tire to degenerate and reduce tire life, and
excessive temperature can lead to sudden tire
failure. The grade C corresponds to a level of
performance which all passenger car tires must
meet under the Federal Motor Vehicle Safety
Standard No. 109. Grades B and A represent
higher levels of performance on the laboratory
test wheel than the minimum required by law.
WARNING
The temperature grade for this tire is
established for a tire that is properly
inflated and not overloaded. Excessive
speed, under-inflation, or excessive
loading, either separately or in combi-
nation, can cause heat build-up and
possible tire failure.
GUID-07DCB6C8-3A55-41B0-971B-E8C17768DFBFYour NISSAN is covered by the following
emission warranties.
For USA:
.Emission Defects Warranty
. Emissions Performance Warranty
Details of these warranties may be found with
other vehicle warranties in your Warranty In-
formation Booklet which comes with your
NISSAN. If you did not receive a Warranty
Information Booklet, or it is lost, you may obtain a
replacement by writing to:
. Nissan North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003
For Canada:
Emission Control System Warranty
Details of this warranty may be found with other
vehicle warranties in your Warranty Information
Booklet which comes with your NISSAN. If you
did not receive a Warranty Information Booklet,
or it is lost, you may obtain a replacement by
writing to:
. Nissan Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario,
L4W 4Z5
EMISSION CONTROL SYSTEM
WARRANTY

Black plate (414,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
9-24Technical and consumer information
GUID-7C6BADCA-82B6-4EEA-8EA4-82BD8CB9FB27Due to legal requirements in some states and
Canadian Provinces, your vehicle may be
required to be in what is called the “ready
condition” for an Inspection/Maintenance (I/M)
test of the emission control system.
The vehicle is set to the “ready condition” when
it is driven through certain driving patterns.
Usually, the “ready condition” can be obtained
by ordinary usage of the vehicle.
If a powertrain system component is repaired or
the battery is disconnected, the vehicle may be
reset to a “not ready condition”. Before taking
the I/M test, check the vehicle’s inspection/
maintenance test readiness condition. Place the
ignition switch in the ON position without
starting the engine. If the Malfunction Indicator
Light (MIL) comes on steady for 20 seconds and
then blinks for 10 seconds, the I/M test
condition is “not ready”. If the MIL does not
blink after 20 seconds, the I/M test condition is
“ready”.
Contact a NISSAN dealer to set “ready condi-
tion” or to prepare the vehicle for testing.GUID-7502E4AB-02BD-4A16-862D-9CC2C400472EThis vehicle is equipped with an Event
Data Recorder (EDR) . The main purpose of
an EDR is to record, in certain crash or near
crash-like situations, such as an air bag
deployment or hitting a road obstacle, data
that will assist in understanding how a
vehicle’s systems performed. The EDR is
designed to record data related to vehicle
dynamics and safety systems for a short
period of time, typically 30 seconds or less.
The EDR in this vehicle is designed to
record such data as:
.How various systems in your vehicle
were operating;
. Whether or not the driver and passen-
ger safety belts were buckled/fas-
tened;
. How far (if at all) the driver was
depressing the accelerator and/or
brake pedal; and,
. How fast the vehicle was traveling.
. Sounds are not recorded.
These data can help provide a better
understanding of the circumstances in
which crashes and injuries occur. NOTE:
EDR data are recorded by your vehicle only
if a nontrivial crash situation occurs; no
data are recorded by the EDR under
normal driving conditions and no personal data (e.g. name, gender, age and crash
location) are recorded. However, other
parties, such as law enforcement, could
combine the EDR data with the type of
personally identifying data routinely ac-
quired during a crash investigation.
To read data recorded by an EDR, special
equipment is required and access to the
vehicle or the EDR is needed. In addition to
the vehicle manufacturer and NISSAN
dealer, other parties, such as law enforce-
ment, that have the special equipment, can
read the information if they have access to
the vehicle or the EDR.
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST
EVENT DATA RECORDERS (EDR)

Black plate (417,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
10 Index
A
ABS (Anti-lock Braking System)...
............................ 5-26
Advanced air bag system ...
......................................... 1-33
Air bag system Advanced air bag system ...
.................................. 1-33
Front passenger air bag and status light ...
....... 1-35
Front-seat mounted side-impact
supplemental air bag system ...
............................ 1-38
Roof-mounted curtain side-impact
supplemental air bag system ...
............................ 1-38
Air bag warning labels ...
............................................... 1-40
Air bag warning light ...
...................................... 1-40, 2-13
Air cleaner housing filter ...
........................................... 8-20
Air conditioner Air conditioner operation ...
.................................... 4-24
Air conditioner service ...
........................................ 4-30
Air conditioner specification label ...
.................... 9-13
Air conditioning system refrigerant and
lubricant recommendations ...
....................... 4-30, 9-7
In-cabin microfilter ...
............................................... 4-30
Air deflectors ...
................................................................ 9-17
Alarm, How to stop alarm (see vehicle
security system) ...
........................................................... 2-28
Alcohol, drugs and driving ...
.......................................... 5-7
Antenna ...
.......................................................................... 4-75
Anti-lock Braking System (ABS) ...
............................ 5-26
Anti-lock braking system (ABS) warning light ...
..... 2-10
Appearance care Exterior appearance care ...
...................................... 7-2
Interior appearance care ...
....................................... 7-5
Audible reminders ...
....................................................... 2-16
Audio operation precautions ...
.................................... 4-31
Audio system ...
................................................................ 4-31
Steering wheel audio controls ...
.......................... 4-74 Autochanger
Compact Disc (CD) ...
............................................ 4-51
Autolight system ...
.......................................................... 2-33
Automatic Air conditioner (Type A) ...
..................................... 4-25
Air conditioner (Type B) ...
..................................... 4-28
Automatic adjusting function
(front windows) ...
..................................................... 2-46
Automatic transmission fluid (ATF) ...
.................. 8-13
Door locks ...
................................................................. 3-5
Driving with automatic transmission ...
................ 5-12
AUX (Auxiliary) button ...
.................................... 4-48, 4-53
Auxiliary input jacks ...
.................................................... 4-72
Avoiding collision and rollover ...
................................... 5-6
B
Battery ...
............................................................................ 8-16
Battery saver system ...
........................................... 2-34
Intelligent Key ...
........................................................ 8-25
Variable voltage control system ...
........................ 8-18
Before starting the engine ...
........................................ 5-11
Belts (See drive belts) ...
............................................... 8-19
Bluetooth
®hands-free phone system
(models with navigation system) ...
............................. 4-77
Bluetooth
®hands-free phone system
(models without navigation system) ...
....................... 4-88
Bluetooth
®streaming audio ...
..................................... 4-65
Booster seats ...
............................................................... 1-24
Brake Anti-lock Braking System (ABS) ...
..................... 5-26
Brake and clutch fluid ...
......................................... 8-14
Brake fluid ...
.............................................................. 8-14
Brake system ...
......................................................... 5-25
Parking brake operation ...
..................................... 5-21
Warning light ...
......................................................... 2-10 Break-in schedule
...
....................................................... 5-23
Brightness control ...
......................................................... 4-7
Display ON/OFF button ...
........................................ 4-7
Instrument panel ...
................................................... 2-35
Bulb check/instrument panel ...
................................... 2-10
Bulb replacement ...
........................................................ 8-27
C
Cabin air filter ...
............................................................... 4-30
Capacities and recommended fuel/lubricants ...
....... 9-2
Car phone or CB radio ...
............................................. 4-76
Cargo cover ...
.................................................................. 2-43
Catalytic converter, Three way catalyst ...
................... 5-3
CD/CF/USB memory care and cleaning ...
.............. 4-73
Center multi-function control panel (models with
navigation system) ...
........................................................ 4-3
Child restraints ...
............................................................. 1-18
Booster seats ...
........................................................ 1-24
Precautions on child restraints ...
......................... 1-18
Top tether strap ...
.................................................... 1-19
Child safety ...
................................................................... 1-15
Chimes Audible reminders ...
................................................ 2-16
Seat belt warning light and chime ...
................... 2-13
Circuit breaker, Fusible link ...
...................................... 8-23
Cleaning exterior and interior ...
............................ 7-2, 7-5
Clock ...
..................................................................... 2-8, 2-25
Clutch fluid ...
.................................................................... 8-14
Cockpit ...
............................................................................ 2-3
Cold weather driving ...
.................................................. 5-31
Compact Disc (CD) changer (See
audio system) ...
............................................................... 4-51
Compact Disc (CD) player (See
audio system) ...
................................................... 4-47, 4-56
Compact spare tire ...
..................................................... 8-40

Black plate (419,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
G
Garage door opener, HomeLink®
Universal Transceiver...
...................................... 2-50, 2-54
Gas cap ...
......................................................................... 3-34
Gauge ...
.............................................................................. 2-5
Engine coolant temperature gauge ...
.................... 2-7
Fuel gauge ...
................................................................ 2-7
Odometer ...
.................................................................. 2-6
Speedometer ...
............................................................ 2-6
Tachometer ...
............................................................... 2-6
Trip computer ...
........................................................ 2-22
General maintenance ...
................................................... 8-3
Glove box ...
...................................................................... 2-42
H
Hands-free phone system, Bluetooth®
(models with navigation system) ...
............................. 4-77
Hands-free phone system, Bluetooth®
(models without navigation system) ...
....................... 4-88
Hatch, Rear hatch ...
....................................................... 3-16
Hazard warning flasher switch ...
................................. 2-36
Head restraints ...
.............................................................. 1-5
Headlights Bulb replacement ...
................................................. 8-29
Headlight switch ...
................................................... 2-32
Xenon headlights ...
.................................................. 2-32
Heated seats ...
................................................................ 2-37
Heater Engine block heater ...
............................................. 5-32
Heater and air conditioner operation ...
.............. 4-24
HomeLink
®Universal Transceiver ...
............... 2-50, 2-54
Hood release ...
................................................................ 3-16
Horn ...
................................................................................ 2-36
I
Ignition switch
(Push-button) ...
........................................................... 5-8
Manual transmission models ...
............................. 5-16
Immobilizer system ...
...................................................... 2-28
In-cabin microfilter ...
...................................................... 4-30
Indicator lights ...
.............................................................. 2-14
INFO button ...
.................................................................... 4-8
Inside mirror ...
.................................................................. 3-37
Inspection/maintenance (I/M) test ...
.......................... 9-24
Instrument brightness control ...
.................................. 2-35
Instrument panel ...
............................................................ 2-4
Instrument pocket ...
....................................................... 2-41
Intelligent Key ...
................................................................. 3-2
Intelligent Key battery discharge indicator ...
............ 2-19
Intelligent Key removal indicator ...
.............................. 2-18
Intelligent Key system ...
.................................................. 3-6
Battery replacement ...
............................................ 8-25
Intelligent Key system warning light ...
................ 2-11
Key operating range ...
............................................... 3-8
Key operation ...
........................................................... 3-9
Warning signals ...
.................................................... 3-11
Interior light control switch ...
....................................... 2-47
Interior light replacement ...
........................................... 8-29
Interior lights ...
................................................................. 2-47
Interior trunk lid release ...
............................................. 3-19
iPod
®player operation ...
............................................... 4-70
J
Jump starting ...
................................................................ 6-14
K
Keyless entry (See remote keyless
entry system) ...
................................................................ 3-13
Keys ...
.................................................................................. 3-2
For Intelligent Key system ...
..................................... 3-6
L
Labels
Air bag warning labels ...
........................................ 1-40
Air conditioner specification label ...
.................... 9-13
Emission control information label ...
................... 9-12
Engine serial number ...
........................................... 9-12
F.M.V.S.S./C.M.V.S.S. certification label ...
........ 9-12
Tire and Loading information label ...
....... 8-32, 9-13
Vehicle identification number (VIN) ...
................. 9-11
License plate, Installing front license plate ...
.......... 9-14
Light Air bag warning light ...
........................................... 1-40
Bulb replacement ...
................................................. 8-27
Cargo area courtesy light ...
.................................. 2-49
Cargo light ...
............................................................. 2-49
Fog light switch ...
.................................................... 2-35
Headlight switch ...
................................................... 2-32
Headlights bulb replacement ...
............................ 8-29
Indicator lights ...
....................................................... 2-14
Interior light control switch ...
................................ 2-47
Interior lights ...
.......................................................... 2-47
Map lights ...
.............................................................. 2-47
Replacement ...
.......................................................... 8-27
Trunk light ...
............................................................... 2-49
Vanity mirror lights ...
............................................... 2-48
Warning/indicator lights and
audible reminders ...
................................................. 2-10
Xenon headlights ...
.................................................. 2-32
Lights, Exterior and interior light replacement ...
..... 8-29
10-3

Black plate (421,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
Rapid air pressure loss...
................................................ 5-6
Readiness for inspection/maintenance
(I/M) test ...
........................................................................ 9-24
Rear hatch ...
..................................................................... 3-16
Rear hatch opener ...
...................................................... 3-16
Rear hatch opener switch ...
......................................... 3-17
Rear parcel box ...
........................................................... 2-43
Rear window defroster switch ...
................................. 2-31
RearView monitor (models with
navigation system) ...
...................................................... 4-18
Recorders, Event data ...
............................................... 9-24
Registering your vehicle in another country ...
......... 9-11
Remote keyless entry system ...
................................... 3-13
Repairing flat tire (with emergency tire puncture
repair kit) ...
......................................................................... 6-8
Reporting safety defects ...
........................................... 9-23
Rollover ...
............................................................................ 5-6
Roof, Soft top ...
.............................................................. 3-21
S
Safety, Child seat belts ...
............................................. 1-15
Satellite radio operation ...
................................ 4-50, 4-55
Seat adjustment Front manual seat adjustment ...
.............................. 1-4
Front power seat adjustment ...
............................... 1-2
Front seats ...
................................................................ 1-2
Seat belt(s) Child safety ...
............................................................ 1-15
Infants ...
...................................................................... 1-15
Injured persons ...
..................................................... 1-11
Larger children ...
...................................................... 1-16
Precautions on seat belt usage ...
........................... 1-9
Pregnant women ...
.................................................. 1-11
Seat belt cleaning ...
................................................... 7-7
Seat belt extenders ...
.............................................. 1-14
Seat belt maintenance ...
........................................ 1-14 Seat belt warning light and chime
...
................... 2-13
Seat belts ...
.................................................................. 1-9
Seat belts with pretensioners ...
........................... 1-39
Three-point type ...
................................................... 1-11
Seat(s) Climate controlled seats ...
..................................... 2-38
Heated seats ...
......................................................... 2-37
Seats ...
.......................................................................... 1-2
Secondary rear hatch release ...
.................................. 3-18
Secondary trunk lid release ...
...................................... 3-20
Security system (NISSAN Vehicle Immobilizer
System) , Engine start ...
................................................. 2-28
Security system, Vehicle security system ...
............. 2-27
Selector lever, Shift lock release ...
............................ 5-16
Servicing air conditioner ...
............................................ 4-30
SETTING button ...
.......................................................... 4-11
Shift lock release, Transmission ...
.............................. 5-16
Shift “P” warning (Automatic
Transmission models) ...
................................................ 2-19
Shifting Automatic transmission ...
....................................... 5-12
Manual transmission ...
............................................ 5-16
Soft top Care and cleaning ...
................................................... 7-3
If the top does not open or close ...
.................... 3-28
Opening using the Intelligent Key ...
.................... 3-26
Soft top indicator light ...
............................. 2-15, 3-24
Soft top operation ...
................................................ 3-21
Spare tire ...
......................................................................... 9-9
Spark plugs ...
.................................................................. 8-19
Speedometer ...
.................................................................. 2-6
Starting Before starting the engine ...
................................. 5-11
Jump starting ...
......................................................... 6-14
Precautions when starting and driving ...
.............. 5-2
Push starting ...
......................................................... 6-16
Starting the engine ...
.............................................. 5-11 STATUS button
...
.............................................................. 4-7
Status light, Front passenger air bag ...
.................... 1-35
Steering Power steering fluid ...
............................................. 8-13
Power steering system ...
....................................... 5-25
Steering-wheel-mounted controls
for audio ...
................................................................. 4-74
Storage ...
.......................................................................... 2-41
Sun visors ...
..................................................................... 3-36
Supplemental air bag warning labels ...
..................... 1-40
Supplemental air bag warning light ...
............ 1-40, 2-13
Supplemental restraint system ...
................................. 1-28
Precautions on supplemental
restraint system ...
..................................................... 1-28
Switch Autolight switch ...
.................................................... 2-33
Fog light switch ...
.................................................... 2-35
Hazard warning flasher switch ...
.......................... 2-36
Headlight switch ...
................................................... 2-32
Ignition switch ...
....................................................... 5-12
Ignition switch manual
transmission models ...
............................................ 5-16
Power door lock switch ...
......................................... 3-5
Rear window defroster switch ...
.......................... 2-31
Turn signal switch ...
................................................ 2-35
Vehicle dynamic control (VDC) off switch ...
..... 2-39
SynchroRev Match mode (S-MODE) ...
.................... 5-17
T
Tachometer ...
..................................................................... 2-6
Temperature gauge, Engine coolant
temperature gauge ...
........................................................ 2-7
Theft (NISSAN Vehicle Immobilizer System) ,
Engine start ...
................................................................... 2-28
Three-way catalyst ...
........................................................ 5-3
Tilt steering ...
................................................................... 3-36
10-5
