2013 NISSAN 370Z COUPE odometer

Black plate (6,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]

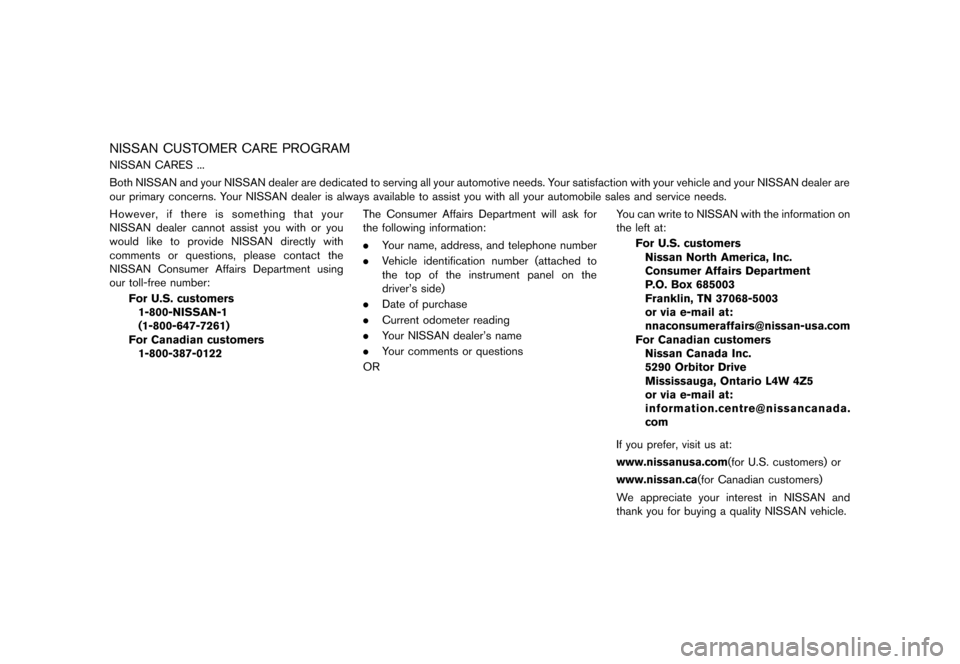

NISSAN CUSTOMER CARE PROGRAMGUID-A40AAB0D-2ED5-407F-B3EE-2346DEC7A4CBNISSAN CARES ...
Both NISSAN and your NISSAN dealer are dedicated to serving all your automotive needs. Your satisfaction with your vehicle and your NISSAN dealer are
our primary concerns. Your NISSAN dealer is always available to assist you with all your automobile sales and service needs.
However, if there is something that your
NISSAN dealer cannot assist you with or you
would like to provide NISSAN directly with
comments or questions, please contact the
NISSAN Consumer Affairs Department using
our toll-free number:For U.S. customers1-800-NISSAN-1
(1-800-647-7261)
For Canadian customers 1-800-387-0122 The Consumer Affairs Department will ask for
the following information:
.
Your name, address, and telephone number
. Vehicle identification number (attached to
the top of the instrument panel on the
driver’s side)
. Date of purchase
. Current odometer reading
. Your NISSAN dealer’s name
. Your comments or questions
OR You can write to NISSAN with the information on
the left at:
For U.S. customersNissan North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003
or via e-mail at:
[email protected]
For Canadian customers Nissan Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario L4W 4Z5
or via e-mail at:
information.centre@nissancanada.
com
If you prefer, visit us at:
www.nissanusa.com(for U.S. customers) or
www.nissan.ca(for Canadian customers)
We appreciate your interest in NISSAN and
thank you for buying a quality NISSAN vehicle.

Black plate (18,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]

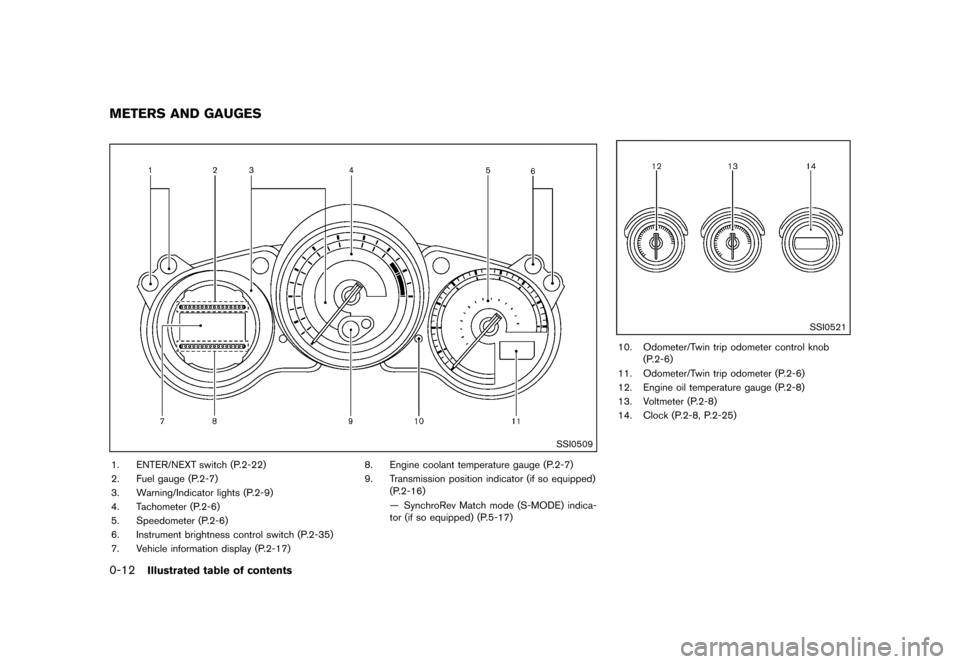

0-12Illustrated table of contents
GUID-BED94F71-88E2-41F6-8EBE-0CA5C49A2A88
SSI0509
1. ENTER/NEXT switch (P.2-22)
2. Fuel gauge (P.2-7)
3. Warning/Indicator lights (P.2-9)
4. Tachometer (P.2-6)
5. Speedometer (P.2-6)
6. Instrument brightness control switch (P.2-35)
7. Vehicle information display (P.2-17)8. Engine coolant temperature gauge (P.2-7)
9. Transmission position indicator (if so equipped)
(P.2-16)
— SynchroRev Match mode (S-MODE) indica-
tor (if so equipped) (P.5-17)
SSI0521
10. Odometer/Twin trip odometer control knob(P.2-6)
11. Odometer/Twin trip odometer (P.2-6)
12. Engine oil temperature gauge (P.2-8)
13. Voltmeter (P.2-8)
14. Clock (P.2-8, P.2-25)
METERS AND GAUGES

Black plate (63,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]

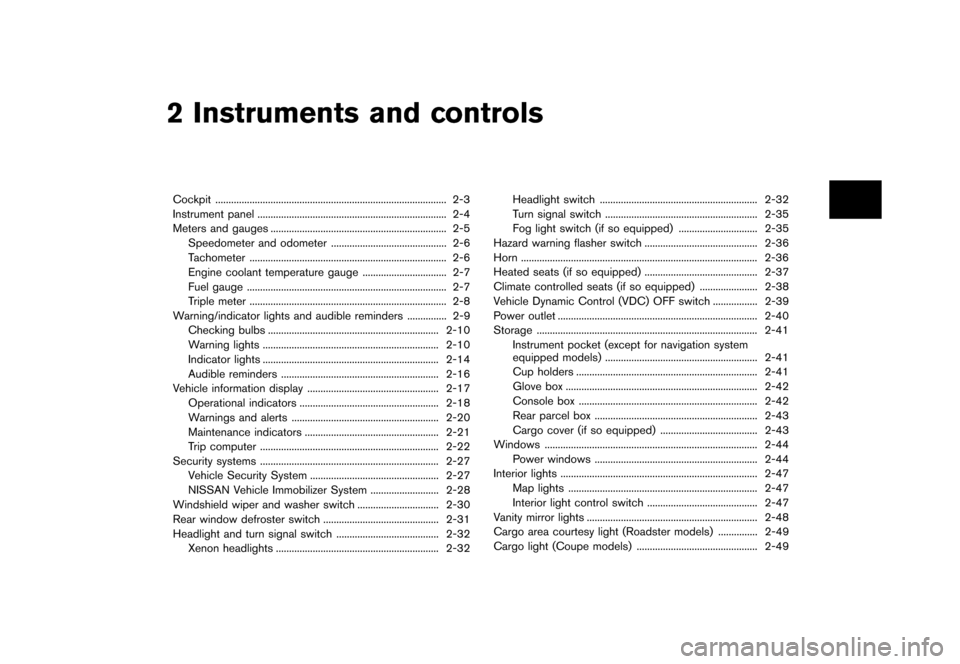

2 Instruments and controls
Cockpit...
........................................................................\
................ 2-3
Instrument panel ...
........................................................................\
2-4
Meters and gauges ...
................................................................... 2-5
Speedometer and odometer ...
............................................ 2-6
Tachometer ...
........................................................................\
... 2-6
Engine coolant temperature gauge ...
................................ 2-7
Fuel gauge ...
........................................................................\
.... 2-7
Triple meter ...
........................................................................\
... 2-8
Warning/indicator lights and audible reminders ...
............... 2-9
Checking bulbs ...
................................................................. 2-10
Warning lights ...
................................................................... 2-10
Indicator lights ...
................................................................... 2-14
Audible reminders ...
............................................................ 2-16
Vehicle information display ...
.................................................. 2-17
Operational indicators ...
..................................................... 2-18
Warnings and alerts ...
........................................................ 2-20
Maintenance indicators ...
................................................... 2-21
Trip computer ...
.................................................................... 2-22
Security systems ...
.................................................................... 2-27
Vehicle Security System ...
................................................. 2-27
NISSAN Vehicle Immobilizer System ...
.......................... 2-28
Windshield wiper and washer switch ...
............................... 2-30
Rear window defroster switch ...
............................................ 2-31
Headlight and turn signal switch ...
....................................... 2-32
Xenon headlights ...
.............................................................. 2-32 Headlight switch
...
............................................................ 2-32
Turn signal switch ...
.......................................................... 2-35
Fog light switch (if so equipped) ...
.............................. 2-35
Hazard warning flasher switch ...
........................................... 2-36
Horn ...
........................................................................\
.................. 2-36
Heated seats (if so equipped) ...
........................................... 2-37
Climate controlled seats (if so equipped) ...
...................... 2-38
Vehicle Dynamic Control (VDC) OFF switch ...
................. 2-39
Power outlet ...
........................................................................\
.... 2-40
Storage ...
........................................................................\
............ 2-41
Instrument pocket (except for navigation system
equipped models) ...
.......................................................... 2-41
Cup holders ...
..................................................................... 2-41
Glove box ...
........................................................................\
. 2-42
Console box ...
.................................................................... 2-42
Rear parcel box ...
.............................................................. 2-43
Cargo cover (if so equipped) ...
..................................... 2-43
Windows ...
........................................................................\
......... 2-44
Power windows ...
.............................................................. 2-44
Interior lights ...
........................................................................\
... 2-47
Map lights ...
........................................................................\
2-47
Interior light control switch ...
.......................................... 2-47
Vanity mirror lights ...
................................................................. 2-48
Cargo area courtesy light (Roadster models) ...
............... 2-49
Cargo light (Coupe models) ...
.............................................. 2-49>

Black plate (67,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]

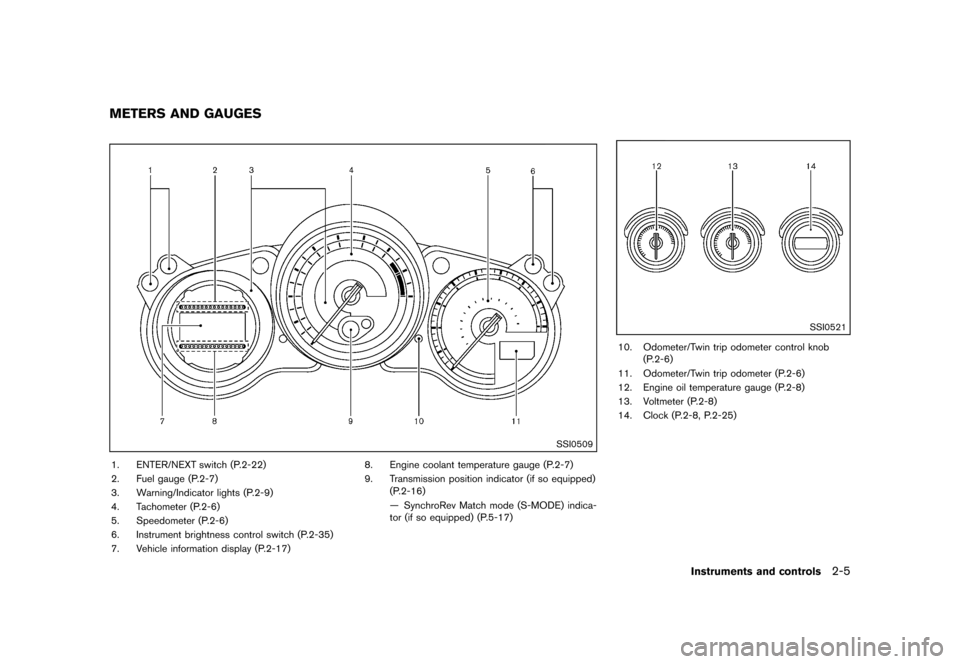

GUID-278D386A-E7FF-4693-9355-A651D337A72C
SSI0509
1. ENTER/NEXT switch (P.2-22)
2. Fuel gauge (P.2-7)
3. Warning/Indicator lights (P.2-9)
4. Tachometer (P.2-6)
5. Speedometer (P.2-6)
6. Instrument brightness control switch (P.2-35)
7. Vehicle information display (P.2-17)8. Engine coolant temperature gauge (P.2-7)
9. Transmission position indicator (if so equipped)
(P.2-16)
— SynchroRev Match mode (S-MODE) indica-
tor (if so equipped) (P.5-17)
SSI0521
10. Odometer/Twin trip odometer control knob(P.2-6)
11. Odometer/Twin trip odometer (P.2-6)
12. Engine oil temperature gauge (P.2-8)
13. Voltmeter (P.2-8)
14. Clock (P.2-8, P.2-25)
Instruments and controls2-5
METERS AND GAUGES

Black plate (68,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]

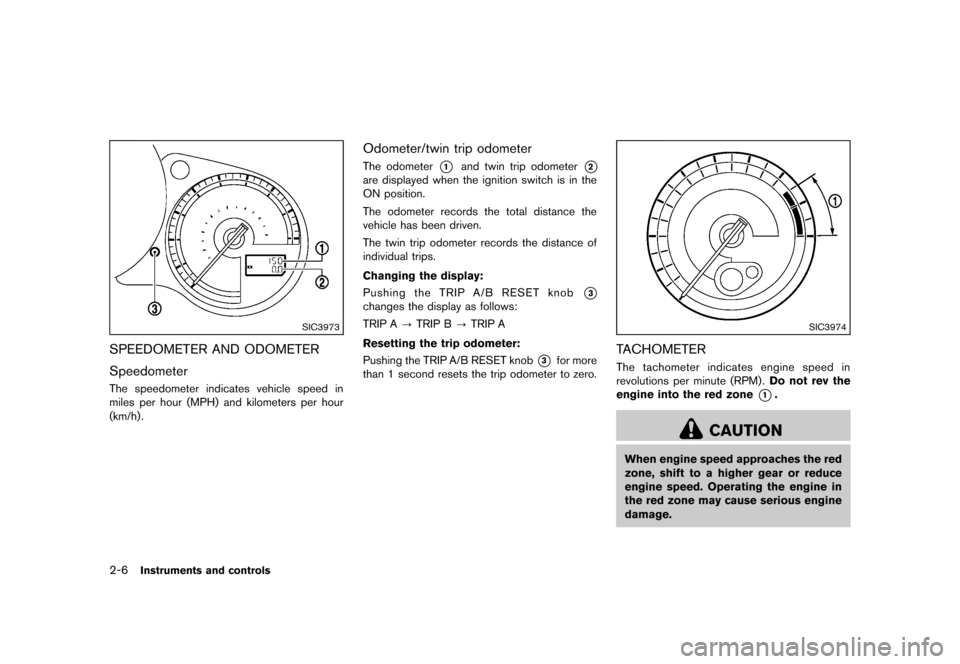

2-6Instruments and controls
SIC3973
SPEEDOMETER AND ODOMETERGUID-93CE6073-278E-4C4D-BC4E-35570E774ACE
SpeedometerGUID-08F72CE7-EB0D-4E47-9EB4-124017502CD5The speedometer indicates vehicle speed in
miles per hour (MPH) and kilometers per hour
(km/h) .
Odometer/twin trip odometerGUID-69490912-23C9-4D2E-A755-B281FE0D418EThe odometer*1and twin trip odometer*2
are displayed when the ignition switch is in the
ON position.
The odometer records the total distance the
vehicle has been driven.
The twin trip odometer records the distance of
individual trips.
Changing the display:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pushing the TRIP A/B RESET knob*3
changes the display as follows:
TRIP A?TRIP B ?TRIP A
Resetting the trip odometer:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pushing the TRIP A/B RESET knob*3for more
than 1 second resets the trip odometer to zero.
SIC3974
TACHOMETERGUID-F3C55EE6-1677-452A-BD8F-55CD280C88A3The tachometer indicates engine speed in
revolutions per minute (RPM) . Do not rev the
engine into the red zone
*1.
CAUTION
When engine speed approaches the red
zone, shift to a higher gear or reduce
engine speed. Operating the engine in
the red zone may cause serious engine
damage.

Black plate (84,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
2-22Instruments and controls

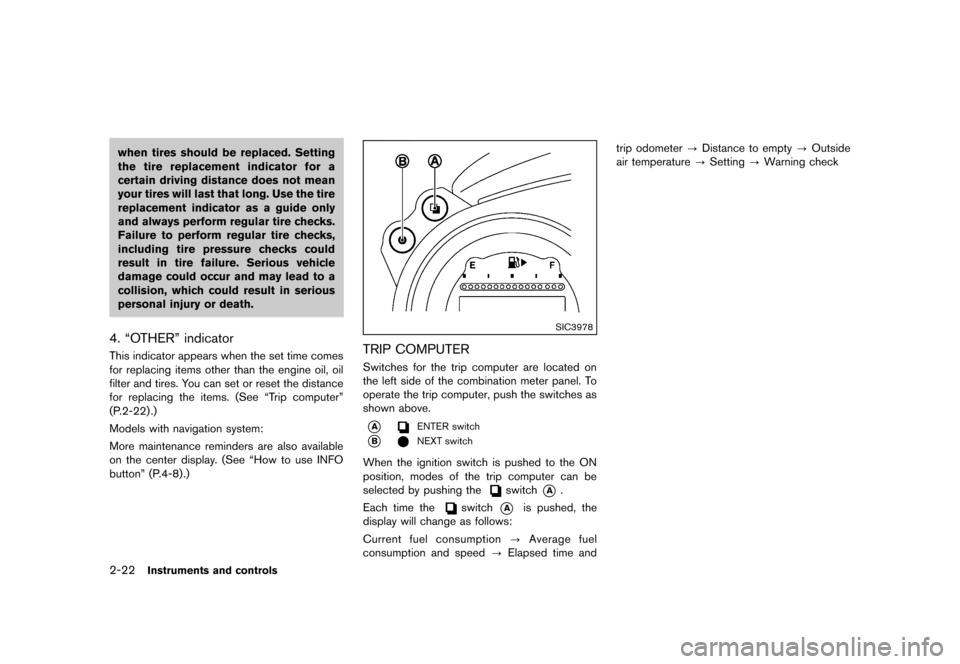

when tires should be replaced. Setting
the tire replacement indicator for a
certain driving distance does not mean
your tires will last that long. Use the tire
replacement indicator as a guide only
and always perform regular tire checks.
Failure to perform regular tire checks,
including tire pressure checks could
result in tire failure. Serious vehicle
damage could occur and may lead to a
collision, which could result in serious
personal injury or death.
4. “OTHER” indicatorGUID-5336AF1B-0FD8-4F35-9418-6059DEFCD648This indicator appears when the set time comes
for replacing items other than the engine oil, oil
filter and tires. You can set or reset the distance
for replacing the items. (See “Trip computer”
(P.2-22) .)
Models with navigation system:
More maintenance reminders are also available
on the center display. (See “How to use INFO
button” (P.4-8).)
SIC3978
TRIP COMPUTERGUID-5FADE743-F606-4123-885B-ACB05BA36CF5Switches for the trip computer are located on
the left side of the combination meter panel. To
operate the trip computer, push the switches as
shown above.
*AENTER switch
*BNEXT switch
When the ignition switch is pushed to the ON
position, modes of the trip computer can be
selected by pushing the
switch*A.
Each time the
switch*Ais pushed, the
display will change as follows:
Current fuel consumption ?Average fuel
consumption and speed ?Elapsed time and trip odometer
?Distance to empty ?Outside
air temperature ?Setting ?Warning check

Black plate (86,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]

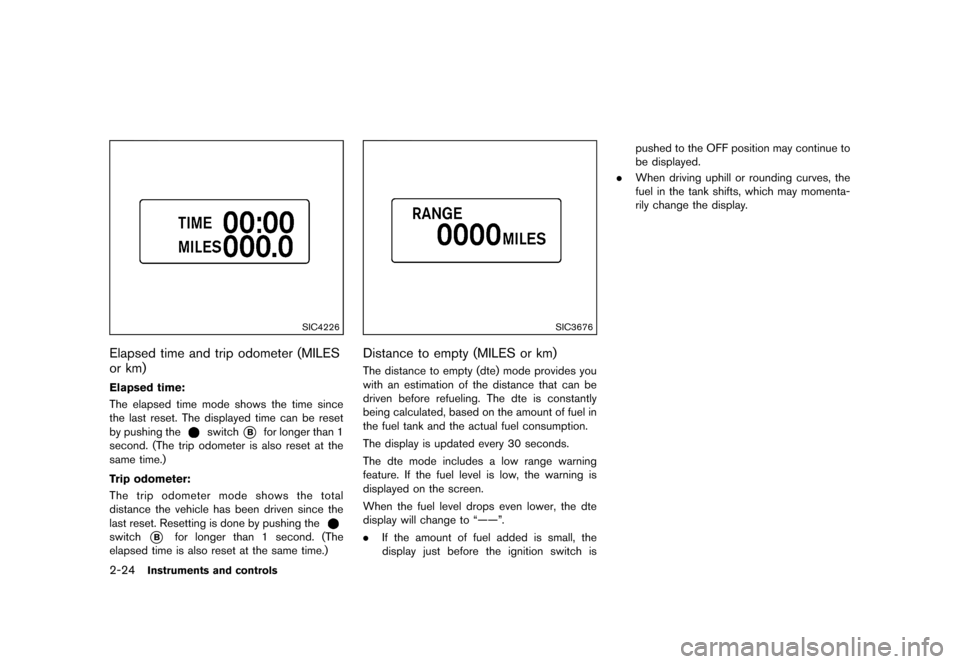

2-24Instruments and controls
SIC4226
Elapsed time and trip odometer (MILES
or km)
GUID-ED45A6BD-153C-4500-B746-FDAA7FC98058
Elapsed time:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The elapsed time mode shows the time since
the last reset. The displayed time can be reset
by pushing the
switch*Bfor longer than 1
second. (The trip odometer is also reset at the
same time.)
Trip odometer:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The trip odometer mode shows the total
distance the vehicle has been driven since the
last reset. Resetting is done by pushing the
switch*Bfor longer than 1 second. (The
elapsed time is also reset at the same time.)
SIC3676
Distance to empty (MILES or km)GUID-6D734799-499F-4B18-B4E4-3E963CE6F39FThe distance to empty (dte) mode provides you
with an estimation of the distance that can be
driven before refueling. The dte is constantly
being calculated, based on the amount of fuel in
the fuel tank and the actual fuel consumption.
The display is updated every 30 seconds.
The dte mode includes a low range warning
feature. If the fuel level is low, the warning is
displayed on the screen.
When the fuel level drops even lower, the dte
display will change to “——”.
. If the amount of fuel added is small, the
display just before the ignition switch is pushed to the OFF position may continue to
be displayed.
. When driving uphill or rounding curves, the
fuel in the tank shifts, which may momenta-
rily change the display.

Black plate (419,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]

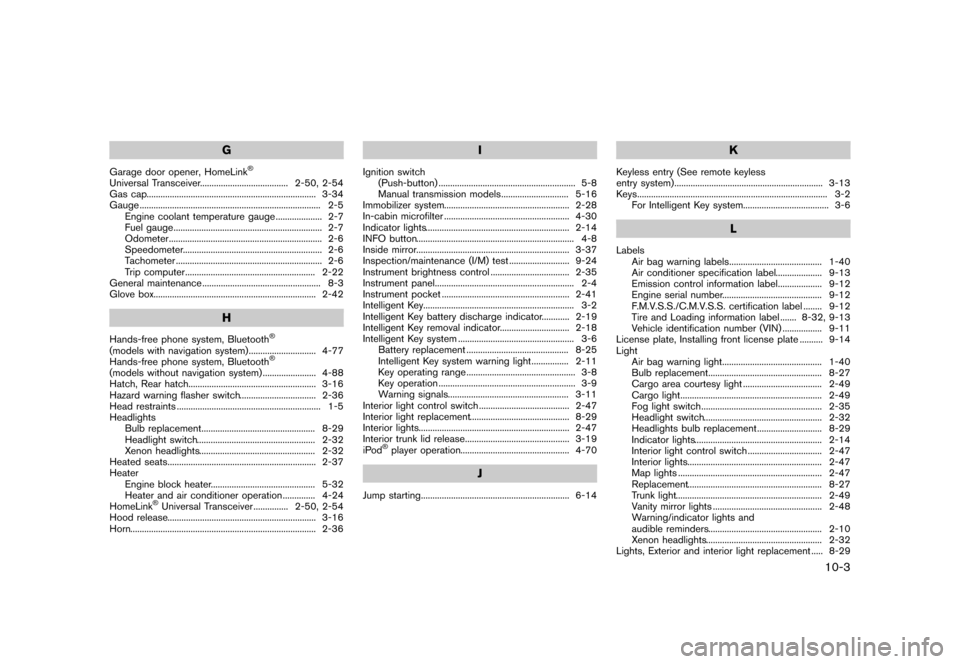

G
Garage door opener, HomeLink®
Universal Transceiver...
...................................... 2-50, 2-54
Gas cap ...
......................................................................... 3-34
Gauge ...
.............................................................................. 2-5
Engine coolant temperature gauge ...
.................... 2-7
Fuel gauge ...
................................................................ 2-7
Odometer ...
.................................................................. 2-6
Speedometer ...
............................................................ 2-6
Tachometer ...
............................................................... 2-6
Trip computer ...
........................................................ 2-22
General maintenance ...
................................................... 8-3
Glove box ...
...................................................................... 2-42
H
Hands-free phone system, Bluetooth®
(models with navigation system) ...
............................. 4-77
Hands-free phone system, Bluetooth®
(models without navigation system) ...
....................... 4-88
Hatch, Rear hatch ...
....................................................... 3-16
Hazard warning flasher switch ...
................................. 2-36
Head restraints ...
.............................................................. 1-5
Headlights Bulb replacement ...
................................................. 8-29
Headlight switch ...
................................................... 2-32
Xenon headlights ...
.................................................. 2-32
Heated seats ...
................................................................ 2-37
Heater Engine block heater ...
............................................. 5-32
Heater and air conditioner operation ...
.............. 4-24
HomeLink
®Universal Transceiver ...
............... 2-50, 2-54
Hood release ...
................................................................ 3-16
Horn ...
................................................................................ 2-36
I
Ignition switch
(Push-button) ...
........................................................... 5-8
Manual transmission models ...
............................. 5-16
Immobilizer system ...
...................................................... 2-28
In-cabin microfilter ...
...................................................... 4-30
Indicator lights ...
.............................................................. 2-14
INFO button ...
.................................................................... 4-8
Inside mirror ...
.................................................................. 3-37
Inspection/maintenance (I/M) test ...
.......................... 9-24
Instrument brightness control ...
.................................. 2-35
Instrument panel ...
............................................................ 2-4
Instrument pocket ...
....................................................... 2-41
Intelligent Key ...
................................................................. 3-2
Intelligent Key battery discharge indicator ...
............ 2-19
Intelligent Key removal indicator ...
.............................. 2-18
Intelligent Key system ...
.................................................. 3-6
Battery replacement ...
............................................ 8-25
Intelligent Key system warning light ...
................ 2-11
Key operating range ...
............................................... 3-8
Key operation ...
........................................................... 3-9
Warning signals ...
.................................................... 3-11
Interior light control switch ...
....................................... 2-47
Interior light replacement ...
........................................... 8-29
Interior lights ...
................................................................. 2-47
Interior trunk lid release ...
............................................. 3-19
iPod
®player operation ...
............................................... 4-70
J
Jump starting ...
................................................................ 6-14
K
Keyless entry (See remote keyless
entry system) ...
................................................................ 3-13
Keys ...
.................................................................................. 3-2
For Intelligent Key system ...
..................................... 3-6
L
Labels
Air bag warning labels ...
........................................ 1-40
Air conditioner specification label ...
.................... 9-13
Emission control information label ...
................... 9-12
Engine serial number ...
........................................... 9-12
F.M.V.S.S./C.M.V.S.S. certification label ...
........ 9-12
Tire and Loading information label ...
....... 8-32, 9-13
Vehicle identification number (VIN) ...
................. 9-11
License plate, Installing front license plate ...
.......... 9-14
Light Air bag warning light ...
........................................... 1-40
Bulb replacement ...
................................................. 8-27
Cargo area courtesy light ...
.................................. 2-49
Cargo light ...
............................................................. 2-49
Fog light switch ...
.................................................... 2-35
Headlight switch ...
................................................... 2-32
Headlights bulb replacement ...
............................ 8-29
Indicator lights ...
....................................................... 2-14
Interior light control switch ...
................................ 2-47
Interior lights ...
.......................................................... 2-47
Map lights ...
.............................................................. 2-47
Replacement ...
.......................................................... 8-27
Trunk light ...
............................................................... 2-49
Vanity mirror lights ...
............................................... 2-48
Warning/indicator lights and
audible reminders ...
................................................. 2-10
Xenon headlights ...
.................................................. 2-32
Lights, Exterior and interior light replacement ...
..... 8-29
10-3
