3-30 Features and controls
3
Steering wheel lock
N00514300025
To l o c kTurn the ignition switch to the “LOCK” position.
Turn the steering wheel until it is locked.To unlockTurn the ignition switch to the “ACC” position while moving
the steering wheel slightly.
NOTE
If the front wheels are turned, the anti-theft lock may
sometimes make it difficult to turn the ignition switch
from “LOCK” to “ACC” position. Firmly turn the steer-
ing wheel to the left or to the right as you turn the ignition
switch.Starting
N00514600259
Tips for starting
Do not operate the starter motor for longer than 15 sec-
onds as this could run the battery down or damage the
starter motor. If the engine does not start, turn the ignition
switch back to the “LOCK” position, wait a few seconds,
and then try again. Trying repeatedly with the engine or
starter motor still turning will damage the starter mecha-
nism.

If the engine will not start because the battery is weak or
discharged, refer to “Jump-starting the engine” on page 6-
2 for instructions.

A longer warm up period will only consume extra fuel.
The engine is warmed up enough for driving when the bar
graph of the engine coolant temperature display starts to
move. Refer to “Interrupt display screen (With ignition
switch in the “ON” position)” on page 3-195.

On vehicles equipped with the Twin Clutch SST, the fol-
lowing may occur after the engine is started, but they do
not indicate an abnormality.
• You may hear operational sounds of the Twin Clutch
SST and you may feel vibration in the vehicle body.
CAUTION
!
Carry the key with you when leaving the vehicle.
If your vehicle needs to be towed, turn the ignition
switch to the “ACC” position to unlock the steering
wheel.
BK0150800US.book 30 ページ ２０１２年３月２９日　木曜日　午後２時３８分

For emergencies
6-7
6 Tools and jack
N00836600265
StorageThe tools and jack are stowed in the trunk.
Tools
N00832600124
1- Tools
2- Jack
1- Tool bag
2- Bar
3- Wheel nut wrench
BK0150800US.book 7 ページ ２０１２年３月２９日　木曜日　午後２時３８分

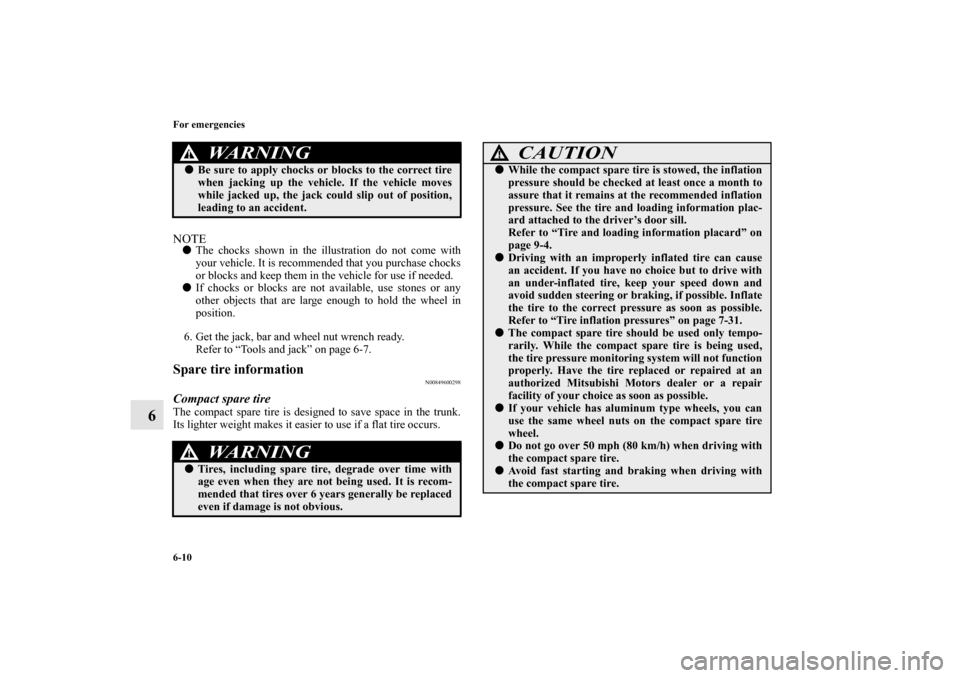

6-10 For emergencies
6
NOTE
The chocks shown in the illustration do not come with
your vehicle. It is recommended that you purchase chocks
or blocks and keep them in the vehicle for use if needed.

If chocks or blocks are not available, use stones or any
other objects that are large enough to hold the wheel in
position.
6. Get the jack, bar and wheel nut wrench ready.
Refer to “Tools and jack” on page 6-7.Spare tire information
N00849600298
Compact spare tireThe compact spare tire is designed to save space in the trunk.
Its lighter weight makes it easier to use if a flat tire occurs.
WA R N I N G
!
Be sure to apply chocks or blocks to the correct tire
when jacking up the vehicle. If the vehicle moves
while jacked up, the jack could slip out of position,
leading to an accident.
WA R N I N G
!
Tires, including spare tire, degrade over time with
age even when they are not being used. It is recom-
mended that tires over 6 years generally be replaced
even if damage is not obvious.
CAUTION
!
While the compact spare tire is stowed, the inflation
pressure should be checked at least once a month to
assure that it remains at the recommended inflation
pressure. See the tire and loading information plac-
ard attached to the driver’s door sill.
Refer to “Tire and loading information placard” on
page 9-4.
Driving with an improperly inflated tire can cause
an accident. If you have no choice but to drive with
an under-inflated tire, keep your speed down and
avoid sudden steering or braking, if possible. Inflate
the tire to the correct pressure as soon as possible.
Refer to “Tire inflation pressures” on page 7-31.
The compact spare tire should be used only tempo-
rarily. While the compact spare tire is being used,
the tire pressure monitoring system will not function
properly. Have the tire replaced or repaired at an
authorized Mitsubishi Motors dealer or a repair
facility of your choice as soon as possible.
If your vehicle has aluminum type wheels, you can
use the same wheel nuts on the compact spare tire
wheel.
Do not go over 50 mph (80 km/h) when driving with
the compact spare tire.
Avoid fast starting and braking when driving with
the compact spare tire.
BK0150800US.book 10 ページ ２０１２年３月２９日　木曜日　午後２時３８分

7-62 Vehicle care and maintenance
7
Daytime running lights (for vehicles with high
intensity discharge headlights)
N00900300103
1. When replacing the bulb on the front passenger’s side,
remove the bolt (A) holding down the washer tank spout
and move the spout toward the rear of the vehicle.
CAUTION
!
Handle halogen light bulb with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen light bulb with a bare hand,
dirty glove, etc.
The oil from your hand could cause the bulb to
break the next time the headlights are used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
*- Front of the vehicle
