2013 MITSUBISHI LANCER EVOLUTION brakes

6 Quick index
Problem
Do this
Ref. page
The brakes are not functioning
properly after driving through
water. Dry out the brakes by driving slowly while lightly pressing the brake pedal. P.4-7
Twin Clutch SST does not
shift.
Vehicle cannot move.
Acceleration is slow.
The vehicle does not creep.
A large shock is felt when
shifting.
Shifting occurs at higher
engine speed.
Response is slow.
(for vehicles with Twin Clutch
SST)The temperature of the Twin Clutch SST fluid is high, a safety device in the Twin Clutch
SST has been activated due to a possible malfunction in the Twin Clutch SST, or there is
a possible malfunction in the engine electronic control module.P.3-101,
3-117,
3-199
A tire is punctured.
1. Park the vehicle in a safe place where the surface is flat and level.
2. Replace the flat tire with the spare tire.P. 6 - 9BK0150900US.book 6 ページ ２０１２年５月７日　月曜日　午後１２時９分

Features and controls
3-77
3
To release When parking on a hill, apply the parking brake and turn the
front wheels toward the curb on a downhill grade, away from
the curb on an uphill grade.1- Pull the lever up slightly.
2- Press and hold the button at the end of the hand grip.
3- Push the lever downward.
CAUTION
!
Before driving, be sure that the parking brake is
fully released and brake warning light is off.
If you drive without the parking brake fully
released, the warning display will appear on the
information screen in the multi-information display.
If a vehicle is driven without releasing the parking
brake, the brakes will be overheated, resulting in
ineffective braking and possible brake failure.
Warning light
Warning display
BK0150900US.book 77 ページ ２０１２年５月７日　月曜日　午後１２時９分

Features and controls
3-93

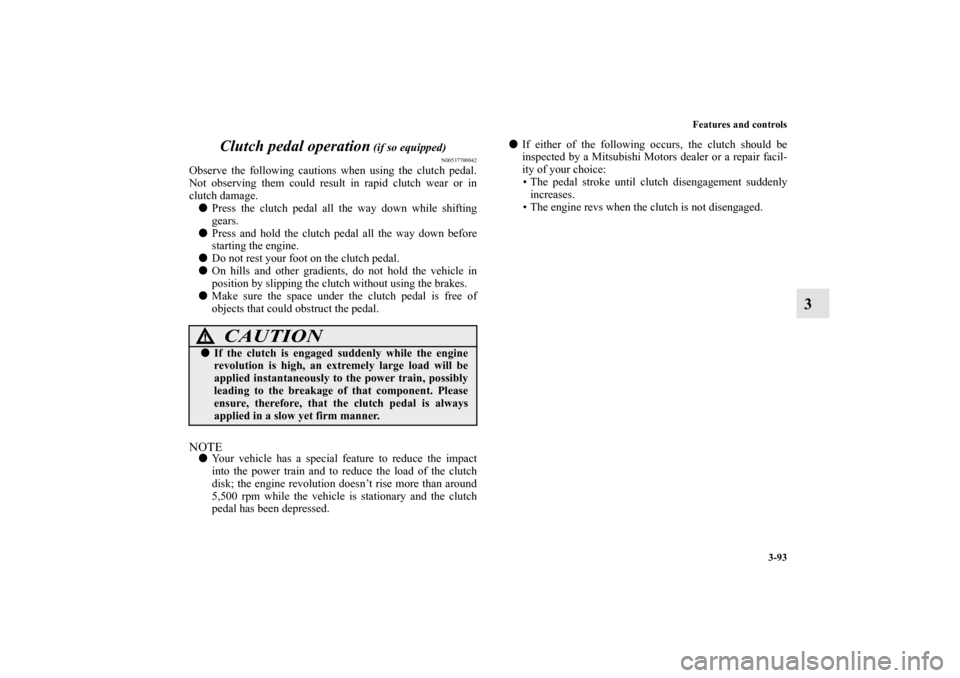

3 Clutch pedal operation
(if so equipped)
N00537700042
Observe the following cautions when using the clutch pedal.
Not observing them could result in rapid clutch wear or in
clutch damage.

Press the clutch pedal all the way down while shifting
gears.

Press and hold the clutch pedal all the way down before
starting the engine.

Do not rest your foot on the clutch pedal.

On hills and other gradients, do not hold the vehicle in
position by slipping the clutch without using the brakes.

Make sure the space under the clutch pedal is free of
objects that could obstruct the pedal.NOTE
Your vehicle has a special feature to reduce the impact
into the power train and to reduce the load of the clutch
disk; the engine revolution doesn’t rise more than around
5,500 rpm while the vehicle is stationary and the clutch
pedal has been depressed.
If either of the following occurs, the clutch should be
inspected by a Mitsubishi Motors dealer or a repair facil-
ity of your choice:
• The pedal stroke until clutch disengagement suddenly
increases.
• The engine revs when the clutch is not disengaged.
CAUTION
!
If the clutch is engaged suddenly while the engine
revolution is high, an extremely large load will be
applied instantaneously to the power train, possibly
leading to the breakage of that component. Please
ensure, therefore, that the clutch pedal is always
applied in a slow yet firm manner.
BK0150900US.book 93 ページ ２０１２年５月７日　月曜日　午後１２時９分

Features and controls
3-105
3
Twin Clutch SST control mode
N00540200083
Select the control mode from the following three types to suit
the driving conditions.
NOTE
Damage to your vehicle caused by racing and/or driving
on closed circuit tracks will not be covered under war-
ranty. Please review the “WARRANTY AND MAINTE-
NANCE MANUAL: NEW VEHICLE LIMITED
WARRANTY”.

When continuously driving on closed circuit racetracks or
at other locations where the engine is operated at high
speeds and under a heavy load, the Twin Clutch SST fluid
temperature will have a tendency to rise.
In this case, if the temperature rises too high, the warn-
ing display will appear on the information screen in the
multi-information display to alert the driver.
If the warning display appears, be sure to refer to
“Warning display” on page 3-101 and follow the appropri-
ate measures.

The Twin Clutch SST control mode can be selected both
when “D” range operation is selected and when manual
shifting is selected.

If you select “Sport” mode or “S-Sport” mode while the
engine is cold, the transmission may shift up at different
speeds compared to that when the engine is warm.
This is simply the operation of the control system to warm
the engine quickly. It does not indicate a malfunction.

For slippery road surfaces, such as roads with accumu-
lated snow, “Normal” mode is recommended for smooth
shifting at low engine speeds.
Tw i n C l u t c h
SST control
mode
Characteristic
Normal
(Control mode
when engine is
started)Control mode for normal driving on local
roads, freeways, and the like.
Smooth shifting is performed at low engine
speeds for economical driving with good ride
quality.
SportControl mode for driving on mountain roads,
roads with uphill and downhill slopes, and
freeways with long downhill slopes where
engine braking is necessary.
Compared to “Normal” mode, shifting occurs
at higher engine speeds and is quicker. In
addition, quick downshifting is possible when
the accelerator pedal is depressed for quick
acceleration or when the brakes are applied.
S-Sport
(Super Sport)In the “S-Sport” mode, shifting occurs at
higher engine speeds and is even quicker than
in the “Sport” mode.
“S-Sport” mode is designed to be used while
driving on closed circuit tracks. Do not use
this mode on public roads.
BK0150900US.book 105 ページ ２０１２年５月７日　月曜日　午後１２時９分

Features and controls
3-113
3
Manual shift display
N00543000095
In manual shift, the currently selected gear is displayed on the
multi-information display.
Operation of the Twin Clutch SST
N00540800034
through
CAUTION
!
Before selecting a position with the engine running
and the vehicle stationary, fully depress the brake
pedal to prevent the vehicle from creeping.
Do not release the brakes until you are ready to
drive away. The vehicle will begin to move as soon as
the Twin Clutch SST is engaged.
Depress the brake pedal with the right foot.
Using the left foot could cause driver movement
delay in case of an emergency.
To prevent sudden acceleration, never run the
engine at high rpms when shifting from the “P”
(PARK) or “N” (NEUTRAL) position.
Operating the accelerator pedal while the other foot
is resting on the brake pedal will affect braking effi-
ciency, may cause premature wear of brake pads
and may cause engine damage.
Use the gearshift lever in the correct shift position in
accordance with driving conditions.
Never coast downhill backward in the driving shift
position {“D” (DRIVE) or manual shifting} or coast
forward in the “R” (REVERSE) position.
Engine stopping and increased brake pedal and
steering effort could lead to an accident.
BK0150900US.book 113 ページ ２０１２年５月７日　月曜日　午後１２時９分

Features and controls
3-115
3
DRIVING DOWNHILL
When traveling down steep grades, the computer may automat-
ically select a lower shift position. This function assists engine
braking efforts, reducing the need for using the service brakes.
Waiting
N00541000046
For short waiting periods, such as at traffic lights, the vehicle
can be left in gearshift lever position and held stationary with
the service brake.
For longer waiting periods with the engine running, place the
gearshift lever in the “N” (NEUTRAL) position and apply the
parking brake, while holding the vehicle stationary with the
service brake.
Prior to moving off after having stopped the vehicle, make sure
that the gearshift lever is in “D” (DRIVE) position or manual
shift position.
CAUTION
!
Do not use the tendency of the vehicle to creep for-
ward in order to drive at low speeds up hills.
The transmission may be damaged and an accident
may occur due to the following conditions.
• The Twin Clutch SST fluid temperature will rise
and can cause transmission damage.
• If the vehicle is continuously driven at low speeds
using the tendency of the vehicle to creep forward,
the vehicle will vibrate or the warning display
will appear on the information screen in the multi-
information display to alert the driver that the
Twin Clutch SST fluid temperature has risen.
After that, if the Twin Clutch SST fluid tempera-
ture rises even higher, the transmission protection
control will operate.
If this occurs, the vehicle may suddenly reverse as
if the gearshift lever was in the “N” (NEUTRAL)
position and cause an accident.
If the warning display appears or the transmis-
sion protection control operates, refer to “When
warning display is showing” on page 3-101.
CAUTION
!
Do not rev the engine unnecessarily while the vehicle
is stationary. Unexpected acceleration may occur if
the gearshift lever is in a position other than “P”
(PARK) or “N” (NEUTRAL).
BK0150900US.book 115 ページ ２０１２年５月７日　月曜日　午後１２時９分

3-126 Features and controls
3
NOTE
If the ambient temperature drops and the viscosity of the
AWC control fluid increases, the warning may be dis-
played.
At this time, S-AWC control is temporarily suspended,
but this will not affect normal driving.
After the vehicle is driven for a while, if the engine is
restarted after the AWC control fluid warms up or the
ambient temperature increases, the S-AWC control will
start operating again if the warning display goes out.
Anti-lock braking system
N00517900295
The anti-lock braking system helps prevent the wheels from
locking up when braking. This helps maintain vehicle drivabil-
ity and steering wheel handling.Driving hints
Always keep a safe distance from the vehicle in front of
you. Even if your vehicle is equipped with the anti-lock
braking system, leave a greater braking distance when:
• Driving on gravel or snow-covered roads.
• Driving on uneven road surfaces.

Operation of anti-lock braking system is not restricted to
situations where brakes are applied suddenly. This system
may also prevent the wheels from locking when you drive
over manholes, steel roadwork plates, road markings, or
any uneven road surface.

When the anti-lock braking system is in use, you may feel
the brake pedal pulsation and the vibrations of the vehicle
body and steering wheel. It may also feel as if the pedal
resists being pressed.
In this situation, simply hold the brake pedal down
firmly. Do not pump the brake, which will result in
reduced braking performance.
CAUTION
!
The system may be malfunctioning.
Park your vehicle in a safe place and stop the engine.
Restart the engine and check whether the warn-
ing display and “SERVICE REQUIRED” go out.
If the warning display and “SERVICE
REQUIRED” go out, there is no abnormal condi-
tion. If the warning display and “SERVICE
REQUIRED” do not go out or appear frequently, it
is not necessary to stop the vehicle immediately, but
we recommend that you have your vehicle inspected.
BK0150900US.book 126 ページ ２０１２年５月７日　月曜日　午後１２時９分

3-134 Features and controls
3Limited-slip differential
N00517400014
A limited-slip differential is applied for front wheel differen-
tial. The features of this limited-slip differential are described
below:
Just as with a conventional differential, the wheel on one side
is allowed to turn at a different speed from the wheel on the
other side when the vehicle is cornering. The difference
between the limited-slip differential and a conventional differ-
ential is that if the wheel on one side of the vehicle loses trac-
tion, a greater amount of torque is applied to the wheel on the
other side to improve traction.NOTE
Even if there is a difference in the amount of traction the
wheels can get, if both of them are spinning, the limited-
slip differential will not be effective.
Service brake
N00517500291
Brake pedalOveruse of the brake can cause poor brake response and pre-
mature wear of the brake pads.
When driving down a long or steep hill, use engine braking by
downshifting.
CAUTION
!
Never start the engine while one of the front or rear
wheels is jacked up and the other in contact with the
ground; doing so may cause the vehicle to jump for-
ward.
Continuously attempting to extract the vehicle from
snow, mud, etc. while using high engine rpm may
damage the limited-slip differential.
Using a compact spare wheel will adversely affect
the limited-slip differential; replace the compact
spare wheel with a standard size wheel as soon as
possible.
WA R N I N G
!
Do not leave any objects near the brake pedal or let
a floor mat slide under it; doing so could prevent the
full pedal stroke that would be necessary in an emer-
gency. Make sure that the pedal can be operated
freely at all times. Make sure the floor mat is
securely held in place.
CAUTION
!
It is important not to drive the vehicle with your foot
resting on the brake pedal when braking is not
required. This practice can result in very high brake
temperatures, premature pad wear, and possible
damage to the brakes.
BK0150900US.book 134 ページ ２０１２年５月７日　月曜日　午後１２時９分
