2013 MERCEDES-BENZ G-CLASS SUV light

0043
Turn signal lamp: 1156 NA
0044 Side marker lamp: T 4 W
0087 Cornering light function with fog lamp
function: H11 55 W
(except AMG vehicles)
Rear lamps You can change the following bulbs. The bulb
type can be found in the legend.
0043
Tail lamp/standing lamp: W 5 W
0044 Brake lamp/tail lamp: P 21/5 W
0087 Turn signal lamp: PY 21 W
0085 Side marker lamp: T 4 W
0083 Backup lamp: P 21 W
0084 Rear fog lamp: P 21 W Changing the front bulbs
Front fog lamps/cornering lamps with
fog lamp function X
Switch off the lights.
X Unscrew screws 0043.
X Remove cover 0044. X
Unscrew screws 0087.
i Only remove screws 0087. Do not turn
adjustment screw 0085. If adjustment
screw 0085 has been turned, the front fog
lamp adjustment must be checked at a
qualified workshop.
X Remove lamp 0083.110
Replacing bulbs
Lights and windshield wipers

X
Hold lamp 0083.
X Lightly press bulb holder 0084, turn it
counter-clockwise to the stop and pull it
out. X
Take bulb 006B out of bulb holder 0084.
X Insert the new bulb into bulb holder 0084.
X Insert bulb holder 0084
into lamp
0083
and turn
it clockwise to the stop.
X Insert lamp 0083.
X Replace and tighten screws 0087.
X Position cover 0044.
X Replace and tighten screws 0043.
Turn signals !
Make sure that the protective grille does
not hit any painted surfaces.
You could otherwise damage the
paintwork.
! Do not fasten the screws too tightly. You
could otherwise damage the lens. Turn signal lamp with protection grille (AMG
vehicles)
X
Switch off the lights.
X AMG vehicles: pull protection grille 0043 in
the direction of the arrow out of
mounting 0044.
X Fold up protection grille 0043. Example: turn signal lamp
X
Switch off the lights.
X Unscrew screws 0087.
X Remove lens 0085. Example: turn signal lamp Replacing bulbs
111
Lights and windshield wipers Z

X
Turn bulb 0083 counter-clockwise, applying
slight pressure, and remove
it from the bulb
holder.
X Insert the new bulb into the bulb holder and
turn it clockwise until it engages.
X Install lens 0085.
X Replace and tighten screws 0087.
X AMG vehicles: fold down protection
grille 0043 and allow it to engage in
mounting 0044.

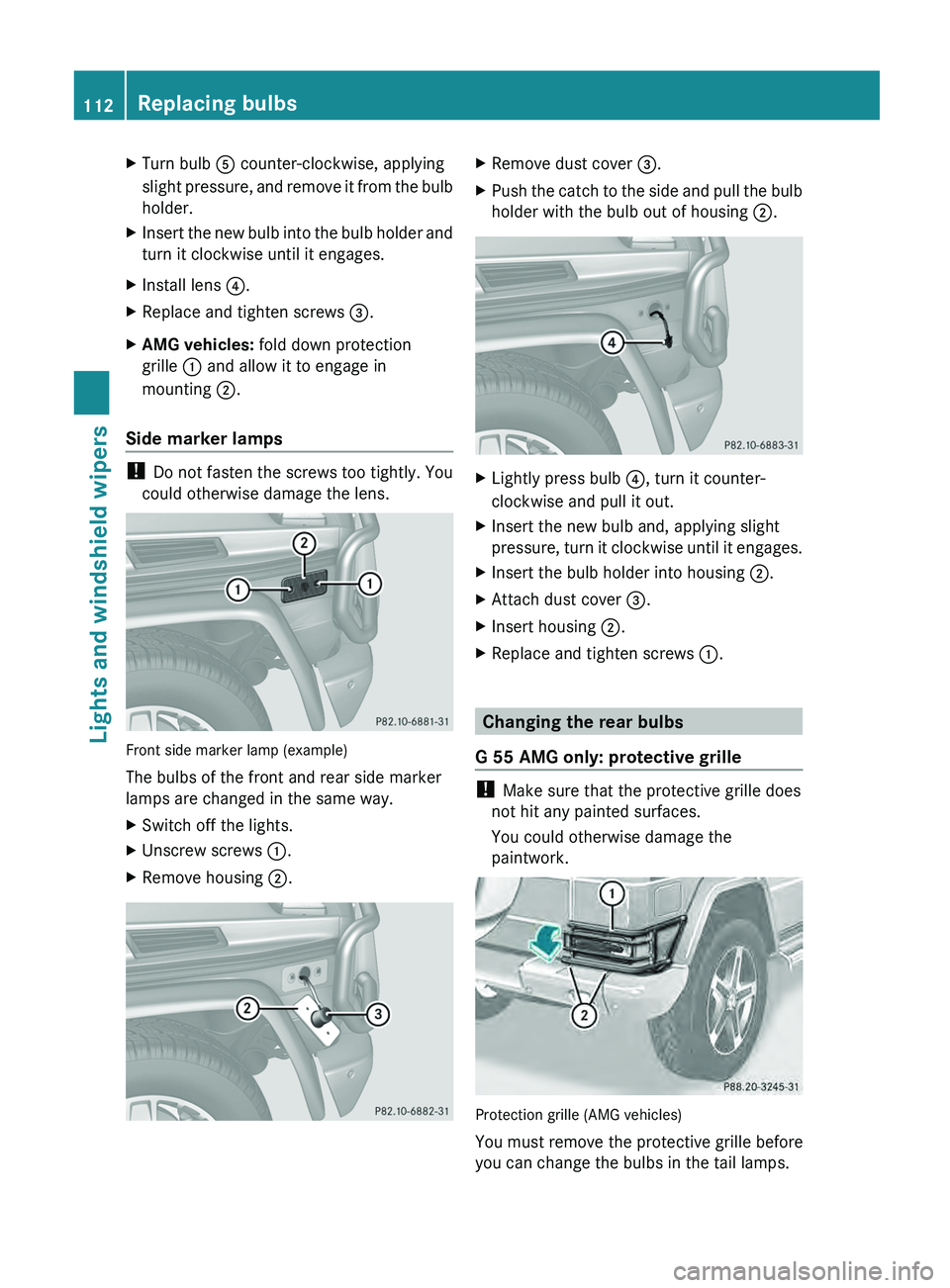

Side marker lamps !
Do not fasten the screws too tightly. You
could otherwise damage the lens. Front side marker lamp (example)
The bulbs of the front and rear side marker
lamps are changed in the same way.
X
Switch off the lights.
X Unscrew screws 0043.
X Remove housing 0044. X
Remove dust cover 0087.
X Push the catch to the side and pull the bulb
holder with the bulb out of housing 0044. X
Lightly press bulb 0085, turn it counter-
clockwise and pull it out.
X Insert the new bulb and, applying slight
pressure, turn it clockwise

until it engages.
X Insert the bulb holder into housing 0044.
X Attach dust cover 0087.
X Insert housing 0044.
X Replace and tighten screws 0043. Changing the rear bulbs
G 55 AMG only: protective grille !
Make sure that the protective grille does
not hit any painted surfaces.
You could otherwise damage the
paintwork. Protection grille (AMG vehicles)
You must remove the protective grille before
you can change the bulbs in the tail lamps.112
Replacing bulbs
Lights and windshield wipers

X
Unscrew screws 0044.
X Swing protection grille 0043 to the right.
X After changing the bulbs, swing protection
grille 0043 to the left.
X Tighten screws 0044.
Tail lamp !
When installing the lens, make sure that
the seal is positioned correctly.
! Do not fasten the screws too tightly. You
could otherwise damage the lens. X
Switch off the lights.
X Unscrew screws 0043.
X Remove lens 0044.0087
Turn signals
0085 Brake/tail lamp
0083 Tail lamp/standing lamp X
Turn the bulb counterclockwise, applying
slight pressure, and remove it from bulb
holder.
X Insert the new bulb into the bulb holder and
turn it clockwise until it engages.
X Install lens 0044.
X Replace and tighten screws 0043.
X AMG vehicles: secure
the protection
grille
(Y page 112).
Backup lamp/rear fog lamp !
Do not fasten the screws too tightly. You
could otherwise damage the lens. Example: rear fog lamp
X
Switch off the lights.
X Unscrew screws 0044.
X Remove lens 0043. X
Turn bulb 0087 counter-clockwise, applying
slight pressure, and remove

it from the bulb
holder.
X Insert the new bulb into the bulb holder and
turn it clockwise until it engages. Replacing bulbs
113
Lights and windshield wipers Z

X
Install lens 0043.
X Replace and tighten screws 0044.Windshield wipers
Switching the windshield wipers on/
off
G
WARNING
The windshield will not longer be wiped
properly if the wiper blades are worn. This
could prevent you from observing the traffic
conditions, thereby causing an accident.
Replace the wiper blades
twice a year, ideally
in spring and fall.
! Do not operate the windshield wipers
when the windshield is dry, as this could
damage the wiper blades. Moreover, dust
that has collected on the windshield/rear
window can scratch the glass if wiping
takes place when the windshield/rear
window is dry.
If it is necessary to switch on the windshield
wipers in dry weather conditions, always
use washer fluid when operating the
windshield wipers.
! If the windshield wipers leave smears on
the windshield/rear window after the
vehicle has been washed in an automatic
car wash, this may be due to wax or other
residue. Clean the windshield/rear window
with washer fluid after an automatic car
wash.
! Intermittent wiping with rain sensor: due
to optical influences and the windshield
becoming dirty in dry weather conditions,
the windshield wipers may be activated
inadvertently. This could then damage the
windshield wiper blades or scratch the
windshield.
For this reason, you should always switch
off the windshield wipers in dry weather. Combination switch
0047
003F Windshield wipers off
0048 0062 Intermittent wipe, low (rain sensor
set to low sensitivity)
0049 0063 Intermittent wipe, high (rain sensor
set to high sensitivity)
004A 00AA Continuous wipe, slow
004B 00A9 Continuous wipe, fast
0084 00D3

Single wipe
006B 00D4 To wipe with washer fluid
X Switch on the ignition.
X Turn the combination switch to the
corresponding position.
Intermittent wiping is interrupted if you stop
and open a front door. This protects people
getting into and
out

of the vehicle from being
sprayed with water.
Intermittent wiping continues when all doors
are closed and:
R you shift the automatic transmission to
drive position D or reverse gear R
or
R you change the wipe setting on the
combination switch.
In the 0062 or 0063 position, the appropriate
wiping frequency is set automatically
according to the intensity of the rain. In
the 0063 position, the rain sensor is more
sensitive than in the 0062 position, causing
the windshield wipers to wipe more
frequently. 114
Windshield wipers
Lights and windshield wipers

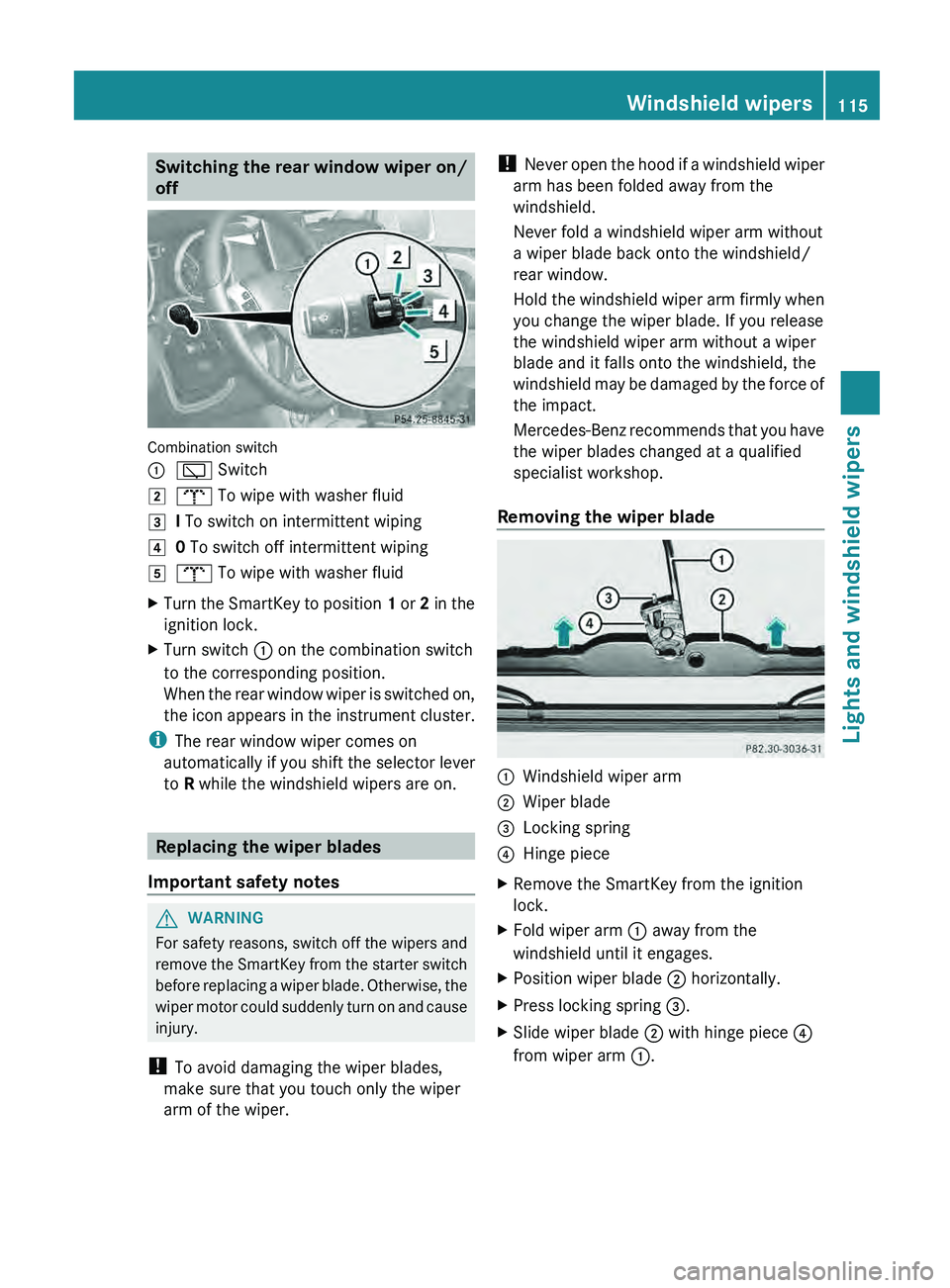

Switching the rear window wiper on/
off
Combination switch
0043
00C5 Switch
0048 008E To wipe with washer fluid
0049 I To switch on intermittent wiping
004A 0 To switch off intermittent wiping
004B 008E To wipe with washer fluid
X Turn the SmartKey to position 1 or
2 in the
ignition lock.
X Turn switch 0043 on the combination switch
to the corresponding position.
When the rear window

wiper is switched on,
the icon appears in the instrument cluster.
i The rear window wiper comes on
automatically if
you shift

the selector lever
to R while the windshield wipers are on. Replacing the wiper blades
Important safety notes G
WARNING
For safety reasons, switch off the wipers and
remove the SmartKey from

the starter switch
before replacing a wiper blade. Otherwise, the
wiper motor could suddenly turn on and cause
injury.
! To avoid damaging the wiper blades,
make sure that you touch only the wiper
arm of the wiper. !
Never open the hood
if a windshield wiper
arm has been folded away from the
windshield.
Never fold a windshield wiper arm without
a wiper blade back onto the windshield/
rear window.
Hold the windshield wiper arm firmly when
you change the wiper blade. If you release
the windshield wiper arm without a wiper
blade and it falls onto the windshield, the
windshield may be damaged by the force of
the impact.
Mercedes-Benz recommends that you have
the wiper blades changed at a qualified
specialist workshop.
Removing the wiper blade 0043
Windshield wiper arm
0044 Wiper blade
0087 Locking spring
0085 Hinge piece
X Remove the SmartKey from the ignition
lock.
X Fold wiper arm 0043 away from the
windshield until it engages.
X Position wiper blade 0044 horizontally.
X Press locking spring 0087.
X Slide wiper blade 0044 with hinge piece 0085
from wiper arm 0043. Windshield wipers
115
Lights and windshield wipers Z

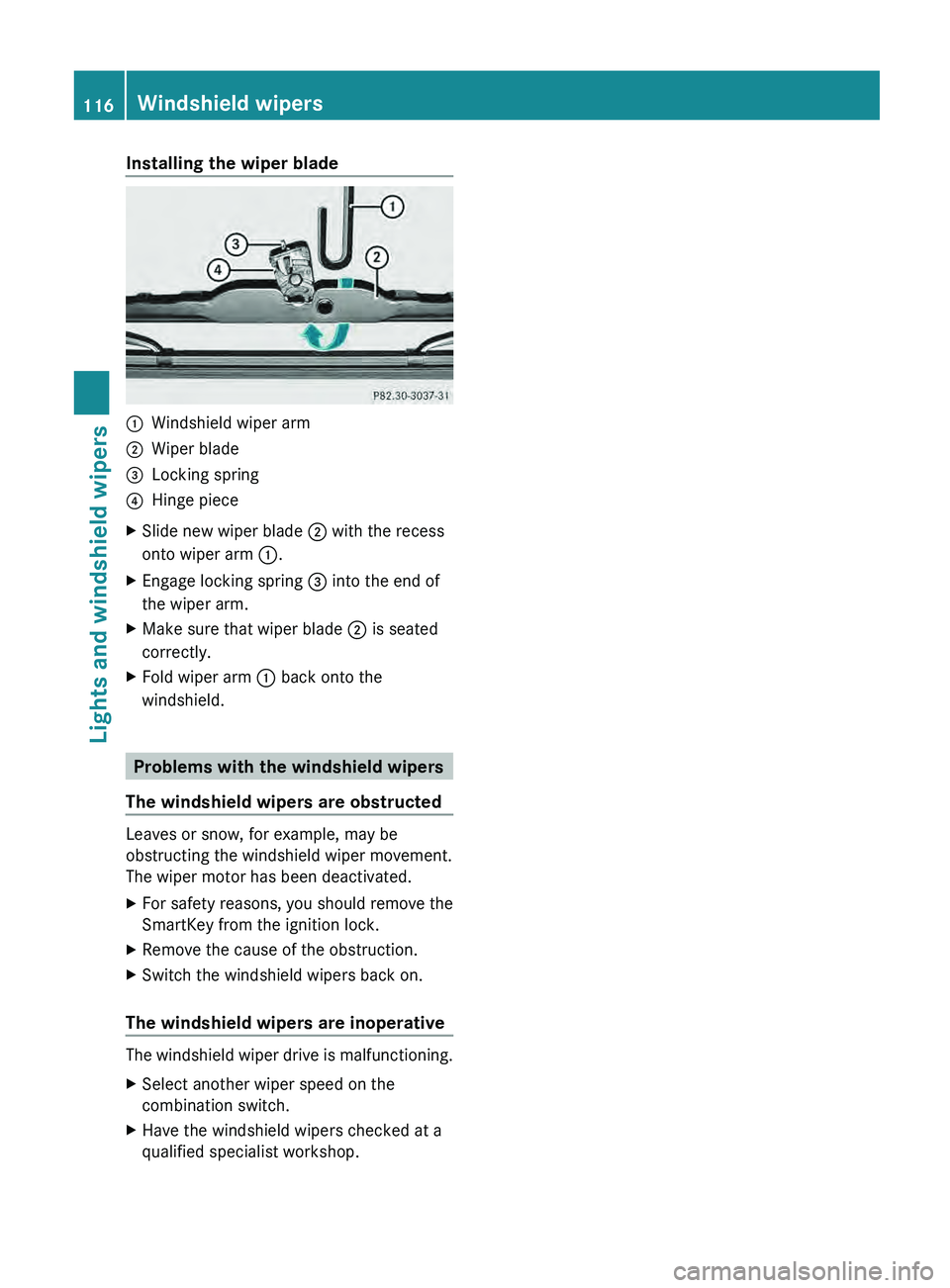

Installing the wiper blade
0043
Windshield wiper arm
0044 Wiper blade
0087 Locking spring
0085 Hinge piece
X Slide new wiper blade 0044 with the recess
onto wiper arm 0043.
X Engage locking spring 0087 into the end of
the wiper arm.
X Make sure that wiper blade 0044 is seated
correctly.
X Fold wiper arm 0043 back onto the
windshield. Problems with the windshield wipers
The windshield wipers are obstructed Leaves or snow, for example, may be
obstructing the windshield wiper movement.
The wiper motor has been deactivated.
X
For safety reasons, you should remove the
SmartKey from the ignition lock.
X Remove the cause of the obstruction.
X Switch the windshield wipers back on.
The windshield wipers are inoperative The windshield wiper drive is malfunctioning.
X
Select another wiper speed on the
combination switch.
X Have the windshield wipers checked at a
qualified specialist workshop.116
Windshield wipersLights and windshield wipers

USA only
0043
Sets the temperature, left ( Y page 131)
0044 Defrosts the windshield ( Y page 131)
0087 Switches maximum cooling MAX COOL on/off ( Y page 132)
0085 Activates/deactivates cooling with air dehumidification ( Y page 124)
0083 Switches the rear window defroster on/off( Y page 133)
0084 Sets the temperature, right ( Y page 131)
006B Activates/deactivates air-recirculation mode (Y page 134)
006C Sets the air distribution (Y page 131)
006D Increases the airflow ( Y page 131)
006E Reduces the airflow ( Y page 131)
006F Display
0070 Switches climate control on/off ( Y page 121)
0071 Sets climate control to automatic (Y page 130) Information about using automatic
climate control
The following contains notes and
recommendations on optimum use of
automatic climate control.
R Activate climate control using
the 0058 and
0056 buttons. The indicator lamps in the
0058 and 0056 buttons light up.
R Set the temperature to 72 ‡ (22 †).
R Only use the "defrosting" function briefly
until the windshield is clear again. R
Only use "air-recirculation" mode briefly,
e.g. if there are unpleasant outside odors
or when in a tunnel. The windows could
otherwise fog up, since
no fresh air is drawn
into the vehicle in air-recirculation mode.
R Use the ZONE function to adopt the
temperature settings on the driver's side
for the front-passenger side as well. The
indicator lamp in the 00D6 button goes out.120
Overview of climate control systems
Climate control
