2013 MERCEDES-BENZ G-CLASS SUV headlamp

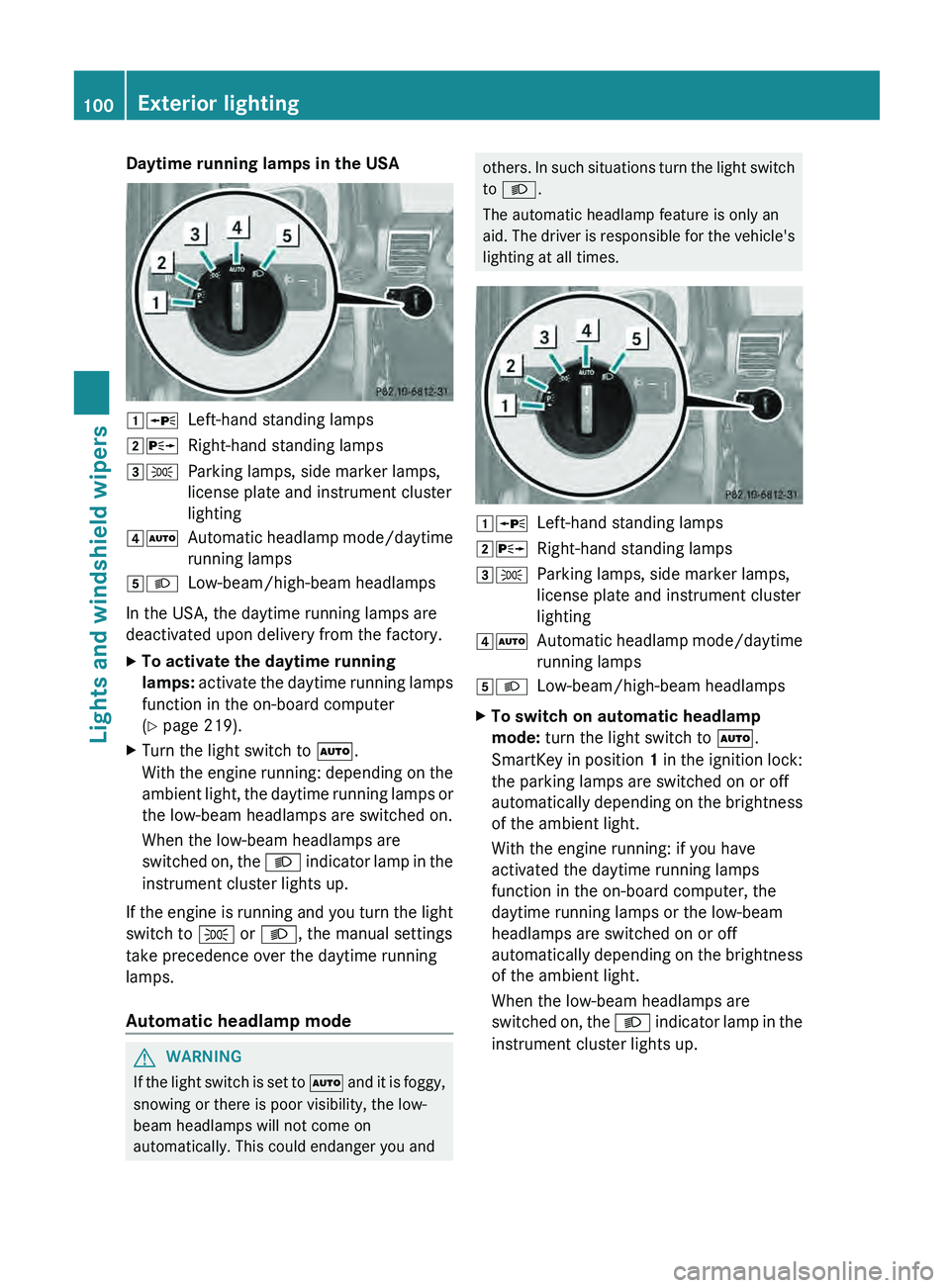

Daytime running lamps in the USA
00470063
Left-hand standing lamps
00480064 Right-hand standing lamps
00490060 Parking lamps, side marker lamps,
license plate and instrument cluster
lighting
004A0058 Automatic headlamp mode/daytime
running lamps
004B0058 Low-beam/high-beam headlamps
In the USA, the daytime running lamps are
deactivated upon delivery from the factory.
X To activate the daytime running
lamps: activate the
daytime
running lamps
function in the on-board computer
(Y page 219).
X Turn the light switch to 0058.
With the engine running:

depending on the
ambient light, the daytime running lamps or
the low-beam headlamps are switched on.
When the low-beam headlamps are
switched on, the 0058 indicator lamp in the
instrument cluster lights up.
If the engine is running and you turn the light
switch to 0060 or 0058, the manual settings
take precedence over the daytime running
lamps.
Automatic headlamp mode G
WARNING
If the light switch is set to 0058 and it is
foggy,
snowing or there is poor visibility, the low-
beam headlamps will not come on
automatically. This could endanger you and others. In such situations turn the light switch
to 0058.
The automatic headlamp feature is only an
aid. The driver
is

responsible for the vehicle's
lighting at all times. 00470063
Left-hand standing lamps
00480064 Right-hand standing lamps
00490060 Parking lamps, side marker lamps,
license plate and instrument cluster
lighting
004A0058 Automatic headlamp mode/daytime
running lamps
004B0058 Low-beam/high-beam headlamps
X To switch on automatic headlamp
mode: turn the light switch to 0058.
SmartKey in
position 1

in the ignition lock:
the parking lamps are switched on or off
automatically depending on the brightness
of the ambient light.
With the engine running: if you have
activated the daytime running lamps
function in the on-board computer, the
daytime running lamps or the low-beam
headlamps are switched on or off
automatically depending on the brightness
of the ambient light.
When the low-beam headlamps are
switched on, the 0058 indicator lamp in the
instrument cluster lights up. 100
Exterior lighting
Lights and windshield wipers

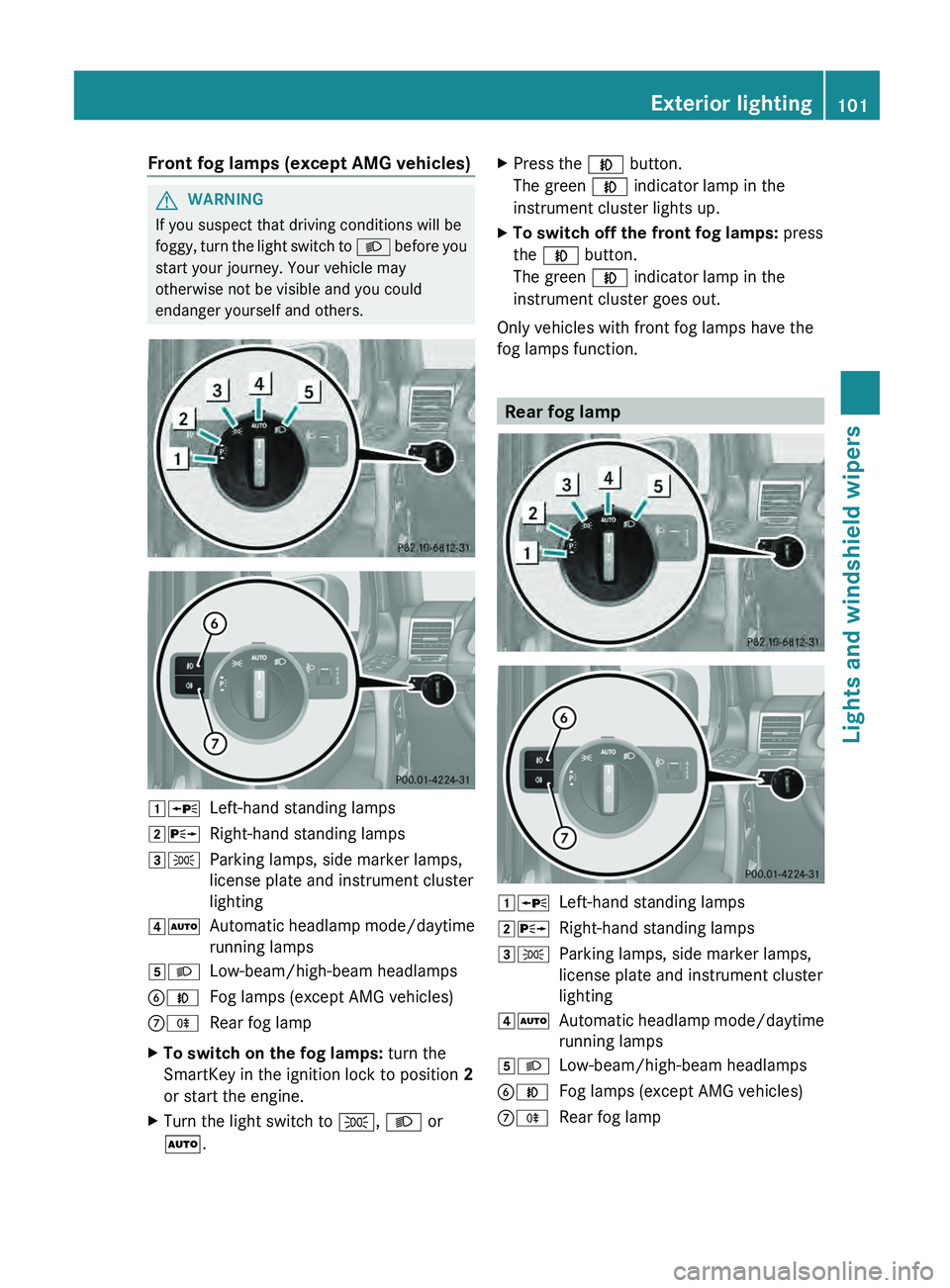

Front fog lamps (except AMG vehicles)
G
WARNING
If you suspect that driving conditions will be
foggy, turn the light
switch to 0058 before you
start your journey. Your vehicle may
otherwise not be visible and you could
endanger yourself and others. 00470063
Left-hand standing lamps
00480064 Right-hand standing lamps
00490060 Parking lamps, side marker lamps,
license plate and instrument cluster
lighting
004A0058 Automatic headlamp mode/daytime
running lamps
004B0058 Low-beam/high-beam headlamps
0084005A Fog lamps (except AMG vehicles)
006B005E Rear fog lamp
X To switch on the fog lamps: turn the
SmartKey in the ignition lock to position 2
or start the engine.
X Turn the light switch to 0060, 0058 or
0058. X
Press the 005A button.
The green 005A indicator lamp in the
instrument cluster lights up.
X To switch off the front fog lamps: press
the 005A button.
The green 005A indicator lamp in the
instrument cluster goes out.
Only vehicles with front fog lamps have the
fog lamps function. Rear fog lamp
00470063
Left-hand standing lamps
00480064 Right-hand standing lamps
00490060 Parking lamps, side marker lamps,
license plate and instrument cluster
lighting
004A0058 Automatic headlamp mode/daytime
running lamps
004B0058 Low-beam/high-beam headlamps
0084005A Fog lamps (except AMG vehicles)
006B005E Rear fog lamp Exterior lighting
101
Lights and windshield wipers Z

X

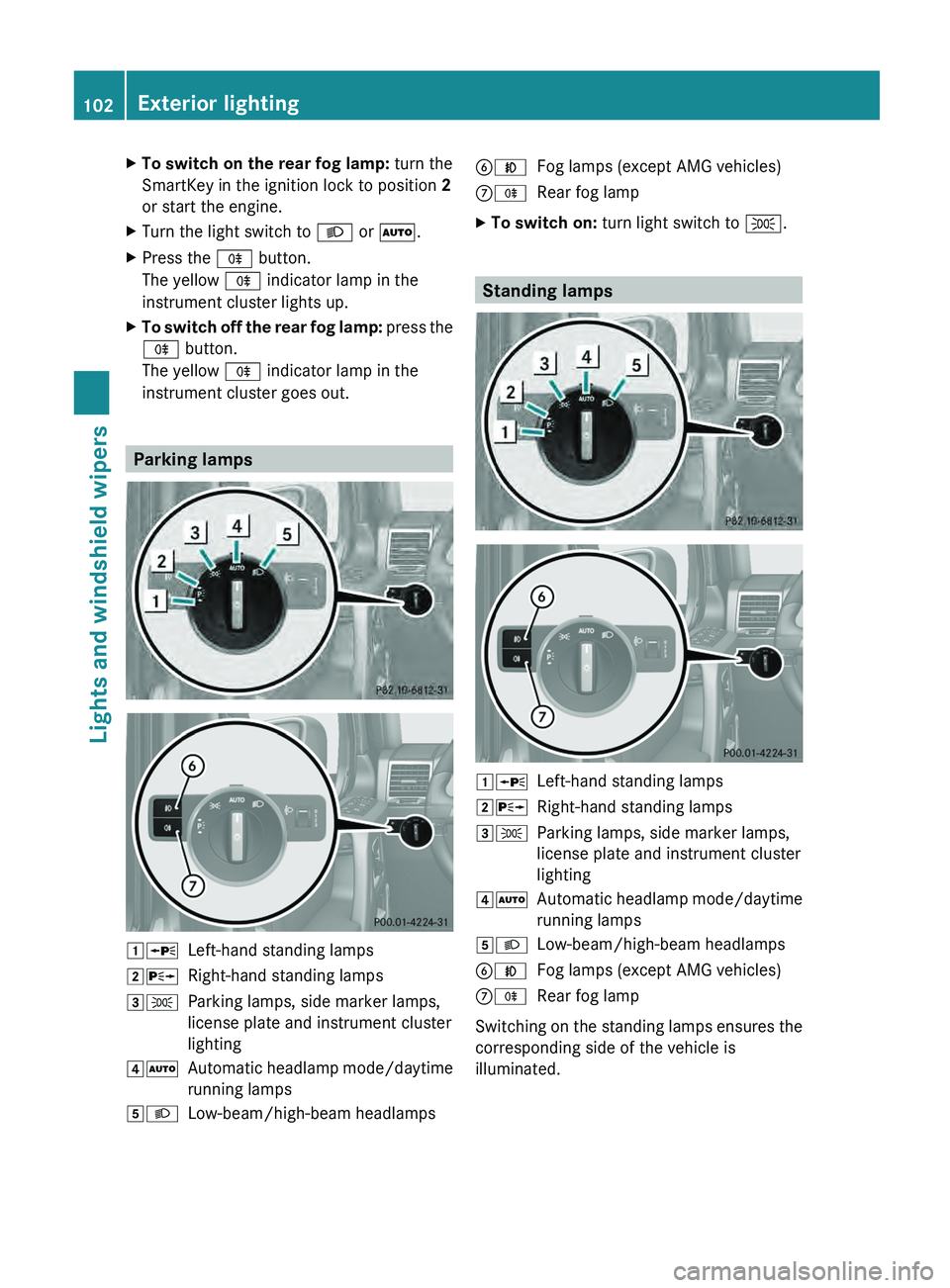

To switch on the rear fog lamp: turn the
SmartKey in the ignition lock to position 2
or start the engine.
X Turn the light switch to 0058 or 0058.
X Press the 005E button.
The yellow 005E indicator lamp in the
instrument cluster lights up.
X To switch off the rear fog lamp: press the
005E button.
The yellow 005E
indicator lamp in the
instrument cluster goes out. Parking lamps
00470063
Left-hand standing lamps
00480064 Right-hand standing lamps
00490060 Parking lamps, side marker lamps,
license plate and instrument cluster
lighting
004A0058 Automatic headlamp mode/daytime
running lamps
004B0058 Low-beam/high-beam headlamps 0084005A
Fog lamps (except AMG vehicles)
006B005E Rear fog lamp
X To switch on: turn light switch to 0060. Standing lamps
00470063
Left-hand standing lamps
00480064 Right-hand standing lamps
00490060 Parking lamps, side marker lamps,
license plate and instrument cluster
lighting
004A0058 Automatic headlamp mode/daytime
running lamps
004B0058 Low-beam/high-beam headlamps
0084005A Fog lamps (except AMG vehicles)
006B005E Rear fog lamp
Switching on the standing lamps ensures the
corresponding side of the vehicle is
illuminated. 102
Exterior lighting
Lights and windshield wipers

X
To switch on the parking lamps: the
SmartKey is not inserted
in the ignition lock
or it is in position 0(Y page 139).
X Turn the light switch to 0063 (left-hand side
of the vehicle) or 0064

(right-hand side of
the vehicle). Headlamp cleaning system
The headlamps are cleaned automatically if
the "Wipe with washer fluid" function is
operated ten times while

the lights are on and
the engine is running (Y page 114). When you
switch off the ignition, the automatic
headlamp cleaning system is reset and
counting is resumed from 0. Combination switch
Turn signals 0043
High-beam headlamps
0044 Turn signal, right
0087 High-beam flasher
0085 Turn signal, left
X To indicate briefly: press the combination
switch briefly to the pressure point in the
direction of arrow 0044

or 0085.
The corresponding turn signal flashes three
times.
X To indicate: press the combination switch
beyond the pressure point in the direction
of arrow

0044 or 0085. High-beam headlamps
0043
High-beam headlamps
0044 Turn signal, right
0087 High-beam flasher
0085 Turn signal, left
X To switch on the high-beam headlamps:
turn the SmartKey in the ignition lock to
position 2 or start the engine.
X Turn the light switch to 0058 or 0058.
X Press the combination switch beyond the
pressure point in the direction of
arrow 0043.
In the 0058 position, the high-beam
headlamps are only switched on when it is
dark and the engine is running.
The blue 0057 indicator lamp in the
instrument cluster lights
up

when the high-
beam headlamps are switched on.
X To switch off the high-beam
headlamps: move the combination

switch
back to its normal position.
The blue 0057 indicator lamp in the
instrument cluster goes out. Exterior lighting
103
Lights and windshield wipers Z

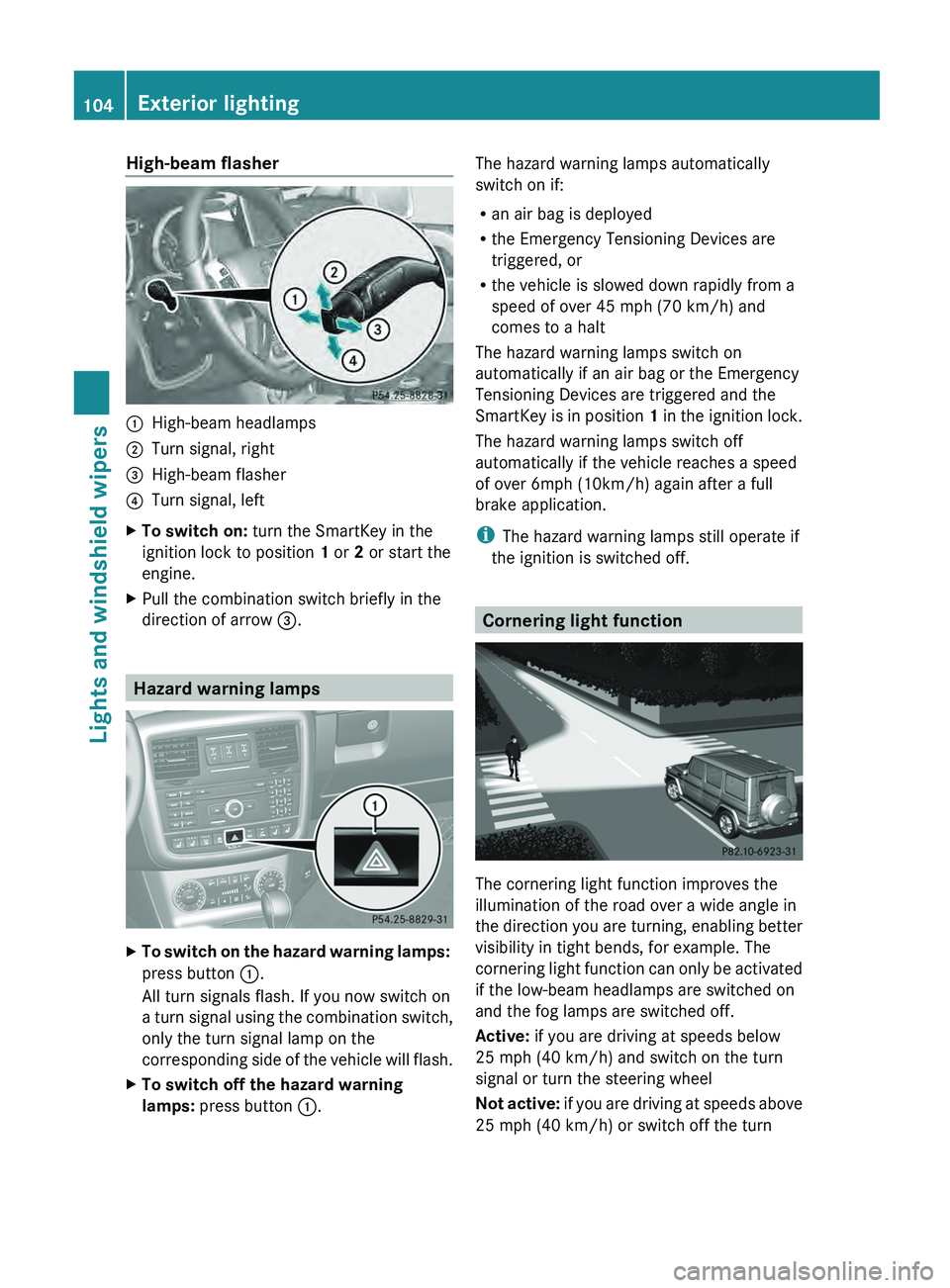

High-beam flasher
0043
High-beam headlamps
0044 Turn signal, right
0087 High-beam flasher
0085 Turn signal, left
X To switch on: turn the SmartKey in the
ignition lock to position 1 or 2 or start the
engine.
X Pull the combination switch briefly in the
direction of arrow 0087. Hazard warning lamps
X
To switch on the hazard warning lamps:
press button 0043.
All turn signals flash. If you now switch on
a turn signal
using
the combination switch,
only the turn signal lamp on the
corresponding side of the vehicle will flash.
X To switch off the hazard warning
lamps: press button 0043. The hazard warning lamps automatically
switch on if:
R
an air bag is deployed
R the Emergency Tensioning Devices are
triggered, or
R the vehicle is slowed down rapidly from a
speed of over 45 mph (70 km/h) and
comes to a halt
The hazard warning lamps switch on
automatically if an air bag or the Emergency
Tensioning Devices are triggered and the
SmartKey is in position 1

in the ignition lock.
The hazard warning lamps switch off
automatically if the vehicle reaches a speed
of over 6mph (10km/h) again after a full
brake application.
i The hazard warning lamps still operate if
the ignition is switched off. Cornering light function
The cornering light function improves the
illumination of the road over a wide angle in
the direction you
are

turning, enabling better
visibility in tight bends, for example. The
cornering light function can only be activated
if the low-beam headlamps are switched on
and the fog lamps are switched off.
Active: if you are driving at speeds below
25 mph (40 km/h) and switch on the turn
signal or turn the steering wheel
Not active: if you are driving at speeds above
25 mph (40 km/h) or switch off the turn 104
Exterior lighting
Lights and windshield wipers

signal or turn the steering wheel to the
straight-ahead position
The cornering light
function
may remain lit for
a short time, but is automatically switched off

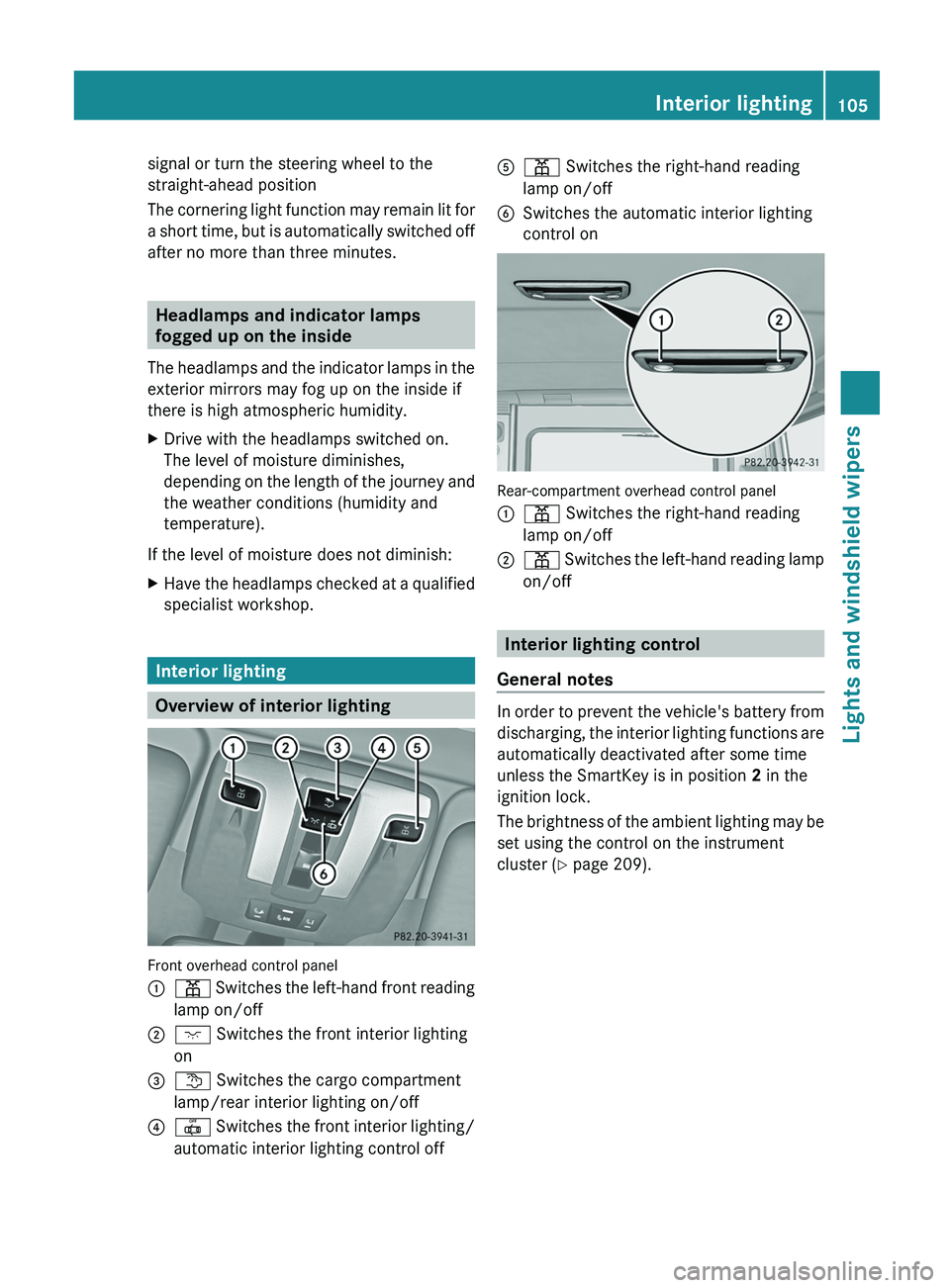

after no more than three minutes. Headlamps and indicator lamps
fogged up on the inside
The headlamps and the

indicator lamps in the
exterior mirrors may fog up on the inside if
there is high atmospheric humidity.
X Drive with the headlamps switched on.
The level of moisture diminishes,
depending on the length

of the journey and
the weather conditions (humidity and
temperature).
If the level of moisture does not diminish:
X Have the headlamps checked at a qualified
specialist workshop. Interior lighting
Overview of interior lighting
Front overhead control panel
0043
003D Switches the left-hand front reading
lamp on/off
0044 004A Switches the front interior lighting
on
0087 0041 Switches the cargo compartment
lamp/rear interior lighting on/off
0085 0033

Switches the front interior lighting/
automatic interior lighting control off 0083
003D Switches the right-hand reading
lamp on/off
0084 Switches the automatic interior lighting
control on Rear-compartment overhead control panel
0043
003D Switches the right-hand reading
lamp on/off
0044 003D Switches the left-hand reading lamp
on/off Interior lighting control
General notes In order to prevent the vehicle's battery from
discharging, the interior
lighting

functions are
automatically deactivated after some time
unless the SmartKey is in position 2 in the
ignition lock.
The brightness of the ambient lighting may be
set using the control on the instrument
cluster (Y page 209). Interior lighting
105
Lights and windshield wipers Z

X

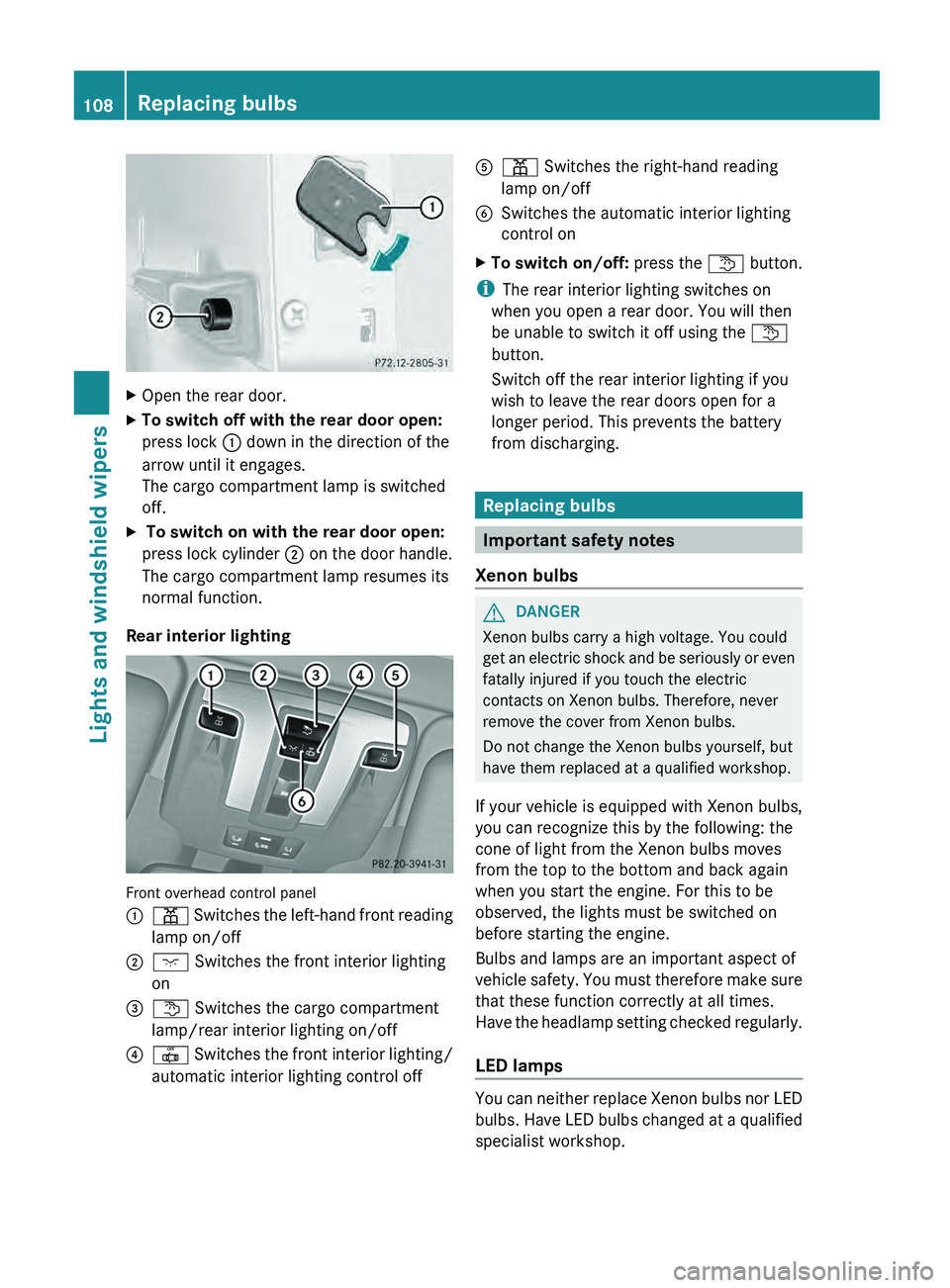

Open the rear door.
X To switch off with the rear door open:
press lock 0043 down in the direction of the
arrow until it engages.
The cargo compartment lamp is switched
off.
X To switch on with the rear door open:
press lock cylinder 0044 on the door handle.
The cargo compartment lamp resumes its
normal function.
Rear interior lighting Front overhead control panel
0043
003D Switches the left-hand front reading
lamp on/off
0044 004A Switches the front interior lighting
on
0087 0041 Switches the cargo compartment
lamp/rear interior lighting on/off
0085 0033
Switches the front interior lighting/
automatic interior lighting control off 0083
003D Switches the right-hand reading
lamp on/off
0084 Switches the automatic interior lighting
control on
X To switch on/off: press the 0041 button.
i The rear interior lighting switches on
when you open a rear door. You will then
be unable to switch it off using the 0041
button.
Switch off the rear interior lighting if you
wish to leave the rear doors open for a
longer period. This prevents the battery
from discharging. Replacing bulbs
Important safety notes
Xenon bulbs G
DANGER
Xenon bulbs carry a high voltage. You could
get an electric shock

and be seriously or even
fatally injured if you touch the electric
contacts on Xenon bulbs. Therefore, never
remove the cover from Xenon bulbs.
Do not change the Xenon bulbs yourself, but
have them replaced at a qualified workshop.
If your vehicle is equipped with Xenon bulbs,
you can recognize this by the following: the
cone of light from the Xenon bulbs moves
from the top to the bottom and back again
when you start the engine. For this to be
observed, the lights must be switched on
before starting the engine.
Bulbs and lamps are an important aspect of
vehicle safety. You must therefore make sure
that these function correctly at all times.
Have the headlamp setting checked regularly.
LED lamps You can neither replace Xenon bulbs nor LED
bulbs. Have LED
bulbs

changed at a qualified
specialist workshop. 108
Replacing bulbs
Lights and windshield wipers

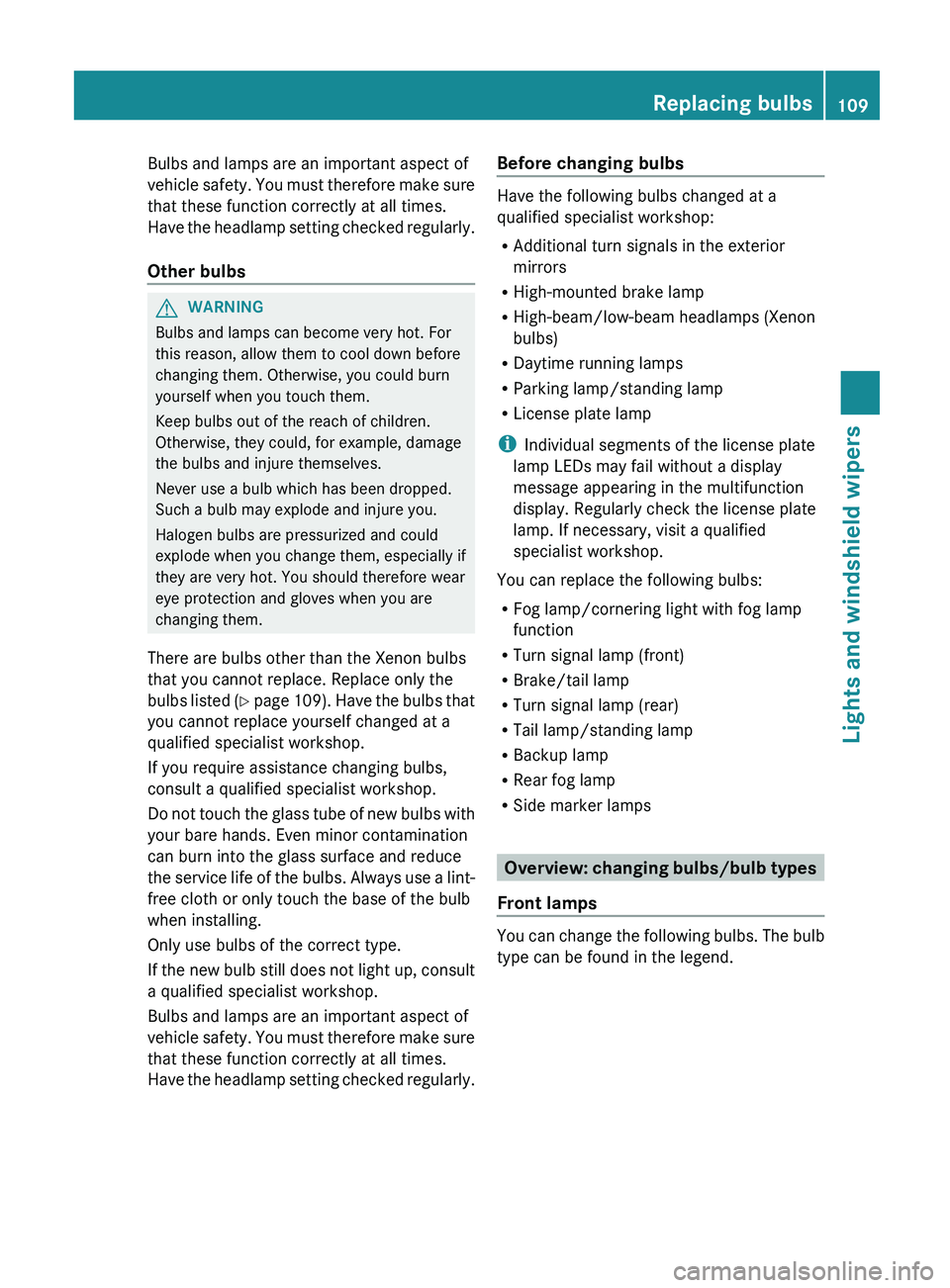

Bulbs and lamps are an important aspect of
vehicle safety. You
must
therefore make sure
that these function correctly at all times.
Have the headlamp setting checked regularly.
Other bulbs G
WARNING
Bulbs and lamps can become very hot. For
this reason, allow them to cool down before
changing them. Otherwise, you could burn
yourself when you touch them.
Keep bulbs out of the reach of children.
Otherwise, they could, for example, damage
the bulbs and injure themselves.
Never use a bulb which has been dropped.
Such a bulb may explode and injure you.
Halogen bulbs are pressurized and could
explode when you change them, especially if
they are very hot. You should therefore wear
eye protection and gloves when you are
changing them.
There are bulbs other than the Xenon bulbs
that you cannot replace. Replace only the
bulbs listed ( Y

page 109). Have the bulbs that
you cannot replace yourself changed at a
qualified specialist workshop.
If you require assistance changing bulbs,
consult a qualified specialist workshop.
Do not touch the glass tube of new bulbs with
your bare hands. Even minor contamination
can burn into the glass surface and reduce
the service life of the bulbs. Always use a lint-
free cloth or only touch the base of the bulb
when installing.
Only use bulbs of the correct type.
If the new bulb still does not light up, consult
a qualified specialist workshop.
Bulbs and lamps are an important aspect of
vehicle safety. You must therefore make sure
that these function correctly at all times.
Have the headlamp setting checked regularly. Before changing bulbs Have the following bulbs changed at a
qualified specialist workshop:
R
Additional turn signals in the exterior
mirrors
R High-mounted brake lamp
R High-beam/low-beam headlamps (Xenon
bulbs)
R Daytime running lamps
R Parking lamp/standing lamp
R License plate lamp
i Individual segments of the license plate
lamp LEDs may fail without a display
message appearing in the multifunction
display. Regularly check the license plate
lamp. If necessary, visit a qualified
specialist workshop.
You can replace the following bulbs:
R Fog lamp/cornering light with fog lamp
function
R Turn signal lamp (front)
R Brake/tail lamp
R Turn signal lamp (rear)
R Tail lamp/standing lamp
R Backup lamp
R Rear fog lamp
R Side marker lamps Overview: changing bulbs/bulb types
Front lamps You can change the following bulbs. The bulb
type can be found in the legend. Replacing bulbs
109
Lights and windshield wipers Z
