2013 MERCEDES-BENZ E-Class CABRIOLET width

pressure, to be used only temporarily in an
emergency.

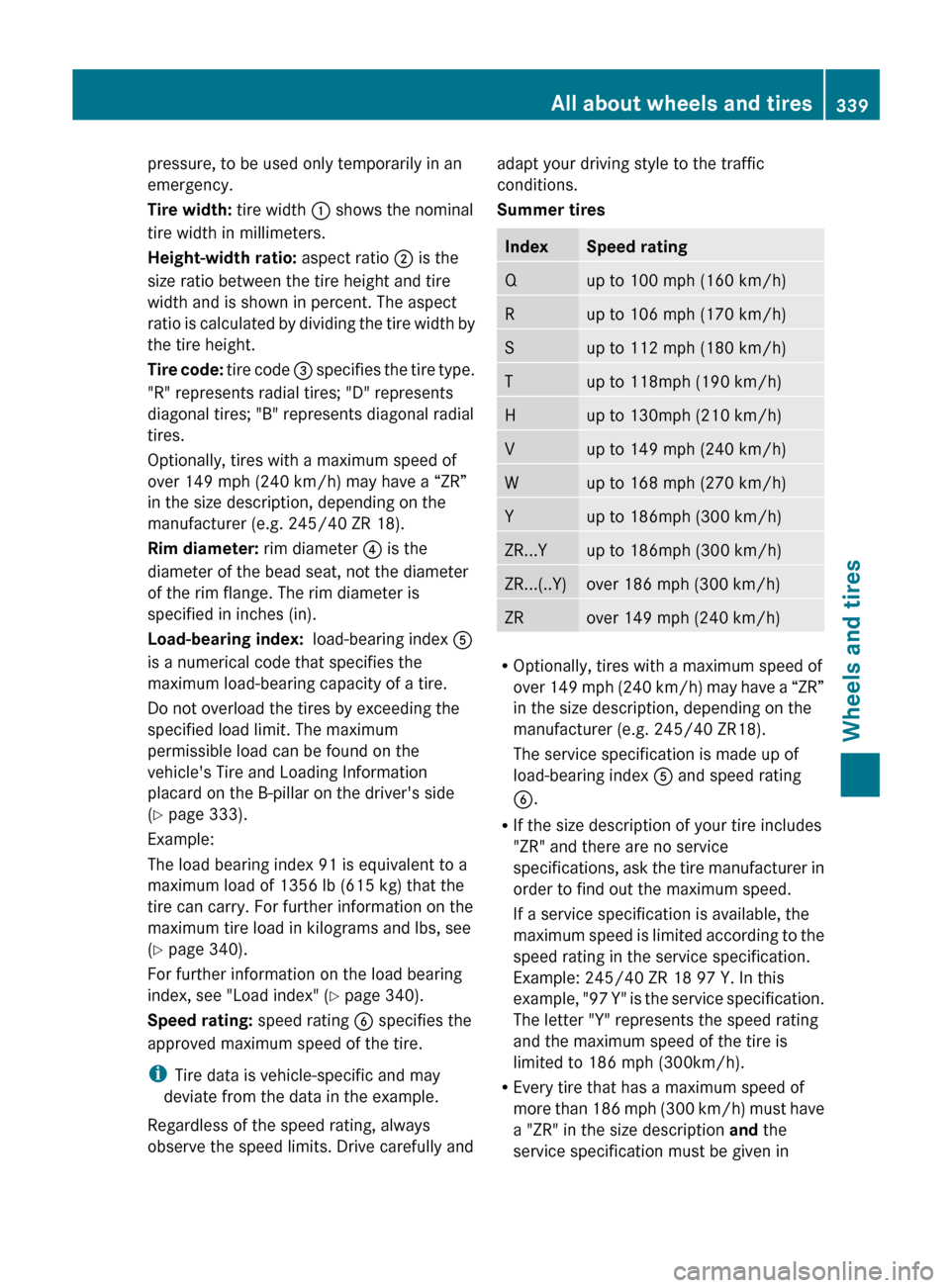

Tire width:
tire width : shows the nominal
tire width in millimeters.
Height-width ratio: aspect ratio ; is the
size ratio between the tire height and tire
width and is shown in percent. The aspect
ratio
is calculated by dividing the tire width by
the tire height.
Tire code: tire code = specifies the tire type.
"R" represents radial tires; "D" represents
diagonal tires; "B" represents diagonal radial
tires.
Optionally, tires with a maximum speed of
over 149 mph (240 km/h) may have a “ZR”
in the size description, depending on the
manufacturer (e.g. 245/40 ZR 18).
Rim diameter: rim diameter ? is the
diameter of the bead seat, not the diameter
of the rim flange. The rim diameter is
specified in inches (in).
Load-bearing index: load-bearing index A
is a numerical code that specifies the
maximum load-bearing capacity of a tire.
Do not overload the tires by exceeding the
specified load limit. The maximum
permissible load can be found on the
vehicle's Tire and Loading Information
placard on the B-pillar on the driver's side
(Y page 333).
Example:
The load bearing index 91 is equivalent to a
maximum load of 1356 lb (615 kg) that the
tire can carry. For further information on the
maximum tire load in kilograms and lbs, see
(Y page 340).
For further information on the load bearing
index, see "Load index" ( Y page 340).
Speed rating: speed rating B specifies the
approved maximum speed of the tire.
i Tire data is vehicle-specific and may
deviate from the data in the example.
Regardless of the speed rating, always
observe the speed limits. Drive carefully and adapt your driving style to the traffic
conditions.
Summer tires
Index Speed rating
Q up to 100 mph (160 km/h)
R up to 106 mph (170 km/h)
S up to 112 mph (180 km/h)
T up to 118mph (190 km/h)
H up to 130mph (210 km/h)
V up to 149 mph (240 km/h)
W up to 168 mph (270 km/h)
Y up to 186mph (300 km/h)
ZR...Y up to 186mph (300 km/h)
ZR...(..Y) over 186 mph (300 km/h)
ZR over 149 mph (240 km/h)
R
Optionally, tires with a maximum speed of
over

149 mph (240 km/h) may have a “ZR”
in the size description, depending on the
manufacturer (e.g. 245/40 ZR18).
The service specification is made up of
load-bearing index A and speed rating
B.
R If the size description of your tire includes
"ZR" and there are no service
specifications, ask the tire manufacturer in
order to find out the maximum speed.
If a service specification is available, the
maximum speed is limited according to the
speed rating in the service specification.
Example: 245/40 ZR 18 97 Y. In this
example, "97 Y" is the service specification.
The letter "Y" represents the speed rating
and the maximum speed of the tire is
limited to 186 mph (300km/h).
R Every tire that has a maximum speed of
more than 186 mph (300 km/h) must have
a "ZR" in the size description and the
service specification must be given in All about wheels and tires
339
Wheels and tires Z

Curb weight
The weight of a vehicle with standard
equipment including the maximum capacity
of
fuel, oil and coolant. It also includes the air-
conditioning system and optional equipment
if these are installed in the vehicle, but does
not include passengers or luggage.
Maximum load rating
The maximum tire load is the maximum
permissible weight in kilograms or lbs for
which a tire is approved.
Maximum permissible tire pressure
Maximum permissible tire pressure for one
tire.
Maximum load on one tire
Maximum load on one tire. This is calculated
by dividing the maximum axle load of one axle
by two.
PSI (pounds per square inch)
A standard unit of measure for tire pressure.
Aspect ratio
Relationship between tire height and tire
width in percent.
Tire pressure
This is pressure inside the tire applying an
outward force to each square inch of the tire's
surface. The tire pressure is specified in
pounds per square inch (psi), in kilopascal
(kPa) or in bar. The tire pressure should only
be corrected when the tires are cold.
Cold tire pressure
The tires are cold:
R if the vehicle has been parked without
direct sunlight on the tires for at least three
hours and
R if the vehicle has been driven for less than
1 mile (1.6 km). Tread
The part of the tire that comes into contact
with the road.
Bead
The tire bead ensures that the tire sits
securely
on the wheel. There are several steel
wires in the bead to prevent the tire from
coming loose from the wheel rim.
Sidewall
The part of the tire between the tread and the
bead.
Weight of optional extras
The combined weight of those optional extras
that weigh more than the replaced standard
parts and more than 2.3 kilograms (5 lbs).
These optional extras, such as high-
performance brakes, level control, a roof rack
or a high-performance battery, are not
included in the curb weight and the weight of
the accessories.
TIN (Tire Identification Number)
This is a unique identifier which can be used
by a tire manufacturer to identify tires, for
example for a product recall, and thus identify
the purchasers. The TIN is made up of the
manufacturer's identity code, tire size, tire
type code and the manufacturing date.
Load bearing index
The load bearing index (also load index) is a
code that contains the maximum load bearing
capacity of a tire.
Traction
Traction is the result of friction between the
tires and the road surface.
Treadwear indicators
Narrow bars (tread wear bars) that are
distributed over the tire tread. If the tire tread
is level with the bars, the wear limit of á in
(1.6 mm) has been reached. All about wheels and tires
343
Wheels and tires Z

Dimensions and weights
Model : Opening height
E 350
BlueEFFICIENCY,
Coupe
E 350 4MATIC
BlueEFFICIENCY,
Coupe
66.2 in
(1682 mm) E 350
BlueEFFICIENCY,
Cabriolet
61.2 in
(1555 mm) E 550
BlueEFFICIENCY,
Coupe
66.0 in
(1676 mm) E 550
BlueEFFICIENCY,
Cabriolet
61.1 in
(1553 mm) Missing values were not available at time of
going to print.
All models
Vehicle width
including exterior
mirrors
79.3 in (2015 mm)
Wheelbase
108.7 in (2760 mm)
Vehicle height
when opening/
closing the roof,
Cabriolet All models
Maximum roof
load, Coupe only
220 lb (100 kg)
Maximum trunk
load
220 lb (100 kg)
E 350
BlueEFFICIENCY
Vehicle length
185.2 in (4703 mm)
Vehicle height,
Coupe
55.0 in (1397 mm)
Vehicle height,
Cabriolet
55.0 in (1398 mm)
Turning radius,
Coupe
35.9 ft (10.95 m)
Turning radius,
Cabriolet
36.1 ft (11.00 m)
E 350 4MATIC
BlueEFFICIENCY
Vehicle length
185.2 in (4703 mm)
Vehicle height
55.0 in (1397 mm)
Turning radius
35.9 ft (10.95 m)
E 550
BlueEFFICIENCY
Vehicle length
185.9 in (4722 mm)
Vehicle height,
Coupe
54.9 in (1395 mm)
Vehicle height,
Cabriolet
55.0 in (1397 mm)
Turning radius
36.7 ft (11.20 m)368
Vehicle dataTechnical data
