Cargo tie down rings .........................259
Car wash (care) ................................. 287
CD player/CD changer (on-board
computer) .......................................... 204
Center console Lowe rsection .................................. 35
Uppe rsection .................................. 34
Central locking
Automatic locking (on-board
computer) ...................................... 211
Locking/unlocking (SmartKey) ........74
Changing bulbs
Brake lamps ................................... 120
Cornering light function .................119
High-beam headlamps ...................118
Important safety notes ..................116
Low-beam headlamps ....................118
Overview of bul btypes .................. 117
Parking lamps ................................ 119
Reversing lamps ............................ 120
Standing lamps (front) ...................119
Child-proof locks
Important safety notes ....................63
Rea rdoors ....................................... 63Children
In the vehicle ................................... 58
Restraint systems ............................ 58
Specia lseat belt retractor ...............61
Child seat
LATCH-type (ISOFIX) child seat
anchors ............................................ 61
Top Tether ....................................... 62
Cigarette lighter ................................ 264
Cleaning Mirro rturn signal ........................... 291
Climate control
Adjusting the airflow (AIR FLOW) ...132
Automatic climate control (3-zone) 130
Controlling automatically ...............132
Cooling with aird ehumidification..131
Defrosting the windows .................135
Defrosting the windshield ..............134
Dual-zone automatic climate
control ........................................... 127
Important safety notes ..................126
Indicator lamp ................................ 132
Maximum cooling .......................... 135
Notes on using automatic climate
control ................................... 128, 131
Overview of systems ......................126
Problems with cooling with air
dehumidification ............................ 132
Problem with the rear window
defroster ........................................ 136
Rea rcontrol panel ......................... 130
Refrigerant ..................................... 354
Refrigerant filling capacity .............354
Setting the aird istribution.............133
Setting the airflow .........................134
Setting the airv ents...................... 137
Setting the temperature ................133
Switching air-recirculation mode
on/off ............................................ 136
Switching on/off ........................... 131
Switching residual hea ton/off ......136
Switching the rear window
defroster on/off ............................ 135
Switching the ZONE function on/
off .................................................. 134
Cockpit
Overview .......................................... 30
see Instrument cluster 6
Index

Parking
............................................... 158
Important safety notes ..................158
Parking brake ................................ 159
Position of exterior mirror, front-
passenger side ............................... 105
Rea rview camera .......................... 185
see PARKTRONIC
Parking aid
Parking Guidance ........................... 182
see Exterior mirrors
see PARKTRONIC
Parking brake
Display message ............................ 218
Notes/function .............................. 159
Parking Guidance
Display message ............................ 232
Important safety notes ..................182
Parking lamps
Changing bulbs .............................. 119
Switching on/off ........................... 112
PARKTRONIC
Deactivating/activating .................181
Driving system ............................... 179
Function/notes ............................. 179
Important safety notes ..................179
Problem (malfunction) ...................182
Range of the sensors .....................180
Warning displa y............................. 180
PASSENGE RAIR BAG OFF
Problems (malfunction) .................. 223
PASSENGER AIR BAG OFF indicator
lamp ...................................................... 47
Plastic trim (cleaning instructions) .292
Power washers .................................. 288
Power windows see Side windows
PRE-SAFE ®
(anticipatory occupant
protection) Display message ............................ 219
Operation ........................................ .52
PRE-SAFE ®
Brake
Activating/deactivating .................207
Display message ............................ 220
Function/notes ................................ 69
Warning lamp ................................. 253
Program selector button ..................150Protection of the environment
General notes .................................. 21
Pulling away
Automatic transmission .................144 Q
Qualifie dspecialis tworkshop ...........25 R
RACE START (AMG vehicles) .............177
RACETIMER (on-board computer) ....213
Radar sensor system Activating/deactivating .................211
Display message ............................ 231
Radio
Selecting astation ......................... 204
see separate operating instructions
Reading lamp ..................................... 115
Rear compartment Setting the airflow .........................134
Setting the airv ents...................... 138
Rear fog lamp
Display message ............................ 226
Switching on/off ........................... 112
Rear seats
Display message ............................ 239
Folding the backres tforwards/
back ............................................... 259
Rear view camera
Cleaning instructions .....................291
Function/notes ............................. 185
Rear-view mirror
Anti-glar e(manual) ........................ 103
Dipping (automatic) .......................105
Rear window blind ............................263
Rear window defroster Problem (malfunction) ...................136
Switching on/off ........................... 135
Refrigerant (air-conditioning
system) Important safety notes ..................354
Refueling
Fuel gauge ....................................... 31
Important safety notes ..................15614
Index

Notes for AMG vehicles
.................349
Refueling proces s.......................... 156
see Fuel
Releasing the parking lock
manually (automatic transmission) 155
Remote control Garage door opener .......................275
Programming (garage door opener) 275
Reporting safety defects ....................26
Reserve (fuel tank) see Fuel
Reserve fuel
Display message ............................ 230
Warning lamp ................................. 250
see Fuel
Residual heat (climate control) ........136
Restraint system see SRS (Supplemental Restraint
System)
Reverse gear
Engaging (automatic transmission) 148
Reversing feature
Panorama sliding sunroo f................ 89
Roller sunblinds ............................... 91
Side windows ................................... 85
Sliding sunroo f................................. 89
Roadside Assistance (breakdown) ....23
Roller blind see Roller sunblind
Roller sunblind
Panorama roof with power tilt/
sliding panel ..................................... 91
Rea rside windows ......................... 263
Rea rwindow .................................. 263
Roof carrier ........................................ 261
Roof lining and carpets (cleaning
guidelines) ......................................... 293
Roof load (maximum) ........................355
Route (navigation) see Route guidance (navigation)
Route guidance (navigation) ............203 S
Safety Childre ninthe vehicle ..................... 58
Child restraint systems ....................58Occupant Classification System
(OCS)
............................................... 47
Overview of occupant safety
systems ........................................... 40
Safety system
see Driving safety systems
Seat belts
Adjusting the driver's and front-
passenger sea tbelt ......................... 56
Adjusting the height ......................... 57
Belt force limiters ............................ 58
Cleaning ......................................... 293
Correct usage .................................. 55
Emergency Tensioning Devices ....... .58
Fastening ......................................... 56
Important safety guidelines .............54
Releasing ......................................... 57
Safety guidelines ............................. 41
Switching belt adjustment on/off
(on-board computer) ......................212
Warning lamp ................................. 242
Warning lamp (function) ................... 57
see Seat belts
Seats
Adaptive sea tbackrests (AMG
vehicles) .......................................... 99
Adjusting (electrically). ....................96
Adjusting (manually and
electrically). ..................................... 96
Adjusting lumba rsuppor t................ 99
Adjusting the 4-way lumbar
support ............................................ 99
Adjusting the head restraint ............97
Cleaning the cover .........................292
Correct driver's seat position ........... 94
Important safety notes ....................95
Seat heating problem ....................101
Seat ventilation problem ................101
Storing settings (memory function) 106
Switching sea theating on/off .......100
Switching seat ventilation on/off ..101
Sensors (cleaning instructions) .......291
Service menu (on-board computer) .208
Service products Brake fluid ..................................... 352
Coolant (engine) ............................ 352
Engine oil ....................................... 351
Fuel ................................................ 347 Index
15

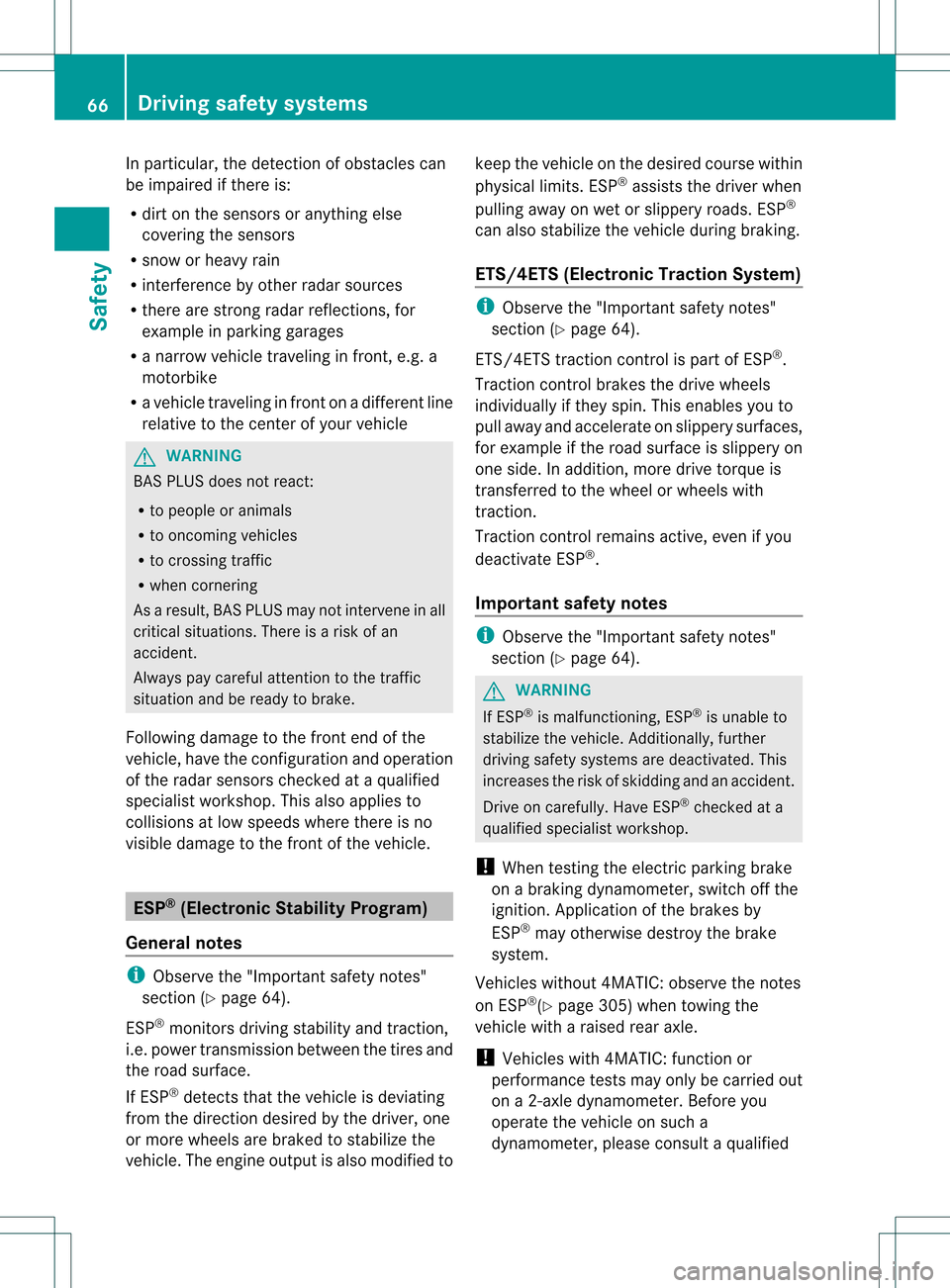

In particular, the detection of obstacles can
be impaired if there is:
R
dirt on the sensors or anything else
covering the sensors
R snow or heavy rain
R interference by other radars ources
R there are strong radar reflections, for
example in parking garages
R a narrow vehicle traveling in front, e.g. a
motorbike
R a vehicle traveling in front on a different line
relative to the center of your vehicle G
WARNING
BAS PLUS does not react:
R to people or animals
R to oncoming vehicles
R to crossing traffic
R when cornering
As aresult, BAS PLUS may not intervene in all
critical situations. There is a risk of an
accident.
Always pay careful attention to the traffic
situation and be ready to brake.
Following damage to the fron tend of the
vehicle, have the configuratio nand operation
of the rada rsensors checked at a qualified
specialist workshop. This also applies to
collisions at low speeds where there is no
visible damage to the fron tofthe vehicle. ESP
®
(Electronic Stability Program)
General notes i
Observe the "Important safety notes"
section (Y page 64).
ESP ®
monitors driving stability and traction,
i.e. power transmission between the tires and
the road surface.
If ESP ®
detects that the vehicle is deviating
from the direction desired by the driver, one
or more wheels are braked to stabilize the
vehicle. The engine output is also modified to keep the vehicle on the desired course within
physical limits. ESP
®
assists the driver when
pulling away on wet or slippery roads. ESP ®
can also stabilize the vehicle during braking.
ETS/4ETS (Electronic Traction System) i
Observe the "Important safety notes"
section (Y page 64).
ETS/4ETS traction control is part of ESP ®
.
Traction control brakes the drive wheels
individually if they spin. This enables you to
pull away and accelerate on slippery surfaces,
for example if the road surface is slippery on
one side. In addition, more drive torque is
transferred to the wheel or wheels with
traction.
Traction control remains active, even if you
deactivate ESP ®
.
Important safety notes i
Observe the "Important safety notes"
section (Y page 64). G
WARNING
If ESP ®
is malfunctioning, ESP ®
is unable to
stabilize the vehicle. Additionally, further
driving safety systems are deactivated. This
increases the risk of skidding and an accident.
Drive on carefully. Have ESP ®
checked at a
qualified specialist workshop.
! When testing the electric parking brake
on a braking dynamometer, switch off the
ignition. Application of the brakes by
ESP ®
may otherwise destroy the brake
system.
Vehicles without 4MATIC: observe the notes
on ESP ®
(Y page 305) when towing the
vehicle with a raised rear axle.
! Vehicles with 4MATIC: function or
performance tests may only be carried out
on a 2-axle dynamometer. Before you
operate the vehicle on such a
dynamometer, please consult a qualified 66
Driving safety systemsSafety

In particular, the detection of obstacles can
be impaired if:
R dirt on the sensors or anything else
covering the sensors
R snow or heavy rain
R interference by other radars ources
R there are strong radar reflections, for
example in parking garages
R a narrow vehicle traveling in front, e.g. a
motorbike
R a vehicle traveling in front on a different line
relative to the center of your vehicle G
WARNING
PRE-SAFE ®
Brake does not react:
R to people or animals
R to oncoming vehicles
R to crossing traffic
R when cornering
As a result, PRE-SAFE ®
Brake may neither
give warnings nor intervene in all critical
situations. There is a risk of an accident.
Always pay careful attention to the traffic
situation and be ready to brake.
In order to maintain an appropriate distance
from the vehicle in front and thus prevent a
collision, you must apply the brakes yourself.
X To activate/deactivate: activate or
deactivate PRE-SAFE ®
Brake in the on-
board computer (Y page 207).
When PRE-SAFE ®
Brake is activated, the
0001 symbol appears in the multifunction
display as long as the HOLD function is
deactivated (Y page 176).
On vehicles with Parking Guidance, the
0001 symbol is displayed when position P
is engaged or you are driving faster than
22 mph (35 km/h).
Following damage to the front end of the
vehicle, have the configuration and operation
of the radar sensors checked at a qualified
specialist workshop. This also applies to collisions at low speeds where there is no
visible damage to the front of the vehicle. Theft deterrent locking system
Immobilizer
The immobilizer prevents your vehicle from
being started without the correct SmartKey.
When leaving the vehicle, always take the
SmartKey with you and lock the vehicle. The
engine can be started by anyone with a valid
SmartKey that is left inside the vehicle.
X To activate with the SmartKey: remove
the SmartKey from the ignition lock.
X To activate with KEYLESS-GO: switch the
ignition off and open the driver's door.
X To deactivate: switch on the ignition.
i The immobilizer is always deactivated
when you start the engine.
In the event that the engine cannot be
started when the starter battery is fully
charged, the immobilizer may be faulty.
Contact an authorized Mercedes-Benz
Center or call 1-800-FOR-MERCedes (in the
USA) or 1-800-387-0100 (in Canada). ATA (anti-theft alarm system)
Av isual and audible alarm is triggered if the
alarm system is armed and you open:
R a door
R the vehicle with the mechanical key
R the trunk lid
R the hood
The alarm is not switched off, even if you
close the open door that triggered it, for
example. Theft deterrent locking system
71Safety Z

In such cases, DISTRONIC PLUS may:
R
give an unnecessary warning and then
brake the vehicle
R neither give a warning nor intervene
R accelerate unexpectedly
There is a risk of an accident.
Continue to drive carefully and be ready to
brake, in particular when warned to do so by
DISTRONIC PLUS. G
WARNING
DISTRONIC PLUS brakes yourv ehicle with up
to 40% of the maximum braking force. If this
braking force is insufficient, DISTRONIC PLUS
warns you visually and audibly .There is a risk
of an accident.
In such cases, apply the brakes yourself and
try to take evasive action.
! If DISTRONIC PLUS or the HOLD function
is activated, the vehicle brakes
automatically in certain situations. To
prevent damage to the vehicle, deactivate
DISTRONIC PLUS and the HOLD function in
the following or other similar situations:
R when towing the vehicle
R in the car wash
If you fail to adapt your driving style,
DISTRONIC PLUS can neither reduce the risk
of accident nor override the laws of physics.
DISTRONIC PLUS cannot take into account
the road, traffic and weather conditions.
DISTRONIC PLUS is only an aid. You are
responsible for the distance to the vehicle in
front, for vehicle speed, for braking in good
time and for staying in your lane.
Do not use DISTRONIC PLUS:
R in road and traffic conditions which do not
allow you to maintain a constant speed e.g.
in heavy traffic or on winding roads
R on slippery road surfaces. Braking or
accelerating could cause the drive wheels to lose traction and the vehicle could then
skid
R when there is poor visibility, e.g. due to fog,
heavy rain or snow
DISTRONIC PLUS may not detect narrow
vehicles driving in front, e.g. motorcycles, or
vehicles driving on a different line.
In particular, the detection of obstacles can
be impaired if:
R dirt on the sensors or anything else
covering the sensors
R snow or heavy rain
R interference by other radar sources
R strong radar reflections, for example, in
parking garages
If DISTRONIC PLUS no longer detects a
vehicle in front, DISTRONIC PLUS may
unexpectedly accelerate the vehicle to the
stored speed.
This speed may:
R be too high if you are driving in a filter lane
or an exit lane
R be so high when driving in the right-hand
lane that you overtake vehicles in the left-
hand lane
R be so high when driving in the left-hand lane
that you overtake vehicles in the right-hand
lane
If there is a change of drivers, advise the new
driver of the speed stored.
For DISTRONIC PLUS to assist you when
driving, the radar sensor system must be:
R activated (Y page 211)
R operational
If there is no vehicle in front, DISTRONIC
PLUS operates in the same way as cruise
control in the speed range between 20 mph
(Canada: 30 km/h) and 120 mph (Canada:
200 km/h). If a vehicle is driving in front of
you, it operates in the speed range between
0 mph (0 km/h) and 120 mph (Canada:
200 km/h).
Do not use DISTRONIC PLUS while driving on
roads with steep gradients. 168
Driving systemsDriving and parking

again after the vehicle has been driven a
certain distance. 4MATIC (permanent four-wheel drive)
If you fail to adapt your driving style, 4MATIC
can neither reduce the risk of accident nor
override the laws of physics. 4MATIC cannot
take account of road, weather and traffic
conditions. 4MATIC is only an aid. You are
responsible for the distance to the vehicle in
front, for vehicle speed, for braking in good
time and for staying in your lane.
If a drive wheel spins due to insufficient grip:
R Only depress the accelerato rpedal as far
as necessary when pulling away.
R Accelerate less when driving.
! Never tow the vehicle with one axle
raised. This may damage the transfer case.
Damage of this sort is not covered by the
Mercedes-Benz Limited Warranty. All
wheels must remain either on the ground
or be fully raised. Observe the instructions
for towing the vehicle with all wheels in full
contact with the ground.
4MATIC ensures that all four wheels are
permanently driven. Together with ESP ®
, it
improves the traction of your vehicle
whenever a drive wheel spins due to
insufficient grip.
i In wintry driving conditions, the maximum
effect of 4MATIC can only be achieved if
you use winter tires (M+S tires), with snow
chains if necessary. PARKTRONIC
Important safety notes PARKTRONIC is an electronic parking aid with
ultrasoni csensors. It indicates visually and
audibly the distance between your vehicle
and an object.
PARKTRONIC is only an aid. It is not a
replacement for your attention to your immediate surroundings. You are always
responsible for safe maneuvering, parking
and exiting a parking space. When
maneuvering, parking or pulling out of a
parking space, make sure that there are no
persons, animals or objects in the area in
which you are maneuvering.
!
When parking, pay particular attention to
objects above or below the sensors, such
as flower pots or trailer drawbars.
PARKTRONIC does not detec tsuch objects
when they are in the immediate vicinity of
the vehicle. You could damag ethe vehicle
or the objects.
The sensors may not detect snow and other
objects that absorb ultrasonic waves.
Ultrasonic sources such as an automatic
car wash, the compressed-air brakes on a
truck or a pneumatic drill could cause
PARKTRONIC to malfunction.
PARKTRONIC may not function correctly on
uneven terrain.
PARKTRONIC is activated automatically when
you:
R switch on the ignition
R shift the transmission to position D,Ror N
R release the parking brake
PARKTRONIC is deactivated at speeds above
11 mph (18 km/h). It is reactivated at lower
speeds.
PARKTRONIC monitors the area around your
vehicle using six sensors in the front and four
sensors in the rear. Driving systems
179Driving and parking Z

0002
Sensors in the front bumper, left-hand
side (example)
Range of the sensors General notes
PARKTRONIC does not take objects into
consideration tha tare:
R below the detection range, e.g. people,
animals or objects
R above the detection range, e.g.
overhanging loads, truck overhangs or
loading ramps
The sensors must be free from dirt, ice or
slush. They can otherwise not function
correctly. Clean the sensors regularly, taking
care not to scratch or damage them
(Y page 291). Side view Top view
Fron
tsensors Center Approx. 40 in (approx.
100 cm)
Corners Approx. 24 in (approx.
60 cm)
Rea
rsensors Center Approx. 48 in (approx.
120 cm)
Corners Approx. 32 in (approx.
80 cm)
Minimum distance
Center Approx
.8in (approx.
20 cm) Corners Approx
.6in (approx.
15 cm) If
there is an obstacle withi nthis range, the
relevant warning displays light up and a
warning tone sounds. If the distance falls
below the minimum, the distance may no
longer be shown.
Warning displays The warning displays show the distance
between the sensors and the obstacle. The
warning display for the front area is located
on the dashboard above the center air vents.
The warning display for the rear area is180
