2013 MAZDA MODEL MX-5 MIATA PRHT key

Black plate (200,1)

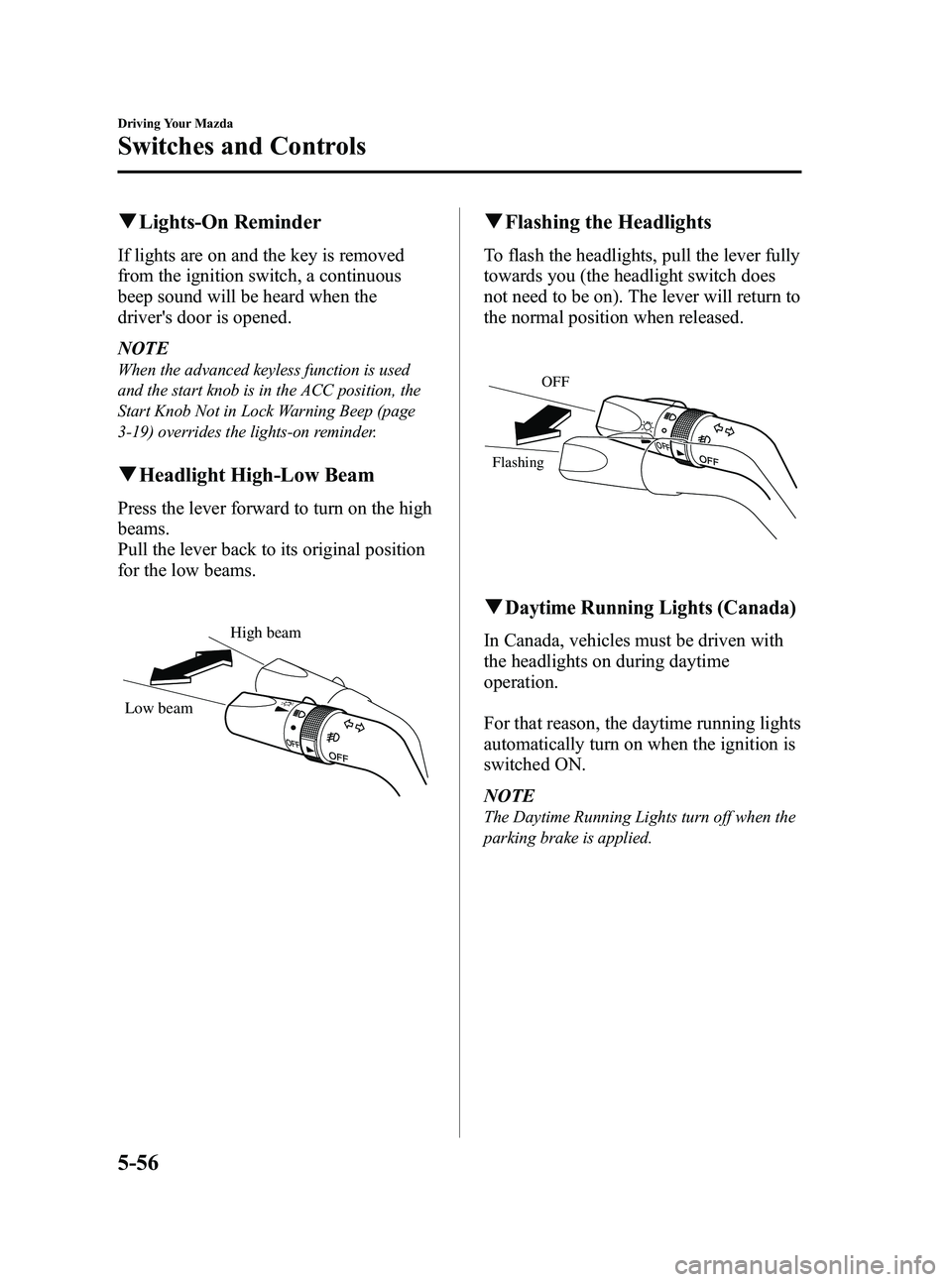

qLights-On Reminder
If lights are on and the key is removed
from the ignition switch, a continuous
beep sound will be heard when the
driver's door is opened.
NOTE
When the advanced keyless function is used
and the start knob is in the ACC position, the
Start Knob Not in Lock Warning Beep (page
3-19) overrides the lights-on reminder.
qHeadlight High-Low Beam
Press the lever forward to turn on the high
beams.
Pull the lever back to its original position
for the low beams.
High beam
Low beam
q Flashing the Headlights
To flash the headlights, pull the lever fully
towards you (the headlight switch does
not need to be on). The lever will return to
the normal position when released.
OFF
Flashing
qDaytime Running Lights (Canada)
In Canada, vehicles must be driven with
the headlights on during daytime
operation.
For that reason, the daytime running lights
automatically turn on when the ignition is
switched ON.
NOTE
The Daytime Running Lights turn off when the
parking brake is applied.
5-56
Driving Your Mazda
Switches and Controls
MX-5_8CM3-EA-12F_Edition2 Page200
Friday, August 31 2012 1:45 PM
Form No.8CM3-EA-12F

Black plate (295,1)
Storage Compartments
WARNING
Keep storage boxes closed when
driving:Driving with the storage boxes open
is dangerous. To reduce the
possibility of injury in an accident or
a sudden stop, keep the storage
boxes closed when driving.
CAUTION
Do not leave lighters or eyeglasses in
the storage boxes while parked under
the sun. A lighter could explode or
the plastic material in eyeglasses
could deform and crack from high
temperature.
qGlove Compartment
To open the glove compartment, pull the
latch toward you.
Insert the key (auxiliary key
*) and turn it
clockwise to lock, counterclockwise to
unlock.
* Advanced key equipped vehicle
Lock
Unlock
To close the glove compartment, firmly
press in the center of the glove
compartment lid.
q Seat Side Box
To open, pull the release catch.
Insert the key and turn it clockwise to
lock, counterclockwise to unlock.
Lock
Unlock
qBack Trim Storage Boxí
Small items can be stored in the back trim
storage box.
To use the back trim storage box
1. To use the desired storage box, slide
the seat in front of it all the way
forward.
Refer to Seat Slide on page 2-2.
2. Fold the seatback forward all the way down.
Refer to Seat Recline on page 2-3.
Interior Comfort
Interior Equipment
6-83íSome models.
MX-5_8CM3-EA-12F_Edition2 Page295
Friday, August 31 2012 1:46 PM
Form No.8CM3-EA-12F

Black plate (314,1)
WARNING
Do not jack up the vehicle higher than
is necessary:Jacking up the vehicle higher than is
necessary is dangerous as it could
destabilize the vehicle resulting in an
accident.
Do not start the engine or shake the
vehicle while it is jacked up: Starting the engine or shaking the
vehicle while it is jacked up is
dangerous as it could cause the
vehicle to fall off the jack resulting in
an accident.
Never go under the vehicle while it is
jacked up: Going under the vehicle while it is
jacked up is dangerous as it could
result in death or serious injury if the
vehicle were to fall off the jack.
8. Remove the lug nuts by turning them counterclockwise, then remove the
wheel.
qLocking Lug Nutsí
If your vehicle has optional antitheft
wheel lug nuts, one on each wheel will
lock the tires and you must use a special
key to unlock them. This key is attached
to the lug wrench. Register them with the
lock manufacturer by filling out the card
provided in the glove compartment and
mailing it in the accompanying envelope.
If you lose this key, consult an Authorized
Mazda Dealer or use the lock
manufacturer's order form, which is with
the registration card.
Special key
Antitheft lug nut
To remove an antitheft lug nut
1. Obtain the key for the antitheft lug nut.
2. Place the key on top of the nut, and be
sure to hold the key square to it. If you
hold the key at an angle, you may
damage both key and nut. Do not use a
power impact wrench.
3. Place the lug wrench on top of the key and apply pressure. Turn the wrench
counterclockwise.
7-16
In Case of an Emergency
íSome models.
Flat Tire
MX-5_8CM3-EA-12F_Edition2 Page314
Friday, August 31 2012 1:46 PM
Form No.8CM3-EA-12F

Black plate (315,1)
To install the nut
1. Place the key on top of the nut, and besure to hold the key square to it. If you
hold the key at an angle, you may
damage both key and nut. Do not use a
power impact wrench.
2. Place the lug wrench on top of the key, apply pressure, and turn it clockwise.
qMounting the Tire
1. Remove dirt and grime from the
mounting surfaces of the wheel and
hub, including the hub bolts, with a
cloth.
WARNING
Make sure the mounting surfaces of
the wheel, hub and lug nuts are clean
before changing or replacing tires: When changing or replacing a tire,
not removing dirt and grime from the
mounting surfaces of the wheel, hub
and hub bolts is dangerous. The lug
nuts could loosen while driving and
cause the tire to come off, resulting in
an accident.
2. Mount the tire. 3. Install the lug nuts with the beveled
edge inward; tighten them by hand.
WARNING
Do not apply oil or grease to lug nuts
and bolts and do not tighten the lug
nuts beyond the recommended
tightening torque: Applying oil or grease to lug nuts and
bolts is dangerous. The lug nuts
could loosen while driving and cause
the tire to come off, resulting in an
accident. In addition, lug nuts and
bolts could be damaged if tightened
more than necessary.
4. Turn the jack handle counterclockwise and lower the vehicle. Use the lug
wrench to tighten the nuts in the order
shown.
In Case of an Emergency
Flat Tire
7-17
MX-5_8CM3-EA-12F_Edition2 Page315
Friday, August 31 2012 1:46 PM
Form No.8CM3-EA-12F

Black plate (319,1)
Starting a Flooded Engine
If the engine fails to start, it may be
flooded (excessive fuel in the engine).
Follow this procedure:
1. If the engine does not start within fiveseconds on the first try, switch the
ignition off, wait ten seconds and try
again.
2. Make sure the parking brake is on.
3. Depress the accelerator all the way and hold it there.
4. Depress the clutch pedal (Manual transmission) or the brake pedal
(Automatic transmission).
5. Switch the ignition to START and hold it there ―for up to ten seconds. If the
engine starts, release the key and
accelerator immediately because the
engine will suddenly rev up.
6. If the engine fails to start, crank it without depressing the accelerator ―for
up to ten seconds.
If the engine still does not start using the
above procedure, have your vehicle
inspected by an Authorized Mazda
Dealer.
In Case of an Emergency
Emergency Starting
7-21
MX-5_8CM3-EA-12F_Edition2 Page319
Friday, August 31 2012 1:46 PM
Form No.8CM3-EA-12F

Black plate (377,1)
qFuse Panel Description
Fuse block (Engine compartment)
DESCRIPTION FUSE
RATING PROTECTED COMPONENT
1 FAN 30 A Cooling fan
2 FAN 7.5 A Cooling fan
3 DEFOG 20 A Rear window defroster
4 H/CLEAN ――
5 ROOM 15 A Overhead lights, Luggage compartment light, For protection of
various circuits, Trunk opener
6 IG KEY2 15 A For protection of various circuits
7 HEATER 40 A Air conditioner
í
8 ABS 30 A ABS
9 FOG 15 A Front fog lightsí
10R.FOG ――
11 RHT L 30 A Power retractable hardtop (LH)í
12 RHT R 30 A Power retractable hardtop (RH)í
13MAG 7.5 A Air conditionerí
14ST 20 A Starter
15 TAIL 15 A Taillights, Parking lights, License plate lights, Illumination
16 ABS 40 A ABS
Maintenance and Care
Owner Maintenance
8-49íSome models.
MX-5_8CM3-EA-12F_Edition2 Page377
Friday, August 31 2012 1:46 PM
Form No.8CM3-EA-12F

Black plate (378,1)
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
17 BTN 30 A For protection of various circuits
18 MAIN 120 A For protection of all circuits
19 EGI INJ 10 A Injector
20 EGI COMP1 10 A Engine control system
21 EGI COMP2 10 A Engine control system
22 HEAD LOW L 15 A Headlight low beam (LH)
23 HEAD LOW R 15 A Headlight low beam (RH)
24 HEAD 15 A Headlight high beams
25 P.WIND 20 A Power windows
26 ENGINE 15 A Engine control system
27 WIPER 20 A Windshield wipers and washer
28 DRL 15 A DRL
í
29HORN 15 A Horn
30 STOP 10 A Brake lights
31 ETV 10 A Electric throttle valve
32 FUEL PUMP 15 A Fuel Pump
33 HAZARD 10 A Turn signals, Hazard warning flashers
34 P.WIND2 20 A Power windows
í
35 IG KEY140 A For protection of various circuits
8-50
Maintenance and Care
íSome models.
Owner Maintenance
MX-5_8CM3-EA-12F_Edition2 Page378
Friday, August 31 2012 1:46 PM
Form No.8CM3-EA-12F

Black plate (444,1)
Personalization Features
The following“Personalization Features ”are available. These settings can only be changed by an Authorized
Mazda Dealer.
Item Feature Factory Setting Available Settings
Advanced keyless
entry The advanced key's remaining battery level
warning light in the instrument cluster can be
deactivated
Activated Deactivated
The beep sound which is heard when
locking/unlocking both doors or the trunk lid
can be deactivated
*1Activated Deactivated
The function to automatically lock the doors
when leaving the vehicle while carrying the key
can be activated
*2Deactivated Activated
*1 When the autolock function is operating, the warning sound will be heard regardless of the setting.
*2 When the autolock function is enabled, windows will not automatically close. You must close them before leaving vehicle.
10-8
Personalization Features
MX-5_8CM3-EA-12F_Edition2 Page444
Friday, August 31 2012 1:46 PM
Form No.8CM3-EA-12F
