2013 LINCOLN NAVIGATOR navigation system

No GPS symbolindicates that insufficient GPS satellite signals
are available for accurate map positioning. This icon may be
intermittently displayed under normal operation in an area with
poor GPS access.
Quick-touch Buttons
When in map mode, touch anywhere on the map display to access the
following options:
When you select: You can:
Set as DestSelect a scrolled location on the map as your
destination. (You may scroll the map by
pressing your index finger on the map display.
When you reach the desired location, simply
let go and then press Set as Dest.)
Set as WaypointSet the current location as a waypoint.
Save to Address
BookSave the current location to the address book.
POI Icons On/OffSelect POI icons to be displayed on the map.
Up to three icons can be selected for display
on the map at the same time.
View TrafficAdjust the map display to the right scale. This
scale allows the entire route to be visible in
the screen.
View/Edit RouteAccess these features when a route is active:
Cancel route.
Edit route preferences.
Edit destination/waypoints.
View route.
Edit traffic preferences.
*
Edit turn list.
Navigation System (If Equipped)453
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

When you select: You can:
Map Scrolling Single scroll modeallows you to press and
release on the map display to bring the
pressed position to the center of the screen.
The scroll mode times out after five minutes
of inactivity.
Continuous scroll modeallows you to press
and hold to begin scrolling continuously in
one of eight directions closest to the point
that is pressed. The scroll continues until the
map is released, and increases in speed after
three seconds. This is not possible if the
vehicle is moving. The scroll mode times out
after five minutes of inactivity.
*Requires SIRIUS Travel Link™ to be activated.
Navteq is the digital map provider for the navigation application. If you
find map data errors, you may report them directly to Navteq by going to
http://mapreporter.navteq.com. Navteq evaluates all reported map errors
and responds with the result of their investigation by e-mail.
Navigation Map Updates
Annual navigation map updates are available for purchase through your
dealership, by calling 1-800-NAVMAPS (in Mexico, call
01–800–557–5539) or going to www.navigation.com/ford. You need to
specify the make and model of your vehicle to determine if there is an
update available.
Navigation Voice Commands
When in navigation mode, press the voice button on the
steering wheel control. After the tone, say “Navigation”, then
any of the following commands:
“NAVIGATION”
“Cancel next waypoint” “Show destination”
“Cancel route” “Show heading up”
“Destination”
*“Show map”
“Destination ” “Show next waypoint”
454Navigation System (If Equipped)
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

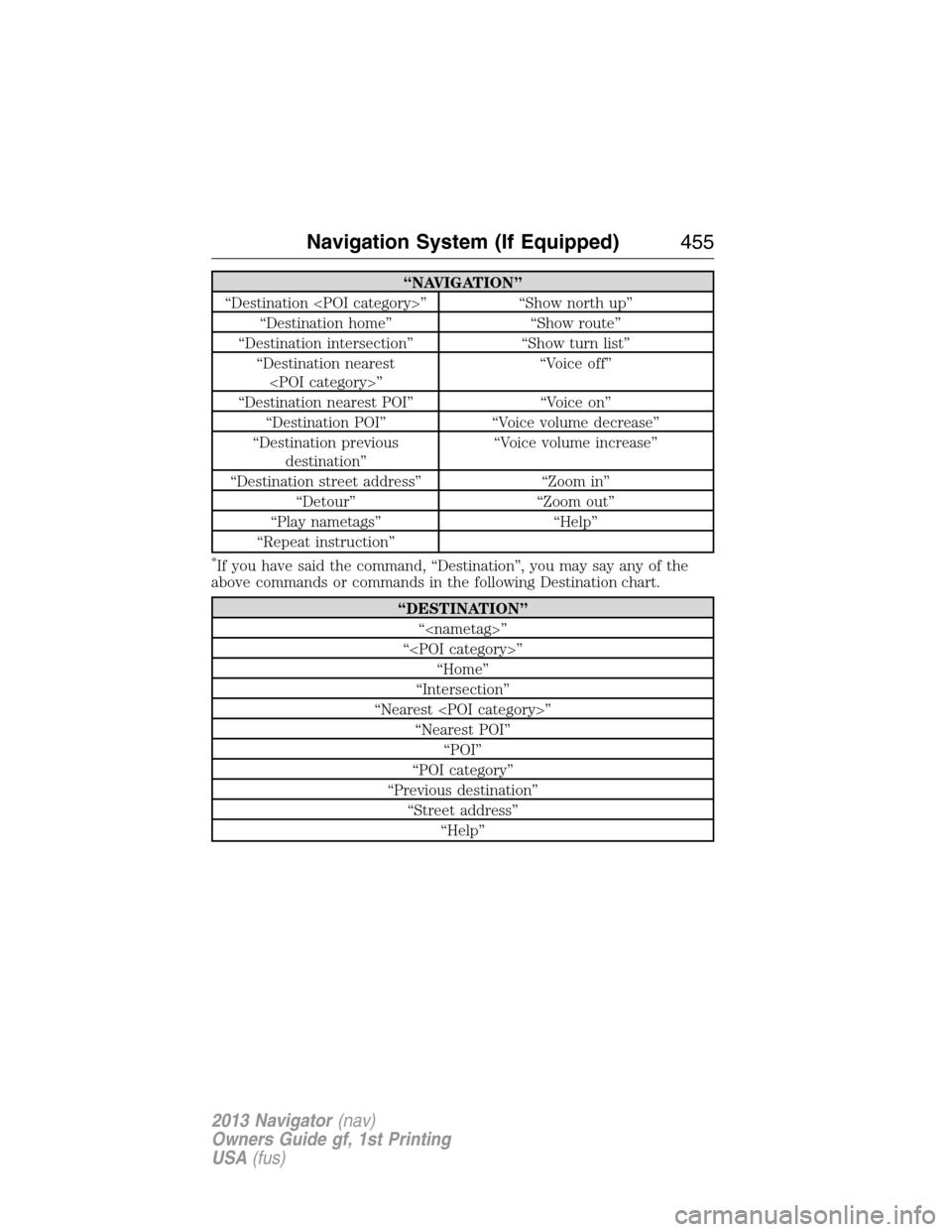

“NAVIGATION”
“Destination ” “Show north up”
“Destination home” “Show route”
“Destination intersection” “Show turn list”
“Destination nearest
”“Voice off”
“Destination nearest POI” “Voice on”
“Destination POI” “Voice volume decrease”
“Destination previous
destination”“Voice volume increase”
“Destination street address” “Zoom in”
“Detour” “Zoom out”
“Play nametags” “Help”
“Repeat instruction”
*If you have said the command, “Destination”, you may say any of the
above commands or commands in the following Destination chart.
“DESTINATION”
“”
“”
“Home”
“Intersection”
“Nearest ”
“Nearest POI”
“POI”
“POI category”
“Previous destination”
“Street address”
“Help”
Navigation System (If Equipped)455
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

Troubleshooting
Symptoms Possible Cause Action
Focus error. System unable to play
reproduced disc.Contact your dealer.
Bad disc. Disc was inserted
upside down or the
system is unable to
read the information
on the disc.The system
automatically ejects
the disc.
Track error. The system is unable
to reproduce a corrupt
MP3 file.The system skips the
corrupted track.
Invalid disc detected. Dirty disc or
unsupported format.Wipe the disc with a
dry, soft cloth from
the center to the outer
edge of the disc.
Address not found or
Address range does
not exist. Show the
midpoint of the street?
(Pop-up window)The house number
entered is not
registered in the
database.Press NO and enter a
valid number for the
specified street, or
press YES to view the
middle point of the
street.
Navigation fault. A
system fault has been
detected that may
cause the navigation
to perform abnormally.
Please contact your
dealership. (Pop-up
window)System hardware or
software error.Contact your dealer.
Error. PINs did not
match. Please re-enter.
(Pop-up window)A different PIN was
entered to unlock the
system for valet mode.Press OK and try
entering PIN again. If
unable, contact your
dealer.
Invalid PIN. Please
Re-enter. (Pop-up
window)System does not
recognize PIN as valid.Press OK and enter
different PIN to lock
the system.
456Navigation System (If Equipped)
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

access a function of the system requiring prolonged attention. Even
occasional short scans to the screen may be hazardous if your attention has
been diverted away from your driving task at a critical time.
Volume Setting
Do not raise the volume excessively. Keep the volume at a level where
you can still hear outside traffic and emergency signals while driving.
Driving while unable to hear these sounds could cause an accident.
Use of Speech Recognition Functions
Speech recognition software is inherently a statistical process which is
subject to errors. It is your responsibility to monitor any speech
recognition functions included in the system and address any errors.
Navigation Features
Any navigation features included in the system are intended to provide
turn by turn instructions to get you to a desired destination. Please make
certain all persons using this system carefully read and follow
instructions and safety information fully.
Distraction Hazard
Any navigation features may require manual (non-verbal) setup.
Attempting to perform such set-up or insert data while driving can
seriously distract your attention and could cause an accident or other
serious consequences. Stop the vehicle in a safe and legal manner before
attempting these operations.
Let Your Judgment Prevail
Any navigation features are provided only as an aid. Make your driving
decisions based on your observations of local conditions and existing
traffic regulations. Any such feature is not a substitute for your personal
judgment. Any route suggestions made by this system should never
replace any local traffic regulations or your personal judgment or
knowledge of safe driving practices.
Route Safety
Do not follow the route suggestions if doing so would result in an unsafe
or illegal maneuver, if you would be placed in an unsafe situation, or if
you would be directed into an area that you consider unsafe. The driver
is ultimately responsible for the safe operation of the vehicle and
therefore, must evaluate whether it is safe to follow the suggested
directions.
Potential Map Inaccuracy
Maps used by this system may be inaccurate because of changes in
roads, traffic controls or driving conditions. Always use good judgment
and common sense when following the suggested routes.
Appendices463
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

Emergency Services
Do not rely on any navigation features included in the system to route
you to emergency services. Ask local authorities or an emergency
services operator for these locations. Not all emergency services such as
police, fire stations, hospitals and clinics are likely to be contained in the
map database for such navigation features.
TeleNav Software End User License Agreement
Please read these terms and conditions carefully before you use the
TeleNav Software. Your use of the TeleNav Software indicates that
you accept these terms and conditions. If you do not accept these
terms and conditions, do not break the seal of the package, launch,
or otherwise use the TeleNav Software.
TeleNav may revise this Agreement and the privacy policy at any time,
with or without notice to you. You agree to visit http://www.telenav.com
from time to time to review the then current version of this Agreement
and of the privacy policy.
1.Safe and Lawful Use
You acknowledge that devoting attention to the TeleNav Software may pose
a risk of injury or death to you and others in situations that otherwise
require your undivided attention, and you therefore agree to comply with
the following when using the TeleNav Software: (a) observe all traffic laws
and otherwise drive safely; (b) use your own personal judgment while
driving. If you feel that a route suggested by the TeleNav Software
instructs you to perform an unsafe or illegal maneuver, places you in an
unsafe situation, or directs you into an area that you consider to be unsafe,
do not follow such instructions; (c) do not input destinations, or otherwise
manipulate the TeleNav Software, unless your vehicle is stationary and
parked; (d) do not use the TeleNav Software for any illegal, unauthorized,
unintended, unsafe, hazardous, or unlawful purposes, or in any manner
inconsistent with this Agreement; (e) arrange all GPS and wireless devices
and cables necessary for use of the TeleNav Software in a secure manner in
your vehicle so that they will not interfere with your driving and will not
prevent the operation of any safety device (such as an airbag).
You agree to indemnify and hold TeleNav harmless against all claims
resulting from any dangerous or otherwise inappropriate use of the TeleNav
Software in any moving vehicle, including as a result of your failure to
comply with the directions above.
2.Account Information
You agree: (a) when registering the TeleNav Software, to provide
TeleNav with true, accurate, current, and complete information about
464Appendices
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

NT holds a nonexclusive license from the United States Postal Service
to publish and sell ZIP+4information.
United States Postal Service2009. Prices are not established,
controlled or approved by the United States Postal Service. The
following trademarks and registrations are owned by the USPS: United
States Postal Service, USPS, and ZIP+4.
The Data for Mexico includes certain Data from Instituto Nacional de
Estadística y Geografía.
TERMS AND CONDITIONS
License Limitations on Use:You agree that your license to use this
Data is limited to and conditioned on use for solely personal,
noncommercial purposes, and not for service bureau, timesharing or
other similar purposes. Except as otherwise set forth herein, you agree
not to otherwise reproduce, copy, modify, decompile, disassemble or
reverse engineer any portion of this Data, and may not transfer or
distribute it in any form, for any purpose, except to the extent permitted
by mandatory laws.
License Limitations on Transfer:Your limited license does not allow
transfer or resale of the Data, except on the condition that you may
transfer the Data and all accompanying materials on a permanent basis
if: (a) you retain no copies of the Data; (b) the recipient agrees to the
terms of this End User License Agreement; and (c) you transfer the Data
in the exact same form as you purchased it by physically transferring the
original media (e.g., the CD-ROM or DVD you purchased), all original
packaging, all Manuals and other documentation. Specifically, Multi-disc
sets may only be transferred or sold as a complete set as provided to you
and not as a subset thereof.
Additional License Limitations:Except where you have been
specifically licensed to do so by NT in a separate written agreement, and
without limiting the preceding paragraph, your license is conditioned on
use of the Data as prescribed in this agreement, and you may not (a) use
this Data with any products, systems, or applications installed or
otherwise connected to or in communication with vehicles capable of
vehicle navigation, positioning, dispatch, real time route guidance, fleet
management or similar applications; or (b) with, or in communication
with, including without limitation, cellular phones, palmtop and handheld
computers, pagers, and personal digital assistants or PDAs.
Appendices469
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

M
MAP DVD - Loading and
Unloading ..................................135
Map icons ..................................452
Map mode ..................................451
Map updates ..............................454
Master lighting switch ................85
Media Bluetooth menu options
(adding, connecting, deleting,
turning on/off) ..........................405
Message center .........................104
warning messages ...................110
Mirrors ...................................91, 93
programmable memory ............56
side view mirrors (power) .......91
signal .........................................92
Moon roof ....................................95
Motorcraftparts ..............298, 343
MyKey ..........................................58
N
Navigation features ...................448
O
Octane rating ............................192
P
Pairing other phones ................374
Pairing your phone for the
first time ....................................373
Parental MyKey programming ...58
Parking brake ............................214Parts
(see Motorcraftparts) ...........343
Phone Bluetooth menu options
(adding, connecting, deleting,
turning on/off) ..........................384
Phone redial ..............................378
Playing a DVD in the system ...135
Playing music (by artist,
album, genre, playlist,
tracks, similar) ..........................402
POI categories ...........................450
Point of Interest (POI) .............450
Power deployable running
boards ........................................237
Power distribution box
(see Fuses) .......................267, 271
Power door locks ........................64
Power liftgate ..............................68
Power mirrors .............................91
Powerpoint ................................181
Power steering ..........................226
fluid, checking and adding ....284
fluid, refill capacity ................340
fluid, specifications .................340
Power Windows ...........................90
Privacy information ..................370
Putting a call on/off hold .........376
Q
Quick touch buttons .................453
R
Radio ..........................................117
Single CD ................................117
Radio reception .........................115
478Index
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)
