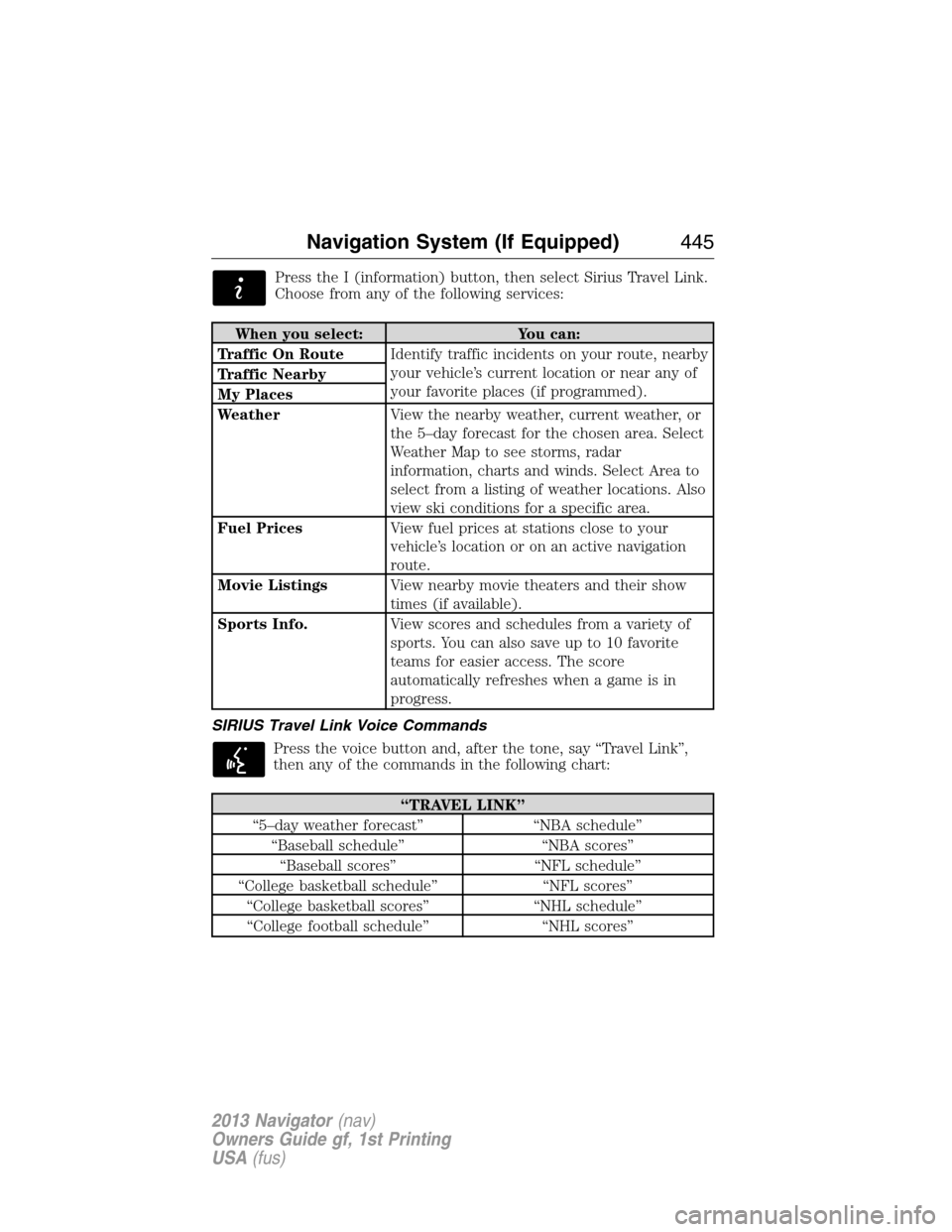

2013 LINCOLN NAVIGATOR navigation system

Press the I (information) button, then select Sirius Travel Link.
Choose from any of the following services:
When you select: You can:
Traffic On RouteIdentify traffic incidents on your route, nearby
your vehicle’s current location or near any of
your favorite places (if programmed). Traffic Nearby
My Places
WeatherView the nearby weather, current weather, or
the 5–day forecast for the chosen area. Select
Weather Map to see storms, radar
information, charts and winds. Select Area to
select from a listing of weather locations. Also
view ski conditions for a specific area.
Fuel PricesView fuel prices at stations close to your
vehicle’s location or on an active navigation
route.
Movie ListingsView nearby movie theaters and their show
times (if available).
Sports Info.View scores and schedules from a variety of
sports. You can also save up to 10 favorite
teams for easier access. The score
automatically refreshes when a game is in
progress.
SIRIUS Travel Link Voice Commands
Press the voice button and, after the tone, say “Travel Link”,
then any of the commands in the following chart:
“TRAVEL LINK”
“5–day weather forecast” “NBA schedule”
“Baseball schedule” “NBA scores”
“Baseball scores” “NFL schedule”
“College basketball schedule” “NFL scores”
“College basketball scores” “NHL schedule”
“College football schedule” “NHL scores”
Navigation System (If Equipped)445
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

“TRAVEL LINK”
“College football scores” “Sports schedule”*
“Fuel prices” “Sports scores”**
“Golf leaders” “Traffic”
“Golf schedule” “Travel link help”
“Motor sports order” “Weather”
“Motor sports schedule” “Weather map”
“Movie listings”
*If you have said “Sports schedule”, you may say any of the commands in
the “Sports schedule” chart:
**If you have said “Sports scores”, you may say any of the commands in
the “Sports scores” chart:
“SPORTS SCHEDULES”
“Baseball schedule” “NBA schedule”
“College basketball schedule” “NFL schedule”
“College football schedule” “NHL schedule”
“Golf schedule” “Travel link help”
“Motor sports schedule”
“SPORTS SCORES”
“Baseball scores” “NBA scores”
“College basketball scores” “NFL scores”
“College football scores” “NHL scores”
“Golf leaderboard” “Travel link help”
“Motor sports results”
Calendar
Press the I (information) button, then select Calendar. You can
then select which month you would like to view by using the
arrow buttons or selecting Go to Today.
You can view calendars from one previous year and the next 10 years.
Note:Not all tab selections may be available in all markets. Check with
your authorized dealer for availability.
446Navigation System (If Equipped)
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

System Information
Press the I (information) button, then select System
Information.
In this screen you can view the following options:
•Phone number for your Customer Service Center
•Current system versions installed
•Current SIRIUSRadio ESN
•SIRIUSTravel Link™ ESN.
Note:Not all tab selections may be available in all markets. Check with
your authorized dealer for availability.
Help
The Help screen allows you to view basic information about controls and
driving restrictions as well as traffic legend information and basic voice
commands available in various modes.
If you select: You can:
Basic OperationView hard buttons on your navigation system.
Press the desired icon to view the button
description.
Driving RestrictionView the system’s driving restriction.
Traffic LegendView the color code for the Speed and Flow
of roads on the navigation system. You can
also select Traffic Incidents to help you
differentiate between viewed and unviewed
incidents.
Voice CommandsView a brief listing of possible voice
commands in a specific mode.
Navigation System (If Equipped)447
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

SOUND
The sound menu allows you to access and adjust settings, such as Bass,
Treble, Fade, Balance, Speed Compensated Volume (SCV) and the
visualizer. Press the SOUND hard button.
When you select: You can:
Bass/TrebleIncrease or decrease levels by pressing + or -.
Balance/FadeAdjust the sound between the left and right
speakers (Balance) and front and rear
speakers (Fade).
SCVHave the system automatically adjust radio
volume according to vehicle speed to
compensate for road and wind noise. Select a
level of compensation between 1 and 7 by
pressing the corresponding button.
VisualizerTurn the audio visualizer display on or off.
Note:Turning the visualizer setting to off
does not remove the visualizer on the home
screen. You need to select a different view in
order to remove the visualizer.
NAVIGATION SYSTEM
Your navigation system allows you to set a destination by using your
touchscreen or voice commands.
The navigation system contains map coverage for the United States,
Puerto Rico and U.S. Virgin Islands, Canada and Mexico.
Disclaimer
A disclaimer appears once per ignition cycle when the DEST button is
pressed. Press Accept to agree to the terms and access navigation
functions. If you do not press Accept, you only have access to
non-navigation functions. The disclaimer has information similar to the
following:
•Always obey local traffic regulations.
•It is recommended to program the system only when stopped.
•Some functions are unavailable while the vehicle is in motion to help
minimize distraction.
•Periodic map updates are available at an additional cost.
448Navigation System (If Equipped)
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

Programming a Destination Using the Touchscreen
1. Press the DEST hard button.
2. Select from the following:
•Quick:Allows you to cancel the route, access emergency destinations
(such as a hospital or police), save your favorite destinations to
presets for quick access, find the nearest point of interest (POI), and
also to use a previous destination or an entry from your address book
as a destination.
•Standard:Allows you to set a destination using any of the following:
Address Book, Previous Destination, Phone Number, Map, Street
Address, POI, Freeway Exit/Entrance or Intersection. Selections on
the standard screen are speed-dependent features.
•Edit Route:Allows you to make any adjustments to the currently
selected navigation route such as: Cancel, Detour, View Route, Edit
Route Preferences, Edit Traffic Preferences, Edit Destination/Way
Points and Edit Turn List.
Programming a Destination Using Voice Commands
Press the voice button on the steering wheel.
If you want to: Say:
Enter an address. “Destination street address”
Enter an intersection. “Destination intersection”
Find a point of interest
(POI) by its category.“Destination nearest ” or
“Destination nearest POI”
Find a point of interest
(POI) by its name.“Destination POI”
Go to a previous
destination.“Destination previous destination”
Go to your home
location.“Destination home”
Use a nametag from
your address book.“Destination ”
Get help. “Help”
Note:If the system’s language is set to French or Spanish, the city and
street names need to be spelled. When in Spelling Mode, you may speak
letters or say, “Line #”. The system is designed to work even if you have
made a spelling error.
Navigation System (If Equipped)449
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

POI Categories
Your system offers a variety if POI (Points of Interest) categories.
Main Categories
Food/Drink & Dining Automotive
Travel & Transportation Shopping
Financial Entertainment & Arts
Emergency Recreation & Sports
Community Government
Health & Medicine Domestic Services
Within these main categories, there are subcategories which contain
more listings:
Subcategories
All Restaurants
Auto Dealership
Parking
Public Transit
Home & Garden
Education
Personal Care Services
To expand these listings, press the + in front of the POI listing.
The system also allows you to sort the POIs alphabetically, by distance or
by cityseekr listings (if available).
Setting Your Navigation Preferences
Select settings for the system to take into account when planning your
route. Press the NAV hard button.
When you select: You can:
Map PreferencesAccess and adjust map content, such as
Street Name, Time to Destination, Speed
Limit, Breadcrumbs, Points of Interest (POI)
icons, Map View, Bird’s Eye View and Turn
List Format.
Route PreferencesChoose between Shortest Distance or Fastest
Time when navigating a route. Also select to
avoid freeways, toll roads, ferries, etc.
450Navigation System (If Equipped)
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

When you select: You can:
Traffic PreferencesHave the system color code roads according
to speed of traffic flow or add special icons to
the map for things such as road work,
accidents, etc.
You can also choose to receive traffic alerts.
*
Navigation
PreferencesAccess and adjust guidance prompts, average
speed, fuel price display, calibration and
default settings.
Avoid AreasChoose areas which you want the system to
avoid when calculating a route for you.
The system does its best to avoid the items
and areas that have been set. There may be
some situations where it is impossible to
completely avoid the selection(s). For
example, if a destination or waypoint is
located in an area that is set to avoid, the
system cannot avoid it.
*Requires SIRIUSTravel Link™, which is only available in the U.S.
Map Mode
Press the MAP hard button to view map mode. When in map mode, an
icon appears on the upper left side of the screen; this is a toggle button
to change the view of the map display.
Roads on the map are displayed in a variety of colors. Building footprints
display areas of major buildings in the 20 largest cities in the U.S. These
areas may be displayed depending on their size and the map zoom level.
Heading upalways shows the direction of forward travel to be
upward on the screen. This view is available for map scales up to
2.5 mi (4 km). For larger map scales, this setting is remembered,
but the map is shown in North up only. If the scale returns below this
level, then Heading up is restored.
North upalways shows the northern direction to be upward on
the screen.
Navigation System (If Equipped)451
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

Map Icons
Vehicle markshows the current location of the vehicle. It stays
in the center of the map display, except when in scroll mode.
Scroll cursorallows you to scroll the map; the icon is fixed in
the center of the screen. The map position closest to the cursor
is in a window on the top center part of the screen.
Address book entry default icon(s)indicates the location on
the map of an address book entry. This is the default symbol
shown after the entry has been stored to the Address Book by any
method other than the map. A different icon can be selected from the 22
icons available; each icon can be used more than once.
Homeindicates the location on the map currently stored as the
home position. Only one entry from the Address Book can be
saved as Home. This icon cannot be changed.
POI (Point Of Interest) iconscan be displayed on the map
and can be turned on or off. There are about 56 subcategories of
POIs that can be selected to be displayed on the map one at a
time.
Starting pointindicates the starting point of a planned route.
Waypointsindicates the location of a waypoint on the map.
The number inside the circle is different for each waypoint and
represents the position of the waypoint in the route list.
Destination symbolindicates the ending point of a planned
route.
Next maneuver pointindicates the location of the next turn
on the planned route.
S
2
452Navigation System (If Equipped)
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)
