2013 LEXUS IS250C navigation system

TABLE OF CONTENTSIndex
2
1-1. Key informationKeys ...................................................... 28
1-2. Opening, closing and locking the doors and trunk
Smart access system with push-button start .......................... 32
Wireless remote control .............. 44
Doors.................................................... 47
Trunk...................................................... 51
1-3. Adjustable components (seats, mirrors,
steering wheel)
Front seats .......................................... 55
Driving position memory .............. 61
Seat position memory ................... 65
Head restraints................................. 67
Seat belts ............................................ 70
Steering wheel.................................. 76
Anti-glare inside rear view mirror ................................................ 78
Outside rear view mirrors ........... 79 1-4. Opening and closing the
windows and retractable
hardtop
Power windows................................ 82
Retractable hardtop....................... 86
1-5. Refueling Opening the fuel tank cap........... 95
1-6. Theft deterrent system Engine immobilizer system ......... 98
Alarm.................................................. 100
Theft prevention labels ............... 103
1-7. Safety information Correct driving posture ............. 104
SRS airbags ..................................... 106
Front passenger occupant classification system .................... 117
Child restraint sy stems ............... 122
Installing child restraints ............. 126
1Before driving
For vehicles with a navigation system, refer to the “Navigation System Owner’s
Manual” for information regarding the equipment listed below.
• Navigation system
• Air conditioning
• Climate control
• Rear view monitor system • Audio/video system
• Rear window and outside rear view
mirror defogging
• Intuitive parking assist

9
Tires
●Rotation
● Replacement
● Inflation pressure
● Information
P. 431
P. 513, 522
P. 563
P. 573
Tail lights P. 176
Trunk P. 51
Rear window defogger *1P. 251
Doors P. 47
Fuel filler door P. 95
Turn signal lights P. 158
Side marker lights P. 176
*1: For vehicles with a navigation system, refe r to the “Navigation System Owner’s Manual”.

15

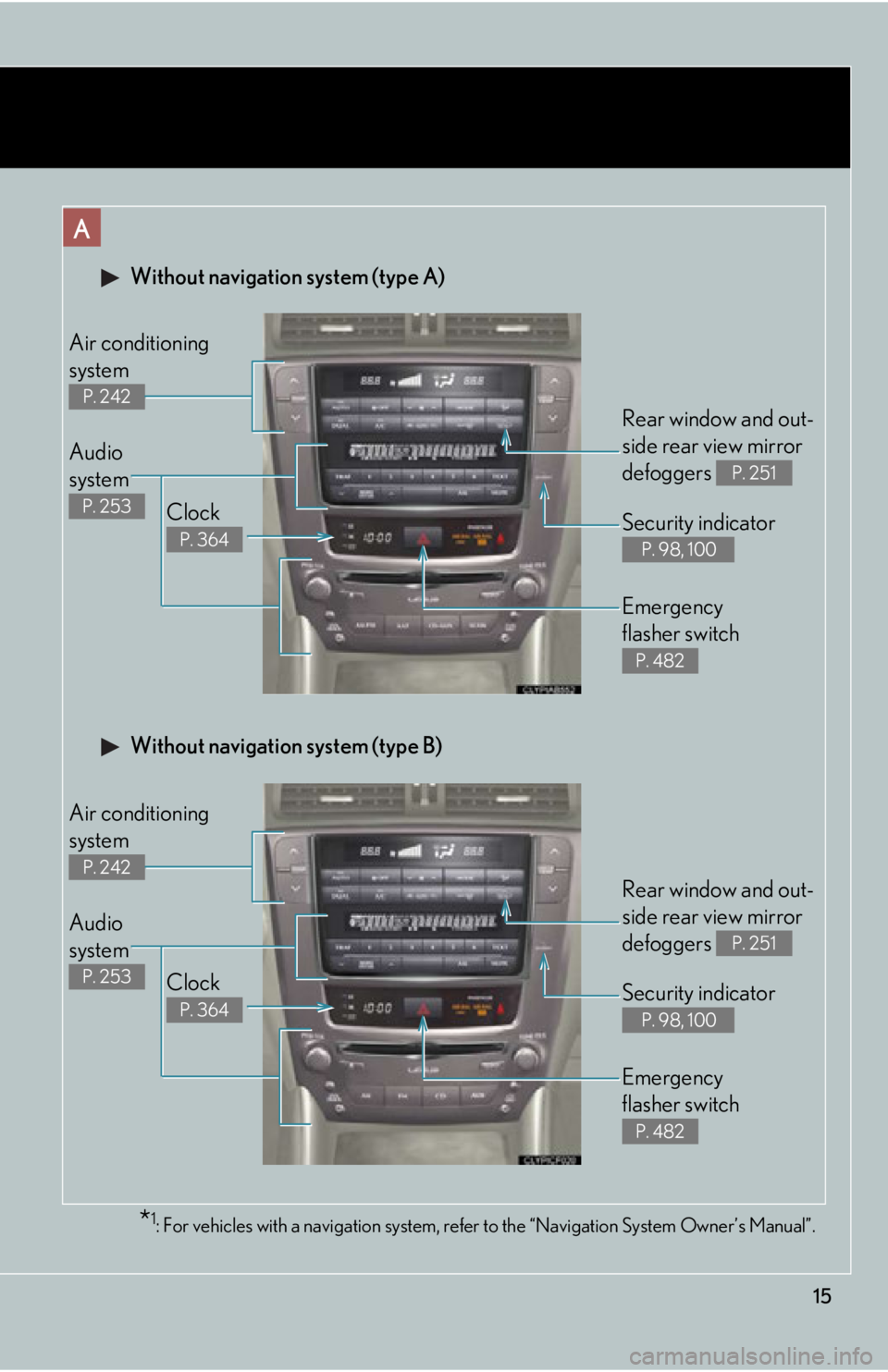

Without navigation system (type A)
Clock
P. 364
Audio
system
P. 253
Air conditioning
system
P. 242
Rear window and out-
side rear view mirror
defoggers
P. 251
Security indicator
P. 98, 100
Emergency
flasher switch
P. 482
*1: For vehicles with a navigation system, refer to the “Navigation System Owner’s Manual”.
A
Clock
P. 364
Audio
system
P. 253
Air conditioning
system
P. 242
Rear window and out-
side rear view mirror
defoggers
P. 251
Security indicator
P. 98, 100
Emergency
flasher switch
P. 482
Without navigation system (type B)

16
Pictorial indexInstrument panel
A
Navigation
system
*2
Clock P. 364
Audio system*2
Security indicator
P. 98, 100
Emergency flasher
switch
P. 482
Air conditioning
system
*2
With navigation system
Rear window and
outside rear view
mirror defoggers
*2

17
: If equipped
*1: For vehicles with a navigation system, refer to the “Navigation System Owner’s Manual”.*2: Refer to “Navigation System Owner's Manual”.
Telephone switch *1P. 326
Cruise control switch 
Dynamic radar cruise control switch

P. 190
P. 194
Distance switch  P. 194
“DISP” switch P. 172
Talk switch *1P. 326
ECT switch P. 152
B
C
Windshield wiper de-icer
switch
 P. 252

208

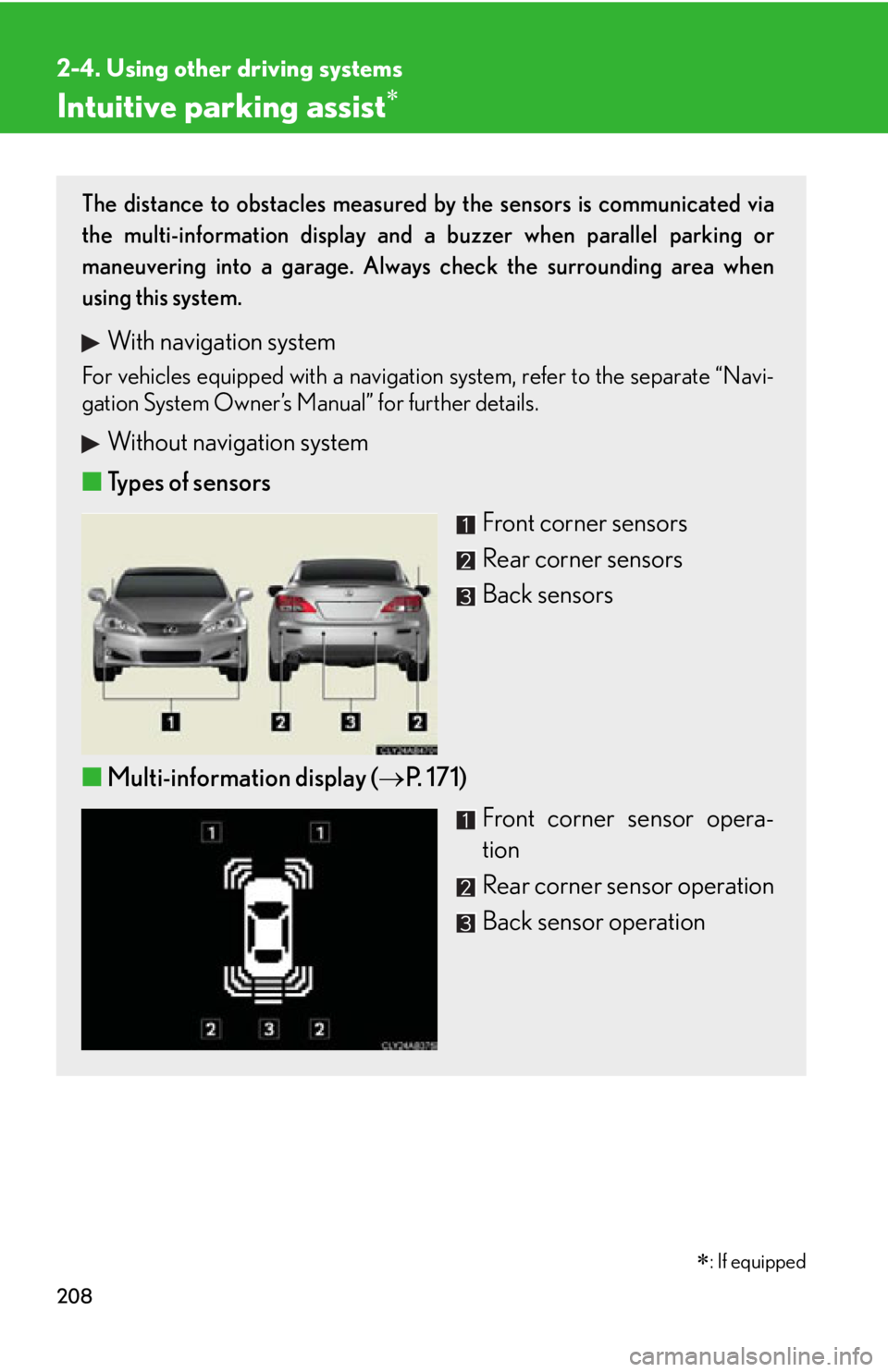

2-4. Using other driving systems
Intuitive parking assist
The distance to obstacles measured by the sensors is communicated via
the multi-information display and a buzzer when parallel parking or
maneuvering into a garage. Always check the surrounding area when
using this system.
With navigation system
For vehicles equipped with a navigation system, refer to the separate “Navi-
gation System Owner’s Manual” for further details.
Without navigation system
■ Types of sensors
Front corner sensors
Rear corner sensors
Back sensors
■ Multi-information display ( P. 171)
Front corner sensor opera-
tion
Rear corner sensor operation
Back sensor operation

: If equipped

242
3-1. Using the air conditioning system and defogger
Automatic air conditioning system
Using the automatic mode
Press .
The air conditioning system will begin to operate. Air outlets and fan
speed are automatically adjusted according to the temperature setting.
Press to switch to automatic mode. (IS350C only)
Automatically switches between outs ide air and recirculated air modes.
Air outlets and fan speed are automati cally adjusted according to the tem-
perature setting.
With navigation system
Owners of models equipped with a navigation system should refer to the
“Navigation System Owner's Manual”.
Without navigation system
Automatic mode
Driver’s side temperature
setting display Changes the air outlets used
Off Fan speed
Airflow display
Fan speed display
Passenger’s side
temperature setting displayMicro dust and
pollen filter
Driver's side
temperature control
Air conditioning on/off switch Outside air or recirculated modeWindshield defogger
Passenger’s side
temperature control
Dual operation switch
STEP1
STEP2

251
3-1. Using the air conditioning system and defogger
3
Interior features
Rear window and outside rear view mirror defoggers
■The defogger can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■When the retractable hardtop is open
The rear window defogger is not operable. The indicator will come on if the outside
rear view mirror defoggers are used.
CAUTION
■When the outside rear view mirror defoggers are on
Do not touch the outside surface of the rear view mirror, as it can become very hot
and burn you.
These features are used to defog the rear window, and to remove rain-
drops, dew and frost from the outside rear view mirrors.
With navigation system
Owners of models equipped with a navigation system should refer to the
“Navigation System Owner's Manual”.
Without navigation system
On/off
The defoggers will automatically
turn off after 15 to 60 minutes.
The operation time changes
according to the ambient tem-
perature and vehicle speed.
