2013 LEXUS IS250C navigation system

253
3
Interior features
3-2. Using the audio system
Audio system type
With navigation system
Owners of models equi pped with a navigation system should refer to
the “Navigation System Owner's Manual”.
Without navigation system (type A)
CD player with changer and AM/FM radio
Without navigation system (type B)
CD player with changer and AM/FM radio

300
3-2. Using the audio system
Using the steering wheel audio switches
Turning on the power
Press when the audio system is turned off.
The audio system can be turned off by holding down until you hear a
beep.
Some audio features can be controlled using the switches on the steering
wheel.
Operation may differ depending on the type of audio system or navi-
gation system. For details, refer to the manual provided with the audio
system or navigation system.
Turns the power on, selects
an audio source
Increases/decreases volume
Radio mode: Selects a radiostation
CD mode: Selects a track, file (MP3 and
WMA) and disc
Bluetooth
® audio mode:
Selects a track and
album
iPod mode: Selects a song
USB memory mode: Selects a file and folder

303
3
Interior features
3-3. Using the Bluetooth® audio system
Bluetooth® audio system
■Conditions under which the system will not operate
●If using a portable player that does not support Bluetooth®
●If the portable player is switched off
●If the portable player is not connected
●If the portable player’s battery is low
●If the portable player is behind the seat or in the glove box or console box
●If metal is covering or touching the portable player
The Bluetooth® audio system enables you to enjoy music played on a por-
table digital audio player (portable pl ayer) from the vehicle speakers via
wireless communication.
This audio system supports Bluetooth
®, a wireless data system capable of
playing portable audio music without ca bles. If your portable player does
not support Bluetooth
®, the Bluetooth® audio system will not function.
Vehicles with a navigation system
Owners of models equi pped with a navigation system should refer to
the “Navigation System Owner's Manual”.
Vehicles without a navigation system
Ti t l ePa g e
Using the Bluetooth® audio systemP. 3 0 6
Operating a Bluetooth® enabled portable playerP. 3 1 1
Setting up a Bluetooth® enabled portable playerP. 3 1 5
Bluetooth® audio system setupP. 3 2 1

322
3-4. Using the hands-free phone system (for mobile phones)
Hands-free system for mobile phones
The hands-free system is a function that allows you to use your mobile
phone without touching it.
This system supports Bluetooth
® mobile phones. Bluetooth® is a wireless
data system that allows the mobile phone to wirelessly connect to the
hands-free system and make/receive calls.
Vehicles with a navigation system
Owners of models equi pped with a navigation system should refer to
the “Navigation System Owner's Manual”.
Vehicles without a navigation system
Ti t l ePa g e
Using the hands-free systemP. 3 2 6
Making a phone callP. 3 3 4
Setting a mobile phoneP. 3 3 8
Security and system setupP. 3 4 3
Using the phone bookP. 3 4 7

462
4-3. Do-it-yourself maintenance

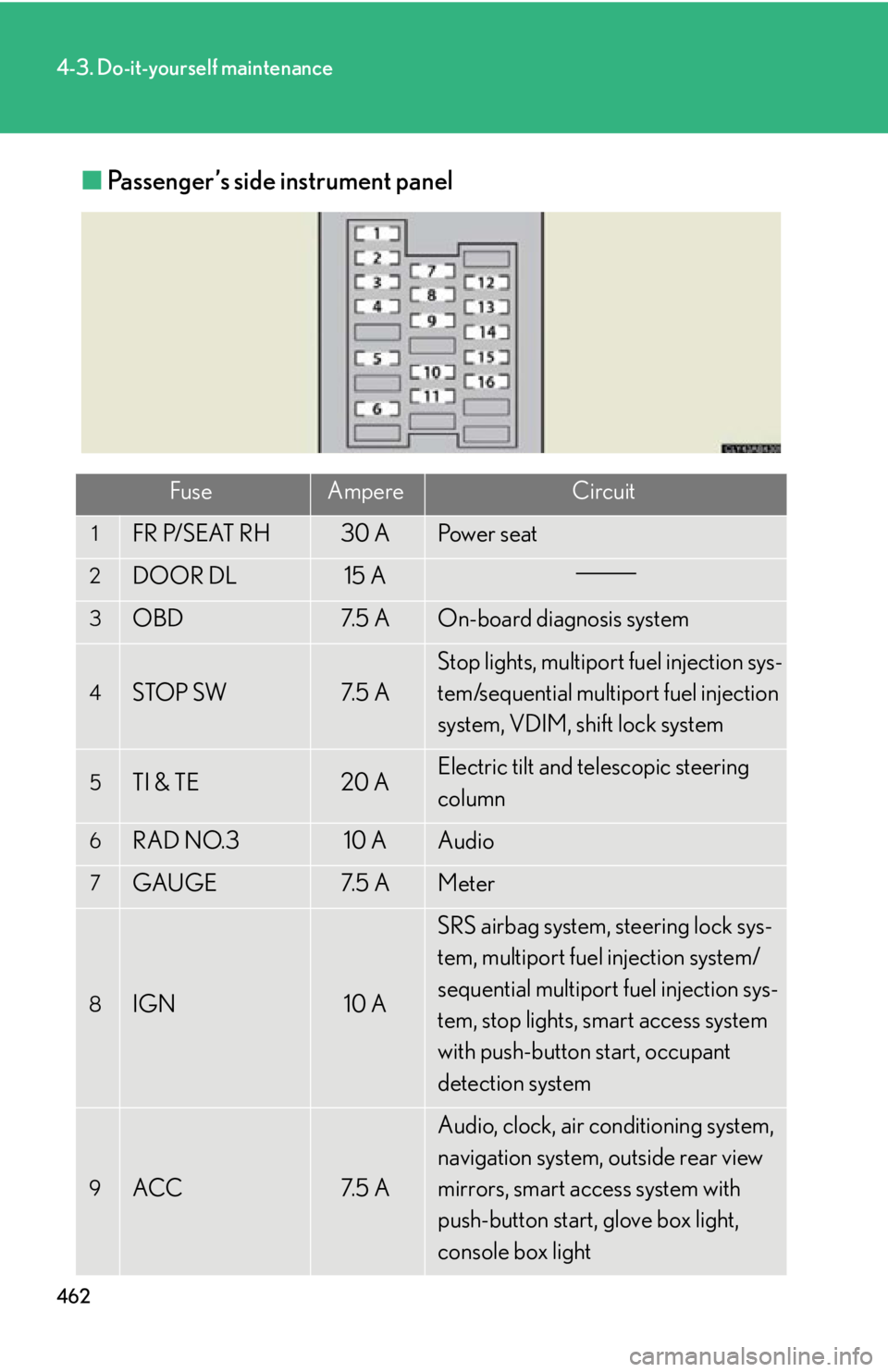

■Passenger’s side instrument panel
FuseAmpereCircuit
1FR P/SEAT RH30 APo w e r s e a t
2DOOR DL15 A
3OBD7. 5 AOn-board diagnosis system
4STOP SW7. 5 A
Stop lights, multipor t fuel injection sys-
tem/sequential multip ort fuel injection
system, VDIM, shift lock system
5TI & TE20 AElectric tilt and telescopic steering
column
6RAD NO.310 AAudio
7GAUGE7. 5 AMeter
8IGN10 A
SRS airbag system, steering lock sys-
tem, multiport fuel injection system/
sequential multiport fuel injection sys-
tem, stop lights, smart access system
with push-button start, occupant
detection system
9ACC7. 5 A
Audio, clock, air conditioning system,
navigation system, outside rear view
mirrors, smart access system with
push-button start, glove box light,
console box light

463
4-3. Do-it-yourself maintenance
4
Maintenance and care
10CIG15 ACigarette lighter
11PWR OUTLET15 APo w e r o u t l e t
12FR DOOR RH20 APower windows, outside rear view
mirrors
13AM27. 5 AStarting system
14RH-IG7. 5 A
Seat belt pretensioner, intuitive park-
ing assist, automatic transmission, seat
heater and ventilator
15FR S/HTR RH15 ASeat heaters and ventilators, air condi-
tioning system
16ECU-IG RH10 A
Power seats, headlights, front fog
lights, parking lights, license plate
lights, front side marker lights, wind-
shield washer, outside rear view mir-
rors, VDIM, air conditioning system,
pre-collision seat belt, electric tilt and
telescopic steering, power windows,
navigation system, vehicle stability
control, retractable hardtop, clock
FuseAmpereCircuit

520
5-2. Steps to take in an emergency
CAUTION
■When using the compact spare tire
●Remember that your compact spare tire is specifically designed for use with your
vehicle. Do not use your compact spare tire on another vehicle.
●Do not use two compact spare tires simultaneously.
●Replace the compact spare tire with a standard tire as soon as possible.
●Avoid sudden acceleration, deceleration and braking, as well as sharp cornering.
■Speed limit when using the compact spare tire
Do not drive at speeds in excess of 50 mph (80 km/h) when a compact spare tire is
installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failing to observe
this precaution may lead to an accident causing death or serious injury.
■When the spare tire is attached
The vehicle speed may not be correctly detected, and the following systems may
not operate correctly:
●ABS & brake assist
●VSC
●TRAC
●VDIM
●EPS
●Navigation system (if equipped)
●Intuitive parking assist (if equipped)
●Dynamic radar cruise control (if equipped)
●Cruise control (if equipped)
●PCS (if equipped)

Index
607
Abbreviation list .................... 608
Alphabetical index .................. 610
What to do if... ....................... 622
For vehicles with a navigation system, refer to the “Naviga-
tion System Owner’s Manual ” for information regarding
the equipment listed below.
• Navigation system
• Audio/video system
• Air conditioning
• Rear window and outside rear view mirror defogging
• Climate control
• Rear view monitor system
• Intuitive parking assist
