■Displayed area
The area covered by the camera is limited. Objects which are close to either corner
of the bumper or under the bumper cannot be seen on the screen.
The area displayed on the screen may vary depending on vehicle orientation or
road conditions.

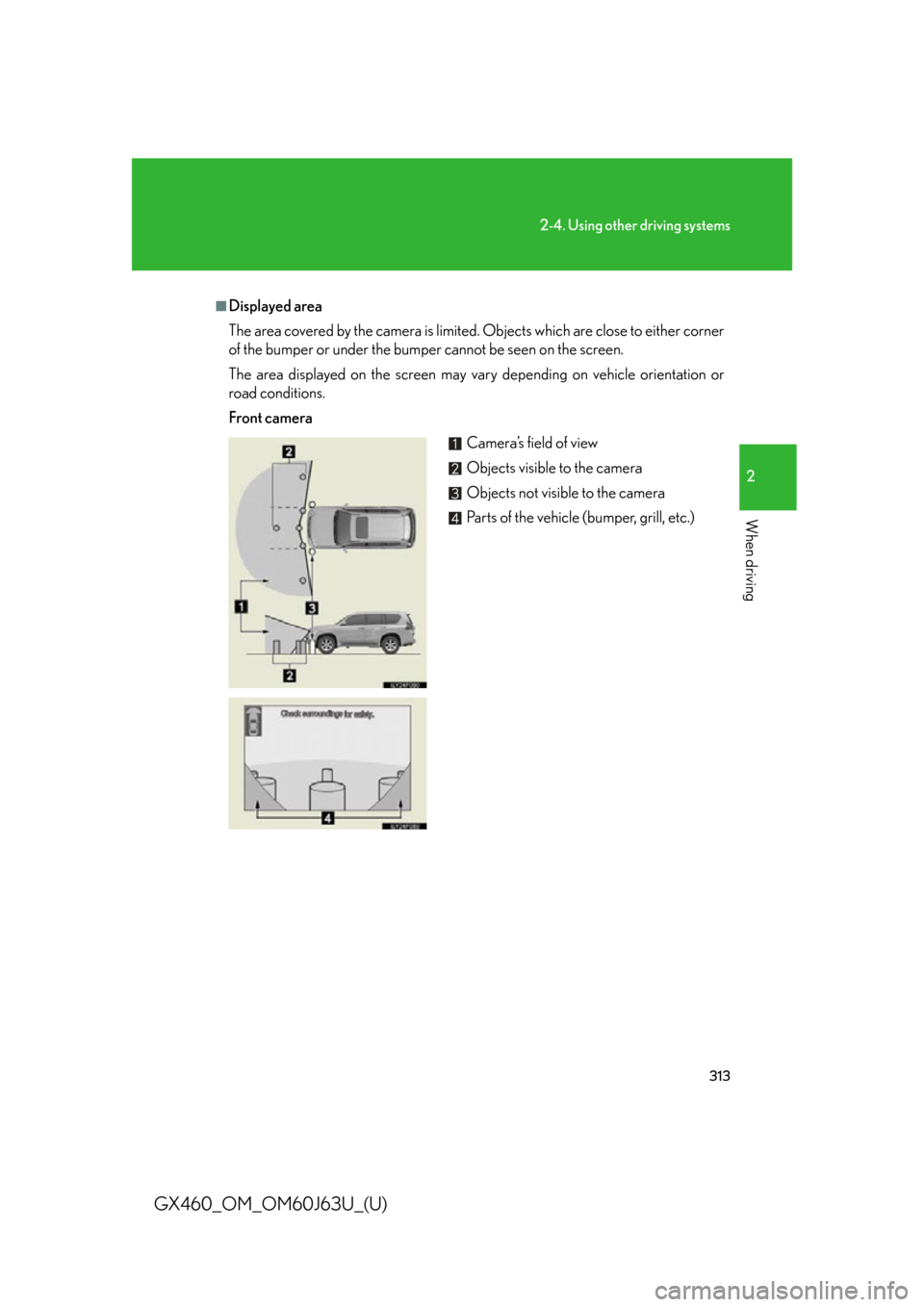

Front camera
Camera’s field of view
Objects visible to the camera
Objects not visible to the camera
Parts of the vehicle (bumper, grill, etc.)

314
2-4. Using other driving systems
GX460_OM_OM60J63U_(U)

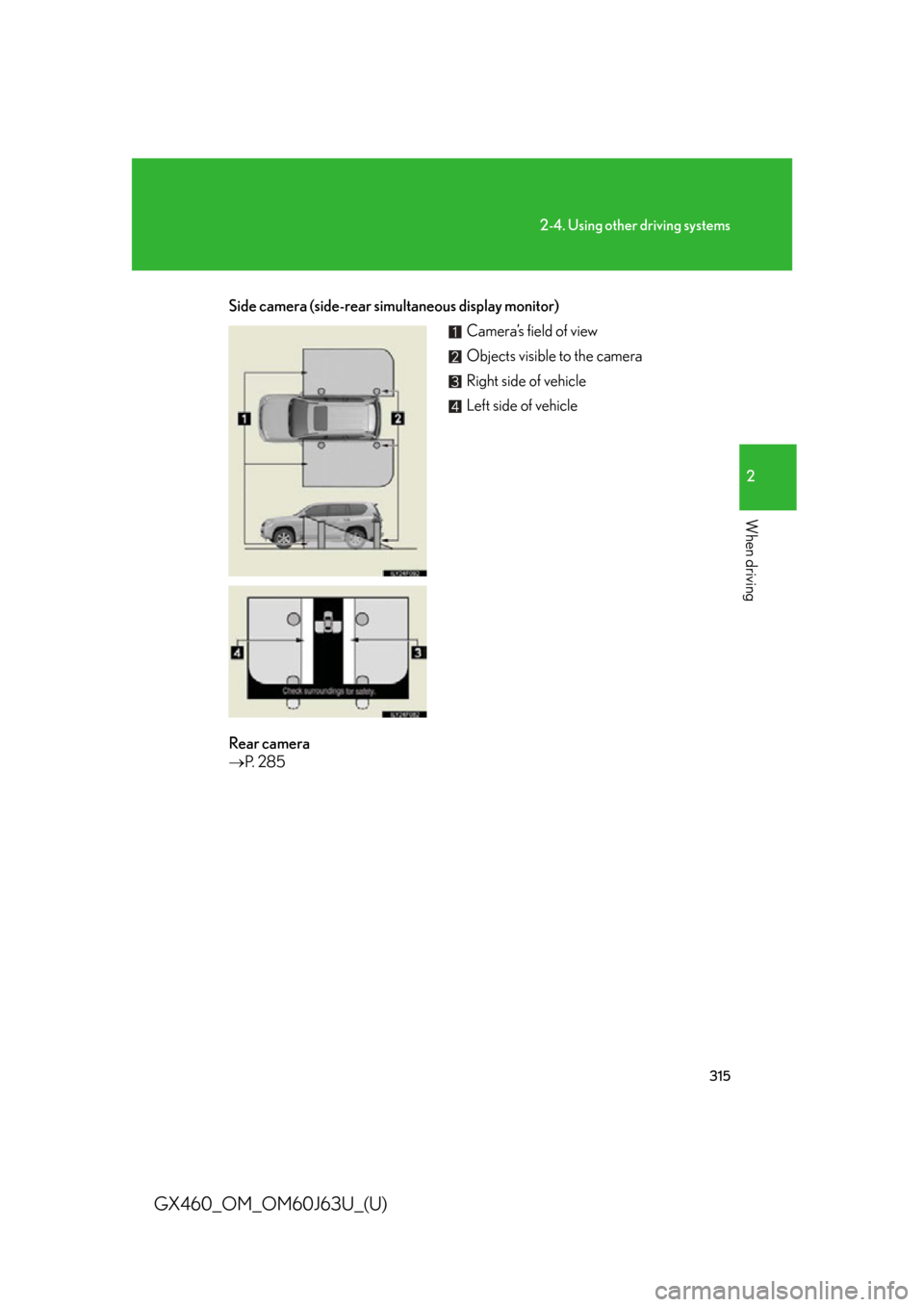

Side camera (side-front simultaneous display monitor)
Camera’s field of view
Objects visible to the camera
Right side of vehicle
Left side of vehicle

315
2-4. Using other driving systems
2
When driving
GX460_OM_OM60J63U_(U)
Side camera (side-rear simultaneous display monitor)
Rear camera
 P. 2 8 5
Camera’s field of view
Objects visible to the camera
Right side of vehicle
Left side of vehicle

316
2-4. Using other driving systems
GX460_OM_OM60J63U_(U)
■Multi-terrain Monitor cameras
In the following cases, it may be difficult to see images on the screen even when the
system is functioning correctly:
●The vehicle is in a dark area, such as at night.
●The temperature near the lens is extremely high or low.
●Water droplets are on the camera lens or humidity is high, such as when it rains.
●Foreign matter, such as snow and mud, adheres to the camera lens.
●The camera has scratches or dirt on it.
●The sun or headlights are shining directly into the camera lens.
●The camera lens is damaged by flying stones.
Side cameras
Front camera
Rear camera

317
2-4. Using other driving systems
2
When driving
GX460_OM_OM60J63U_(U)
■Smear effect
■Flicker effect
When the camera is used under fluorescent lights, sodium lights, mercury lights
etc., the lights and the illuminated areas may appear to flicker.
■Display settings
Vehicles without a navigation system
 P. 2 2 1
Vehicles with a navigation system
Refer to the “Navigation System Owner’s Manual”
CAUTION
■When using the Multi-terrain Monitor system
Observe the following precautions to avoid an accident that could result in death or
serious injuries:
●Never depend solely on the monitor system.
●Always check visually and with the mirrors to confirm your intended path is clear.
●Depicted distances between objects and flat surfaces differ from actual dis-
tances.
●Do not use the system if the hood or doors are open.
If a bright light, such as sunlight reflected off
the vehicle body, is picked up by the camera,
a smear effect
* characteristic to the camera
may occur.
*: Smear effect A phenomenon that
occurs when a bright light is picked up by
the camera; when transmitted by the cam-
era, the light source will appear to have
streaks of light emanating from it. The
streaks will also appear when the light
source is in the vehicle icon area.

318
2-4. Using other driving systems
GX460_OM_OM60J63U_(U)
CAUTION
■Conditions which may affect the Multi-terrain Monitor system
●If the front or the rear of the vehicle or the outside rear view mirror has been hit,
the camera’s position and mounting angle may have changed. Have the vehicle
inspected by your Lexus dealer.
●As the camera has a water proof constr uction, do not detach, disassemble or
modify it. This may cause incorrect operation.
●Rapid temperature changes, such as when hot water is poured on the vehicle in
cold weather, may cause the system to function abnormally.
●If the camera lens is dirty, it cannot transmit a clear image. Rinse with water and
wipe with a soft cloth. If the camera lens is extremely dirty, wash with a mild
cleanser and rinse.
●Do not strongly rub the camera lens. If the camera lens is scratched, it cannot
transmit a clear image.
●Do not allow organic solvent, car wax, window cleaner or glass coat to adhere to
the camera. If this happens, wipe it off as soon as possible.
●The displayed image may be darker and mo ving images may be slightly distorted
when the system is cold.
●Situations unsuitable for Multi-terrain Monitor
• On icy or slick road surfaces, or in snow
• When using tire chains
●When washing the vehicle, do not apply intensive bursts of water to the camera
or camera area. Doing so may result in the camera malfunctioning.

319
2-4. Using other driving systems
2
When driving
GX460_OM_OM60J63U_(U)
NOTICE
■When using the Multi-terrain Monitor
●Even if an obstacle is no longer visible on the side monitor, do not turn the steer-
ing wheel further in the direction the vehicle is turning until the vehicle has moved
completely past the obstacle. If the steerin g wheel is turned to full lock, the vehi-
cle will turn in the smallest possible turning circle, and may collide with the obsta-
cle.
●It may be difficult to judge distance with the image from the front camera due to
the characteristics of the lens. Drive ca refully while checking the actual distance
to the obstacles displayed on the screen. Also, give your full attention to sudden
bumps in the road.

320
2-4. Using other driving systems
GX460_OM_OM60J63U_(U)
Rear height control air suspension
Selecting vehicle heightOperating the switch changes vehicle rear height as follows: Higher
Lower
Vehicle height can be adjusted
only when the engine is running.
The selected height mode will be
shown on the rear height control
air suspension display.
The selected mode will flash while
the height mode is being changed.
: If equipped
The rear height control air suspension allows the driver to control vehicle
rear height in order to adjust drivin g conditions. Select the desired height
with the height control switch.
Height control OFF switch
Height control switch
