2013 Lexus GX460 engine

726
5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)
If you have a flat tire
Remove the flat tire and replace it with the spare provided.
■Before jacking up the vehicle
●Stop the vehicle on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P.
● Vehicles with rear height control air suspension: Turn off the
height control. ( →P. 320)
● Stop the engine.
● Turn on the emergency flashers. (→ P. 6 8 4 )
■ Location of the spare tire, jack and tools
Spare tire
Jack
Tool box
GX460_OM_OM60J63U_(U).book Page 726 Thursday, March 29, 2012 9:10 AM

5
When trouble arises
737
5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)
CAUTION
■Using the tire jack
Improper use of the tire jack may lead to death or injuries due to the vehicle sud-
denly falling off the jack.
●Do not use the tire jack for any purpose other than replacing tires or installing and
removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replacing tires
on this vehicle.
●Always check that the tire jack is securely set to the jack point.
●Be sure to turn off the rear height control air suspension and stop the engine.
●Do not raise the vehicle while someone is in it.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
●Do not put any part of your body under the vehicle supported by a jack.
●Do not start or run the engine while your vehicle is supported by the jack.
Take particular care when lowering the vehicle to ensure that no one working on or
near the vehicle may be injured.
■Using the jack handle
Tighten all the jack handle bolts securely using a Phillips-head screwdriver, to pre-
vent the extension parts from coming apart unexpectedly.
GX460_OM_OM60J63U_(U).book Page 737 Thursday, March 29, 2012 9:10 AM

740
5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)

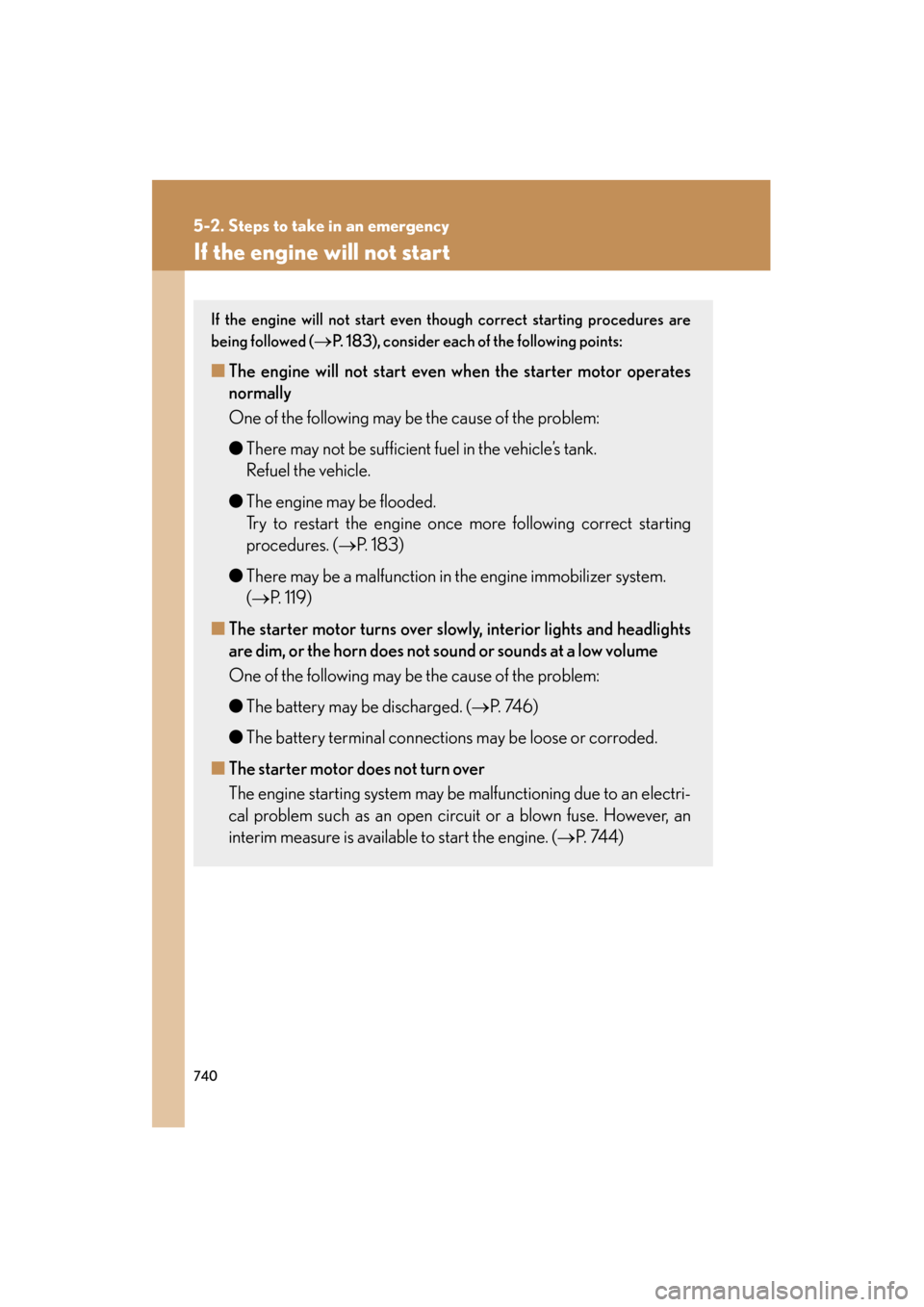

If the engine will not start
If the engine will not start even though correct starting procedures are
being followed (
→P. 183), consider each of the following points:
■The engine will not start even when the starter motor operates
normally
One of the following may be the cause of the problem:
●There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
● The engine may be flooded.
Try to restart the engine once more following correct starting
procedures. ( →P. 183)
● There may be a malfunction in the engine immobilizer system.
(→ P. 1 1 9 )
■ The starter motor turns over slowly, interior lights and headlights
are dim, or the horn does not sound or sounds at a low volume
One of the following may be the cause of the problem:
● The battery may be discharged. ( →P. 74 6 )
● The battery terminal connections may be loose or corroded.
■ The starter motor does not turn over
The engine starting system may be malfunctioning due to an electri-
cal problem such as an open circuit or a blown fuse. However, an
interim measure is available to start the engine. ( →P. 744)
GX460_OM_OM60J63U_(U).book Page 740 Thursday, March 29, 2012 9:10 AM

5
When trouble arises
741
5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)
Emergency start function
When the engine does not start, the following steps can be used as an
interim measure to start the engine if the “ENGINE START STOP” switch
is functioning normally:Set the parking brake.
Shift the shift lever to P.
Turn the “ENGINE START STOP” switch to ACCESSORY
mode.
Press and hold the “ENGINE START STOP” switch for about 15
seconds while depressing the brake pedal firmly.
Even if the engine can be started using the above steps, the system may
be malfunctioning. Have the vehicle inspected by your Lexus dealer.
■ The starter motor does not turn ov er, interior lights and headlights
do not turn on, or the horn does not sound
One of the following may be the cause of the problem:
● One or both of the battery terminals may be disconnected.
● The battery may be discharged. ( →P. 74 6 )
● There may be a malfunction in the steering lock system.
Contact your Lexus dealer if the problem cannot be repaired, or if
repair procedures are unknown.
STEP1
STEP2
STEP3
STEP4
GX460_OM_OM60J63U_(U).book Page 741 Thursday, March 29, 2012 9:10 AM

742
5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)
If the shift lever cannot be shifted from P
If the shift lever cannot be shifted with your foot on the brake, there may be
a problem with the shift lock system (a system to prevent accidental opera-
tion of the shift lever). Have the vehicle inspected by your Lexus dealer
immediately.
The following steps may be used as an emergency measure to ensure that
the shift lever can be shifted:
Set the parking brake.
Turn the “ENGINE START STOP” switch to ACCESSORY
mode.
Depress the brake pedal.
Pry the cover up with a flathead
screwdriver or tool.
Press the shift lock override but-
ton.
The shift lever can be shifted
while the button is pressed.
STEP1
STEP2
STEP3
STEP4
STEP5
GX460_OM_OM60J63U_(U).book Page 742 Thursday, March 29, 2012 9:10 AM

744
5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)
If the electronic key does not operate properly
Locking and unlocking the doors and key linked functions
Use the mechanical key ( →P. 2 8 )
in order to perform the following
operations (driver’s door only):
Locks all the doors
Closes the windows and moon
roof (turn and hold)
*
Unlocks the door
Tu r n i n g t h e k e y r e a r w a r d u n l o c k s
the driver’s door. Turning the key
once again unlocks the other
doors.
Opens the windows and moon
roof (turn and hold)
*
*
: This setting must be customized at your Lexus dealer.
If communication between the electronic key and vehicle is interrupted
(→ P. 41) or the electronic key cannot be used because the battery is
depleted, the smart access system with push-button start and wireless
remote control cannot be used. In such cases, the doors can be opened or
the engine can be started by following the procedure below.
GX460_OM_OM60J63U_(U).book Page 744 Thursday, March 29, 2012 9:10 AM

5
When trouble arises
745
5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)
Starting the engine
Ensure that the shift lever is in P and depress the brake pedal.Touch the Lexus emblem side of
the electronic key to the
“ENGINE START STOP” switch.
If any of the doors is opened or
closed while the key is being
touched to the switch, an alarm will
sound to indicate that the start
function cannot detect the elec-
tronic key.
Press the “ENGINE START STOP” switch within 10 seconds of
the buzzer sounding, keeping the brake pedal depressed.
In the event that the “ENGINE START STOP” switch still cannot be oper-
ated, contact your Lexus dealer.
STEP1
STEP2
■Stopping the engine
Shift the shift lever to P and press the “ENGINE START STOP” switch as you nor-
mally do when stopping the engine.
■Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the elec-
tronic key battery be replaced immediately when the battery is depleted.
( → P. 6 5 2 )
■Changing “ENGINE START STOP” switch modes
Within 10 seconds of the buzzer sounding, release the brake pedal and press the
“ENGINE START STOP” switch.
The engine does not start and modes w ill be changed each time the switch is
pressed. ( →P. 1 8 5 )
STEP3
GX460_OM_OM60J63U_(U).book Page 745 Thursday, March 29, 2012 9:10 AM

746
5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)
If the vehicle battery is discharged
The following procedures may be used to start the engine if the vehicle’s
battery is discharged.
You can call your Lexus dealer, or qualified repair shop.
If you have a set of jumper (or booster) cables and a second vehicle
with a 12 volt battery, you can jump start your Lexus by following the
steps below.
Open the hood. ( →P. 6 1 7 )
Connecting the jumper cables according to the following procedure: Positive (+) battery terminal on your vehicle.
Positive (+) battery terminal on the second vehicle.
Negative (-) battery terminal on the second vehicle.
Connect the jumper cable to ground on your vehicle as shown in the
illustration.
STEP1
STEP2
GX460_OM_OM60J63U_(U).book Page 746 Thursday, March 29, 2012 9:10 AM
