GS350_U (OM30C34U)
6596-3. Do-it-yourself maintenance
6
Maintenance and care
■Trunk
FuseAmpereCircuit
1PSB30Pre-collision seat belts
2PTL25Power trunk opener and closer
3RR J/B-B10Smart access system with push-button start
4RR S/HTR20Seat heaters (rear)
5FR S/HTR10Seat heaters/ventilators (front)
6RR FOG10No circuit
7DC/DC-S (HV)7. 5No circuit
8BATT FAN (HV)20No circuit
9SECURITY7. 5SECURITY
10ECU-B NO.37. 5Parking brake
11TRK OPN7. 5Power trunk opener and closer
12DCM (HV)7. 5No circuit
13AC INV (HV )20No circuit
14RR-IG15Radar sensor, Blind Spot Monitor
15RR ECU-IG10
Power trunk opener and closer, parking
brake, tension reducer (rear left-hand), RR
CTRL SW, tire pressure warning system,
DRS
16EPS-IG5Electric power steering system
17BACK UP7. 5Back-up lights

7077-2. Steps to take in an emergency
GS350_U (OM30C34U)
7
When trouble arises
Indicates that intuitive
parking assist sensor is
dirty or covered with ice
Clean the sensor.
Indicates that the radar
sensor is dirty or covered
with ice
Clean the sensor.
Indicates that the radar
cruise control system is
unable to judge vehicle-
to-vehicle distance
•Turn off the snowmode.
• If the windshield wip- ers are on, turn them
off or set them to a
mode other than
AUTO or high speed
wiper operation.
Indicates that your vehi-
cle is nearing the vehicle
ahead (in vehicle-to-vehi-
cle distance mode)
At the same time,
will appear on the
head-up display (the
image flashes).
Slow the vehicle by
applying the brakes.
Wa r n i n g m e s s a g eDetailsCorrection procedure
(If equipped)
(If equipped)
(If equipped)
(If equipped)

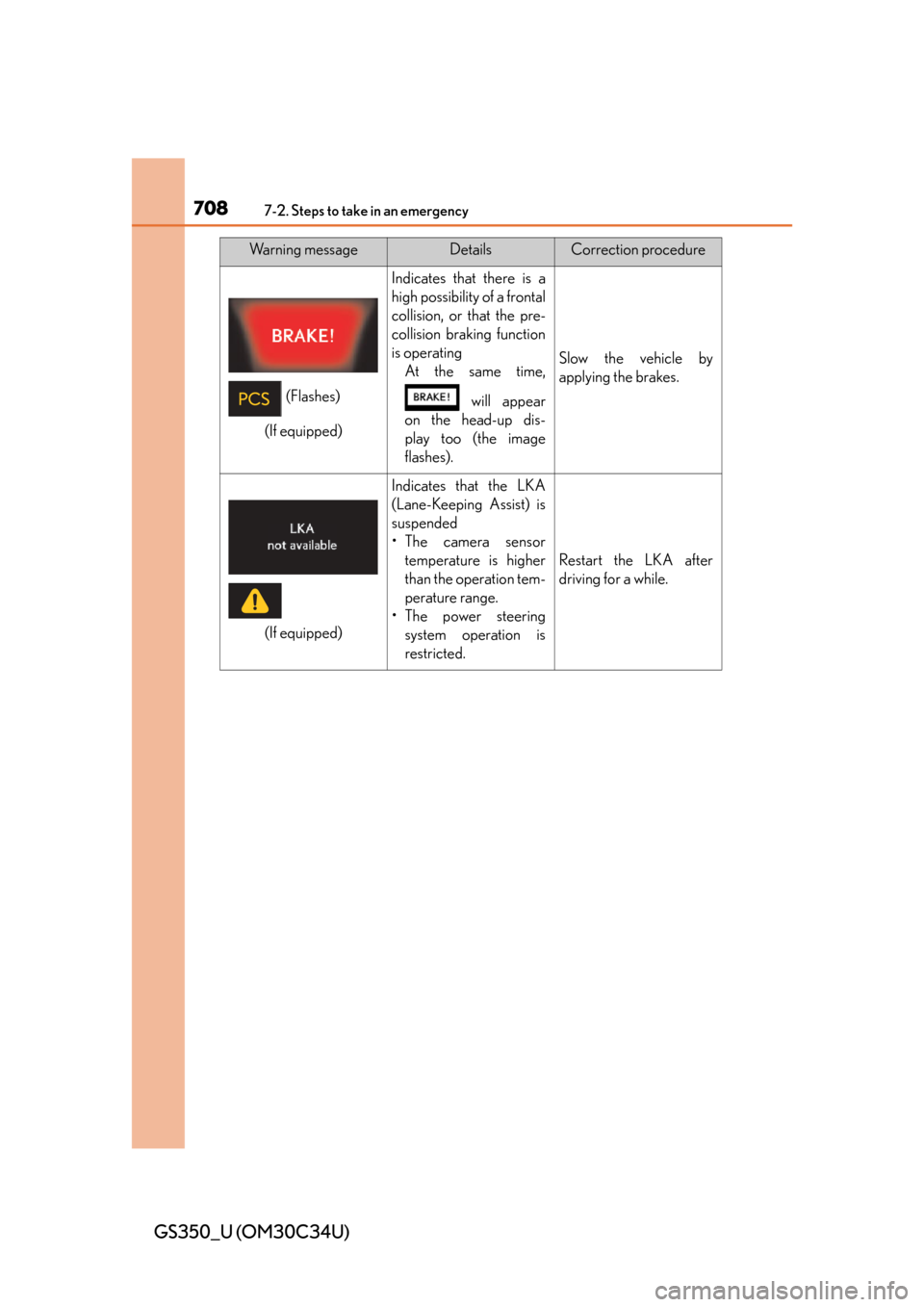

7087-2. Steps to take in an emergency
GS350_U (OM30C34U)
Indicates that there is a
high possibility of a frontal
collision, or that the pre-
collision braking function
is operatingAt the same time,
will appear
on the head-up dis-
play too (the image
flashes).
Slow the vehicle by
applying the brakes.
Indicates that the LKA
(Lane-Keeping Assist) is
suspended
•The camera sensor temperature is higher
than the operation tem-
perature range.
•The power steering system operation is
restricted.
Restart the LKA after
driving for a while.
Wa r n i n g m e s s a g eDetailsCorrection procedure
(Flashes)
(If equipped)
(If equipped)

819Alphabetical index
GS350_U (OM30C34U)
Paddle shift switches ............................ 180
Parking assist sensors (intuitive parking assist) .................. 238
Parking brake.......................................... 186 If the parking brake cannot be released........................738
Operation ............................................... 186
Parking brake engaged warning buzzer .............................. 706
Parking brake engaged warning message .......................... 706
Parking lights ........................................... 190 Light switch ............................................ 190
Replacing light bulbs ..........................671
Welcome light illumination control ........................... 101
PCS (Pre-Collision System) ............ 278 Function ..................................................278
PCS OFF switch ............................... 280
Warning light ...................................... 688
Warning message .......................699, 708, 714
Personal lights........................................ 549
Power easy access system .................133
Power outlets ......................................... 564
Power steering (Electric Power
Steering system) ................................ 269 Warning light ...................................... 687
Warning message .............................702
Power trunk opener and closer ........ 121 Power windows....................................... 145
Door lock linked window operation ........................... 147
Jam protection function....................146
Operation................................................145
Window lock switch ..........................145
Pre-Collision System (PCS).............278 Function .................................................. 278
PCS OFF switch ................................280
Warning light ...................................... 688
Warning message....................... 699, 708, 714
Radar cruise control (dynamic radar cruise control).......................... 213
Radiator.....................................................622
Radio ......................................................... 390
RBDS (Radio Broadcast Data Systems) .................................... 393
Rear air conditioning system........... 360
Rear personal lights ............................ 549
Rear side marker lights ........................190 Light switch............................................ 190
Replacing light bulbs ......................... 671
Welcome light illumination control ........................... 101
Rear door sunshades...........................573
Rear seat heaters ................................. 568
Rear sunshade ........................................572 Operation.............................................. 572
Reverse operation feature ............ 573
P
R
