2013 Lexus GS350 Brake fluid

697
GS350_U (OM30C34U)
7
When trouble arises
7-2. Steps to take in an emergency
If a warning message is displayed
Master warning light
The master warning light also comes
on or flashes in order to indicate that a
message is currently being displayed
on the multi-information display.
Multi-information display
If any of the warning light comes on again after the following actions have
been performed, contact your Lexus dealer.
The following warning indicates a possible problem in the brake system.
Immediately stop the vehicle in a safe place and contact your Lexus
dealer.
If a warning is shown on the multi-information display, stay calm and
perform the following actions:
1
2
Stop the vehicle immediately. Continuing to drive the vehicle may
be dangerous.
Warning messageDetails
Indicates the following: • The brake fluid level is low; or,
• The brake booster system is malfunctioning.A buzzer also sounds.
(U.S.A.)
(Canada)

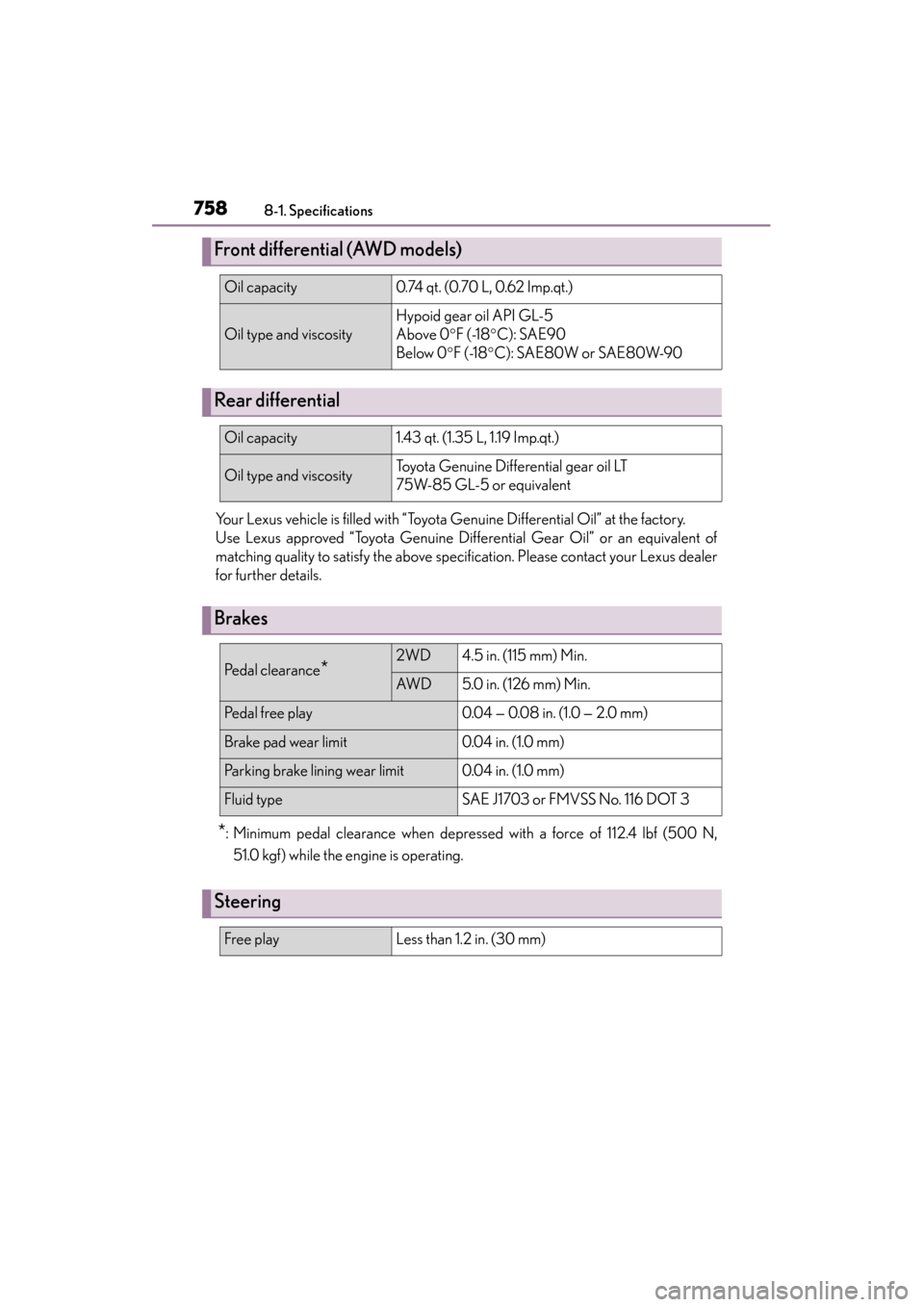

758
GS350_U (OM30C34U)
8-1. Specifications
Your Lexus vehicle is filled with “Toyota Genuine Differential Oil” at the factory.
Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent of
matching quality to satisfy the above specification. Please contact your Lexus dealer
for further details.
*: Minimum pedal clearance when depressed with a force of 112.4 lbf (500 N,51.0 kgf) while the engine is operating.
Front differential (AWD models)
Oil capacity 0.74 qt. (0.70 L, 0.62 Imp.qt.)
Oil type and viscosity
Hypoid gear oil API GL-5
Above 0°F (-18 °C): SAE90
Below 0 °F (-18 °C): SAE80W or SAE80W-90
Rear differential
Oil capacity1.43 qt. (1.35 L, 1.19 Imp.qt.)
Oil type and viscosityToyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent
Brakes
Pe d a l c l e a r a n c e*2WD4.5 in. (115 mm) Min.
AW D5.0 in. (126 mm) Min.
Pe d a l f r e e p l a y0.04 — 0.08 in. (1.0 — 2.0 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3
Steering
Free playLess than 1.2 in. (30 mm)

811Alphabetical index
GS350_U (OM30C34U)
Armrest door ......................................... 575
Ashtrays.................................................... 563
Assist grip .................................................577
Audio input.............................................. 476
Audio system.......................................... 367Audio input............................................ 476
AUX port/USB port.................... 476, 456, 466
Bluetooth
® audio...............................444
CD/DVD player ..................................412
CD/DVD player information ...... 432
DVD video ............................................420
iPod ...........................................................464
MP3/WMA disc ................................ 414
Optimal use .......................................... 474
Portable music player ...................... 476
Radio ....................................................... 390
Rear seat audio controls ................ 477
Steering wheel audio switch ........482
USB memory .......................................454
Automatic headlight leveling system ......................................................193
Automatic light control system ..................................................... 190
Automatic transmission .......................178 If the shift lever
cannot be shifted from P ............ 737
M mode .....................................................181
Paddle shift switches .........................180
AUX port................................................. 476
Auxiliary boxes ...................................... 557
AVS (Adaptive Variable
Suspension system).......................... 269 Back-up lights
Replacing light bulbs ....................... 670
Wattage ................................................... 761
Battery .......................................................624 Battery checking ................................ 624
If the vehicle battery is discharged .................................... 743
Preparing and checking before winter....................................................298
Warning light ....................................... 687
Bluetooth
®
Audio system ....................................... 444
Hands-free system
(for cellular phone) .......................485
Brake
Fluid .......................................................... 623
Parking brake ....................................... 186
Warning light ..........................686, 689
Warning message............................. 697
Brake assist ............................................. 268
Break-in tips ............................................. 156
Brightness control Instrument panel light control ........80
BSM (Blind Spot Monitor) ................287
B

815Alphabetical index
GS350_U (OM30C34U)
First-aid kit storage net ......................558
Flat tire .......................................................722
Floor mats ................................................... 26
FluidAutomatic transmission .................. 757
Brake ....................................................... 758
Washer .................................................. 628
Fog lights ................................................... 195 Replacing light bulbs ....................... 665
Switch........................................................ 195
Wattage ....................................................761
Footwell light .......................................... 548
Front passenger occupant classification system .............................47
Front personal lights............................ 549
Front seats ................................................ 128 Adjustment ............................................. 128
Cleaning ................................................ 598
Correct driving posture ....................28
Driving position memory ................ 130
Head restraints..................................... 136
Power easy access system ............ 133
Seat heaters ......................................... 568
Seat position memory....................... 130
Seat ventilators ................................... 569
Front side marker lights ...................... 190 Light switch ............................................ 190
Replacing light bulbs ..........................671
Welcome light illumination
control .....................................................101 Front turn signal lights ..........................184
Replacing light bulbs ....................... 667
Turn signal lever ...................................184
Wattage ................................................... 761
Fuel..............................................................754 Capacity ................................................. 754
Fuel gauge ................................................79
Fuel pump shut off system ........... 685
Information............................................ 762
Refueling ................................................ 204
Type.............................................. 204, 754
Warning light ...................................... 689
Warning messages ............................ 710
Fuel filler door........................................ 204
If the fuel filler door cannot be opened ......................... 207
Refueling ................................................ 204
Fuel pump shut off system ................ 685
Fuses.......................................................... 648
Garage door opener...........................579
Gauges......................................................... 79
Glove box ............................................... 553
Glove box light...................................... 553
F
G

825Alphabetical index
GS350_U (OM30C34U)
Warning buzzersBrake system....................................... 686
Downshifting ......................................... 182
Key reminder ......................................... 717
Open door ............................................704
Open moon roof .............................. 705
Open hood ...........................................704
Open trunk .......................................... 705
Open window .................................... 705
Seat belt reminder ............................ 689
Warning lights .......................................... 75
ABS .......................................................... 687
AFS OFF indicator ........................... 688
Brake system.......................... 686, 689
Charging system............................... 687
Electric power steering.................. 687
Low fuel level ...................................... 689
Malfunction indicator lamp .......... 687
Master warning light........................ 689
Open door ........................................... 689
Parking brake indicator ................. 688
Pre-collision system......................... 688
Seat belt reminder light .................. 689
Slip indicator ........................................ 688
SRS ........................................................... 687
Tire pressure ....................................... 690
Warning messages .............................. 697
Warning reflector storage belt.......560
Washer .......................................................196
Checking............................................... 628
Low washer fluid warning message ............................. 712
Preparing and checking
before winter ................................... 298
Switch........................................................ 196
Washing and waxing........................... 594 Weight
Cargo capacity.................................... 168
Load limits .............................................. 168
Weight .................................................... 752
Welcome light illumination control ...................................................... 101
Wheels ......................................................642 Replacing wheels .............................. 642
Size ........................................................... 759
Window glasses...................................... 145
Window lock switch.............................. 145
Windows.................................................... 145
Power windows....................................145
Rear window defogger ..................365
Windshield wiper de-icer ................. 366
Windshield wipers ................................. 196 Intermittent windshield wipers with interval adjuster .......196
Position .................................................... 301
Rain-sensing windshield wipers.................................................... 198
Winter driving tips ............................... 298
Wireless remote control key...............114 Battery-Saving Function ..................107
Locking/Unlocking ..............................114
Replacing the battery ...................... 646
WMA disc................................................. 414
XM
® Satellite Radio ........................... 398
W
X
