2013 KIA VENGA Owners Manual

425
Features of your vehicle

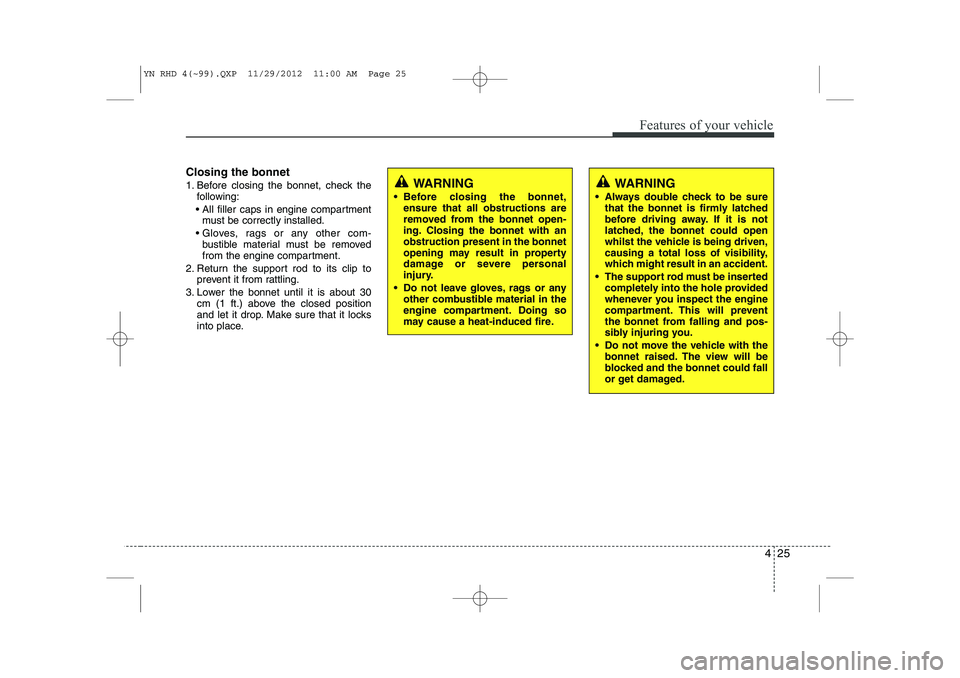

Closing the bonnet
1. Before closing the bonnet, check thefollowing:
 All filler caps in engine compartment must be correctly installed.
 Gloves, rags or any other com- bustible material must be removed
from the engine compartment.
2. Return the support rod to its clip to prevent it from rattling.
3. Lower the bonnet until it is about 30 cm (1 ft.) above the closed position
and let it drop. Make sure that it locks
into place.
WARNING
 Before closing the bonnet, ensure that all obstructions are
removed from the bonnet open-
ing. Closing the bonnet with anobstruction present in the bonnet
opening may result in property
damage or severe personal
injury.
 Do not leave gloves, rags or any other combustible material in the
engine compartment. Doing so
may cause a heat-induced fire.WARNING
 Always double check to be sure that the bonnet is firmly latched
before driving away. If it is not
latched, the bonnet could open
whilst the vehicle is being driven,
causing a total loss of visibility,
which might result in an accident.
 The support rod must be inserted completely into the hole provided
whenever you inspect the engine
compartment. This will prevent
the bonnet from falling and pos-
sibly injuring you.
 Do not move the vehicle with the bonnet raised. The view will be
blocked and the bonnet could fall
or get damaged.
YN RHD 4(~99).QXP 11/29/2012 11:00 AM Page 25

Features of your vehicle
26
4

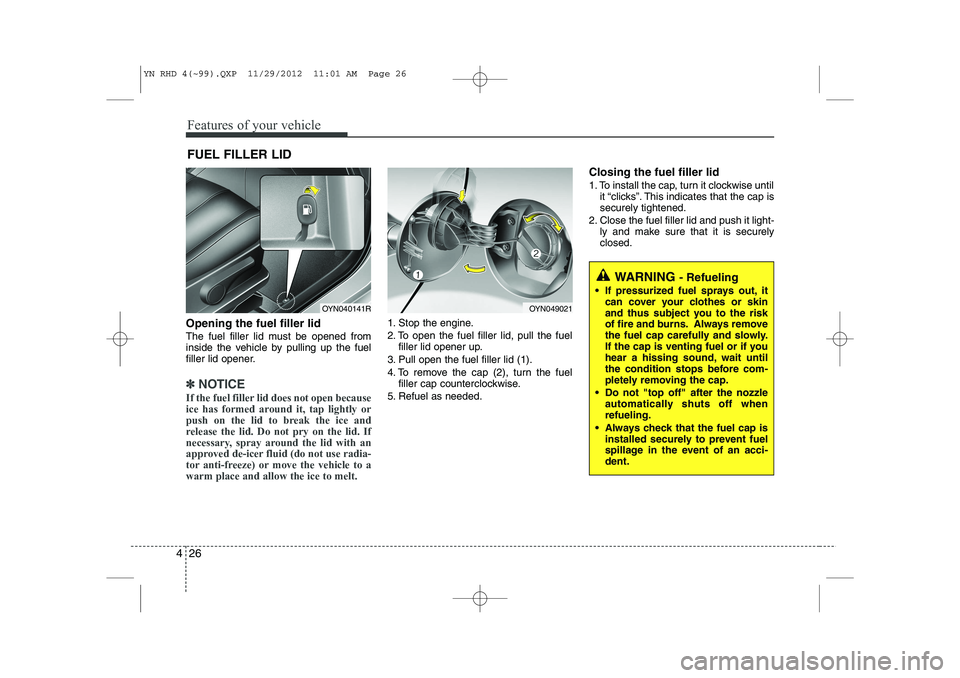

Opening the fuel filler lid
The fuel filler lid must be opened from
inside the vehicle by pulling up the fuel
filler lid opener.
✽✽
NOTICE
If the fuel filler lid does not open because
ice has formed around it, tap lightly or
push on the lid to break the ice and
release the lid. Do not pry on the lid. If
necessary, spray around the lid with an
approved de-icer fluid (do not use radia-
tor anti-freeze) or move the vehicle to awarm place and allow the ice to melt.
1. Stop the engine.
2. To open the fuel filler lid, pull the fuel filler lid opener up.
3. Pull open the fuel filler lid (1).
4. To remove the cap (2), turn the fuel filler cap counterclockwise.
5. Refuel as needed. Closing the fuel filler lid
1. To install the cap, turn it clockwise until
it “clicks”. This indicates that the cap is securely tightened.
2. Close the fuel filler lid and push it light- ly and make sure that it is securelyclosed.
FUEL FILLER LID
WARNING
- Refueling
 If pressurized fuel sprays out, it can cover your clothes or skin
and thus subject you to the risk
of fire and burns. Always remove
the fuel cap carefully and slowly.
If the cap is venting fuel or if you
hear a hissing sound, wait until
the condition stops before com-
pletely removing the cap.
 Do not "top off" after the nozzle automatically shuts off whenrefueling.
 Always check that the fuel cap is installed securely to prevent fuel
spillage in the event of an acci-dent.
OYN049021OYN040141R
YN RHD 4(~99).QXP 11/29/2012 11:01 AM Page 26

427
Features of your vehicle

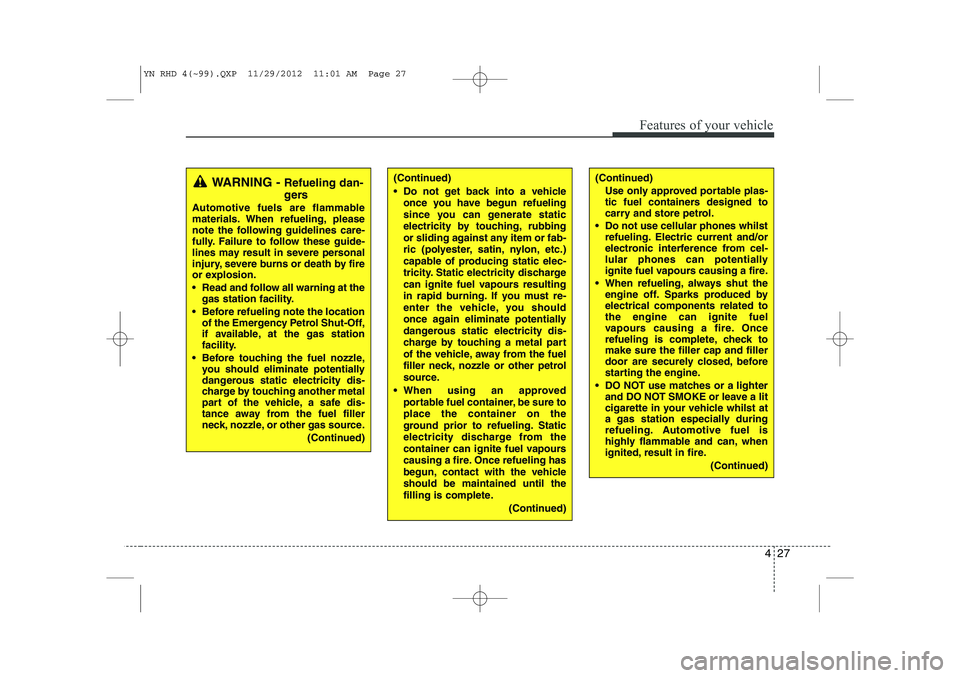

(Continued)Use only approved portable plas-
tic fuel containers designed to
carry and store petrol.
 Do not use cellular phones whilst refueling. Electric current and/or
electronic interference from cel-
lular phones can potentially
ignite fuel vapours causing a fire.
 When refueling, always shut the engine off. Sparks produced byelectrical components related tothe engine can ignite fuel
vapours causing a fire. Once
refueling is complete, check tomake sure the filler cap and filler
door are securely closed, before
starting the engine.
 DO NOT use matches or a lighter and DO NOT SMOKE or leave a lit
cigarette in your vehicle whilst at
a gas station especially during
refueling. Automotive fuel is
highly flammable and can, when
ignited, result in fire.
(Continued)(Continued)
 Do not get back into a vehicleonce you have begun refueling
since you can generate static
electricity by touching, rubbing
or sliding against any item or fab-
ric (polyester, satin, nylon, etc.)
capable of producing static elec-
tricity. Static electricity discharge
can ignite fuel vapours resulting
in rapid burning. If you must re-
enter the vehicle, you should
once again eliminate potentially
dangerous static electricity dis-
charge by touching a metal part
of the vehicle, away from the fuel
filler neck, nozzle or other petrol
source.
 When using an approved portable fuel container, be sure toplace the container on the
ground prior to refueling. Static
electricity discharge from the
container can ignite fuel vapours
causing a fire. Once refueling has
begun, contact with the vehicleshould be maintained until the
filling is complete.
(Continued)WARNING - Refueling dan-
gers
Automotive fuels are flammable
materials. When refueling, please
note the following guidelines care-
fully. Failure to follow these guide-
lines may result in severe personal
injury, severe burns or death by fire
or explosion.
 Read and follow all warning at the gas station facility.
 Before refueling note the location of the Emergency Petrol Shut-Off,
if available, at the gas station
facility.
 Before touching the fuel nozzle, you should eliminate potentially
dangerous static electricity dis-
charge by touching another metal
part of the vehicle, a safe dis-
tance away from the fuel filler
neck, nozzle, or other gas source.
(Continued)
YN RHD 4(~99).QXP 11/29/2012 11:01 AM Page 27

Features of your vehicle
28
4

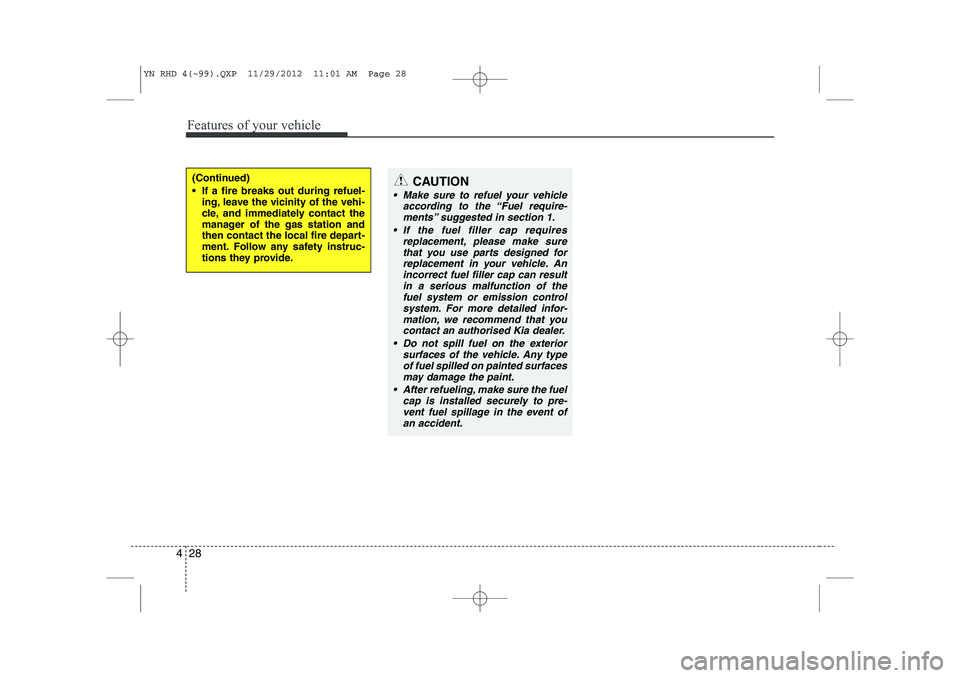

(Continued)
 If a fire breaks out during refuel-
ing, leave the vicinity of the vehi-
cle, and immediately contact the
manager of the gas station and
then contact the local fire depart-
ment. Follow any safety instruc-
tions they provide.CAUTION
 Make sure to refuel your vehicle
according to the “Fuel require-
ments” suggested in section 1.
 If the fuel filler cap requires replacement, please make surethat you use parts designed for
replacement in your vehicle. An incorrect fuel filler cap can resultin a serious malfunction of the fuel system or emission control
system. For more detailed infor- mation, we recommend that youcontact an authorised Kia dealer.
 Do not spill fuel on the exterior surfaces of the vehicle. Any typeof fuel spilled on painted surfaces may damage the paint.
 After refueling, make sure the fuel cap is installed securely to pre-
vent fuel spillage in the event of an accident.
YN RHD 4(~99).QXP 11/29/2012 11:01 AM Page 28

429
Features of your vehicle

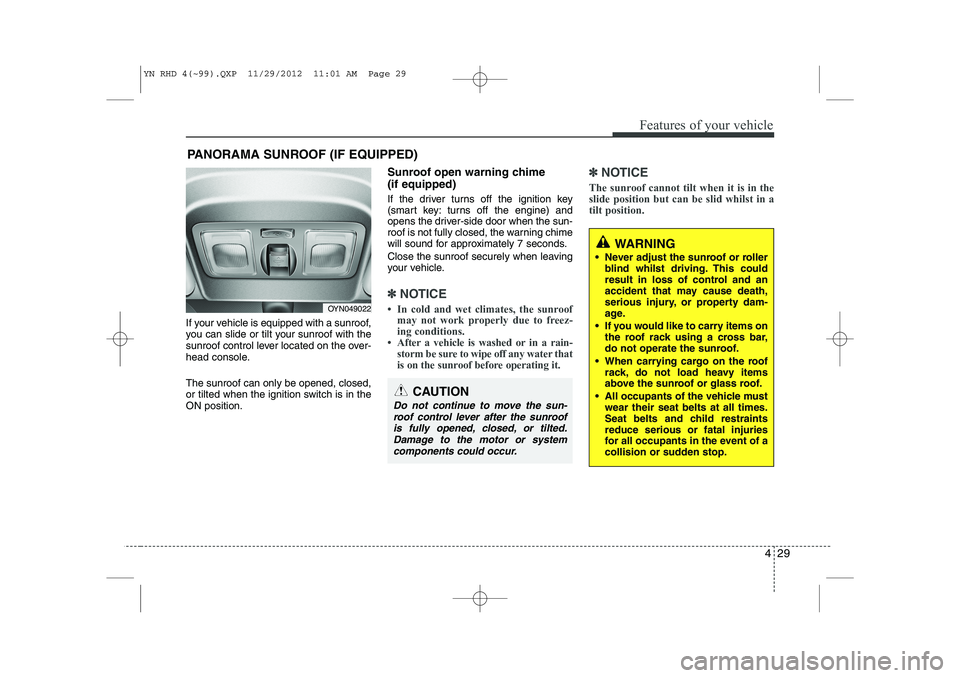

If your vehicle is equipped with a sunroof,
you can slide or tilt your sunroof with the
sunroof control lever located on the over-
head console. The sunroof can only be opened, closed,
or tilted when the ignition switch is in theON position.Sunroof open warning chime (if equipped)
If the driver turns off the ignition key
(smart key: turns off the engine) and
opens the driver-side door when the sun-
roof is not fully closed, the warning chime
will sound for approximately 7 seconds.
Close the sunroof securely when leaving
your vehicle.
✽✽
NOTICE

Features of your vehicle
30
4

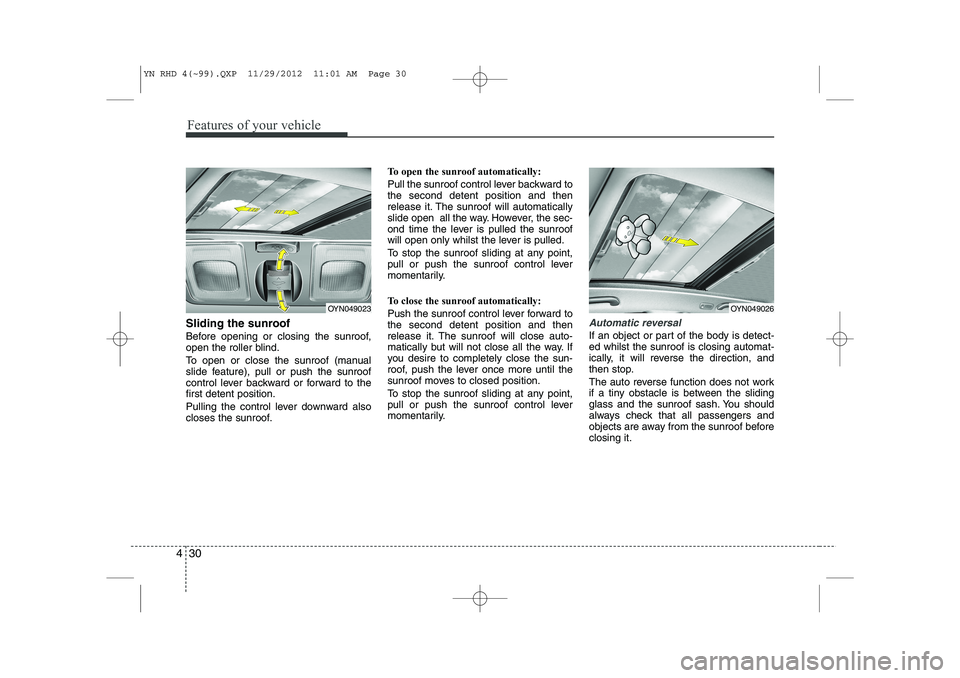

Sliding the sunroof
Before opening or closing the sunroof,
open the roller blind.
To open or close the sunroof (manual
slide feature), pull or push the sunroof
control lever backward or forward to thefirst detent position.
Pulling the control lever downward also
closes the sunroof. To open the sunroof automatically:
Pull the sunroof control lever backward to the second detent position and then
release it. The sunroof will automatically
slide open all the way. However, the sec-
ond time the lever is pulled the sunroof
will open only whilst the lever is pulled.
To stop the sunroof sliding at any point,
pull or push the sunroof control lever
momentarily.
To close the sunroof automatically:
Push the sunroof control lever forward to the second detent position and then
release it. The sunroof will close auto-
matically but will not close all the way. If
you desire to completely close the sun-
roof, push the lever once more until the
sunroof moves to closed position.
To stop the sunroof sliding at any point,
pull or push the sunroof control lever
momentarily.Automatic reversal
If an object or part of the body is detect- ed whilst the sunroof is closing automat-
ically, it will reverse the direction, and
then stop.
The auto reverse function does not work
if a tiny obstacle is between the sliding
glass and the sunroof sash. You should
always check that all passengers and
objects are away from the sunroof beforeclosing it.
OYN049023OYN049026
YN RHD 4(~99).QXP 11/29/2012 11:01 AM Page 30

431
Features of your vehicle

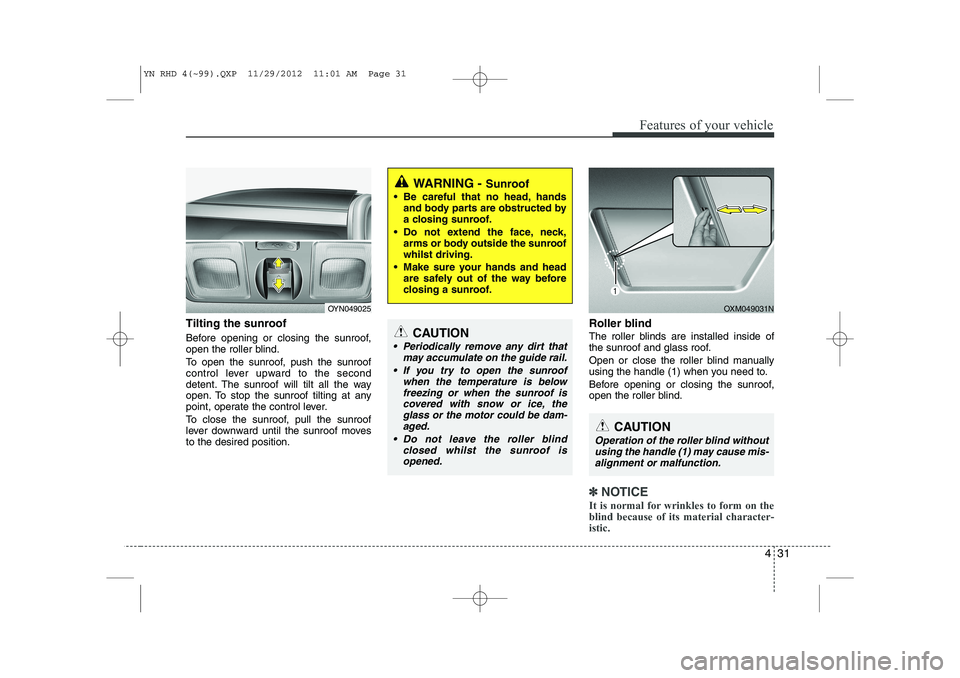

Tilting the sunroof
Before opening or closing the sunroof,
open the roller blind.
To open the sunroof, push the sunroof
control lever upward to the second
detent. The sunroof will tilt all the way
open. To stop the sunroof tilting at any
point, operate the control lever.
To close the sunroof, pull the sunroof
lever downward until the sunroof movesto the desired position.Roller blind
The roller blinds are installed inside of
the sunroof and glass roof.
Open or close the roller blind manually
using the handle (1) when you need to.
Before opening or closing the sunroof,
open the roller blind.
✽✽
NOTICE
It is normal for wrinkles to form on the blind because of its material character-istic.
WARNING - Sunroof
 Be careful that no head, hands and body parts are obstructed by
a closing sunroof.
 Do not extend the face, neck, arms or body outside the sunroofwhilst driving.
 Make sure your hands and head are safely out of the way before
closing a sunroof.
CAUTION
 Periodically remove any dirt that
may accumulate on the guide rail.
 If you try to open the sunroof when the temperature is below
freezing or when the sunroof is covered with snow or ice, theglass or the motor could be dam- aged.
 Do not leave the roller blind closed whilst the sunroof isopened.
OYN049025OXM049031N
CAUTION
Operation of the roller blind withoutusing the handle (1) may cause mis- alignment or malfunction.
YN RHD 4(~99).QXP 11/29/2012 11:01 AM Page 31

Features of your vehicle
32
4

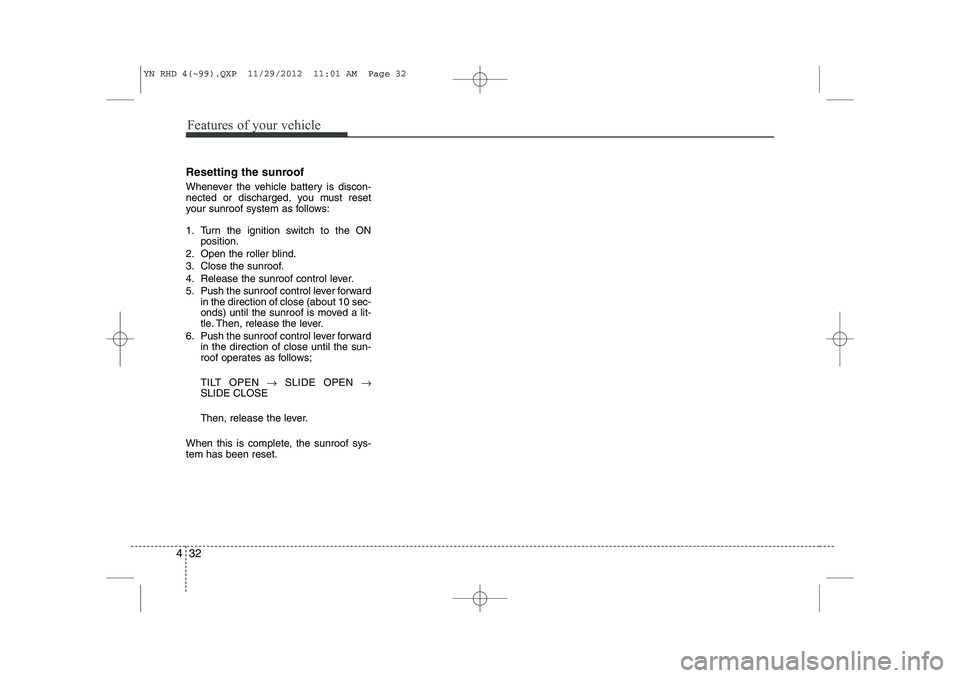

Resetting the sunroof
Whenever the vehicle battery is discon-
nected or discharged, you must reset
your sunroof system as follows:
1. Turn the ignition switch to the ON
position.
2. Open the roller blind.
3. Close the sunroof.
4. Release the sunroof control lever.
5. Push the sunroof control lever forward in the direction of close (about 10 sec-
onds) until the sunroof is moved a lit-
tle. Then, release the lever.
6. Push the sunroof control lever forward in the direction of close until the sun-
roof operates as follows;
TILT OPEN →SLIDE OPEN →
SLIDE CLOSE
Then, release the lever.
When this is complete, the sunroof sys- tem has been reset.
YN RHD 4(~99).QXP 11/29/2012 11:01 AM Page 32
