2013 KIA Optima horn

I5
Index
Fuses ··················\
··················\
··················\
··················\
······7-45Fuse/relay panel description ··················\
··················\
····7-50
Instrument panel fuse ··················\
··················\
··············7-46
Multi fuse ··················\
··················\
··················\
··············7-48
Memory fuse··················\
··················\
··················\
··········7-47
Gauge Engine temperature gauge ··················\
··················\
·······4-51
Fuel gauge ··················\
··················\
··················\
·············4-50
Glass antenna ··················\
··················\
··················\
·········4-120
Glassroof, see Panorama sunroof ··················\
················4-30
Glove box··················\
··················\
··················\
···············4-113
Hazard warning flasher ··················\
··················\
··············4-74
Hazardous driving conditions ··················\
··················\
····5-43
Headlight escort function··················\
··················\
···········4-80
Headlight leveling device ··················\
··················\
··········4-80
Headrest ··················\
··················\
··················\
············3-8, 3-15
Highway driving ··················\
··················\
··················\
······5-46
Hill-start assist control (HAC) ··················\
··················\
···5-32
Homelink mirror, see the electric chromic mirror (ECM) with homelink system and compass ··················\
··········4-39
Hood··················\
··················\
··················\
··················\
·······4-25
Horn ··················\
··················\
··················\
··················\
·······4-37
How to use this manual ··················\
··················\
···············1-2 Ignition key interlock system ··················\
··················\
····5-20
Immobilizer system ··················\
··················\
··················\
···4-3
Indicator symbols on the instrument cluster ··················\
·1-5
Indicators and warnings ··················\
··················\
·············4-58
Inside rearview mirror ··················\
··················\
···············4-39
Instrument cluster ··················\
··················\
··················\
····4-48
Engine temperature gauge ··················\
··················\
·······4-51
Fuel gauge ··················\
··················\
··················\
·············4-50
Instrument panel illumination ··················\
··················\
·4-49
Odometer ··················\
··················\
··················\
···············4-52
Speedometer ··················\
··················\
··················\
··········4-49
Tachometer ··················\
··················\
··················\
············4-49
Trip computer ··················\
··················\
··················\
········4-51
Distance to service··············\
··················\
··················\
·····4-55
Vehicle option ··················\
··················\
··················\
········4-57
Warning and indicators ··················\
··················\
············4-58
Instrument panel illumination··················\
··················\
····4-49
Instrument panel overview··················\
··················\
···········2-3
Interior care··················\
··················\
··················\
··············7-61
Interior features··················\
··················\
··················\
······4-116 Clothes hanger ··················\
··················\
··················\
·····4-119
Cup holder ··················\
··················\
··················\
···········4-116
Digital clock ··················\
··················\
··················\
········4-118
Floor mat anchor(s) ··················\
··················\
···············4-118
Power outlet ··················\
··················\
··················\
·········4-117
Sunvisor ··················\
··················\
··················\
···············4-116I
G
H

Index
8I
Shift lock system ··················\
··················\
··················\
·····5-19
Side impact air bag ··················\
··················\
··················\
··3-56
Smart key ··················\
··················\
··················\
··················\
·4-5
Smooth cornering··················\
··················\
··················\
·····5-44
Snow tires ··················\
··················\
··················\
················5-47
Spare tireCompact spare tire ··················\
··················\
··················\
·6-13
Compact spare tire replacement ··················\
················7-36
Removing and storing the spare tire···········\
··················\
·6-8
Special driving conditions ··················\
··················\
·········5-43 Driving at night ··················\
··················\
··················\
·····5-44
Driving in flooded areas ··················\
··················\
··········5-45
Driving in the rain ··················\
··················\
··················\
·5-45
Hazardous driving conditions ··················\
··················\
··5-43
Highway driving ··················\
··················\
··················\
····5-46
Rocking the vehicle ··················\
··················\
·················5-43\
Smooth cornering ··················\
··················\
··················\
··5-44
Speedometer··················\
··················\
··················\
·············4-49
Sports mode ··················\
··················\
··················\
·············5-18
Starting difficulties, see engine will not start ··················\
6-3
Starting the engine ··················\
··················\
··················\
·····5-9
Steering wheel ··················\
··················\
··················\
·········4-36 Horn ··················\
··················\
··················\
··················\
·····4-37
Electric power steering ··················\
··················\
············4-36
Tilt steering ··················\
··················\
··················\
············4-37
Steering wheel audio control ··················\
··················\
···4-121 Storage compartment ··················\
··················\
···············4-113
Center console storage·············\
··················\
················4-113
Glove box ··················\
··················\
··················\
············4-113
Cool box ··················\
··················\
··················\
··············4-114
Sunglass holder··················\
··················\
··················\
····4-114
Sunroof, see panorama sunroof ··················\
··················\
·4-30
Sunvisor ··················\
··················\
··················\
·················4-11\
6
Tachometer··················\
··················\
··················\
···············4-49
Tether anchor system ··················\
··················\
·················3-36\
Theft-alarm system ··················\
··················\
··················\
··4-10
Tilt steering ··················\
··················\
··················\
··············4-37
Tire specification and pressure label ··················\
·············8-7
Tires and wheels ··················\
··················\
··················\
······7-31 Checking tire inflation pressure ··················\
················7-33
Compact spare tire replacement ··················\
················7-36
Recommended cold tire inflation pressures ················7-31
Tire care ··················\
··················\
··················\
·················7-31\
Tire maintenance ··················\
··················\
··················\
···7-37
Tire replacement ··················\
··················\
··················\
····7-35
Tire rotation ··················\
··················\
··················\
···········7-34
Tire sidewall labeling ··················\
··················\
··············7-37
Tire traction ··················\
··················\
··················\
···········7-37
Wheel alignment and tire balance ··················\
·············7-35
Wheel replacement ··················\
··················\
··················\
7-36
T

23
Your vehicle at a glance
INSTRUMENT PANEL OVERVIEW
OTF010002N
1. Instrument cluster .............................4-48
2. Light control / Turn signals ................4-80
3. Wiper/Washer ...................................4-85
4. Horn ..................................................4-37
5. Steering wheel audio control* .........4-121
6. Auto cruise control*...........................5-37
7. Driver’s air bag ..................................3-52
8. Steering wheel ..................................4-36
9. Ignition switch* or ENGINE START/STOP button*.....5-4/5-6
10. Digital clock ...................................4-118
11. Hazard ......................................4-74/6-2
12. Audio* ...........................................4-120
13. Climate control system .........4-92/4-101
14. Shift lever ................................5-12/5-15
15. Aux, USB and iPod port* ..............4-122
16. Power outlet* .................................4-117
17. Seat warmer* ....................................3-9
18. Passenger’s air bag ........................3-52
19. Glove box ......................................4-113
* : if equipped
❈ The actual instrument panel in the vehicle may differ from the illustration

47
Features of your vehicle
REMOTE KEYLESS ENTRY (IF EQUIPPED)
Remote keyless entry system
operations
Lock (1)
All doors are locked if the lock button is
pressed. If all doors (and trunk) are
closed, the hazard warning lights will
blink once to indicate that all doors (and
trunk) are locked.Also, if the lock button is pressed once
more within 4 seconds, the hazard warn-
ing lights will blink and the chime will
sound once to confirm that the door is
locked.
However, if any door remains open, the
hazard warning lights (and/or the chime)
will not operate. But if all doors are
closed after the lock button is pressed,
the hazard warning lights will blink once.
Unlock (2)
The driver's door is unlocked if the unlock
button is pressed once. The hazard
warning lights will blink (for smart key, the
chime also sounds) twice to indicate that
the driver's door is unlocked.
All doors are unlocked if the unlock but-
ton is pressed once more within 4 sec-
onds. The hazard warning lights will blink
(for smart key, the chime also sounds)
twice again to indicate that all doors are
unlocked. After pressing this button, the
doors will lock automatically unless you
open any door within 30 seconds.
Trunk open (3)
(if equipped)
The trunk is opened if the button is
pressed for more than 1 second.
Once the trunk is opened and then
closed, the trunk will lock automatically.
Alarm (4, if equipped)
The horn sounds and the hazard warning
lights blink for about 30 seconds if this
button is pressed for more than 0.5 sec-
onds. To stop the horn and lights, press
any button on the transmitter.
OTF040002
■Type B
■Type A
ONF048011

411
Features of your vehicle
✽
✽NOTICE
The theft-alarm system by the key can be
activated by an authorized Kia dealer.
If you want this feature, consult an
authorized Kia dealer.
Do not arm the system until all pas-
sengers have left the vehicle. If the
system is armed while a passenger(s)
remains in the vehicle, the alarm may
be activated when the remaining pas-
senger(s) leaves the vehicle. If any
door (or tailgate) or engine hood is
opened within 30 seconds after the
system enters the armed stage, the
system will be disarmed to prevent
unnecessary alarm.
Theft-alarm stage
The alarm will be activated if any of the
following occurs while the system is
armed.
A front or rear door is opened without
using the transmitter (or smart key).
The tailgate is opened without using the transmitter (or smart key).
The engine hood is opened.
The horn will sound and the hazard
warning lights will blink continuously for
approximately 27 seconds. To turn off the
system, unlock the doors with the trans-
mitter (or smart key).
Disarmed stage
The system will be disarmed when:
Transmitter
- The door unlock button is pressed.
- The engine is started. (within 3 sec- onds)
- The ignition switch is in the “ON” posi- tion for 30 seconds or more.
Smart key
- The door unlock button is pressed.
- The button of the front outside door ispressed while carrying the smart key.
- The engine is started. (within 3 sec- onds)
After the doors are unlocked, the hazard
warning lights will blink twice to indicate
that the system is disarmed.
After pressing the unlock button, if any
door (or tailgate) is not opened within 30
seconds, the system will be rearmed.

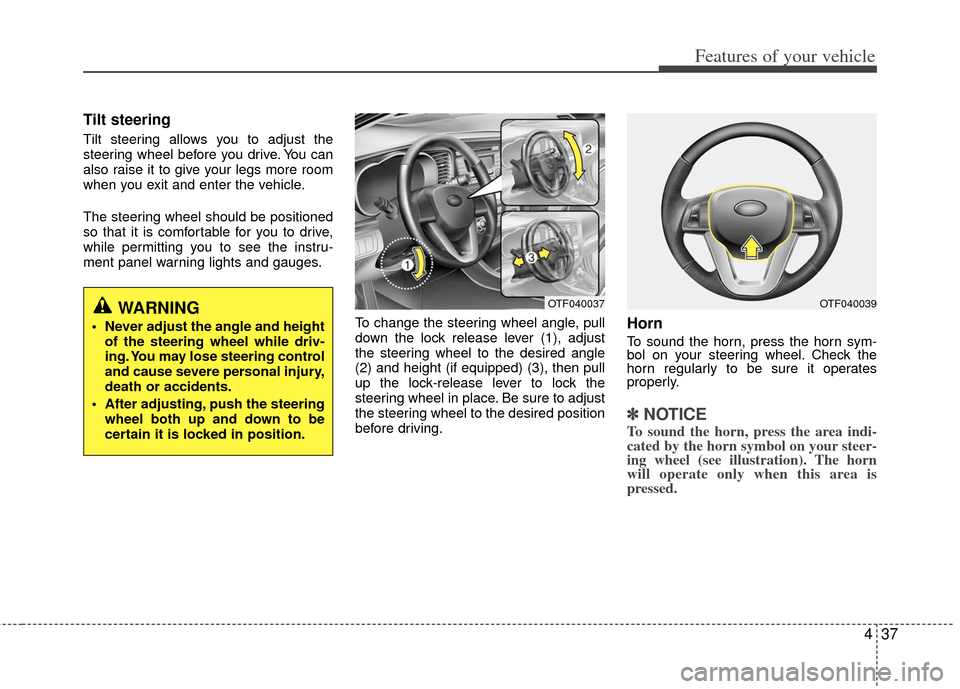

437
Features of your vehicle
Tilt steering
Tilt steering allows you to adjust the
steering wheel before you drive. You can
also raise it to give your legs more room
when you exit and enter the vehicle.
The steering wheel should be positioned
so that it is comfortable for you to drive,
while permitting you to see the instru-
ment panel warning lights and gauges.To change the steering wheel angle, pull
down the lock release lever (1), adjust
the steering wheel to the desired angle
(2) and height (if equipped) (3), then pull
up the lock-release lever to lock the
steering wheel in place. Be sure to adjust
the steering wheel to the desired position
before driving.
Horn
To sound the horn, press the horn sym-
bol on your steering wheel. Check the
horn regularly to be sure it operates
properly.
✽ ✽NOTICE
To sound the horn, press the area indi-
cated by the horn symbol on your steer-
ing wheel (see illustration). The horn
will operate only when this area is
pressed.
WARNING
Never adjust the angle and height
of the steering wheel while driv-
ing. You may lose steering control
and cause severe personal injury,
death or accidents.
After adjusting, push the steering wheel both up and down to be
certain it is locked in position.
OTF040037OTF040039

Features of your vehicle
38
4
Heated steering wheel
(if equipped)
With the ENGINE START/STOP button in
the ON position, pressing the heated
steering wheel button warms the steering
wheel. The indicator on the button will
illuminate.
To turn the steering wheel off, press the
button once again. The indicator on the
button will turn off.
It will turn off automatically approximate-
ly 30 minutes after the heated steering
wheel is turned on.
If you turn on the ignition again after turn
off your engine in half an hour (after
operating heater button), the heating sys-
tem will be maintained in its 'on' condi-
tion.
CAUTION
Do not strike the horn severely to
operate it, or hit it with your fist. Donot press on the horn with a sharp-pointed object.
CAUTION
Do not install any grip to operate the steering wheel. This causesdamage to the heated steering wheel system.
When cleaning the heated steer- ing wheel, do not use an organicsolvent such as paint thinner, benzene, alcohol and gasoline.Doing so may damage the sur- face of the steering wheel.
If the surface of steering wheel is damaged by sharp object, dam-age to the heated steering wheelcomponents could occur.
OTF040038

Features of your vehicle
58
4
Welcome Light (if equipped)
On - The Welcome Light function will be
activated.
Off - The Welcome Light function will be inactivated.
Welcome Sound
On - The Welcome Sound function willbe activated.
Off - The Welcome Sound function will be inactivated.
Auto Triple Turn (One-touch tripleturn signal)
On - The lane change signals will blink 3 times when the turn signal lever is
moved slightly.
Off - The Auto Triple Turn function will be inactivated.
Horn feedback
On - The hazard warning light will blinkand the horn will sound when the
door is locked or unlocked with the
transmitter or smart key.
Off - The hazard warning light will blink but the horn will not sound when the
door is locked or unlocked with the
transmitter or smart key.
AVG fuel economy
Auto Reset - The average fuel economy will reset automatically
when you drive after refuel-
ing.
Manual Reset - The average fuel econo- my will not reset auto-
matically when you drive
after refueling.
Warnings and indicators
All warning lights are checked by turning
the ignition switch ON (do not start the
engine). Any light that does not illuminate
should be checked by an authorized Kia
dealer.
After starting the engine, check to make
sure that all warning lights are off. If any
warning lights are still on, this indicates a
situation that needs attention. When
releasing the parking brake, the brake
system warning light should go off. The
fuel warning light will stay on if the fuel
level is low.
