Features of your vehicle

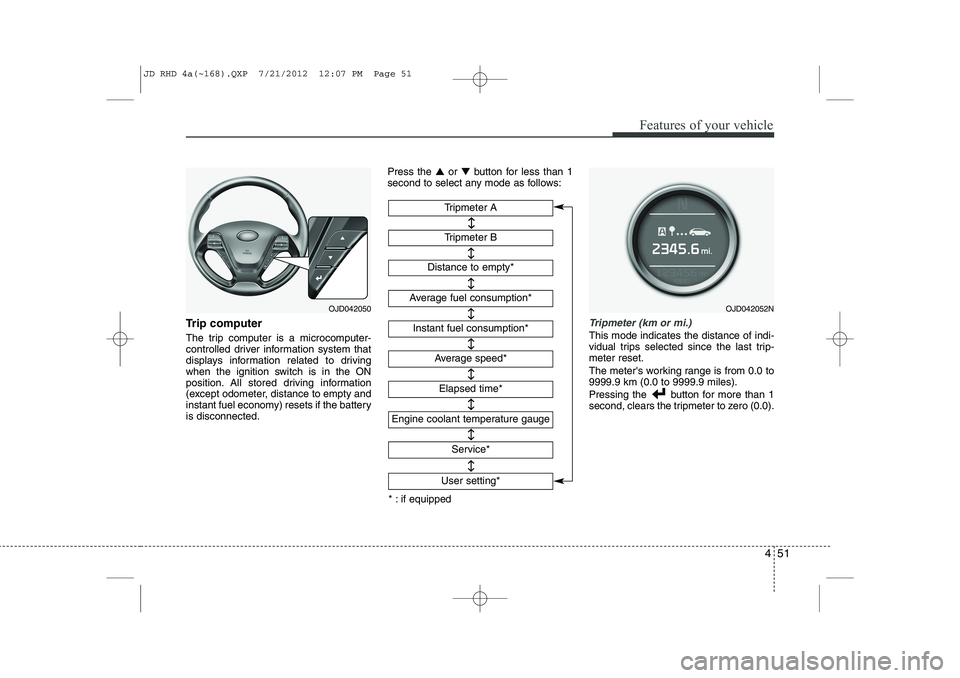

Trip computer
The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving
when the ignition switch is in the ON
position. All stored driving information
(except odometer, distance to empty and
instant fuel economy) resets if the batteryis disconnected.Press the
▲or ▼ button for less than 1
second to select any mode as follows:Tripmeter (km or mi.)
This mode indicates the distance of indi-
vidual trips selected since the last trip-meter reset.
The meter's working range is from 0.0 to 9999.9 km (0.0 to 9999.9 miles).
Pressing the button for more than 1
second, clears the tripmeter to zero (0.0).
Tripmeter B
Instant fuel consumption*
Tripmeter A
Distance to empty*
Average fuel consumption*
Engine coolant temperature gauge
* : if equipped Elapsed time*
Average speed*
↔↔
↔
↔
↔
↔
↔
↔
Service*
↔
User setting*
↔
OJD042050OJD042052
JD eng 4a(~168).qxp 7/17/2012 10:18 AM Page 51

Features of your vehicle
64
4
Trip computer
The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving
when the ignition switch is in the ONposition. Press the button for less than 1 sec-
ond to select any group as follows :
OJD042172
Engine coolant temperature gauge
User setting mode
Service mode
LANE DEPARTURE WARNING
SYSTEM*
Trip mode
* : if equipped
Trip mode A
Trip mode B
Driving information mode
Press the▼button for less than 1
second to select in Trip mode group
as follows :
JD eng 4a(~168).qxp 7/17/2012 10:19 AM Page 64

Driving your vehicle
60
5
If your vehicle leaves the lane when the
LDWS is operating and vehicle speed
exceeds 60km/h, the warning operates
as follows: 1. Visual warning
If you leave the lane, the lane you leave
on the LCD display blinks yellow with 0.8
second of interval.
2. Auditory warning
If you leave the lane, the warning sound
operates with 0.8 second of interval.
If you change the display mode of trip
computer while the LDWS is ON, the
symbol of the LDWS will display like a
picture. The color of symbol will change depend
on the condition of LDWS system.
- White color : It means the sensor does
not detect the lane line.
- Green color : It means the sensor detects the lane line.
OJD042180
OJD042179
OJD042181/OJD042182
 When the sensor detects the lane line
 When the sensor doesn’t detect the lane lineOJD052057
JD eng 5.qxp 7/17/2012 10:44 AM Page 60

Maintenance
52
7
Reset items
Items should be reset after the battery
has been discharged or the battery hasbeen disconnected.
 Auto up/down window (See section 4)
 Sunroof (See section 4)
 Trip computer (See section 4)
 Climate control system
(See section 4)
 Audio (See section 4)(Continued)
 Wear eye protection when check- ing the battery during charging.
 Disconnect the battery charger in the following order.
1. Turn off the battery charger
main switch.
2. Unhook the negative clamp from the negative battery ter- minal.
3. Unhook the positive clamp from the positive battery termi-nal.
 Before performing maintenance or recharging the battery, turn offall accessories and stop the
engine.
 The negative battery cable must be removed first and installed
last when the battery is discon-nected.
JD eng 7.QXP 7/17/2012 10:57 AM Page 52

Index
6
I
Gauge (Normal vision)
Engine temperature gauge. . . . . . . . . . . . . . . . . . . . 4-54
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-48
Gauge (Super vision) Engine temperature gauge. . . . . . . . . . . . . . . . . . . . 4-67
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-61
Glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-152
Glove box lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-124
Hazard warning flasher . . . . . . . . . . . . . . . . . . . . . . 4-109
Hazardous driving conditions . . . . . . . . . . . . . . . . . . 5-64
Headlamp delay function . . . . . . . . . . . . . . . . . . . . . 4-110
Headlight (Headlamp) welcome function . . . . . . . . 4-110
Headlight bulb replacement. . . . . . . . . . . . . . . . . . . . 7-82
Headlight leveling device . . . . . . . . . . . . . . . . . . . . . 4-116
Headlight position . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-112
Headlight washer . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-121
Headrest(front) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
Headrest(rear) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13
Heated steering wheel. . . . . . . . . . . . . . . . . . . . . . . . . 4-38
High - beam operation . . . . . . . . . . . . . . . . . . . . . . . 4-113
Hight adjustment (seat belt) . . . . . . . . . . . . . . . . . . . 3-21
Highway driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-66 Hill-start assist control (HAC). . . . . . . . . . . . . . . . . . 5-48
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-28
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-39
How to use this manual . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Icy road warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-89
Indicator symbols on the instrument cluster . . . . . . . 1-6
Indicators and warnings . . . . . . . . . . . . . . . . . . . . . . 4-77
Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . 4-42Instrument cluster
LCD display information . . . . . . . . . . . . . . . . . . . . . 4-71
Warning and indicators . . . . . . . . . . . . . . . . . . . . . . 4-77
Instrument cluster (Normal vision). . . . . . . . . . . . . . 4-46
Automatic transaxle shift position indicator . . . . . 4-49
Double clutch transmission shift indicator . . . . . . 4-49
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-48
Instrument panel illumination . . . . . . . . . . . . . . . . 4-47
Manual transaxle shift indicator. . . . . . . . . . . . . . . 4-48
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-50
Speed limiter indicator. . . . . . . . . . . . . . . . . . . . . . . 4-50
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-47
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-47
Trip computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-51
User Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-56
G
H
I
JD eng Index.qxp 7/21/2012 11:45 AM Page 6

I7
Index
Instrument cluster (Super vision) . . . . . . . . . . . . . . . 4-59
Automatic transaxle shift position indicator . . . . . 4-62
Double clutch transmission shift indicator . . . . . . 4-62
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-61
Instrument panel illumination . . . . . . . . . . . . . . . . 4-60
Manual transaxle shift indicator. . . . . . . . . . . . . . . 4-61
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-63
Speed limiter indicator. . . . . . . . . . . . . . . . . . . . . . . 4-63
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-60
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-60
Trip computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-64
Inner panel fuse. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-64
Instrument panel illumination (Normal vision). . . . 4-47
Instrument panel illumination (Super vision) . . . . . 4-60
Instrument panel overview . . . . . . . . . . . . . . . . . . . . . 2-5
Interior care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-103
Interior features . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-154
Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-154
Aux, USB and iPod . . . . . . . . . . . . . . . . . . . . . . . . . 4-158
Barrier net . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-161
Bottle holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-156
Cargo area cover . . . . . . . . . . . . . . . . . . . . . . . . . . 4-160
Cargo security screen . . . . . . . . . . . . . . . . . . . . . . . 4-163
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-154
Clothes hanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-158
Cup holder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-155 Floor mat anchor(s) . . . . . . . . . . . . . . . . . . . . . . . . 4-159
Luggage net (holder) . . . . . . . . . . . . . . . . . . . . . . . 4-159
Luggage rail system . . . . . . . . . . . . . . . . . . . . . . . . 4-164
Power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-157
Shopping bag holder . . . . . . . . . . . . . . . . . . . . . . . 4-165
Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-156
Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-122 Glove box lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-124
Luggage room lamp . . . . . . . . . . . . . . . . . . . . . . . . 4-124
Map lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-122
Room lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-123
Vanity mirror lamp . . . . . . . . . . . . . . . . . . . . . . . . 4-123
Interior overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
ISG (Idle stop and go) system . . . . . . . . . . . . . . . . . . 5-15
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-35
Jack and tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9
Jump starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5
Key positions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
K
J
JD eng Index.qxp 7/21/2012 11:45 AM Page 7

Index
12
I
Tachometer (Normal vision) . . . . . . . . . . . . . . . . . . . 4-47
Tachometer (Super vision) . . . . . . . . . . . . . . . . . . . . . 4-60
Tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22
Tether anchor system . . . . . . . . . . . . . . . . . . . . . . . . . 3-34
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14
Tilt & telescopic steering . . . . . . . . . . . . . . . . . . . . . . 4-38
Tire chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-68
Tire pressure monitoring system (TPMS) . . . . . . . . 6-23
Tire rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-56
Tire specification and pressure label . . . . . . . . . . . . 8-10
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . 7-53, 8-5
Checking tire inflation pressure . . . . . . . . . . . . . . . 7-55
Compact spare tire replacement . . . . . . . . . . . . . . . 7-58
Recommended cold tire inflation pressures . . . . . . 7-53
Tire care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-53
Tire maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-59
Tire replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-57
Tire rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-56
Tire sidewall labeling . . . . . . . . . . . . . . . . . . . . . . . . 7-59
Tire traction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-59
Wheel alignment and tire balance . . . . . . . . . . . . . 7-57
Wheel replacement . . . . . . . . . . . . . . . . . . . . . . . . . . 7-58
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-28
Trailer towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-71 Transaxle
Automatic transaxle/DCT . . . . . . . . . . . . . . . . . . . . 5-23
Double clutch transmission . . . . . . . . . . . . . . . . . . . 5-23
Manual transaxle . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-20
Trip computer (Normal vision) . . . . . . . . . . . . . . . . . 4-51
Service mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-55
User Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-56
Trip computer (Super vision) . . . . . . . . . . . . . . . . . . 4-64
Driving information mode . . . . . . . . . . . . . . . . . . . . 4-65
Lane Departure Warning System Mode . . . . . . . . 4-67
Service mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-68
User Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-69
Turn signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-114
User Settings (Normal vision) . . . . . . . . . . . . . . . . . . 4-56
User Settings (Super vision) . . . . . . . . . . . . . . . . . . . . 4-69
Vanity mirror lamp . . . . . . . . . . . . . . . . . . . . . . . . . . 4-123
Vehicle break-in process . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Vehicle certification label . . . . . . . . . . . . . . . . . . . . . . . 8-9
Vehicle identification number (VIN). . . . . . . . . . . . . . 8-9
Vehicle stability management . . . . . . . . . . . . . . . . . . 5-47
Vehicle weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-80
U
V
T
JD eng Index.qxp 7/21/2012 11:45 AM Page 12

451
Features of your vehicle
Trip computer
The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving
when the ignition switch is in the ON
position. All stored driving information
(except odometer, distance to empty and
instant fuel economy) resets if the batteryis disconnected.Press the
▲or ▼ button for less than 1
second to select any mode as follows:Tripmeter (km or mi.)
This mode indicates the distance of indi-
vidual trips selected since the last trip-meter reset.
The meter's working range is from 0.0 to 9999.9 km (0.0 to 9999.9 miles).
Pressing the button for more than 1
second, clears the tripmeter to zero (0.0).
Tripmeter B
Instant fuel consumption*
Tripmeter A
Distance to empty*
Average fuel consumption*
Engine coolant temperature gauge
* : if equipped Elapsed time*
Average speed*
↔↔
↔
↔
↔
↔
↔
↔
Service*
↔
User setting*
↔
OJD042050OJD042052N
JD RHD 4a(~168).QXP 7/21/2012 12:07 PM Page 51
