•Check the coolant freeze point in the radiator and in the
coolant expansion bottle. If engine coolant (antifreeze)
needs to be added, the contents of the coolant expansion
bottle must also be protected against freezing.
• If frequent engine coolant (antifreeze) additions are
required, the cooling system should be pressure tested
for leaks.
• Maintain engine coolant (antifreeze) concentration at
50% OAT engine coolant (antifreeze) (minimum) and
distilled water for proper corrosion protection of your
engine which contains aluminum components.
• Make sure that the coolant expansion bottle overflow
hoses are not kinked or obstructed.
• Keep the front of the radiator clean. If your vehicle is
equipped with air conditioning, keep the front of the
condenser clean. •
Do not change the thermostat for Summer or Winter
operation. If replacement is ever necessary, install ONLY
the correct type thermostat. Other designs may result in
unsatisfactory engine coolant (antifreeze) performance,
poor gas mileage, and increased emissions.
Brake System
In order to assure brake system performance, all brake
system components should be inspected periodically.
Refer to the “Maintenance Schedule” for the proper
maintenance intervals.
WARNING!
Riding the brakes can lead to brake failure and
possibly a collision. Driving with your foot resting or
riding on the brake pedal can result in abnormally
(Continued)
7
MAINTAINING YOUR VEHICLE 583

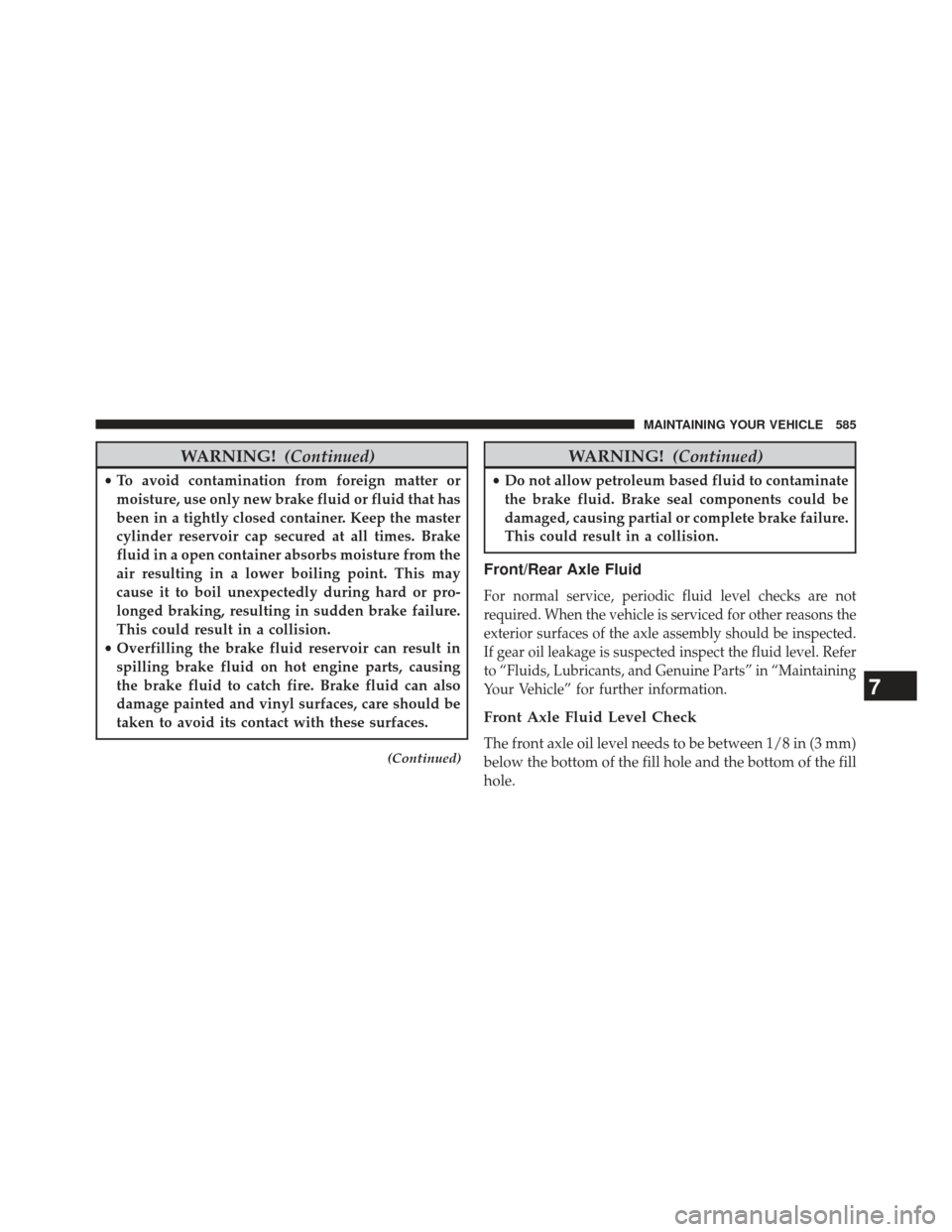

WARNING!(Continued)
•To avoid contamination from foreign matter or
moisture, use only new brake fluid or fluid that has
been in a tightly closed container. Keep the master
cylinder reservoir cap secured at all times. Brake
fluid in a open container absorbs moisture from the
air resulting in a lower boiling point. This may
cause it to boil unexpectedly during hard or pro-
longed braking, resulting in sudden brake failure.
This could result in a collision.
• Overfilling the brake fluid reservoir can result in
spilling brake fluid on hot engine parts, causing
the brake fluid to catch fire. Brake fluid can also
damage painted and vinyl surfaces, care should be
taken to avoid its contact with these surfaces.
(Continued)
WARNING! (Continued)
•Do not allow petroleum based fluid to contaminate
the brake fluid. Brake seal components could be
damaged, causing partial or complete brake failure.
This could result in a collision.
Front/Rear Axle Fluid
For normal service, periodic fluid level checks are not
required. When the vehicle is serviced for other reasons the
exterior surfaces of the axle assembly should be inspected.
If gear oil leakage is suspected inspect the fluid level. Refer
to “Fluids, Lubricants, and Genuine Parts” in “Maintaining
Your Vehicle” for further information.
Front Axle Fluid Level Check
The front axle oil level needs to be between 1/8 in (3 mm)
below the bottom of the fill hole and the bottom of the fill
hole.
7
MAINTAINING YOUR VEHICLE 585

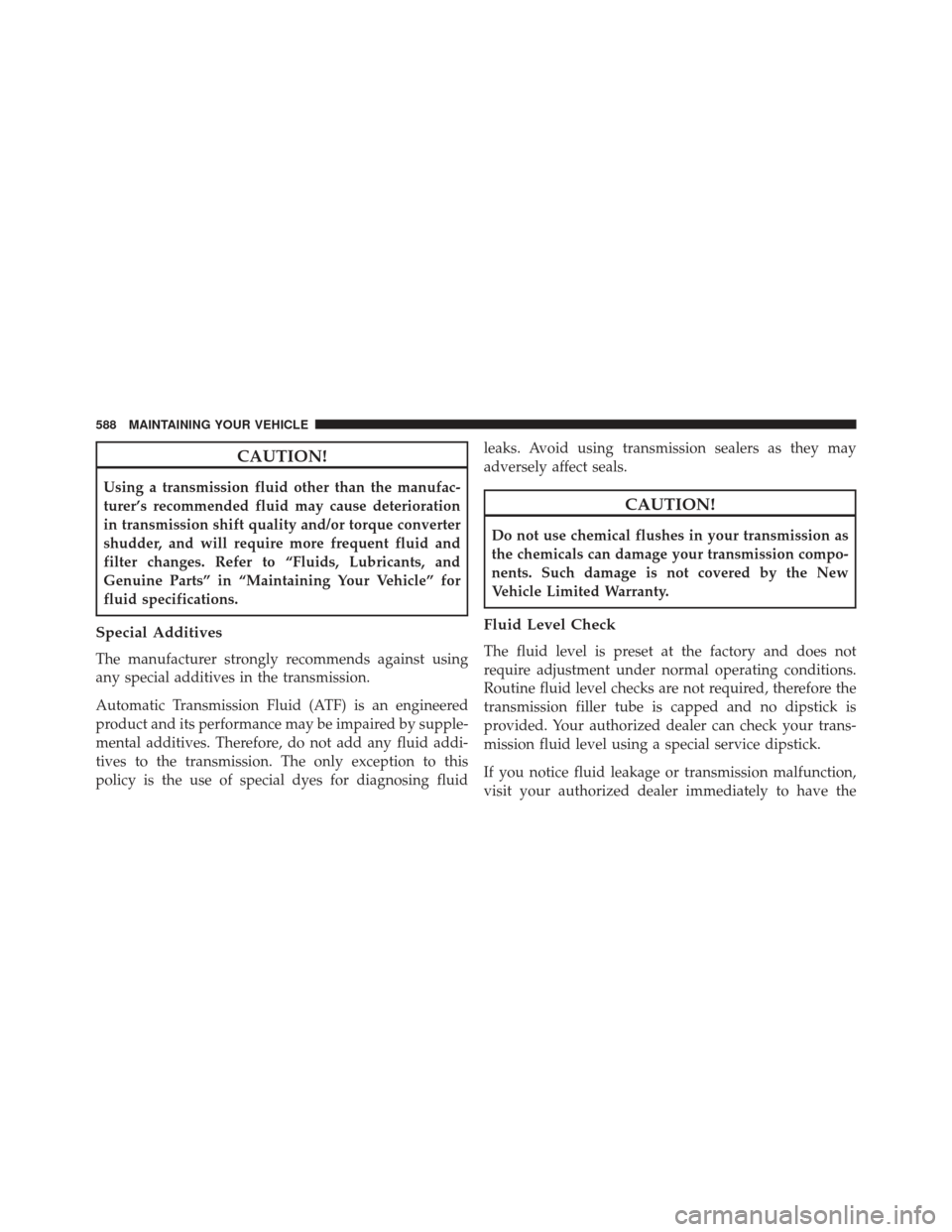

CAUTION!
Using a transmission fluid other than the manufac-
turer’s recommended fluid may cause deterioration
in transmission shift quality and/or torque converter
shudder, and will require more frequent fluid and
filter changes. Refer to “Fluids, Lubricants, and
Genuine Parts” in “Maintaining Your Vehicle” for
fluid specifications.
Special Additives
The manufacturer strongly recommends against using
any special additives in the transmission.
Automatic Transmission Fluid (ATF) is an engineered
product and its performance may be impaired by supple-
mental additives. Therefore, do not add any fluid addi-
tives to the transmission. The only exception to this
policy is the use of special dyes for diagnosing fluidleaks. Avoid using transmission sealers as they may
adversely affect seals.
CAUTION!
Do not use chemical flushes in your transmission as
the chemicals can damage your transmission compo-
nents. Such damage is not covered by the New
Vehicle Limited Warranty.
Fluid Level Check
The fluid level is preset at the factory and does not
require adjustment under normal operating conditions.
Routine fluid level checks are not required, therefore the
transmission filler tube is capped and no dipstick is
provided. Your authorized dealer can check your trans-
mission fluid level using a special service dipstick.
If you notice fluid leakage or transmission malfunction,
visit your authorized dealer immediately to have the
588 MAINTAINING YOUR VEHICLE

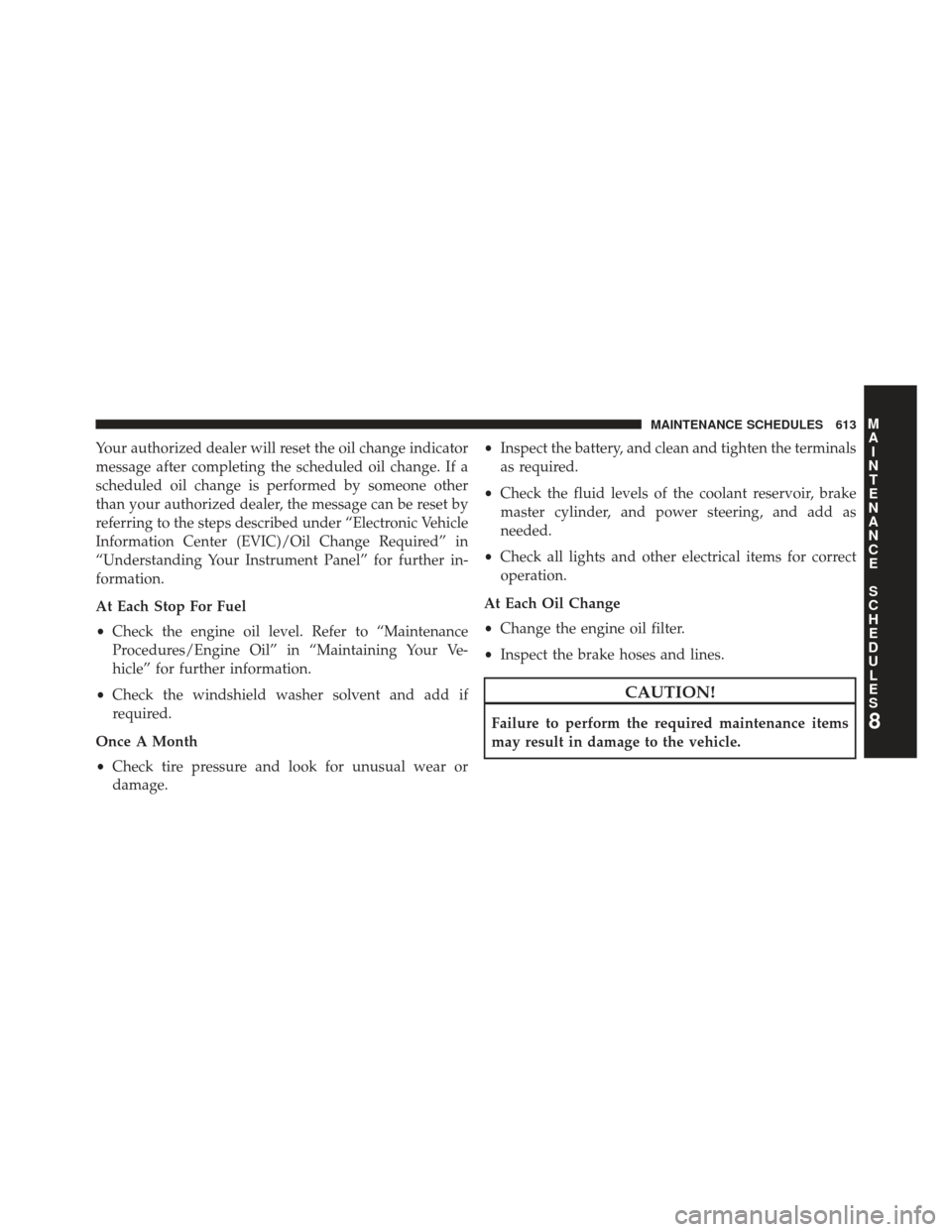

Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If a
scheduled oil change is performed by someone other
than your authorized dealer, the message can be reset by
referring to the steps described under “Electronic Vehicle
Information Center (EVIC)/Oil Change Required” in
“Understanding Your Instrument Panel” for further in-
formation.
At Each Stop For Fuel
•Check the engine oil level. Refer to “Maintenance
Procedures/Engine Oil” in “Maintaining Your Ve-
hicle” for further information.
• Check the windshield washer solvent and add if
required.
Once A Month
• Check tire pressure and look for unusual wear or
damage. •
Inspect the battery, and clean and tighten the terminals
as required.
• Check the fluid levels of the coolant reservoir, brake
master cylinder, and power steering, and add as
needed.
• Check all lights and other electrical items for correct
operation.
At Each Oil Change
• Change the engine oil filter.
• Inspect the brake hoses and lines.
CAUTION!
Failure to perform the required maintenance items
may result in damage to the vehicle.8
M
A I
N T
E
N
A
N
C E
S
C
H E
D
U L
E
SMAINTENANCE SCHEDULES 613

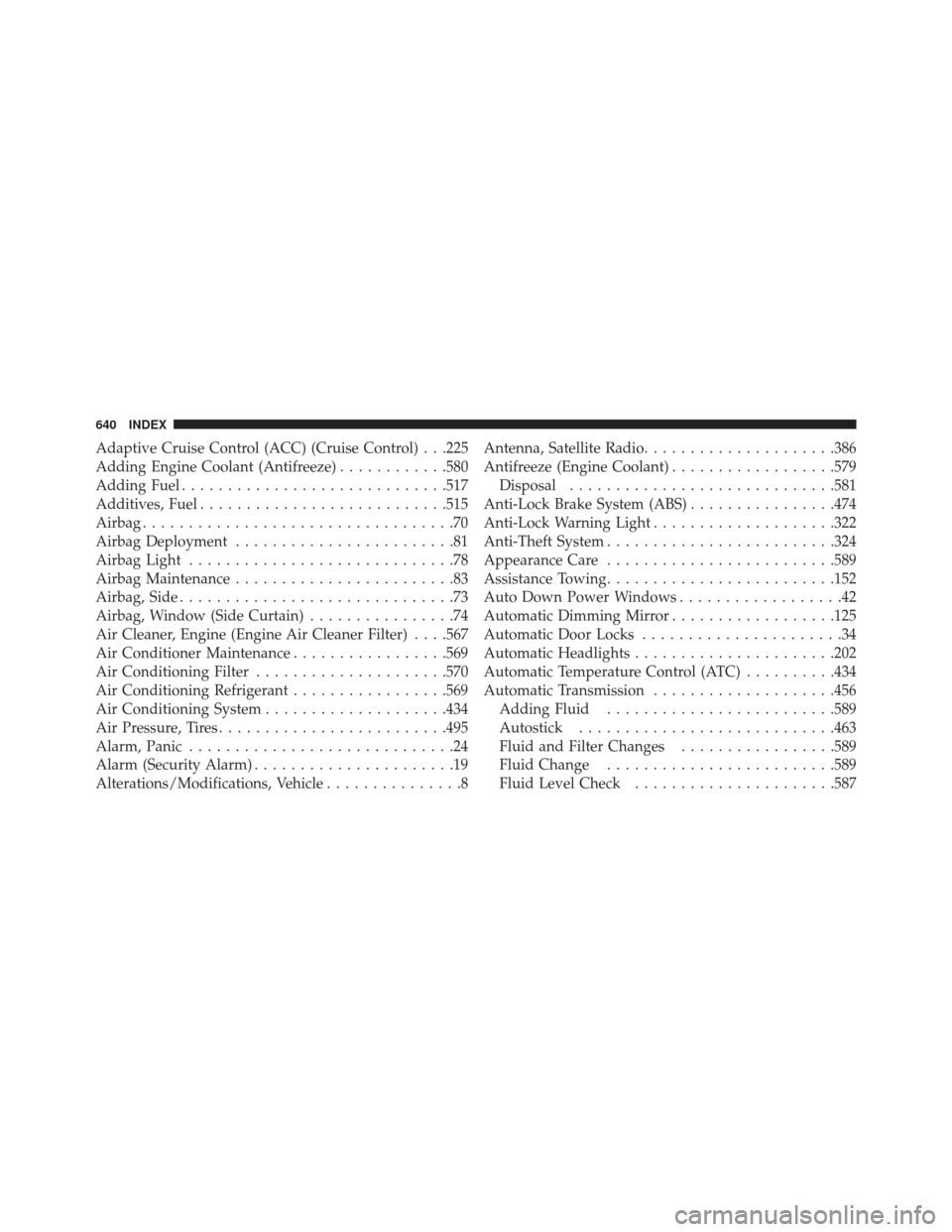

Adaptive Cruise Control (ACC) (Cruise Control) . . .225
Adding Engine Coolant (Antifreeze)............580
Adding Fuel ............................ .517
Additives, Fuel .......................... .515
Airbag ..................................70
Airbag Deployment ........................81
Airbag Light .............................78
Airbag Maintenance ........................83
Airbag, Side ..............................73
Airbag, Window (Side Curtain) ................74
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . .567
Air Conditioner Maintenance .................569
Air Conditioning Filter .....................570
Air Conditioning Refrigerant .................569
Air Conditioning System ....................434
Air Pressure, Tires ........................ .495
Alarm, Panic .............................24
Alarm (Security Alarm) ......................19
Alterations/Modifications, Vehicle ...............8Antenna, Satellite Radio
.....................386
Antifreeze (Engine Coolant) ..................579
Disposal ............................ .581
Anti-Lock Brake System (ABS) ................474
Anti-Lock Warning Light ....................322
Anti-Theft System ........................ .324
Appearance Care ........................ .589
Assistance Towing ........................ .152
Auto Down Power Windows ..................42
Automatic Dimming Mirror ..................125
Automatic Door Locks ......................34
Automatic Headlights ..................... .202
Automatic Temperature Control (ATC) ..........434
Automatic Transmission ....................456
Adding Fluid ........................ .589
Autostick ........................... .463
Fluid and Filter Changes .................589
Fluid Change ........................ .589
Fluid Level Check ..................... .587
640 INDEX

Fluid Type.......................... .587
Special Additives ...................... .588
Autostick .............................. .463
Auxiliary Electrical Outlet (Power Outlet) ........286
Auxiliary Power Outlet .....................286
Battery ................................ .568
Keyless Transmitter Replacement (RKE) ........25
Belts, Seat ...............................54
Blind Spot Monitoring ..................... .129
Body Mechanism Lubrication .................572
B-Pillar Location ......................... .489
Brake Assist System ...................... .475
Brake Control System, Electronic ..............473
Brake Fluid ............................ .584
Brake System ........................... .583
Anti-Lock (ABS) ...................... .474
Fluid Check .......................... .584
Master Cylinder ....................... .584Parking
............................. .471
Warning Light ........................ .321
Brake/Transmission Interlock .................455
Break-In Recommendations, New Vehicle ........111
Bulb Replacement ........................ .602
Bulbs, Light .............................116
Calibration, Compass ..................... .353
Camera, Rear ........................... .264
Capacities, Fluid ......................... .608
Caps, Filler Fuel ............................... .517
Oil (Engine) ......................... .566
Radiator (Coolant Pressure) ...............581
Carbon Monoxide Warning ..................113
Cargo Area Cover ........................ .300
Cargo Area Features ...................... .297
Cargo Compartment ...................... .297
Light .............................. .298
10
INDEX 641

Cargo Light............................ .298
Cargo Tie-Downs ........................ .301
Car Washes ............................ .590
Cellular Phone .......................... .433
Center High Mounted Stop Light ..............607
Certification Label ........................ .521
Chart, Tire Sizing ........................ .485
Check Engine Light (Malfunction Indicator Light). . . .561
Checking Your Vehicle For Safety ..............112
Checks, Safety ............................112
Child Restraint ............................86
Child Safety Locks .........................34
Clean Air Gasoline ....................... .513
Cleaning Wheels ............................. .591
Climate Control ......................... .434
Clock ................................. .364
Cold Weather Operation ....................451
Compact Disc (CD) Maintenance ..............433Compact Spare Tire
....................... .499
Compass .............................. .351
Compass Calibration ...................... .353
Compass Variance ........................ .352
Computer, Trip/Travel ..................... .344
Connector UCI ............................... .389
Universal Consumer Interface (UCI) .........389
Conserving Fuel ......................... .342
Console, Overhead ....................... .267
Contract, Service ......................... .633
Coolant Pressure Cap (Radiator Cap) ...........581
Cooling System .......................... .578
Adding Coolant (Antifreeze) ...............580
Coolant Capacity ...................... .608
Coolant Level ........................ .578
Disposal of Used Coolant .................581
Drain, Flush, and Refill ..................579
Inspection ........................... .582
642 INDEX

Tow Hooks.......................... .553
Emission Control System Maintenance ..........561
Engine ................................ .559
Air Cleaner .......................... .567
Break-In Recommendations ................111
Checking Oil Level .....................564
Compartment ........................ .559
Coolant (Antifreeze) .....................578
Cooling ............................. .578
Exhaust Gas Caution .....................49
Fails to Start ......................... .451
Flooded, Starting ...................... .451
Fuel Requirements ..................... .513
Jump Starting ........................ .548
Oil ................................ .564
Oil Change Interval .....................565
Oil Filler Cap ........................ .566
Oil Selection ......................... .565
Oil Synthetic ......................... .566Overheating
......................... .536
Starting ............................. .447
Temperature Gauge .....................324
Engine Oil Viscosity ...................... .566
Enhanced Accident Response Feature ............81
Entry System, Illuminated ....................21
Ethanol ............................... .514
Event Data Recorder ........................84
Exhaust Gas Caution ........................49
Exhaust System ...........................113
Exterior Lights ...........................116
Filters Air Cleaner .......................... .567
Air Conditioning ...................... .570
Engine Oil ........................... .567
Engine Oil Disposal .....................566
Flashers ............................... .536
Hazard Warning ...................... .536
644 INDEX
